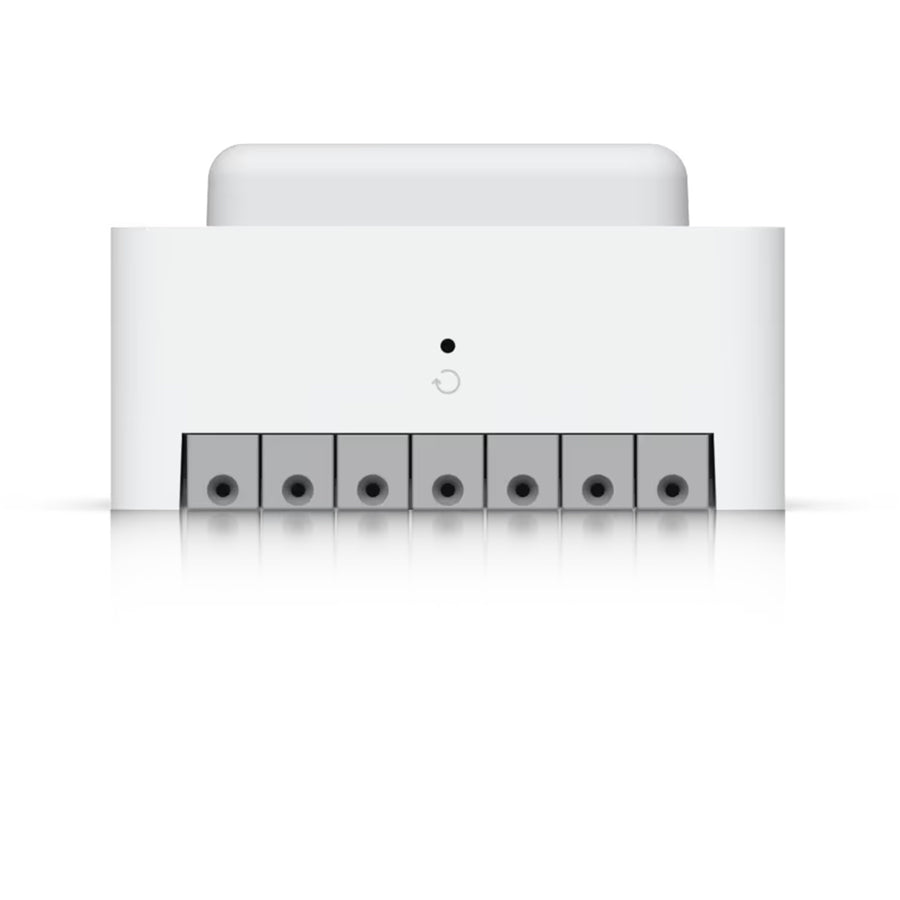

Ubiquiti UA-HUB - UniFi Access Hub - intelligent IP networked single door controller
$514.68
Free shipping over $299
Genuine product
7-day returns
Ubiquiti UA-HUB - UniFi Access Hub - intelligent IP networked single door controller
Features
Door Hub Mini
Compact Access Control Hub for a single door.

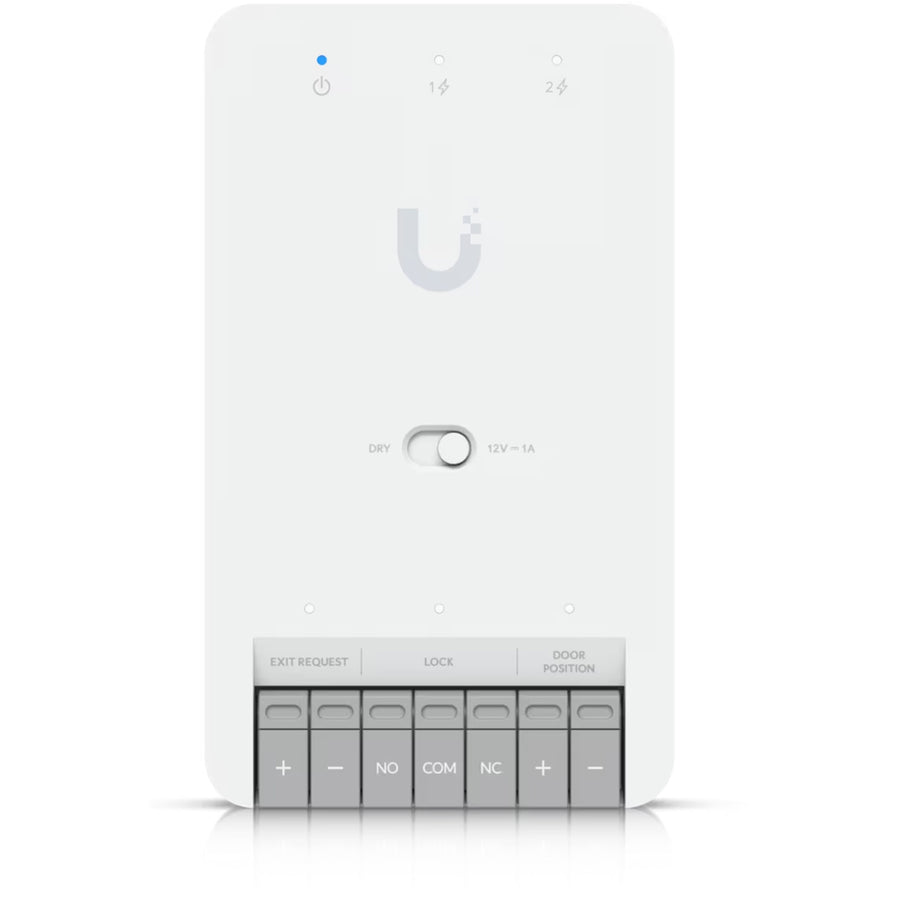

- (1) Lock terminal (12V and Dry switchable)
- (2) Additional inputs (sensor and button)
- Connect and power via PoE++
- Connect up to two UniFi Access Readers or Protect Cameras
Specifications
Technical Specifications

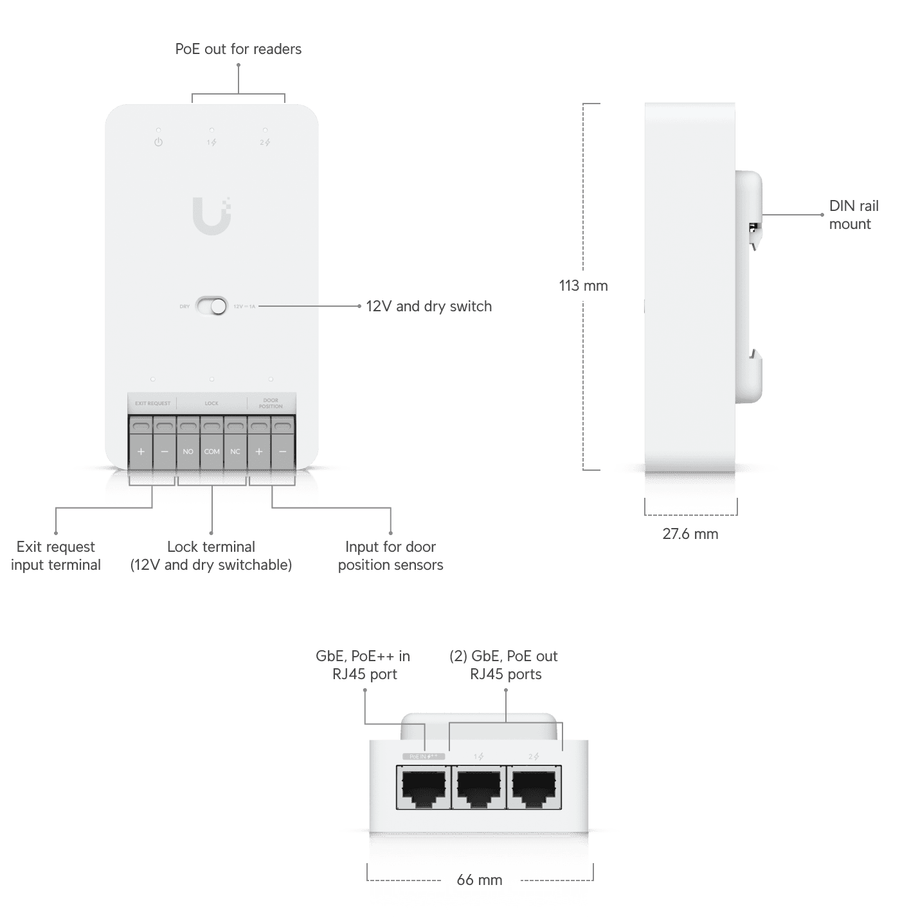

| Dimensions | 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1") |
|---|---|
| Weight | 190 g (6.7 oz) |
| Enclosure material | Polycarbonate, metal |

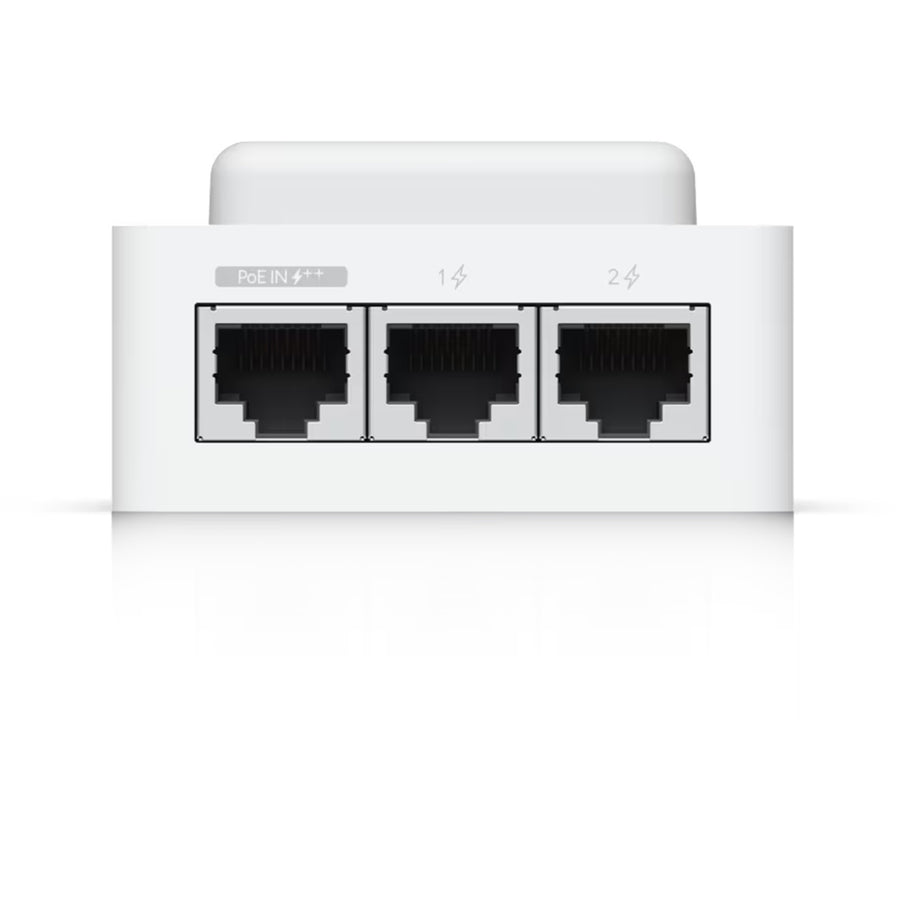

| Networking interface | (3) GbE RJ45 ports |
| Power method | PoE++ |
| Max. power consumption | Without PoE output: 19WWith PoE output: 50W |
| PoE input | 50V DC, 1A |
| PoE output | (2) PoE ports, total 31W |
| LEDs | White/blue |
| Button | (1) Factory-reset(1) Dry/Wet switch |
| Digital input | Request to exit/door position sensor |
| Output relay | Dry: 30V DC, 1AWet: 12V DC, 1A |
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable. |
| Operating environment | Indoor use only |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Software information | The software version of a product can be checked athttps://unifi.ui.com |
| Certifications | CE, FCC, IC |
| Document number, and issue date and/or revision level | UA-Hub-Door-Mini, V01 |
| Management application | UniFi Access: Version 2.5.2 and later |
