Ubiquiti
Ubiquiti UACC-Lock-Strike-Safe-8mm - UniFi Access Fail-Safe Strike Lock - 8mm
$233.99
Delivery estimate shown at checkout
Support from our New Zealand team
See return policy for eligibility
Features

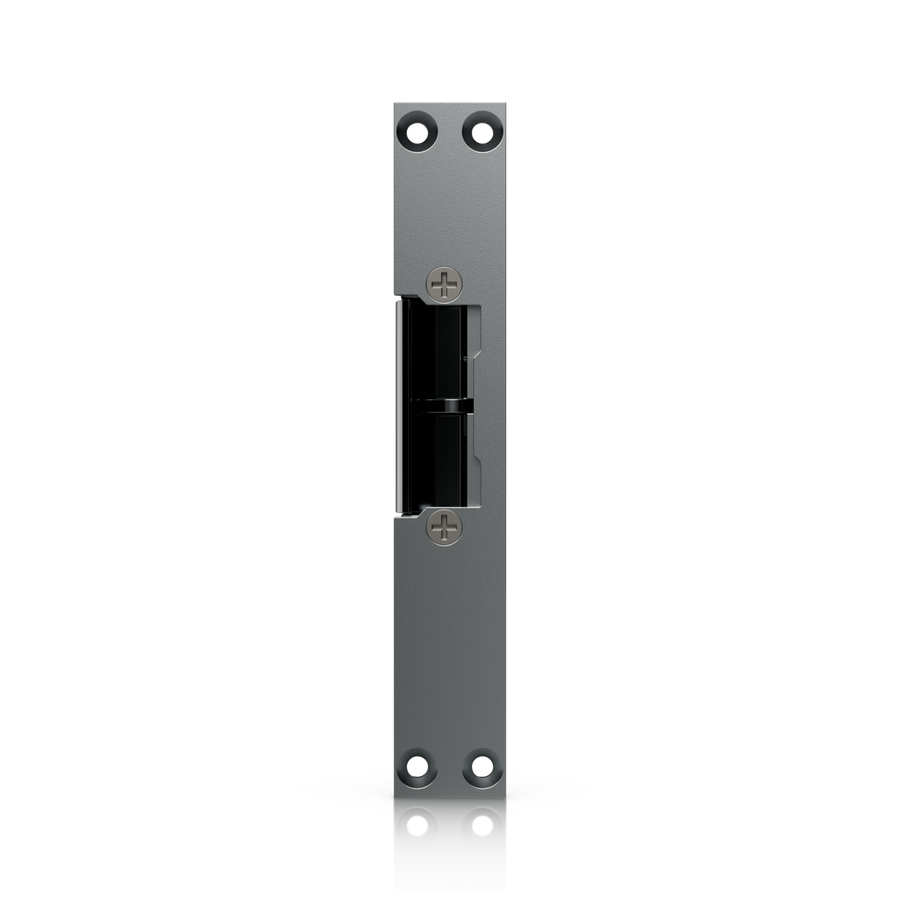

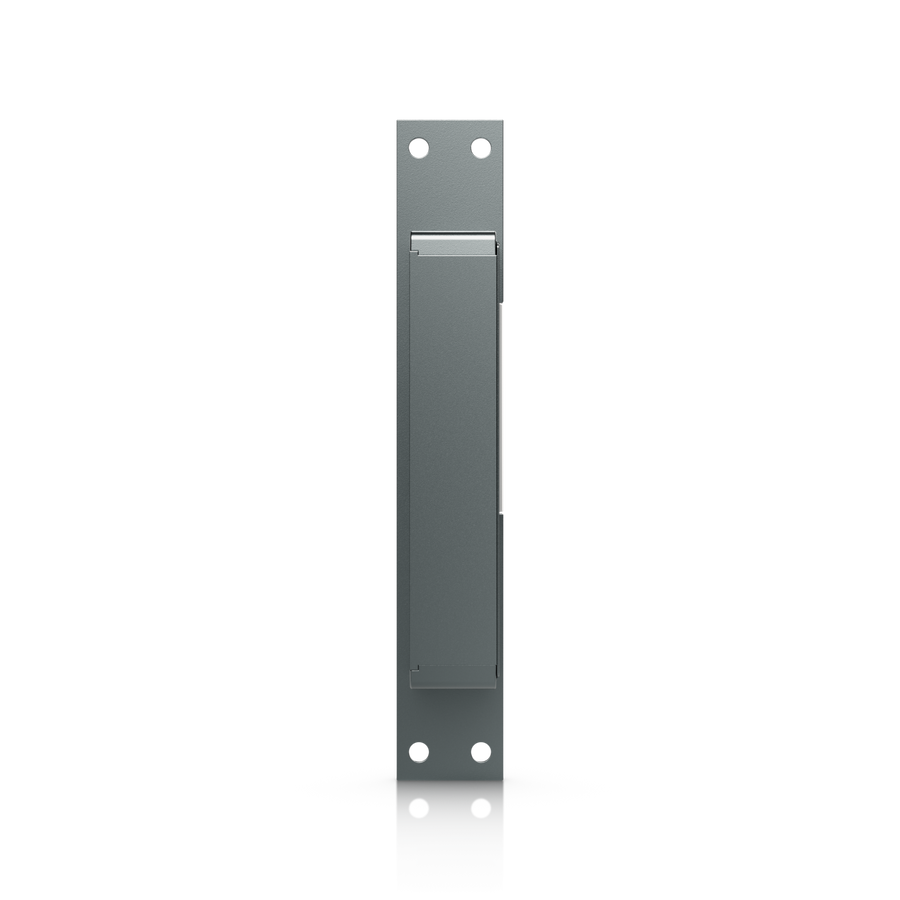

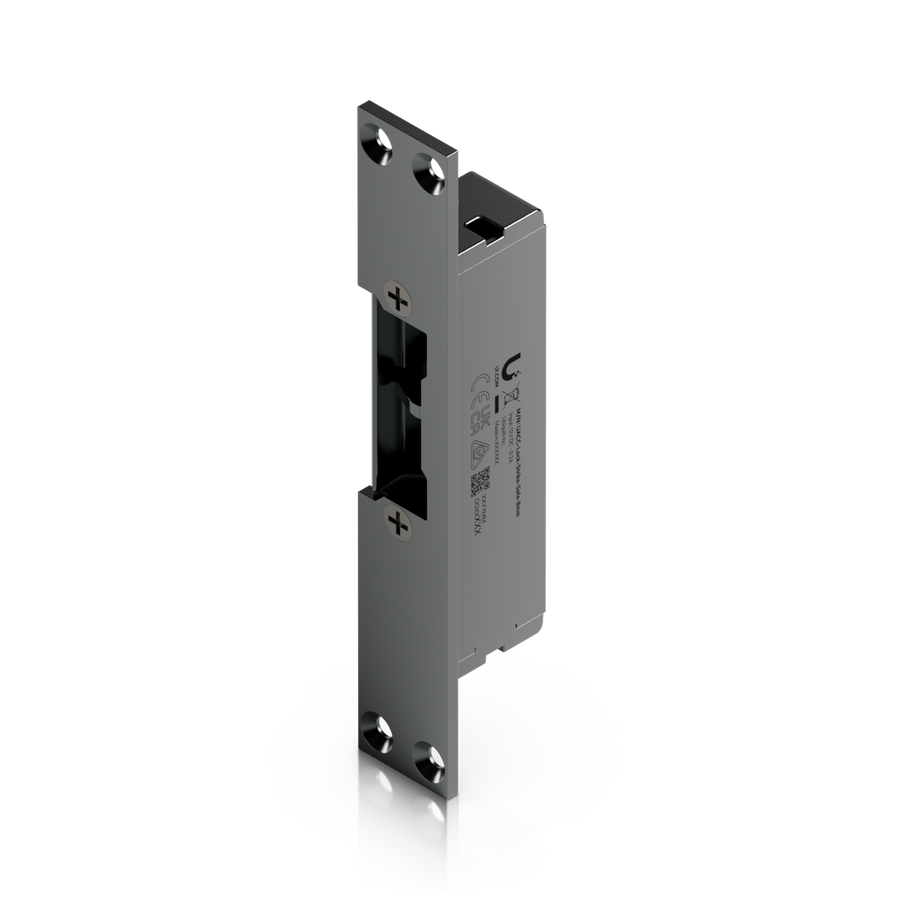

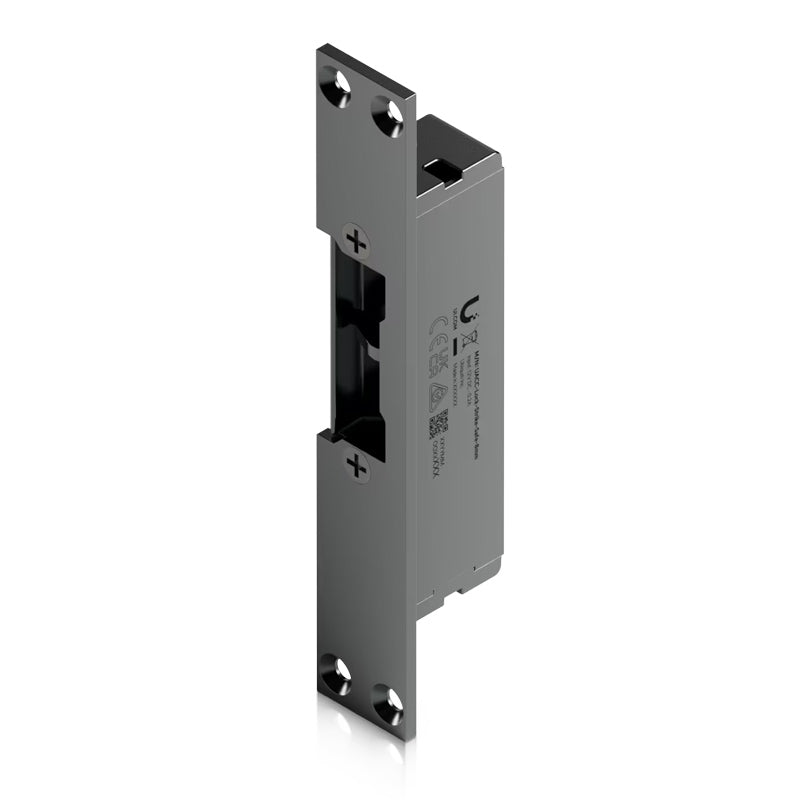

Ubiquiti UACC-Lock-Strike-Safe-8mm - UniFi Access Fail-Safe Strike Lock - 8mm
Ubiquiti UniFi Access Fail-Safe Strike Lock - 8mm, Fail-safe electric strike lock with 8 mm lock slot depth support.
FeaturesCompatibility: UA-Hub-Door, EAH-8, UA-Hub-Door-Mini, UA-Ultra, UA-Hub-GateFail-safe electric strike lock for access control systemsSupports single wooden and metal doorsHigh holding force of 227 kgIntegrated door status monitoring (DPS dry contact)Stainless steel front plate and zinc alloy lock bodyRecessed door-frame mounting design
Supplied new by KW Tech, New Zealand. Prices include GST.
Specifications
Technical Specifications
| Brand | Ubiquiti |
|---|---|
| Model | UACC-Lock-Strike-Safe-8mm |
| Manufacturer's Code | UACC-Lock-Strike-Safe-8mm |
| Compatibility | UA-Hub-Door, EAH-8, UA-Hub-Door-Mini, UA-Ultra, UA-Hub-Gate |
| Dimensions | Lock Body: 112 × 21 × 28 mm, Short Front Plate: 152 × 24.5 × 3 mm, Long Front Plate: 250 × 25 × 3 mm |
| Weight | Lock Body: 200 g,Short Front Plate: 62 g, Long Front Plate Weight: 97 g |
| Enclosure Material | Lock body: zinc alloy; Front plate/latches: stainless steel |
| Lock Type | Fail safe |
| Supported Door Type | Single door (Wooden/metal) |
| Holding Force | 227 kg (500 lb) |
| Current Power | 200 mA ±10% |
| Supported Voltage Range | 12V DC ±10% |
| Wiring | (1) Lock 12V/NC (red); (1) Lock 12V/COM (black); (1) DPS/- (white); (1) DPS/+ (orange) |
| Mounting | Door frame recess mount |
| Type | Dry contact |
| Logic | Door Open: DPS/+ & DPS/- = Open; Door Close: DPS/+ & DPS/- = Short |
| Rating | Max. 30V DC, 0.1A |
| Ambient Storage Temperature | -20 to 70°C |
| Ambient Operating Temperature | -10 to 60°C |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
| Lock Slot Depth Support | 8 mm |
| Brand | Ubiquiti |
|---|---|
| Product Type | Smart Home & Security > Security Systems > Access Control |
| Weight | 2.0 kg |
