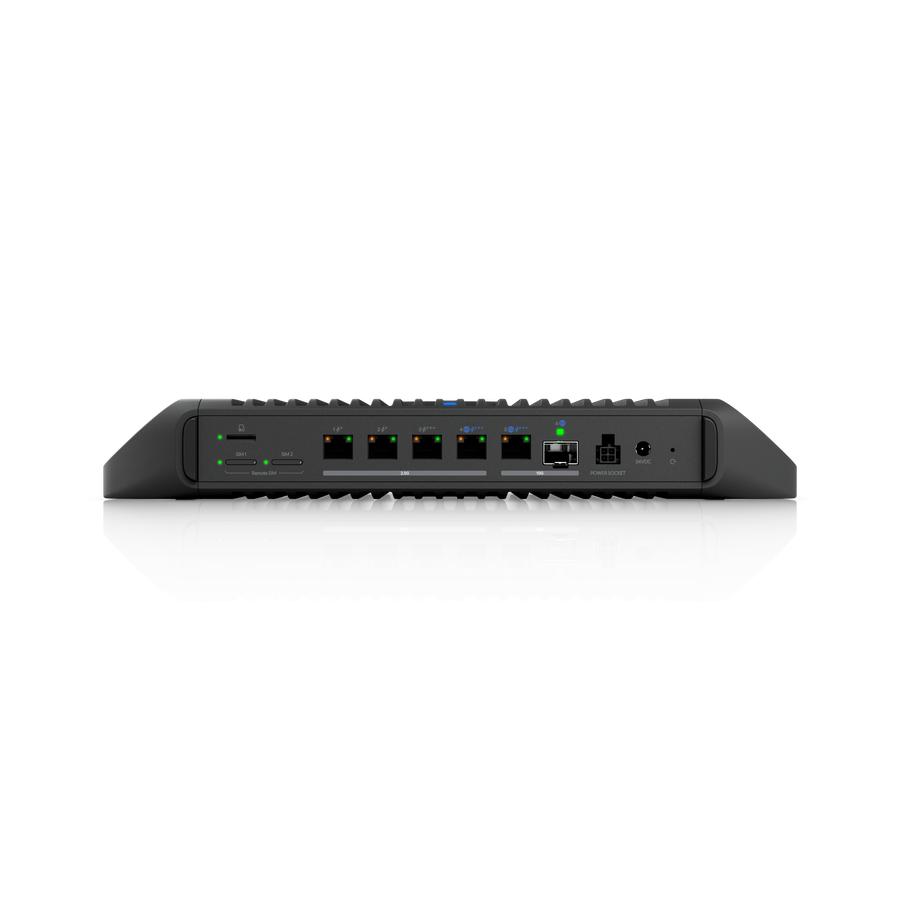

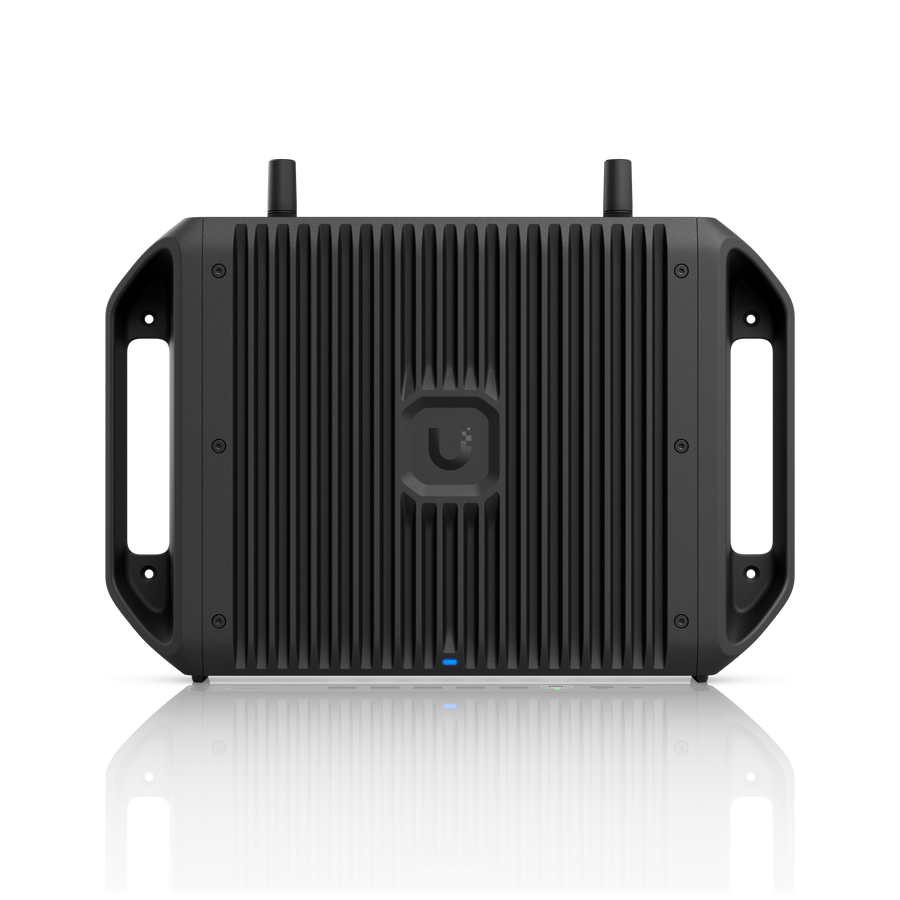

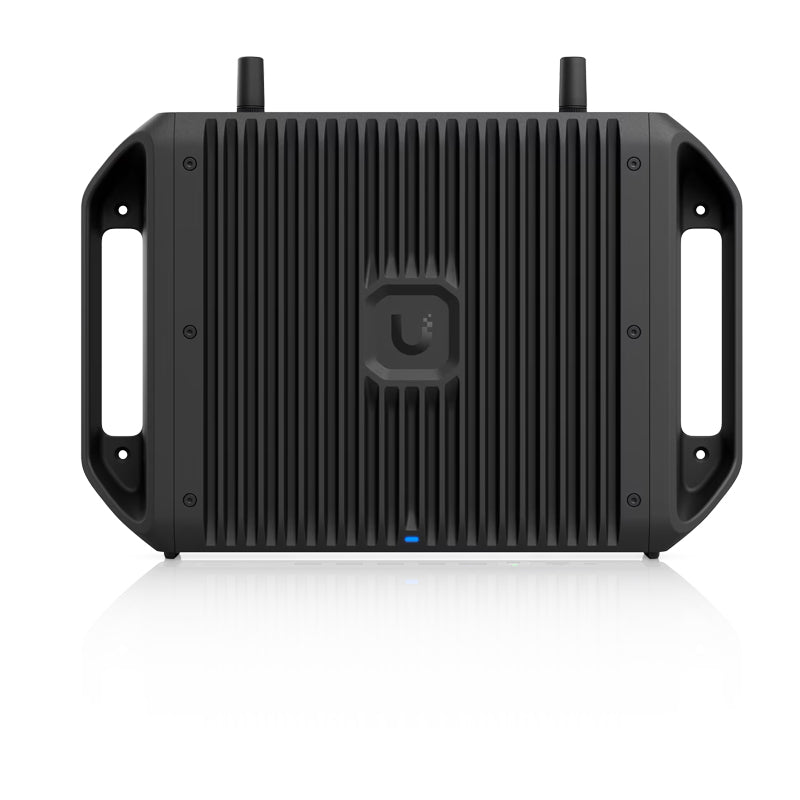

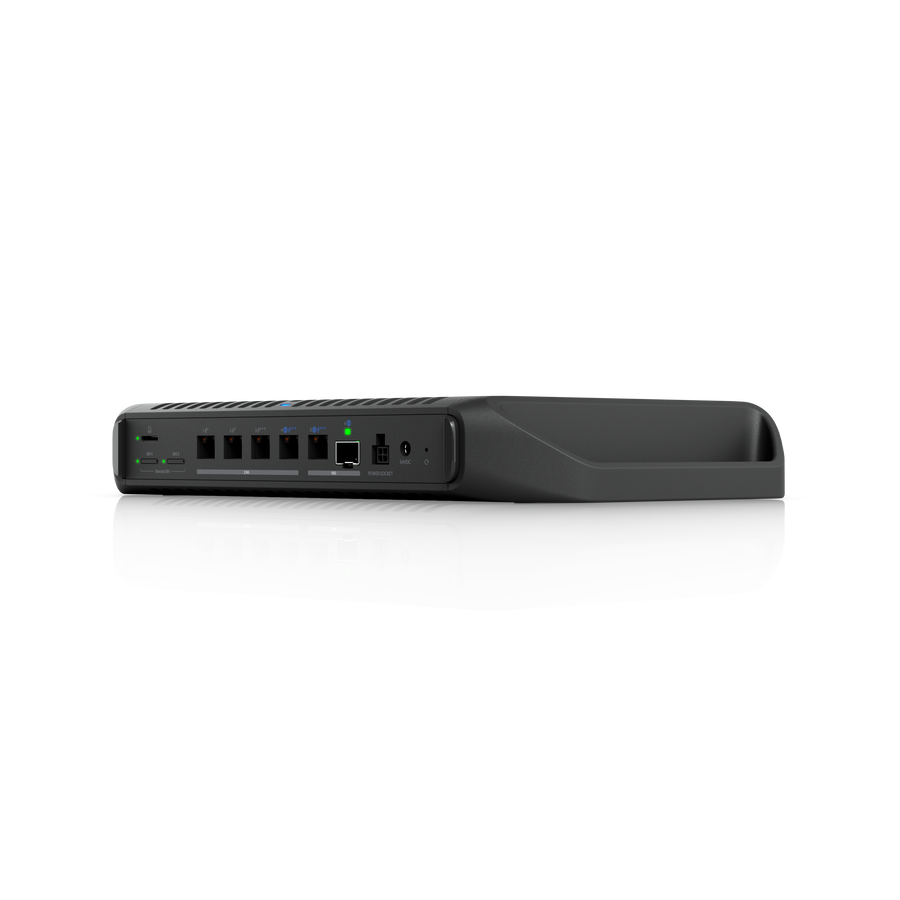

Ubiquiti UCG-Industrial - UniFi Cloud Gateway Industrial Ruggedized 10 Gbe Wi-Fi 7 with PoE+++
Features
Ubiquiti UCG-Industrial - UniFi Cloud Gateway Industrial Ruggedized 10 Gbe Wi-Fi 7 with PoE+++
The Ubiquiti UniFi Cloud Gateway Industrial is a ruggedized, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.
Note: *The onboard SIM slots are exclusively for Remote SIM integration with the UniFi 5G Max Outdoor.
Support coming soon via software update.
FeaturesFull UniFi Suite Support, runs the full UniFi application suite with support for 50+ managed UniFi devices and 500+ simultaneously connected usersMulti-WAN and SLA Ready, utilize up to 5 WAN ports with intelligent failover, traffic distribution and performance monitoringIntegrated 10G Connectivity, support demanding clients and high-bandwidth applications with integrated 10G ports (10G SFP+ and 10 GbE RJ45)Dual-Radio WiFi 7 Dual-radio 2.4/5 GHz with 4 spatial streams and external antennas for reliable coverage5 Gbps IDS/IPS Throughput, identify and block threats in real time, both inbound and outbound, with 5 Gbps IDS/IPS performance
Supplied new by KW Tech, New Zealand. Prices include GST.
Specifications
Technical Specifications
| Brand | Ubiquiti |
|---|---|
| Model | UCG-Industrial |
| Manufacturer's Code | UCG-Industrial |
| Device Dimensions | 307.9 × 203.5 × 43.7 mm |
| Table Stand Dimensions | 203.5 × 100.2 × 21.9 mm |
| UniFi Application Suite | UniFi Network, UniFi Protect, UniFi Access, UniFi Talk, UniFi Connect |
| Managed UniFi Devices | 50+ |
| Managed Cameras | 15 HD; 8 2K; 5 4K |
| Managed Access Hubs | 50 |
| Simultaneous Users Connected | 500+ |
| Max WAN Port Count | 5 |
| Default WAN Ports | (1) 10G SFP+; (1) 10 GbE RJ45; (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 Ports | 4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M) |
| 10 GbE RJ45 Ports | 1 (PoE+++) (10G/5G/2.5G/1G/100M) |
| 10G SFP+ Ports | 1 (10G/1G) |
| IDS/IPS Throughput | 5 Gbps |
| Form Factor | Wall-mounted; Compact desktop (Table stand included); Rack mount (Accessory sold separately) |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Coverage Area Wireless | 115 m² (1,250 ft²) |
| Throughput | 5 GHz: 4.3 Gbps, 2.4 GHz: 688 Mbps |
| Antenna Gain 5 GHz | Stub antenna: 5 dBi, Terminal (Omni) antenna: 6 dBi |
| Antenna Gain 2.4 GHz | Stub antenna: 3 dBi, Terminal (Omni) antenna: 6 dBi |
| Max. TX Power | 5 GHz: 26 dBm, 2.4 GHz: 23 dBm |
| NVR Storage | Pre-installed 128 GB microSD for NVR |
| Expansion Slot | MicroSD Card |
| PoE Budget | DC input: 270W, ATX power: 75W |
| Max. PoE Wattage per Port by PSE | PoE+: 30W, PoE+++: 90W |
| Voltage Range PoE Mode | 50-57V |
| Max. Power Consumption | 28W (Excluding PoE output) |
| Power Method | (1) DC Input (350W PSU), (1) ATX power (48V) |
| Power Supply | 54V DC, 350W (Adapter included), ATX power (48V) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 95 BTU/hr (Excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 3 GB |
| Weight | Device: 2.4 kg, Table stand: 321 g |
| Enclosure Material | Device: Polycarbonate, aluminium alloy, Table stand: Polycarbonate, galvanized steel, silicone rubber |
| Management | Ethernet, Bluetooth |
| LEDs | Ethernet, SFP+, System, MicroSD, SIM |
| Button | (1) Factory reset, (2) Handle release buttons |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -30 to 50° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Application Requirements | Mobile App: UniFi iOS™: Version 10.32.0 and later, UniFi Android™: Version 10.35.0 and later |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking > Routers |
| Weight | 2.0 kg |
