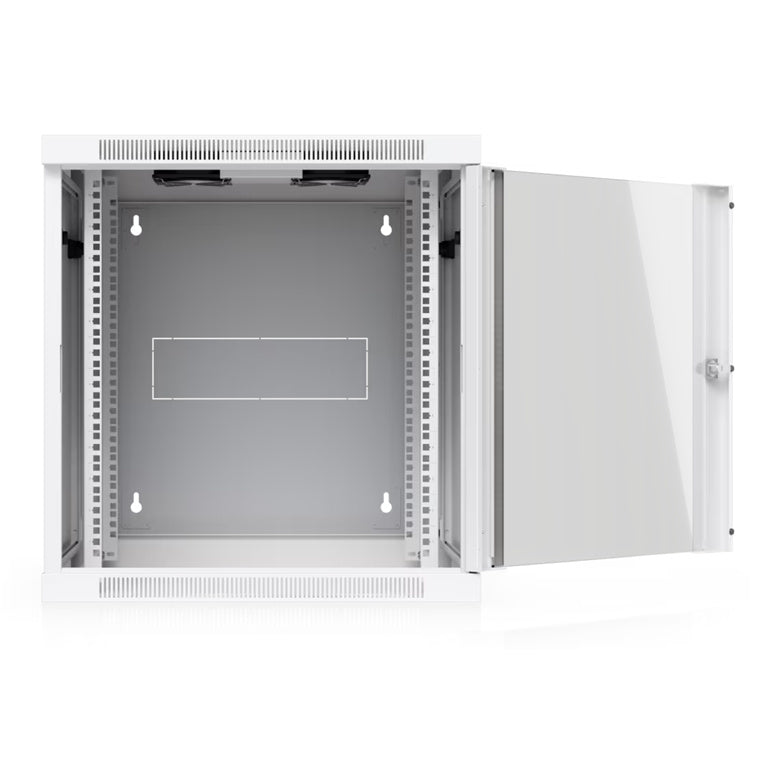

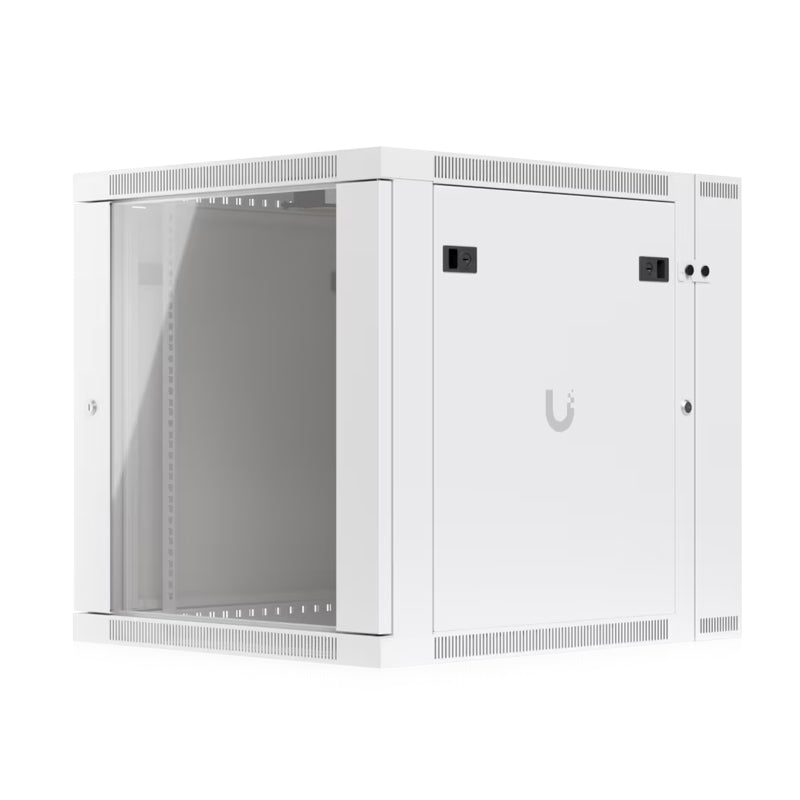

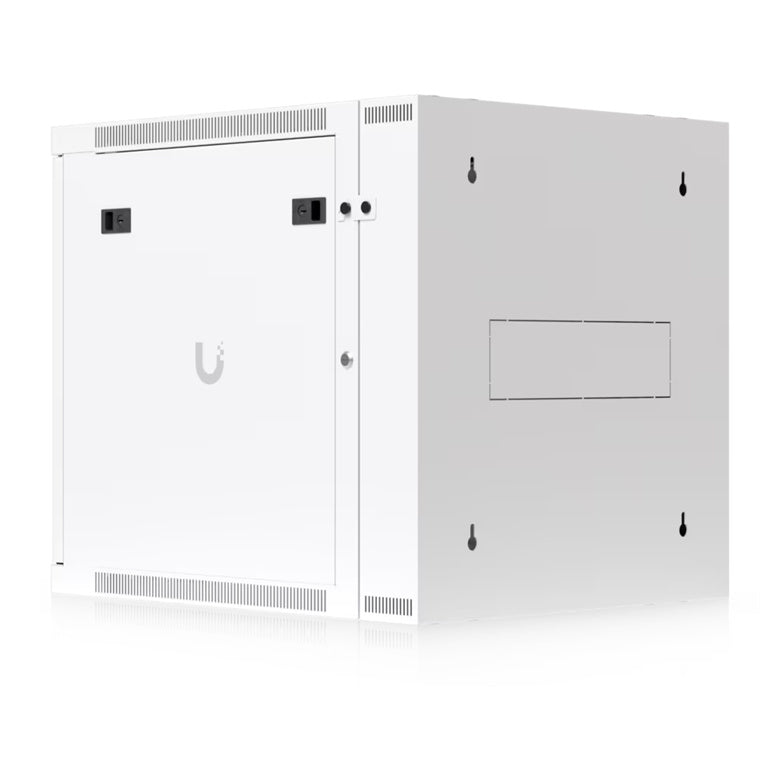

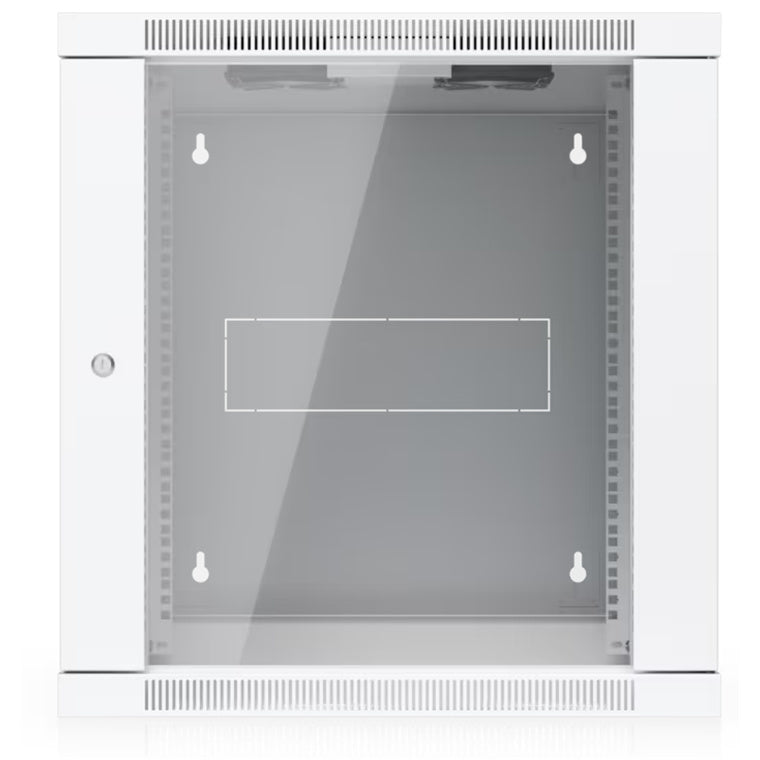

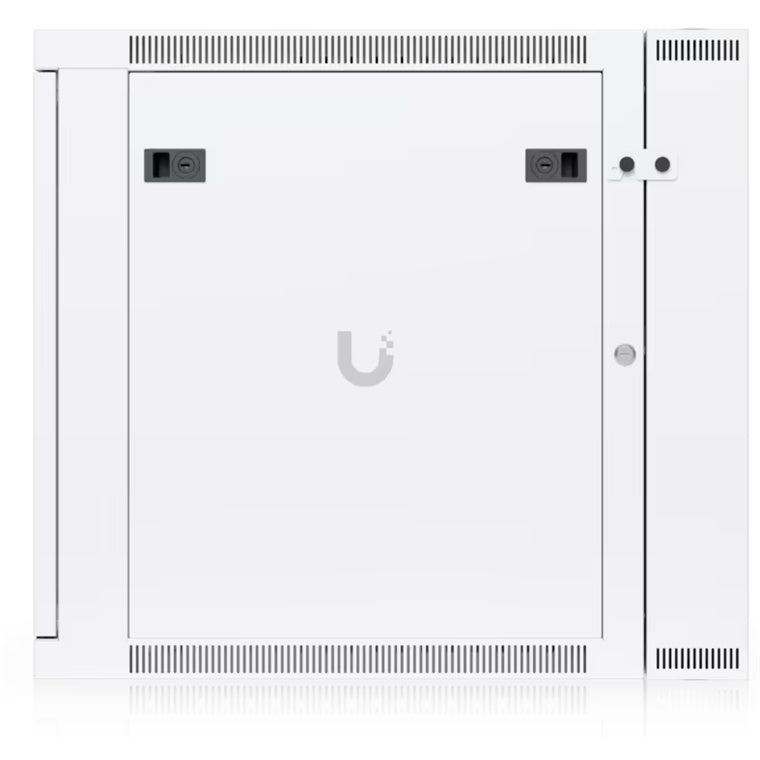

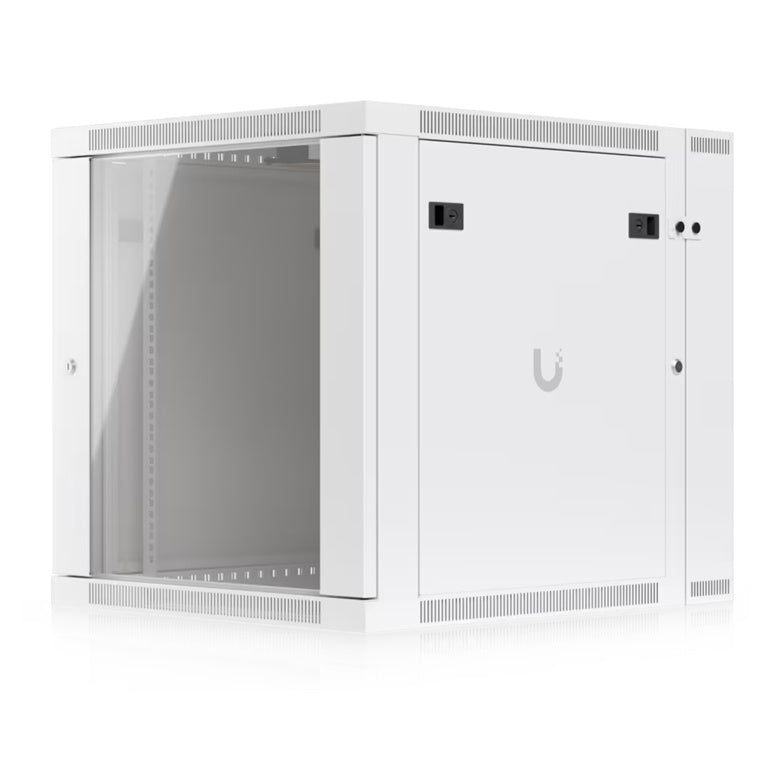

Ubiquiti UniFi 12U Swing-out Rack Cabinet with Tempered Glass Door

Ubiquiti

Ubiquiti UniFi 12U Swing-out Rack Cabinet with Tempered Glass Door

Name: Ubiquiti UniFi 12U Swing-out Rack Cabinet with Tempered Glass Door
Brand: Ubiquiti
SKU: UACC-RACK-12U-WALL-SW-G
Price: 1041.85 NZD
Availability: InStock

SKU: UACC-RACK-12U-WALL-SW-G ● In Stock

$905.96

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

Fully assembled wall-mount rack with built-in fans and removable panels, engineered for easy equipment access and space-efficient small-scale deployments.

Dimensions

In The Box

Specifications

Technical Specifications

Dimensions	Packaging: 725 x 840 x 735 mm (28.5 x 33.1 x 28.9")Rack: 600 x 703 x 639 mm (23.6 x 27.7 x 25.2")
Weight	Packaging: 35.3 kg (77.8 lb)Rack: 29.4 kg (64.8 lb)
Enclosure Material	SPCC steelDoor/side panels: 1.2 mm (0.05")Main body: 1.2 mm (0.05")Posts: 2 mm (0.08")
Color	White
Treatment	Powder coating
Compatibility	UACC-Rack-Shelf-CLV, UACC-Rack-PM-Kit
U Height	12U
Rack Type	4 post, enclosed cabinet
Mounting Hole Type	Square
Adjustable Mounting Depth	Default 434 mm (17.1")Max. 559 mm (22")Adjustable pitch 25 mm (1")
Max. Weight Capacity	80 kg (176 lb)
Front Door	Tempered glassDefault left-hand outswing, reversible
Rear Door	SolidSwing-out
Side Panels	(2) Solid, removable and lockable
Mounting	Wall mount
Fan Module	Yes
Acoustic Noise	≤ 50 dB(A) sound pressure level
Grounding Lugs	Yes
Cable Entry Opening	(1) Rear wall: 350 x 100 mm (13.8 x 3.9")(2) Top: 235 x 62 mm (9.3 x 2.4")(4) Top knockout: 35 mm (1.4")(1) Bottom: 235 x 62 mm (9.3 x 2.4")(4) Bottom knockout: 35 mm (1.4")
Security	(1) Front door lock(1) Swing out door lock(4) Side panel locks(2) Keys
Standard	CE; EIA/ECA-310-E; RoHS
NDAA Compliant	Yes
