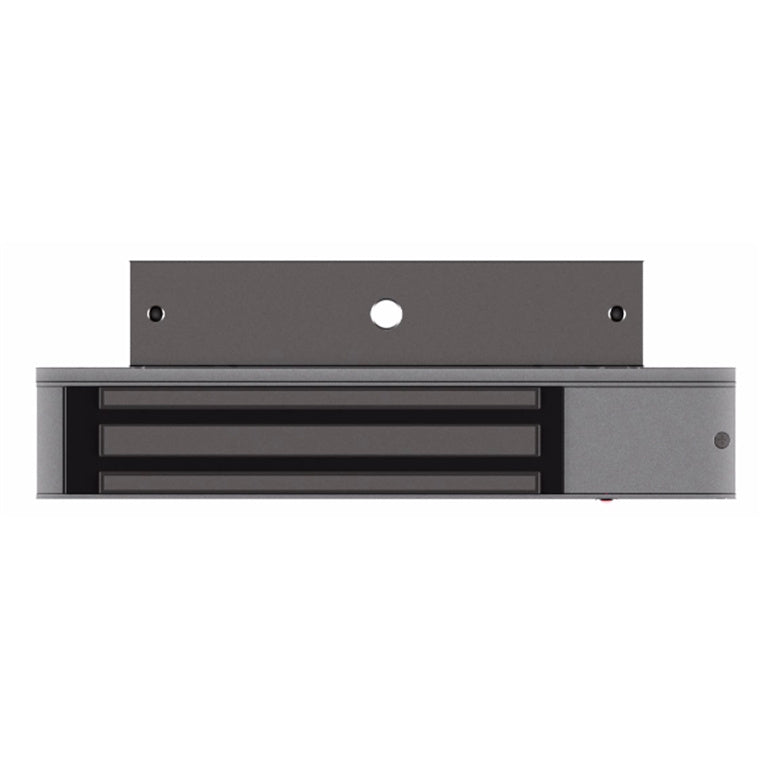

Ubiquiti UniFi Access Fail-Safe Magnetic Lock (Holds up to 270 kg)

Name: Ubiquiti UniFi Access Fail-Safe Magnetic Lock (Holds up to 270 kg)
Brand: Ubiquiti
SKU: UA-Lock-Magnetic-270kg
Price: 378.24 NZD
Availability: InStock

SKU: UA-Lock-Magnetic-270kg ● In Stock

$378.24 ~~$385.95~~

Free shipping over $299 Genuine product 7-day returns

Features

Ubiquiti UniFi Access Fail-Safe Magnetic Lock

Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.

- Holds up to 270 kg
- Can be installed on a wide variety of door types* (all types including full glass)

Specifications

Technical Specifications

Brand	Ubiquiti
MPN	UA-Lock-Magnetic-270kg
Device/brackets	Aluminum
Armature	Steel
Lock body	250 x 42.5 x 26 mm(9.8 x 1.7 x 1" )
Install plate	250 x 25x 5 mm (9.8 x 1 x 0.2" )
Armature	185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4")
Lock body	1 kg (2.2 lb)
Install plate	70 g (0.15 lb)
Armature	600 g (1.3 lb)
Voltage	12V DC
Current power	800mA ±10%
Wiring connection	Connect below terminals to UA-Hub:Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub)Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub)DPS/+ (DPS+ on UA-Hub)DPS/-(DPS-onUA-Hub)
Lock type	Fail safe lockSingle door
Holding force	270 kg (600 lb)
LED	Green: unlockedRed: locked
Suitability	Wooden/metal/glass door
Mounting accessories	L bracket : door thickness < 42 mm (< 1.7"), outward opening doorZ bracket: used with L bracket for inward opening doorU bracket: used with glass door
Ambient operating temperature	-10 to 50° C (14 to 122° F)
Ambient operating humidity	5 to 90% noncondensing
Certifications	FCC, IC, CE
