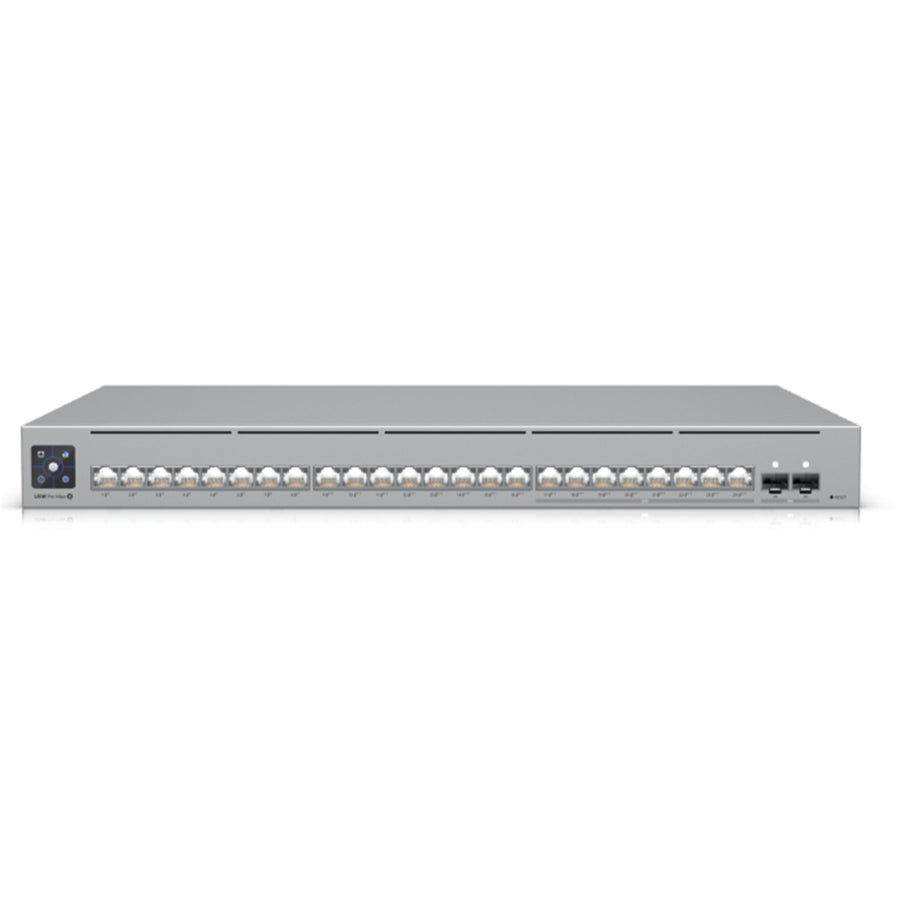

Ubiquiti UniFi Pro Max 24 PoE Switch with Etherlighting
$1,887.24
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (8) 2.5 GbE PoE++ ports
- (16) GbE ports including (8) PoE+ and (8) PoE++
- (2) 10G SFP+ ports
- DC power backup ready
- 400W total PoE availability
- Managed with UniFi Network 8.0.24 and later
Specifications
Technical Specifications
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
|---|---|
| Weight | Without mounting brackets: 5.1 kg (11.3 lb)With mounting brackets: 5.2 kg (11.5 lb) |
| Enclosure material | SGCC steel |
| Management interface | Ethernet In-Band |
| Networking interface | (16) GbE RJ45 ports(8) 1/2.5 GbE RJ45 ports(2) 10G SFP+ ports |
| PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 56 Gbps |
| Switching capacity | 112 Gbps |
| Power method | (1) Universal input, 100-240V AC, 50/60 Hz(1) USP-RPS DC input |
| Power supply | AC/DC, internal, 450W |
| Supported voltage range | 100-240V AC |
| Max. power consumption | 50W (Excluding PoE output) |
| Total available PoE | 400W |
| Max. PoE wattage per port by PSE | PoE: 15.4WPoE+: 30WPoE++: 60W |
| Voltage range PoE mode | PoE: 44-57VPoE+: 50-57V |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Layer 2 features | IGMP snoopingSTP / RSTP with priorities and port-level disablePort isolationStorm controlVoice VLANPort mirroringLACP port aggregationMulticast / broadcast rate limitingMAC address blockingFlow control802.1X controlJumbo framesProprietary loop protectionDHCP snooping / guardingEgress rate limitLLDP-MEDPort restricted by MACDevice isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networksDHCP relayInter-VLAN routing between networks on same switchStatic routing between local networksNetwork isolation with ACLs |
| Ethernet | LocatingSpeed/linkNative VLAN/network |
| SFP+ | LocatingSpeed/linkNative VLAN/network |
| System | Status |
| RPS | Status |
| UniFi Network | Version 8.0.24 and later |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.5 kg |
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
You May Also Like
Ubiquiti

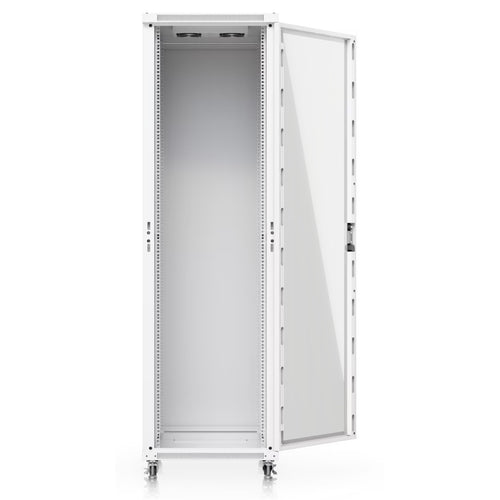

Ubiquiti UniFi 42U Rack Cabinet 800mm Deep with Tempered Glass Door
