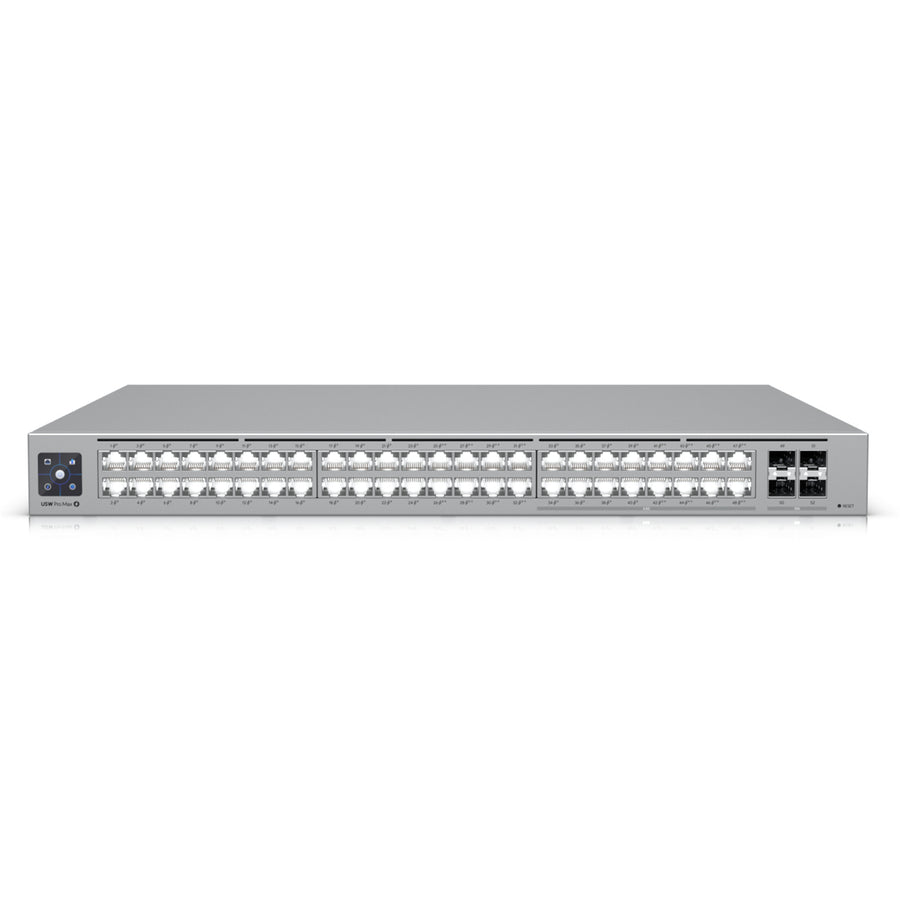

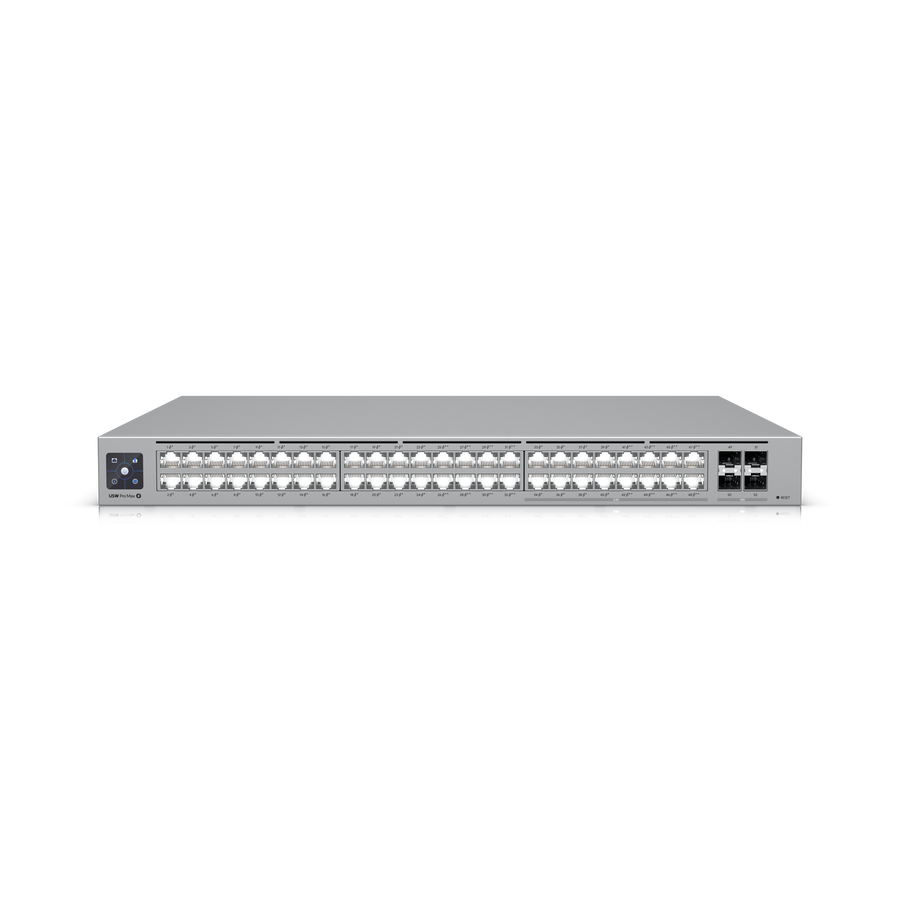

Ubiquiti UniFi Pro Max 48 PoE Switch with Etherlighting
Ubiquiti UniFi Pro Max 48 PoE Switch with Etherlighting
Ubiquiti UniFi Pro Max 48 PoE Switch with Etherlighting
Ubiquiti

Ubiquiti UniFi Pro Max 48 PoE Switch with Etherlighting

SKU: USW-PRO-MAX-48-POE ● In Stock
$3,184.50
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

- (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++

- (32) GbE ports including (24) PoE+ and (8) PoE++

- (4) 10G SFP+ ports

- DC power backup ready

- 720W total PoE availability

- Managed with UniFi Network 8.0.24 and later

Specifications

Technical Specifications

Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight Without mounting brackets: 6.2 kg (13.7 lb)With mounting brackets: 6.3 kg (13.9 lb)
Enclosure material SGCC steel
Management interface Ethernet In-Band
Networking interface (32) GbE RJ45 ports(16) 1/2.5 GbE RJ45 ports(4) 10G SFP+ ports
PoE interface (32) PoE/PoE+ (Pins 1, 2+; 3, 6-)(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 112 Gbps
Switching capacity 224 Gbps
Power method (1) Universal input, 100-240V AC, 50/60 Hz(1) USP-RPS DC input
Power supply AC/DC, internal, 820W
Supported voltage range 100-240V AC
Max. power consumption 100W (Excluding PoE output)
Total available PoE 720W
Max. PoE wattage per port by PSE PoE: 15.4WPoE+: 30WPoE++: 60W
Voltage range PoE mode PoE: 44-57VPoE+: 50-57V
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Ethernet LocatingSpeed/linkNative VLAN/network
SFP+ LocatingSpeed/linkNative VLAN/network
System Status
RPS Status
UniFi Network Version 8.0.24 and later

You May Also Like

RF VENUE

RF VENUE LOW PROFILE DIVERSITY ARCHITECTURAL ANTENNA BLACK

$2,010.27
inc GST ▲ +GST
JBL PROFESSIONAL

JBL PROFESSIONAL U-MOUNT WALL BRACKET FOR EON700

$345.13
inc GST ▲ +GST
Cambium Networks

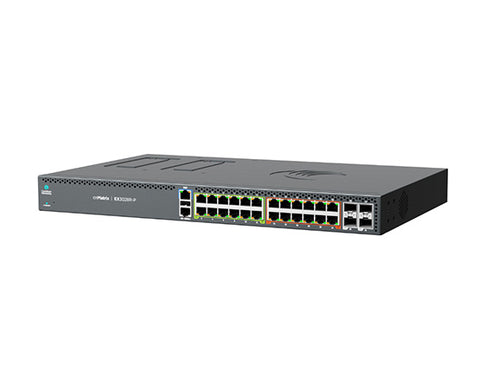

Cambium Networks Cambium cnMatrix EX3028R-P, Intelligent Ethernet Switch, 24 1G(12 PoE+ ports and 12 4PPoE ports(60W)) and 4 SFP+ ports, Dual/Removeable power supplies (not included)

$3,331.12
inc GST ▲ +GST
Ubiquiti

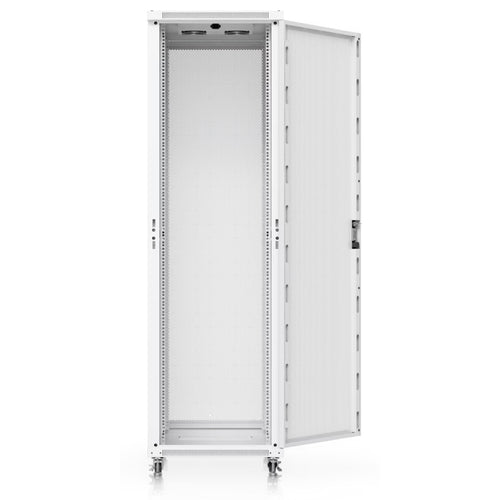

Ubiquiti UniFi 42U Rack Cabinet 800mm Deep with Perforated Door

$2,087.50
inc GST ▲ +GST
Ubiquiti

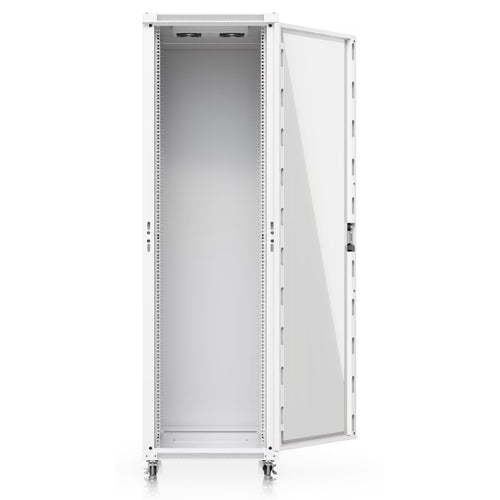

Ubiquiti UniFi 42U Rack Cabinet 800mm Deep with Tempered Glass Door
