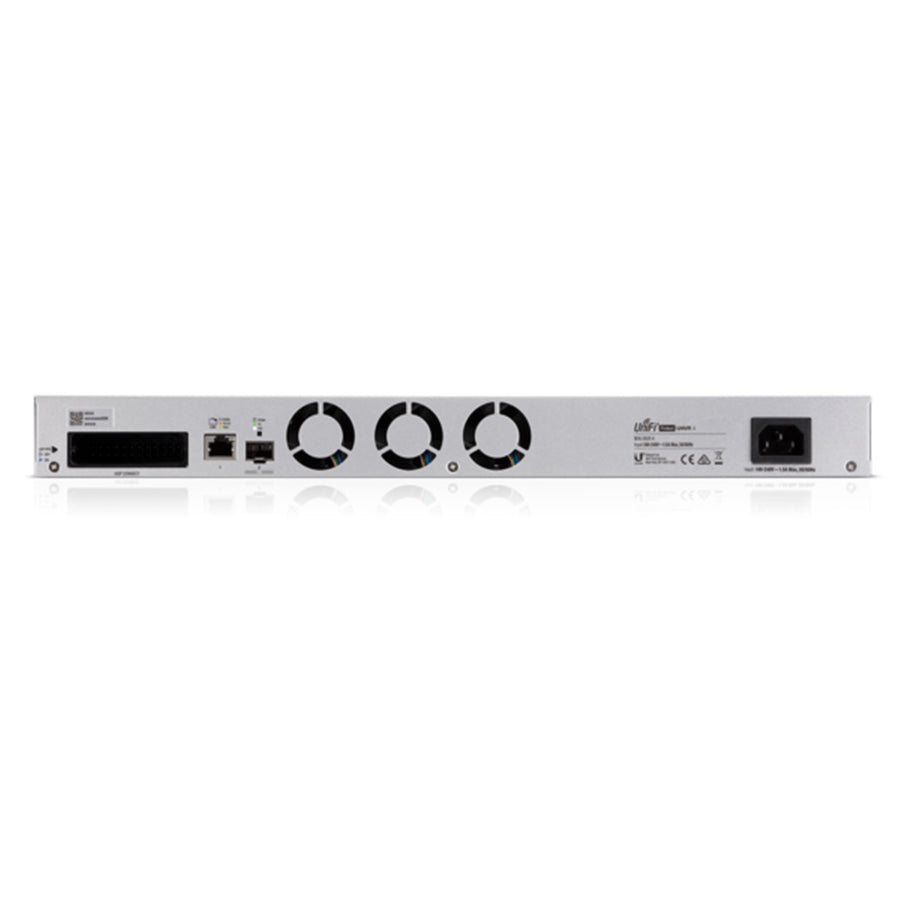

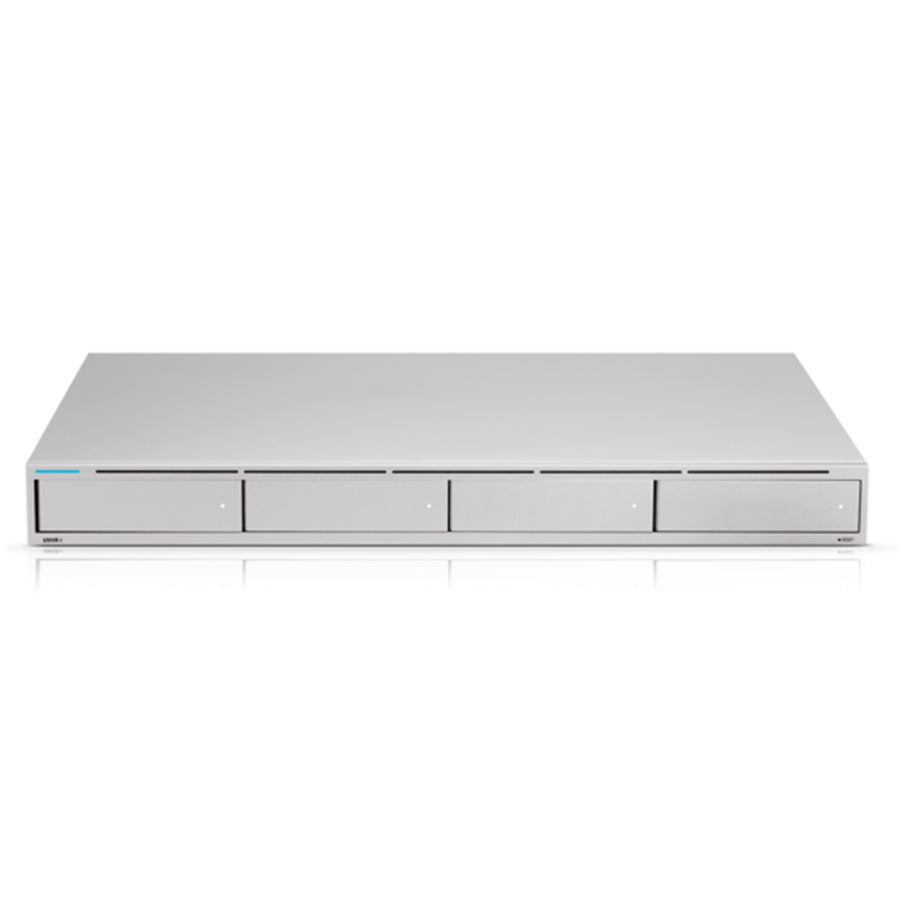

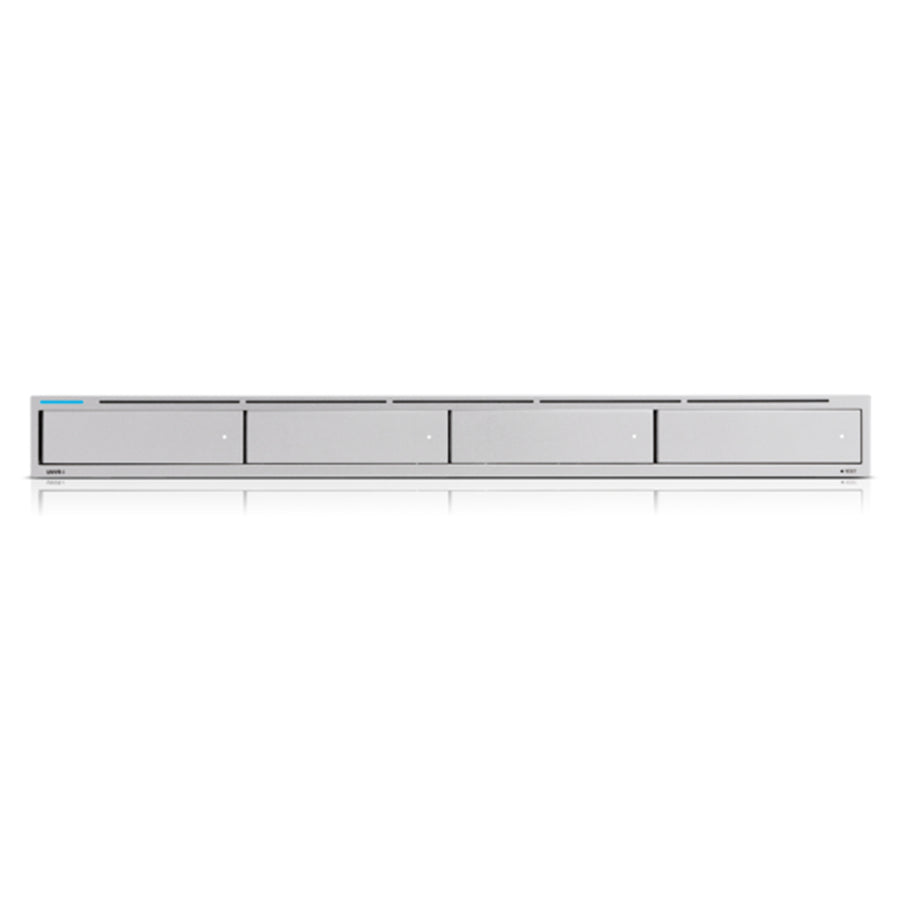

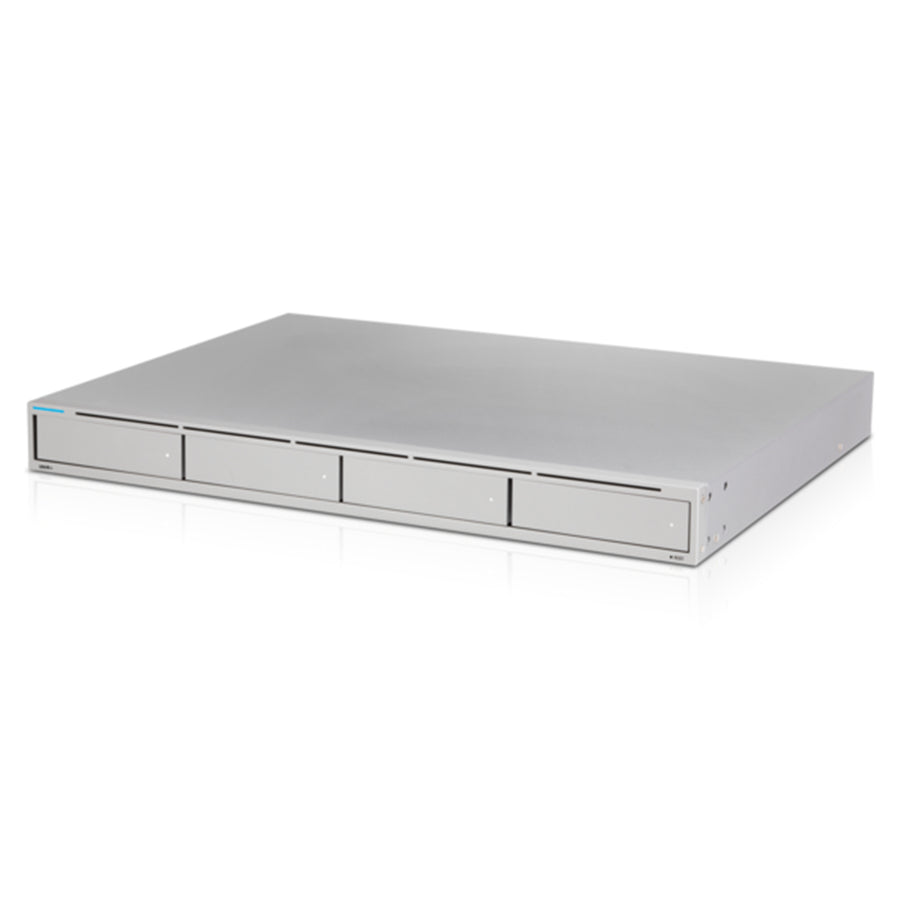

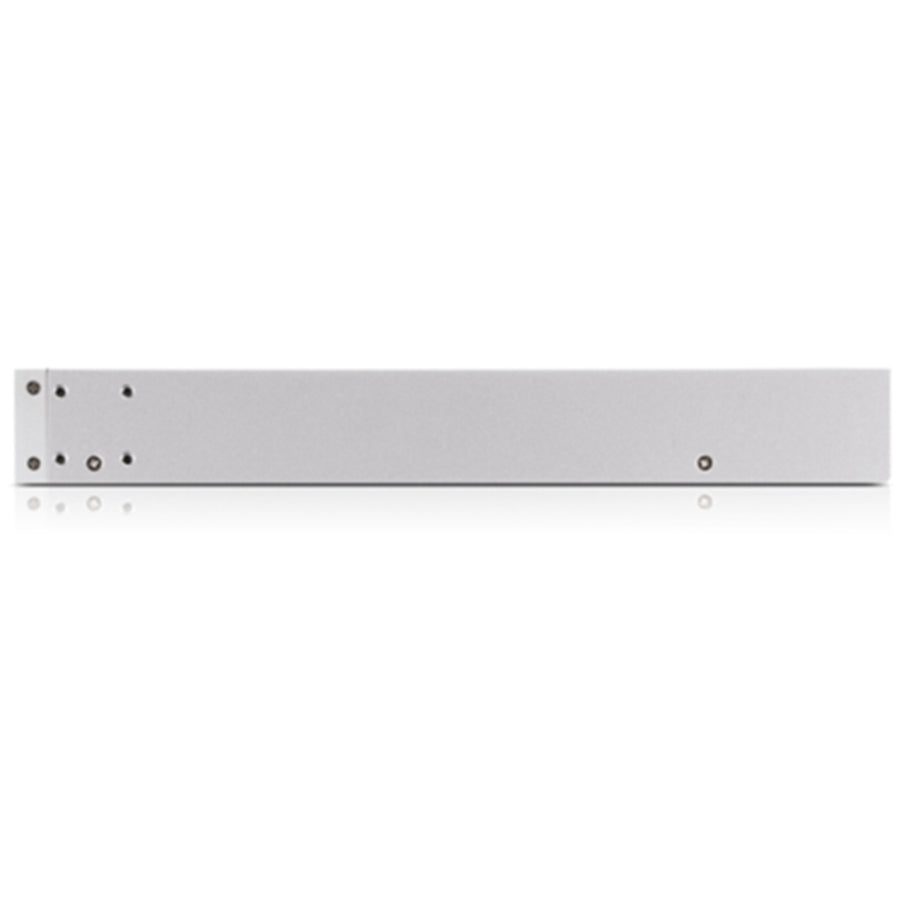

Ubiquiti UniFi Protect UNVR 4K 1U 4-Bay NVR
Features
Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras
The UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.
- (4) 2.5"/3.5" Drive bays
- (1) 10G SFP+ port
- (1) Gigabit RJ45 port
- 1U rackmountable (kit included)
- Plug and Play UniFi Protect system with NVR
- Automated secure RAID 1 or RAID 5 configuration
- Supports USP-RPS for PSU failover
Specifications
Technical Specifications
| Dimensions | 442.4 x 325 x 43.7 mm(17.4 x 12.8 x 1.7") |
|---|---|
| Without Rackmount Brackets | 5.11 kg (11.27 lb) |
| With Rackmount Brackets | 5.20 kg (11.46 lb) |
| Enclosure Characteristics | SGCC Steel |
| Processor | Quad-Core ARM Cortex-A57 at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| On-Board Flash Storage | SPI NOR 32 MB, USB Flash 8 GB |
| Max. Power Consumption | 100W |
| Max. Power Budget for Drives | 75W |
| Power Method | (1) Universal AC Input(1) RPS DC Input |
| Power Supply | 100-240VAC, 50/60 Hz, 2A |
| Networking Interfaces | (1) 10/100/1000 Mbps RJ45 Ethernet(1) 1/10 Gbps SFP+ Ethernet |
| Management Interface | Ethernet In-Band Management |
| ESD/EMP Protection | Air: ± 12kV, Contact: ± 8kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 - 95% Noncondensing |
| Brand | Ubiquiti |
|---|---|
| Product Type | Smart Home & Security |
