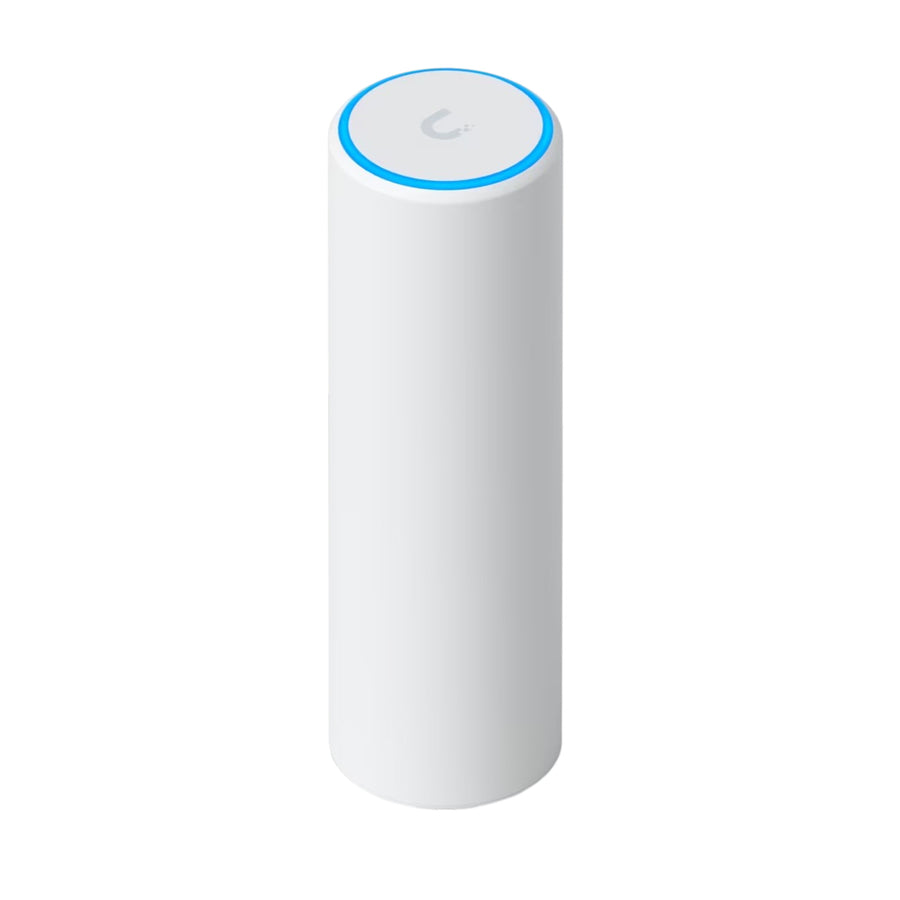

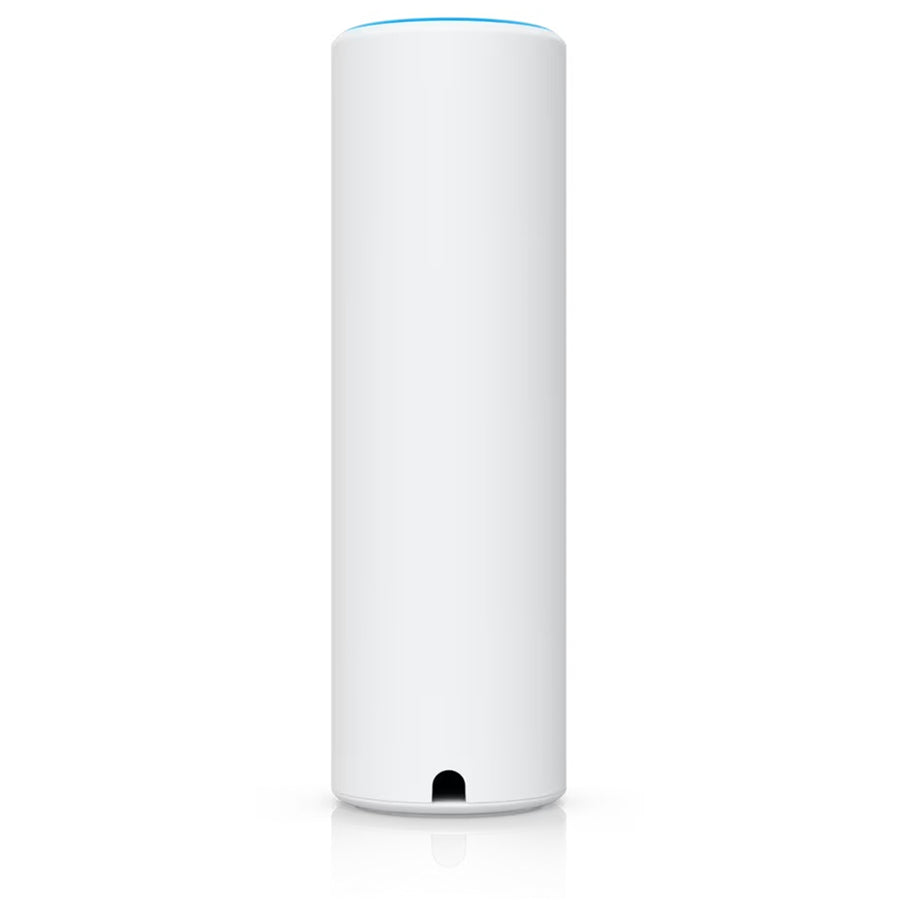

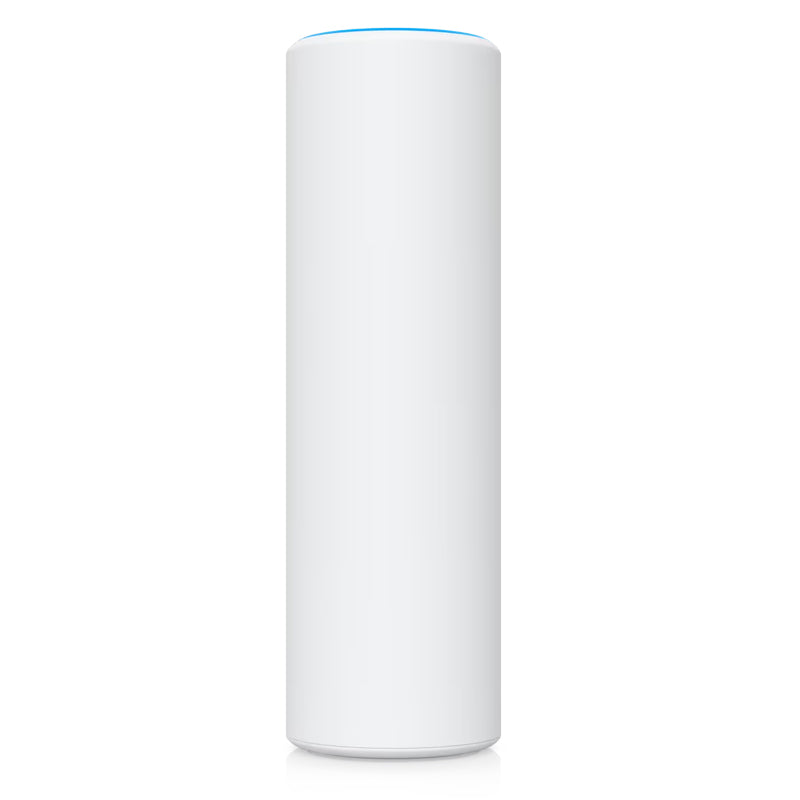

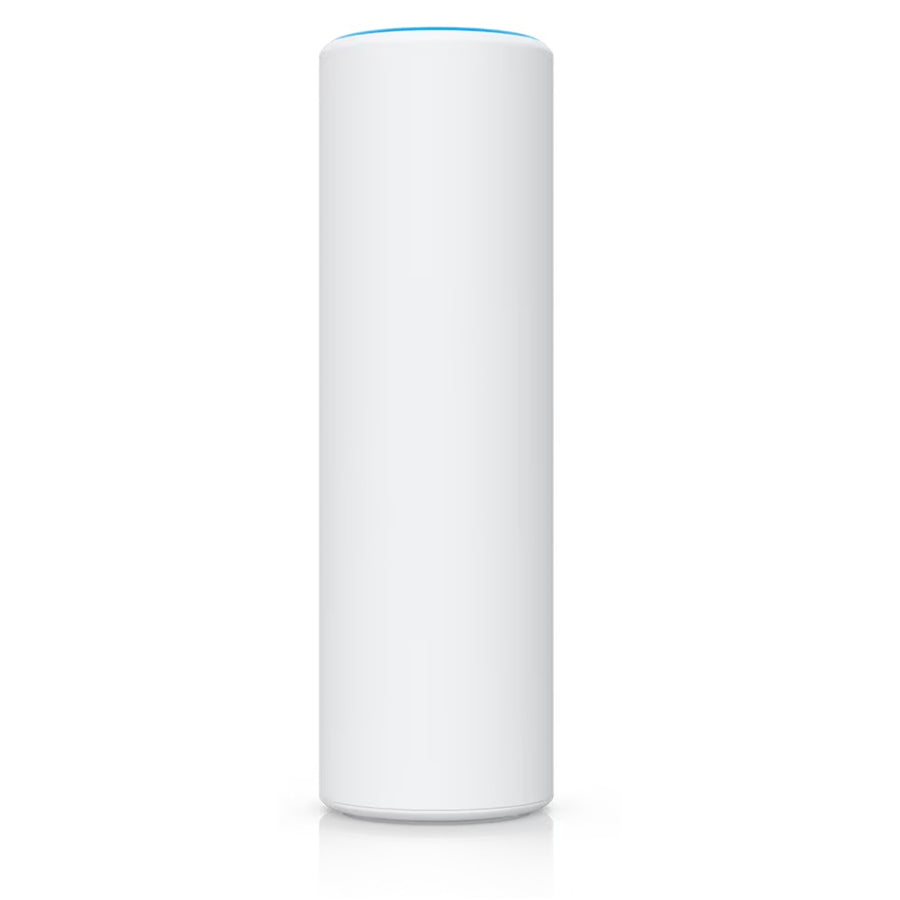

Ubiquiti UniFi U7 Mesh Compact indoor/outdoor WiFi 7 Access Point

Ubiquiti

Ubiquiti UniFi U7 Mesh Compact indoor/outdoor WiFi 7 Access Point

Name: Ubiquiti UniFi U7 Mesh Compact indoor/outdoor WiFi 7 Access Point
Brand: Ubiquiti
SKU: U7-MESH
Price: 583.81 NZD
Availability: InStock

SKU: U7-MESH ● In Stock

$507.66

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

U7 Mesh

Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system.

Deployment

Specifications

Technical Specifications

Dimensions	⌀48.5 x 159.5 mm(⌀1.9 x 6.3")
WiFi Standard	WiFi 7
Spatial Streams	4
Coverage Area	140 m² (1,500 ft²)
Max. Client Count	200+
Uplink	2.5 GbE

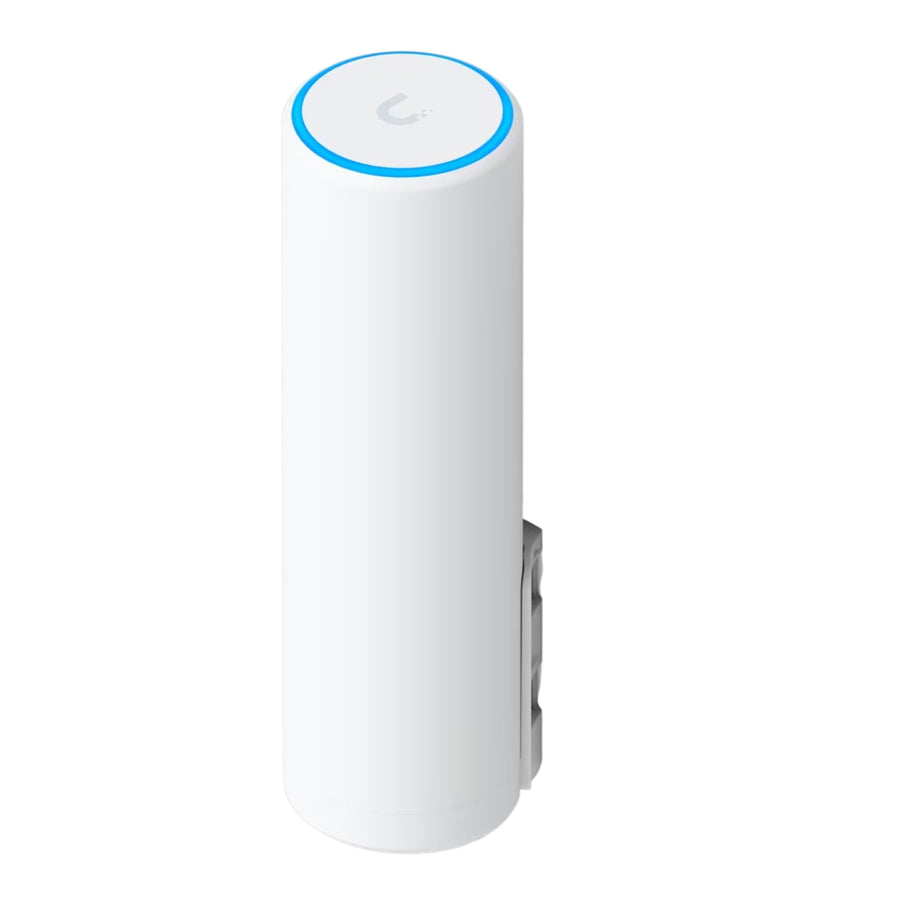

Mounting	Wall, Pole, Table stand(Mounts included)
Weatherproofing	IPX6 (Installed with the outdoor mount)
Power Method	PoE
MIMO	5 GHz2 x 2 (DL/UL MU-MIMO)2.4 GHz2 x 2 (DL/UL MU-MIMO)
Max. Data Rate	5 GHz4.3 Gbps (BW240)2.4 GHz688 Mbps (BW40)
Antenna Gain	5 GHzOmnidirectional: 6 dBiDirectional: 10 dBi2.4 GHz3 dBi
Max. TX Power	5 GHz24 dBm2.4 GHz23 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates	802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing	Yes
Band Steering	Yes
802.11v BSS Transition Management	Yes
802.11r Fast Roaming	Yes
802.11k Radio Resource Management (RRM)	Yes
Advanced Radio Management	Yes
Passpoint (Hotspot 2.0)	Yes
Captive Hotspot Portal	Custom Branding Landing Page : YesVoucher Authentication: YesPayment-Based Authentication: YesExternal Portal Server Support: YesPassword Authentication: YesGuest Network Isolation: Yes
Private Pre-Shared Key (PPSK)	Yes
WiFi Speed Limiting	Yes
Client Device Isolation	Yes
WiFi Schedules	Yes
RADIUS over TLS (RadSec)	Yes
Dynamic RADIUS-assigned VLAN	Yes
Max. Power Consumption	13W
Includes PoE Adapter	Yes
Supported Voltage Range	42.5-57V DC

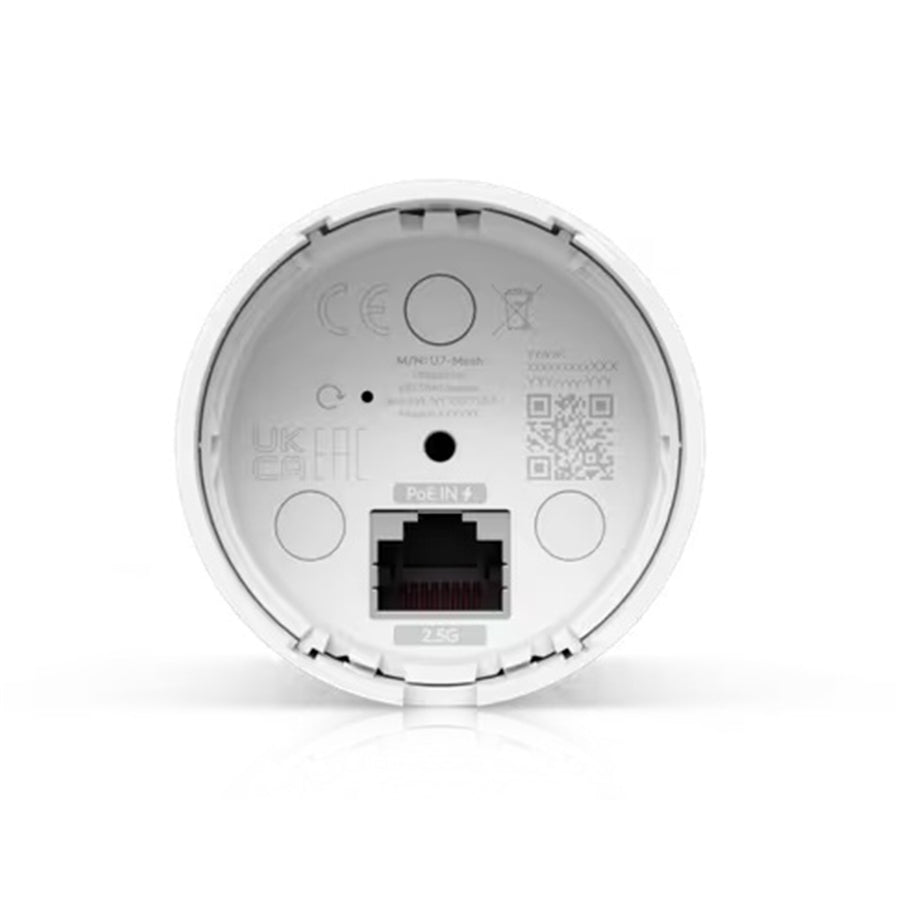

Networking Interface	(1) 2.5 GbE RJ45 port
Weight	313 g (11 oz)
Management	Ethernet
Enclosure Material	UV-stabilized polycarbonate
Mount Material	UV-stabilized polycarbonate
LEDs	SystemW/B
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
NDAA Compliant	Yes
Certifications	CE, FCC, IC
Ambient Operating Temperature	-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
Application Requirements	UniFi NetworkVersion 10.1.85 and later
Mobile App	UniFi iOS™: Version 10.32.1 and laterAndroid™: Version 10.35.1 and later
