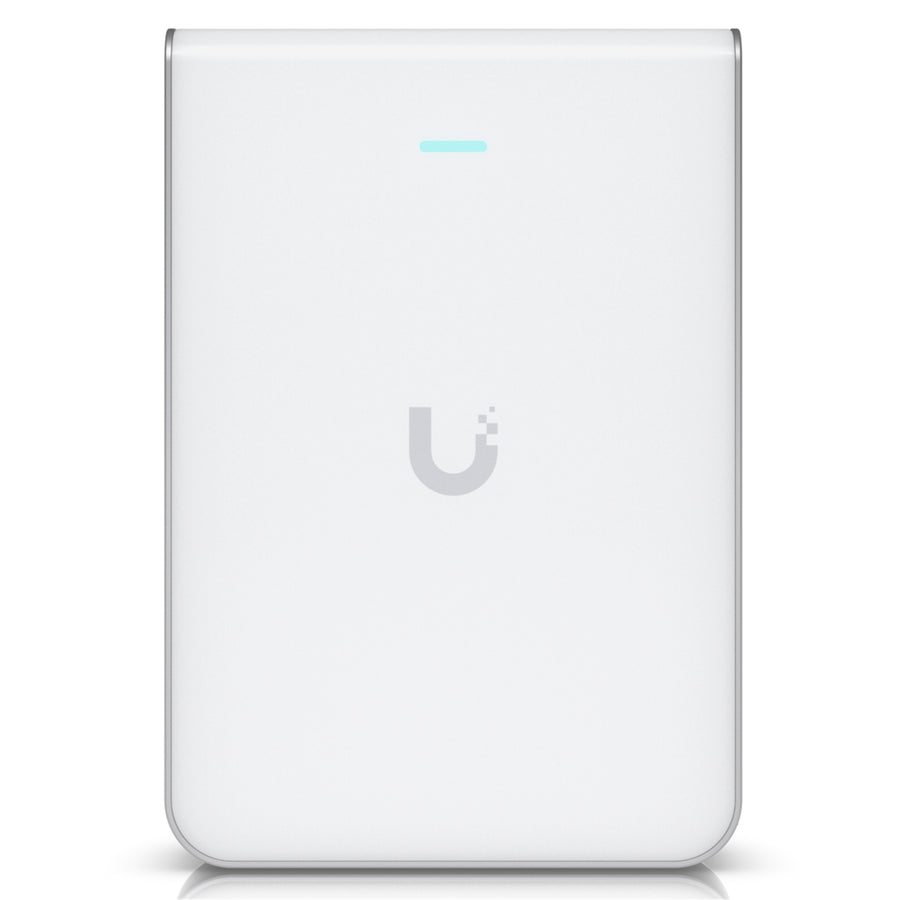

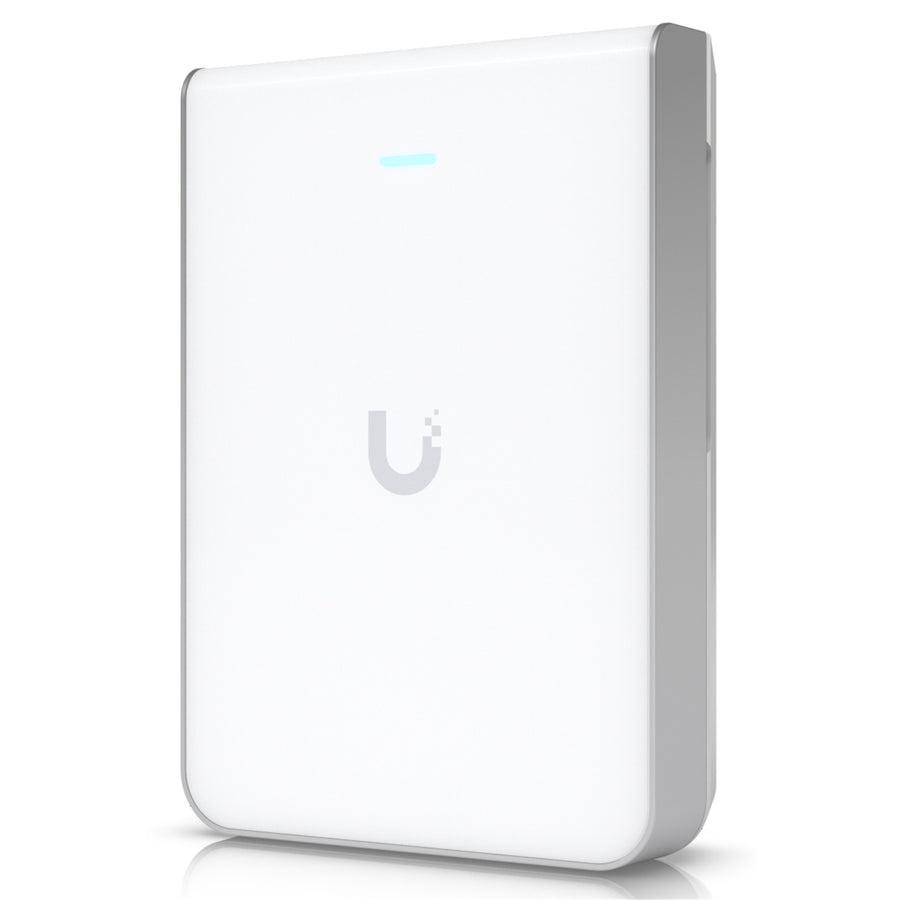

Ubiquiti UniFi U7 Pro Wall Indoor Tri-Band WiFi 7 AP

Ubiquiti UniFi U7 Pro Wall Indoor Tri-Band WiFi 7 AP

Name: Ubiquiti UniFi U7 Pro Wall Indoor Tri-Band WiFi 7 AP
Brand: Ubiquiti
SKU: U7-PRO-WALL
Price: 521.0 NZD
Availability: InStock

SKU: U7-PRO-WALL ● In Stock

$453.04

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.

- WiFi 7 with 6 GHz support

- 6 spatial streams

- 140 m² (1,500 ft²) coverage

- 300+ connected devices

- Powered using PoE+

- 2.5 GbE uplink

- Versatile deployment with optional Flush Mount and Table Stand accessories*

Specifications

Technical Specifications

Dimensions	150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
Weight	580 g (1.3 lb)
Enclosure material	Polycarbonate, aluminum
Mount material	Aluminum

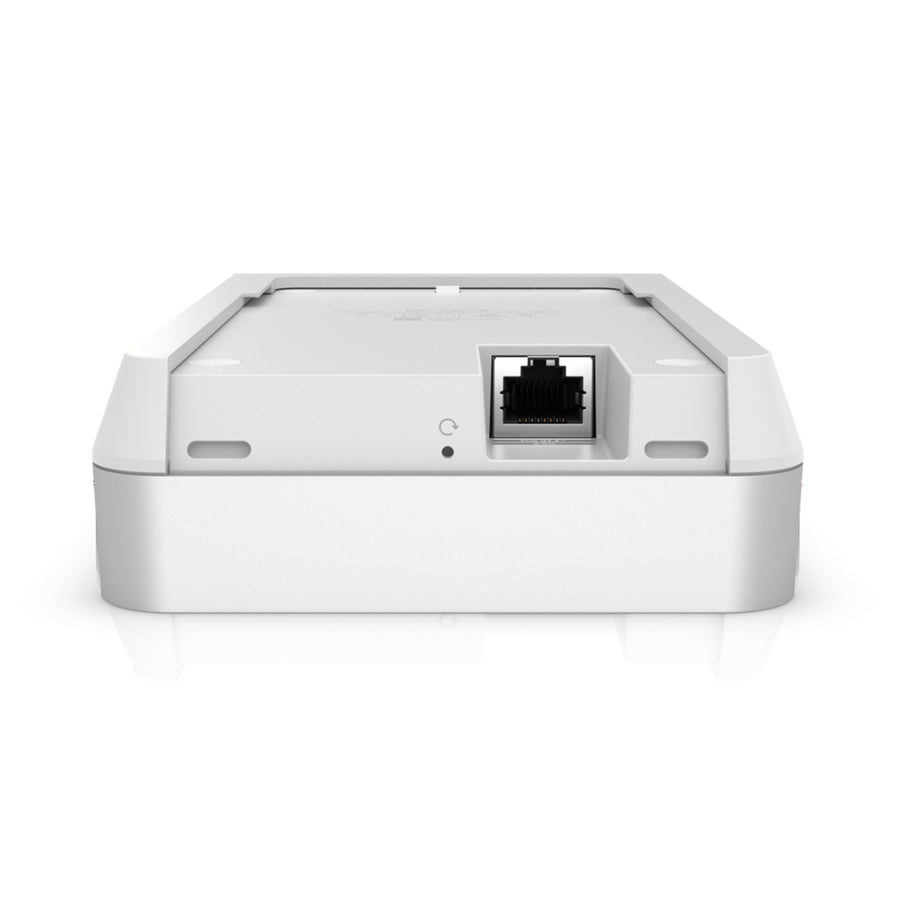

Networking interface	(1) 1/2.5 GbE RJ45 port
Management interface	Ethernet
Power method	PoE+
Power supply	UniFi PoE switch
Supported voltage range	44-57V DC
Max. power consumption	22W
Max. TX power2.4 GHz5 GHz6 GHz	22 dBm26 dBm23 dBm
MIMO2.4 GHz5 GHz6 GHz	2 x 2 (DL/UL MU-MIMO)2 x 2 (DL/UL MU-MIMO)2 x 2 (DL/UL MU-MIMO)
Max. data rate2.4 GHz5 GHz6 GHz	688 Mbps (BW40)4.3 Gbps (BW240)5.7 Gbps (BW320)
Antenna gain2.4 GHz5 GHz6 GHz	4 dBi5 dBi6 dBi
LEDs	White/blue
Button	Factory reset
Mounting	Wall (Included)Table stand, flush mount (Optional)
Ambient operating temperature	-30 to 60° C (-22 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
WiFi standards	802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)	7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
UniFi Network	Version 8.1 and later
UniFi OS	Version 3.2 and later
