Ubiquiti

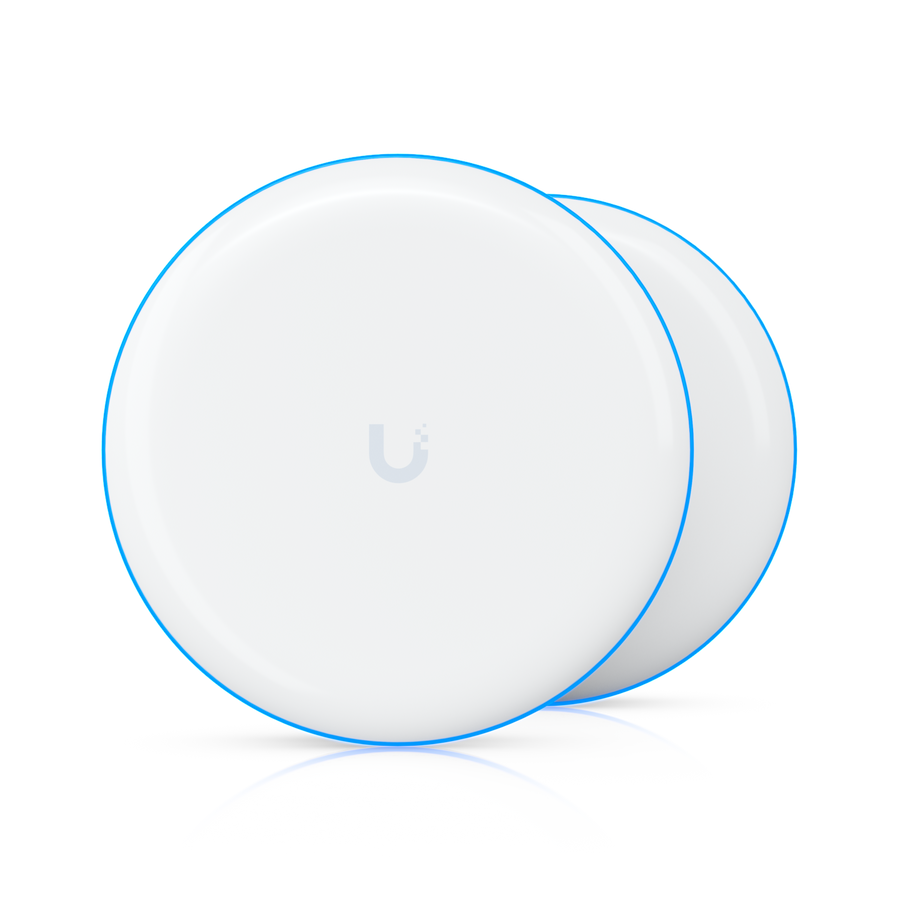

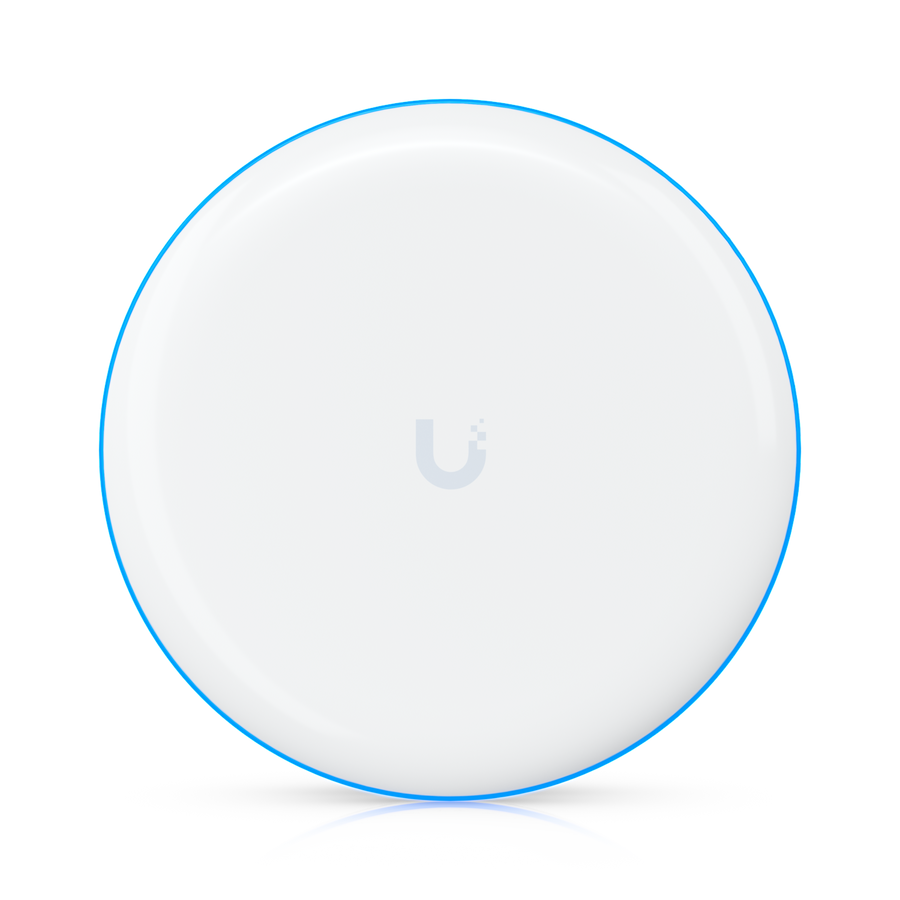

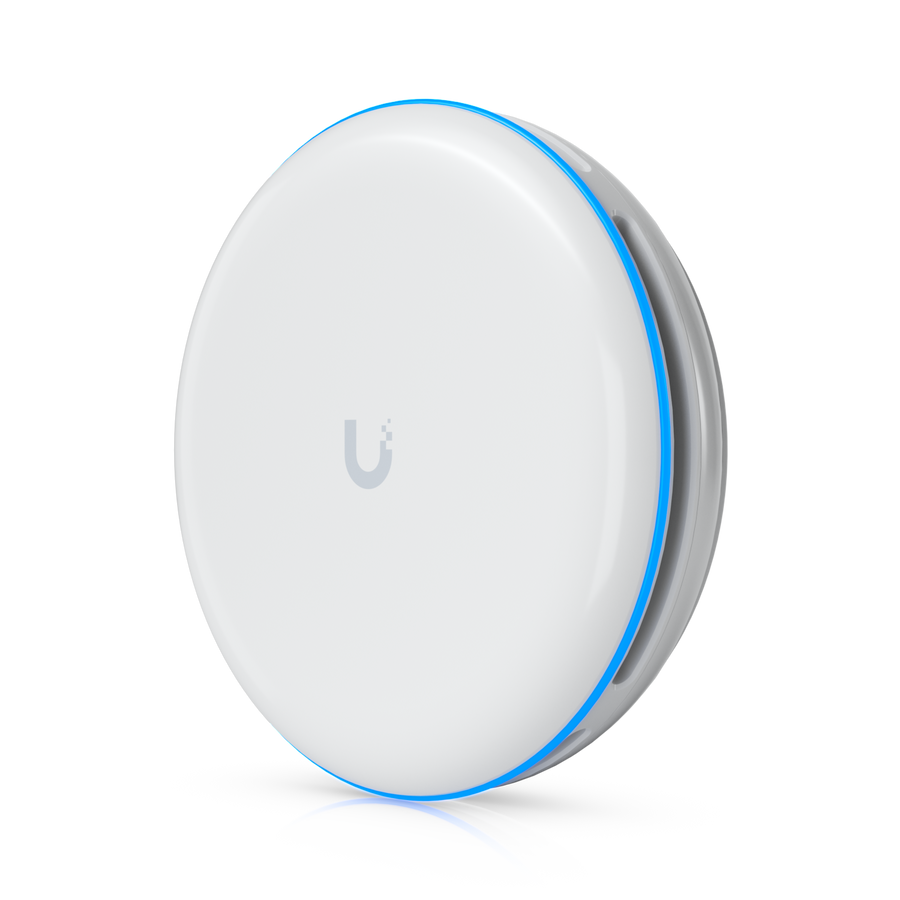

Ubiquiti UniFi UBB-XG 10Gbps 60GHz Building-to-Building Bridge (2 Pack)
$2,863.99
Delivery estimate shown at checkout
Support from our New Zealand team
See return policy for eligibility
Features
Ubiquiti UniFi UBB-XG 10Gbps 60GHz Building-to-Building Bridge (2 Pack)
Ubiquiti UniFi UBB-XG 10Gbps 60GHz Building-to-Building Bridge Pair.
A 60 GHz wireless point-to-point bridge with 10G SFP+ uplink for maximum performance.
Features500 m (1,640 ft) maximum range60 GHz & 5 GHz dual-radio redundancy(1) 10G SFP+ and (1) GbE PoE++ portPowered using PoE++*Built-in LED alignment indicatorsSold as 2-pack
Supplied new by KW Tech, New Zealand. Prices include GST.
Specifications
Technical Specifications
| Brand | Ubiquiti |
|---|---|
| Model | UBB-XG |
| Manufacturer's Code | UBB-XG-EU |
| WiFi standards | 802.11ad/ay, 802.11ac (WiFi 5) |
| Wireless security | WPA2 AES (Always On) |
| Operating modes | PtP |
| VLAN | Management VLAN only |
| Operating frequency | 57 to 66 GHz *Dependent on regional regulations. |
| Channel bandwidth | 2,160/4,320 MHz (Channel Bonding Enabled) |
| Operating channels | 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz *Dependent on regional regulations. |
| Networking interface | (1) GbE RJ45 port, (1) 1/10G SFP+ port |
| Management interface | Ethernet, Bluetooth |
| Power method | PoE++, Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)] |
| Power supply | UniFi PoE switch or 48V, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range | 48V DC ± 10% |
| Max. power consumption | 31.2W |
| Throughput rate | 5 GHz - 866.6 Mbps, 60 GHz - 6 Gbps |
| Maximum range | 500 m (1,640 ft) |
| LEDs | R/G/B |
| Button | Factory-reset |
| Dimensions | 191.8 x 59 mm (7.6 x 2.3") |
| Weight | Without mount: 1.7 kg (3.8 lb), With mount: 2.9 kg (6.3 lb) |
| Enclosure materials | Aluminum alloy, UV-resistant polycarbonate |
| Mount material | Stainless steel |
| Mounting | 60G precision alignment pole mount (Included) |
| Pole compatibility | 25.4-63.5 mm (1-2.5") |
| Weatherproofing | IPX6 |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking > Wireless Bridges |
| Weight | 2.0 kg |
