Ubiquiti

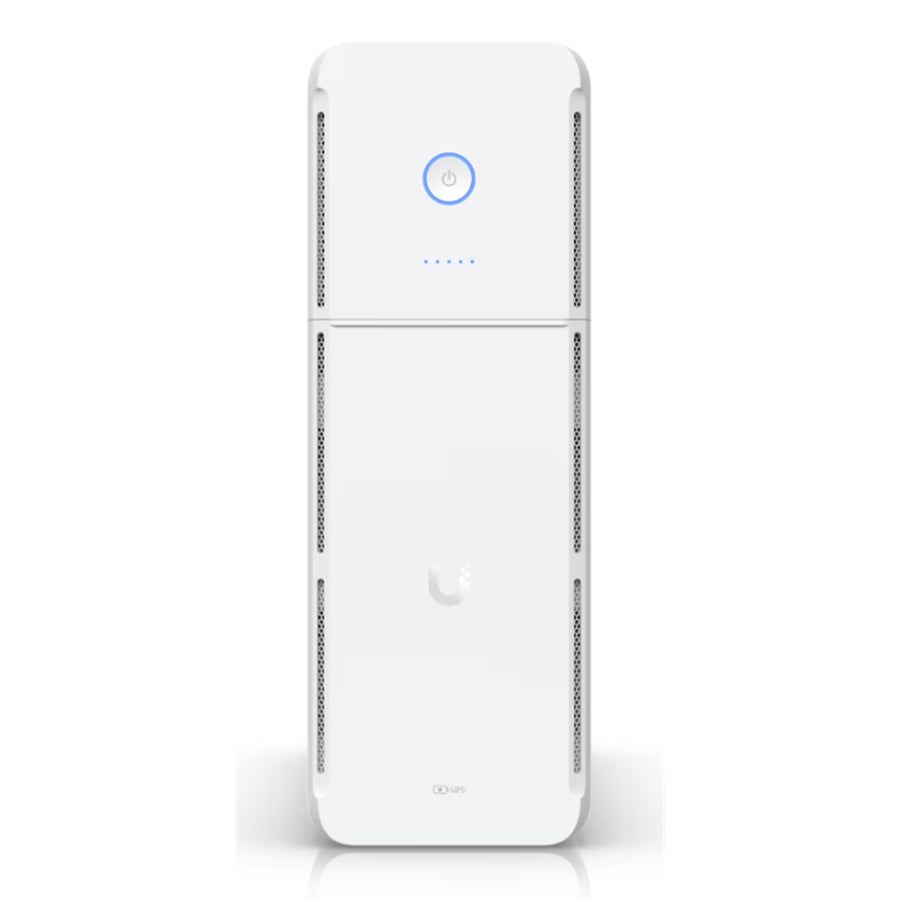

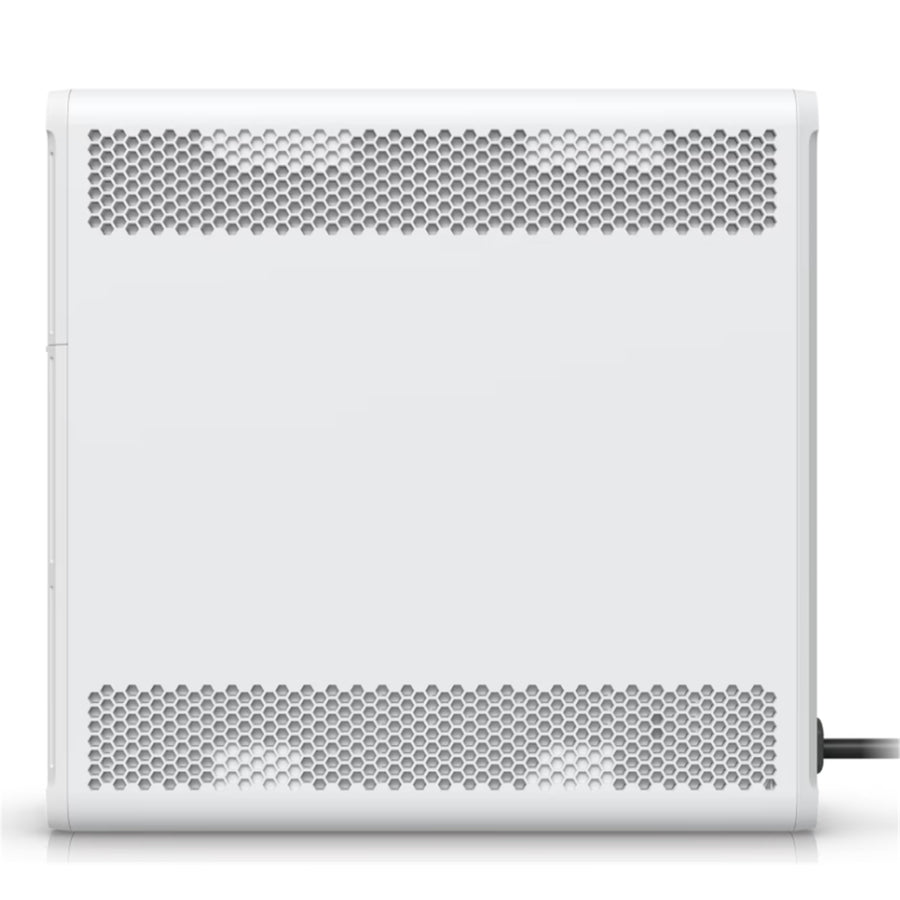

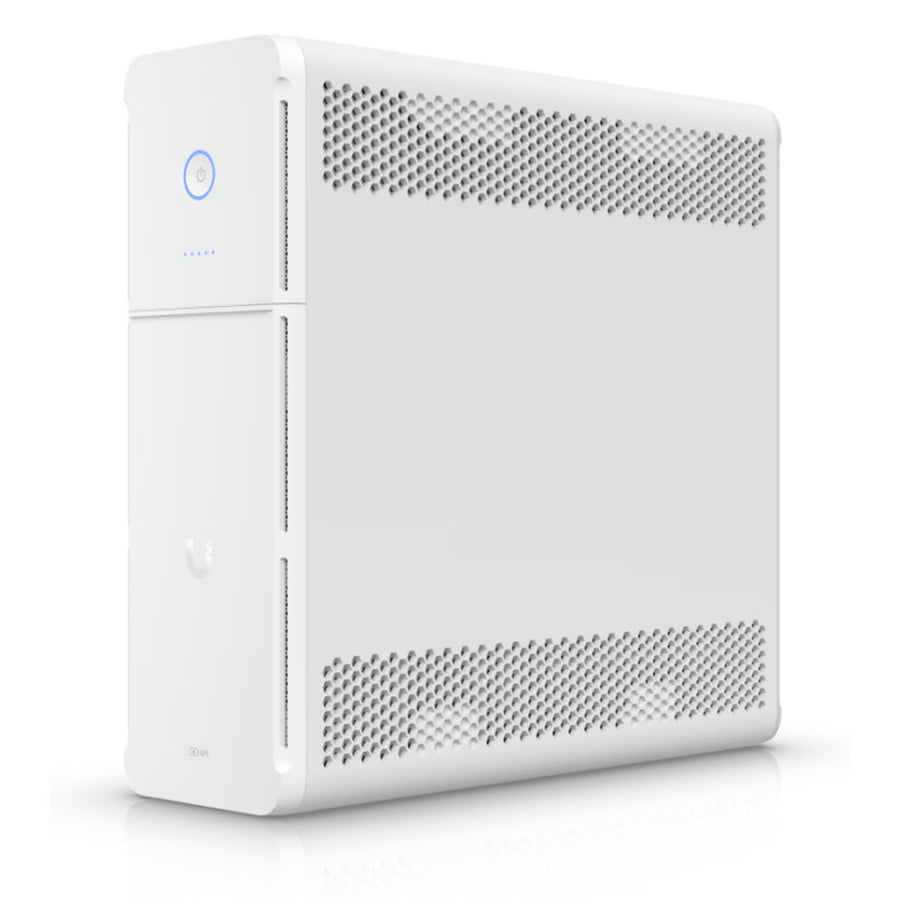

Ubiquiti UniFi UPS Tower, UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes
$411.40
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.
Specifications
Technical Specifications
| Dimensions | 288 x 99 x 280.5 mm(11.3 x 3.9 x 11") |
|---|---|
| Weight | 7.85 kg (17.3 lb) |
| Enclosure Material | Polycarbonate and acrylonitrile butadiene styrene blend |
| Form Factor | Desktop |
| Weatherproofing | IP20 |
| Ethernet | Networking Interface(1) 100/10 MbE port for network connection(2) GbE ports for surge in/out |
| Power | (1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord(5) Battery backup/surge protection: C13(5) Surge protection: C13 |
| Capacity | 1,000VA/600W |
| Type | Line interactive |
| Input Voltage Range | 170-280V AC |
| Power Method | (1) TN system, 220-240V AC, 6A Max., 50/60 Hz |
| Nominal Input Voltage | 230V AC |
| Output Voltage | 220-240V AC |
| Nominal Output Voltage | 230V AC |
| Frequency Range | AC mode: 50/60 Hz ±5 Hz (Auto sensing)Battery mode: 50 Hz ±1 Hz |
| AC Voltage Regulation | ±10% (Battery mode) |
| Transfer Time | 6 ms typical; 10 ms max. (Battery mode) |
| Wave Form | Simulated sine wave (Battery mode) |
| Battery Type | (1) Lead Acid 12V, 9Ah |
| Runtime | Full load: 2 minHalf load: 7 min |
| Battery Charging Time | 6-8 hours recovery to 90% capacity |
| Overload at On-Line Mode | 110% 5 min go to fault120% go to fault immediately |
| Overload at Battery Mode | 110% shutdown in 5 sec120% shutdown immediately |
| Short Circuit Protection at On-Line Mode | Breaker, 250V AC, 10A |
| Output Short-Circuit Current | Ipeak 401.9AIrms 160.7A |
| Buttons | (1) Power(1) Factory reset |
| LEDs | StatusOff: device not turned onFlashing white: initializing / factory defaultSteady white: waiting for adoptionSteady blue: device adoption and workingFlashing blue: battery modeAlternating white/blue: firmware upgradingRapid flashing blue: locateSteady red: warningFlashing red: low battery |
| Battery Indicator | All off: 0%(1) Steady blue: battery 1-19%(2) Steady blue: battery 20-39%(3) Steady blue: battery 40-59%(4) Steady blue: battery 60-79%(5) Steady blue: battery 80-100% |
| Operating Altitude | 3,000 m (1.9 mi) |
| Operating Environment | Pollution Degree 2 |
| Ambient Storage Temperature | -20 to 50° C (-4 to 122° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 0 to 95% noncondensing |
| Certifications | CE, IEC 62040-1 |
| Brand | Ubiquiti |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution |
| Weight | 0.5 kg |
