Ubiquiti

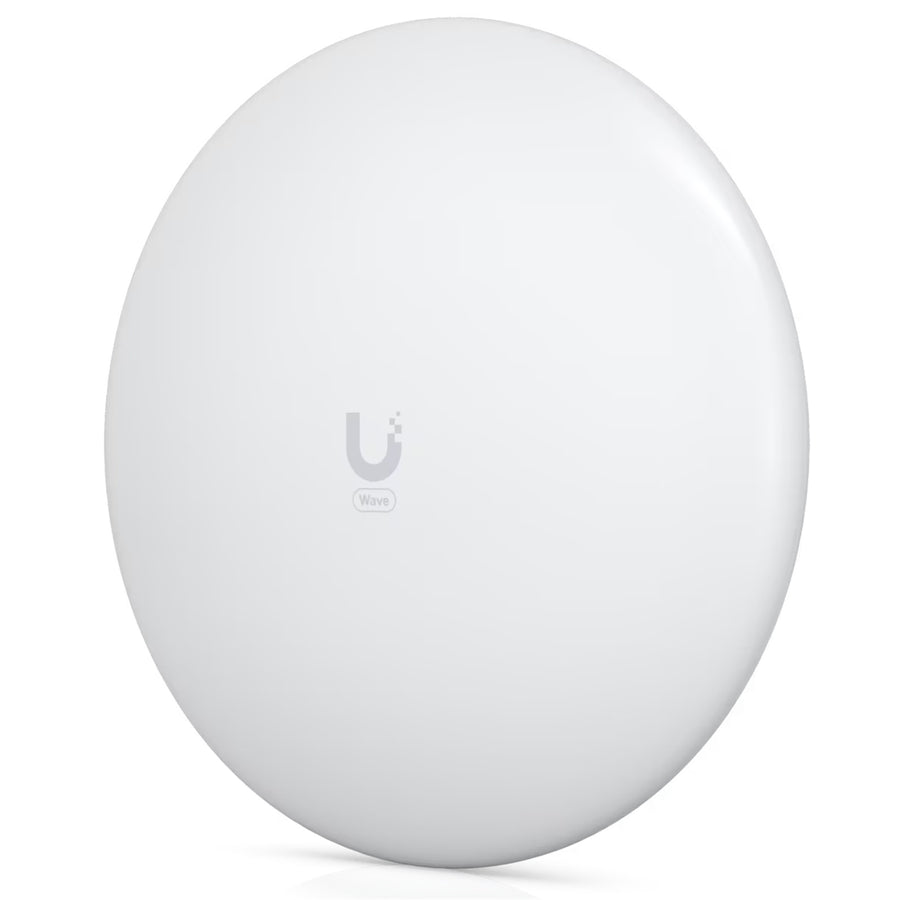

Ubiquiti WAVE-LR - UISP Wave 60GHz Long-Range Station Client
$908.31
Free shipping over $299
Genuine product
7-day returns
Ubiquiti WAVE-LR - UISP Wave 60GHz Long-Range Station Client
Features
60 GHz PtMP station powered by Wave Technology.
- Max. link range:
- Wave AP: 8 km
- Wave AP Micro: 6 km
- Max. total throughput: 2 Gbps (1.5 Gbps duplex)
- 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
- (1) GbE RJ45 port
- Precision alignment mount
- Integrated GPS & Bluetooth
Specifications
Technical Specifications
| Dimensions | Ø424.4 x 166.2 mm (Ø16.7 x 6.5") |
|---|---|
| Weight | Without mount: 2.6 kg (5.7 lb)With mount: 3.8 kg (8.4 lb) |
| Enclosure material | UV stabilized plastic |
| Mount material | Stainless steel |
| Pole mount diameter | 25 to 76.2 mm (1 to 3") on pipe outer diameter |
| Wind loading | 286 N at 200 km/h (64.3 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (1) GbE RJ45 port |
| Max. power consumption | 20W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (Included)Can be powered by a UISP Router or UISP Switch |
| Supported voltage range | 44-54V DC22-27V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, link |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Operating mode | PtMP station, PtP**FW version 3.2.0 and later. |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey*, traffic shaping***FW version 3.3.0 and later.**FW version 3.4.0 and later. |
| Network | Bridge/Router* mode*Router is available in PtMP station mode only. |
| Application requirements | UISP: Version 1.4.5 and later |
| Total throughput | 2 Gbps (1.5 Gbps duplex) |
| Max. range | 8+ km |
| Encryption | WPA2-PSK (AES) |
| Operating frequency* | 57-71 GHz*Depends on regulatory region. |
| Channel bandwidth | 2160, 1080, 540* MHz*FW version 3.3.0 and later. |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz*Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 46 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 1°Elevation: 3 dB 1° |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency*US/CA | WorldwideU-NII-1 5150 - 5250 MHzU-NII-2A 5250 - 5350 MHzU-NII-2C 5470 - 5725 MHzU-NII-3 5725 - 5850 MHz5150 - 5875 MHz*Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6) |
| Antenna gain | 22 dBi |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 3 dB 8°Elevation: 3 dB 8° |
| Cross-pol isolation | 20 dB |
| Power | Flashing white: bootup in progressWhite: not connected to UISP applicationBlue: connected to UISP applicationFlashing blue: locate in progressBlue/white: firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: receiving at least (4) GPS satellite signal |
| Links | White: 5GHz linkBlue: 60GHz link |
🚚 7-Day Returns Policy
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Ubiquiti |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 0.5 kg |
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
You May Also Like
Cambium Networks

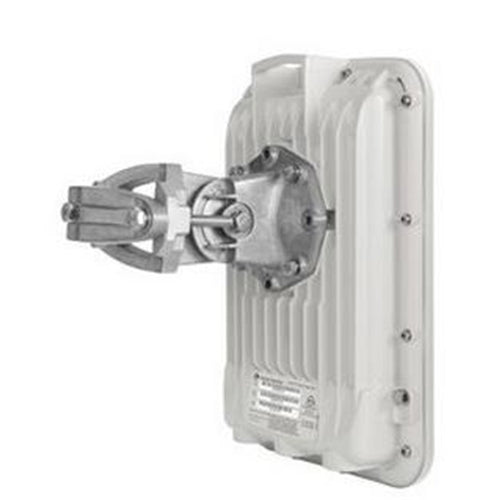

Cambium Networks C050065B016A - Cambium PTP 650S 4.9-6.05 GHz ODU Wireless Point to Point Radio
Wireless BridgeWireless
$1,015.83
MikroTik

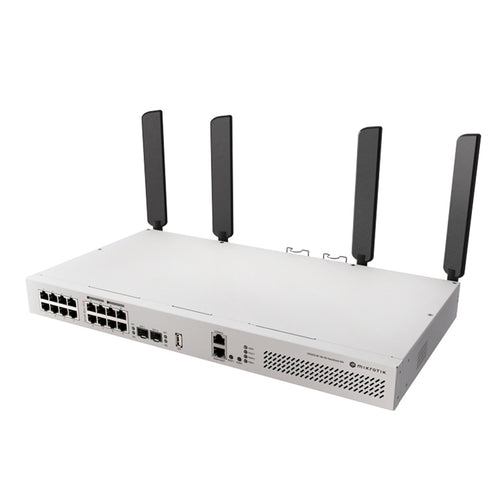

CRS418-8P-8G-2S+5axQ2axQ-RM - MikroTik CRS418-8P-8G-2S+5axQ2axQ-RM 16-Port Gigabit Switch with 8 PoE Out, 10G SFP+ Ports and 4x4 MIMO WiFi 6
