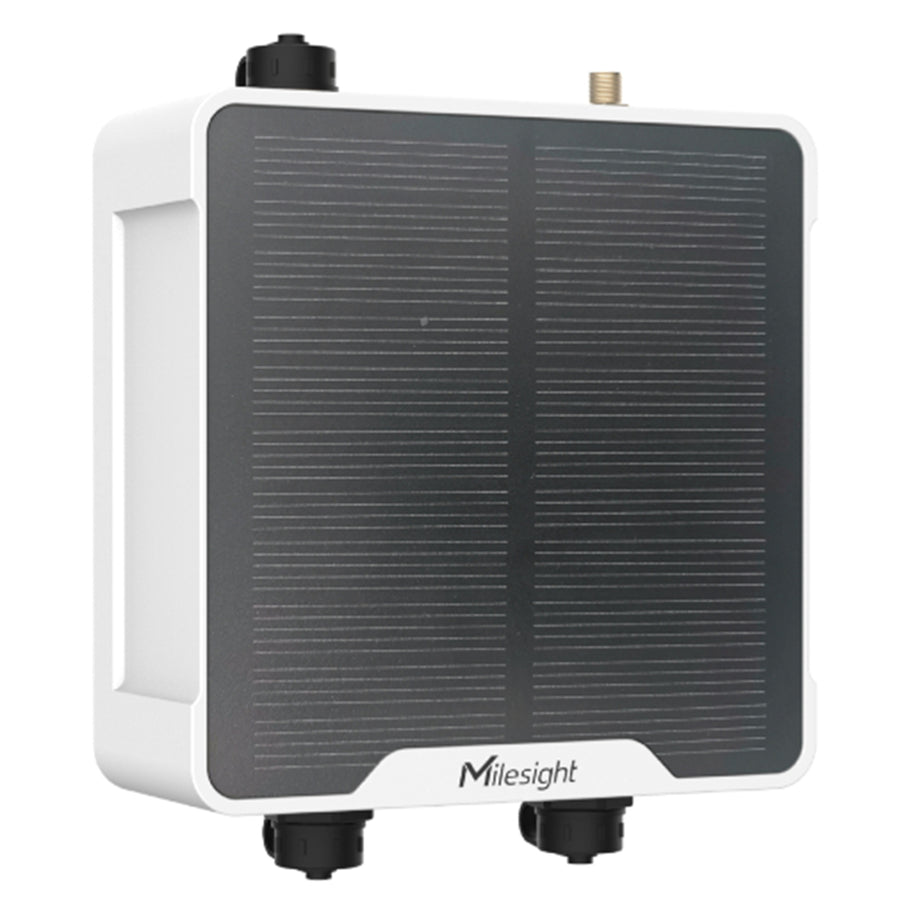

UC511-DI-915M-EA - Milesight UC511-EA AU915/AS923 Solar Powered LoRaWan IoT Controller with External Antenna and Latching Solenoids and Pulse Meter support
UC511-DI-915M-EA - Milesight UC511-EA AU915/AS923 Solar Powered LoRaWan IoT Controller with External Antenna and Latching Solenoids and Pulse Meter support
Features
The UC511 V3 LoRaWAN AU915/AS923 wireless IoT controller is a device used to control the status of DC latching solenoids. It contains 2 solenoid interfaces and 1 pulse interface, which supports 2 pulse meters. The UC511 V3 can be easily and quickly configured by NFC or USB-C. For outdoor applications, it uses an embedded solar power supply and is equipped with an IP67-rated enclosure and M12 connectors to protect from water and dust under harsh environments.
The UC511 V3 is perfect for multiple use cases including Golf Course/Farm/Lifestyle irrigation, Dust suppression, frost suppression, etc.
- Compatible with standard DC latching solenoids
- Transmission distance up to 11km with line of sight
- Waterproof design including IP67 case and M12 connectors
- Solar powered
- Quick wireless configuration via NFC
- Data visualization and remote management via Milesight IoT Cloud
- External Lora Antenna
Specifications
Technical Specifications
| Frequency | AU915/AS923 |
|---|---|
| Tx Power | 20dbm |
| Sensitivity | -147dBm @300bps |
| Mode | OTAA/ABP |
| Interface type | M12 A-coded Male |
| Ports | 2 × Solenoid Interfaces, SMA-Female connector |
| Solenoid Support | 2 wires 12V DC latching solenoids |
| Cable Length | 1.5m |
| Pulse Interface | 1 × Pulse Interface, support 2 pulse meters |
| Logical Level | Low: 0~0.9V, High: 2.5~3.3V |
| Cable Length | 1.5m |
| Power On/Off | NFC, power button (Internal) |
| Configuration | Mobile APP(via NFC) or PC software(via USB Type-C) |
| Operating Temperature | -20°C to +60°C |
| Ingress Protection | IP67 |
| Dimension | 120.1 × 120.1× 55.4 mm |
| Power Supply | Solar powered + 2*2550mAh rechargeable battery + 5-24 VDC supply |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Milesight |
|---|---|
| Product Type | B2B - IoT & Industrial |
| Weight | 0.5 kg |
