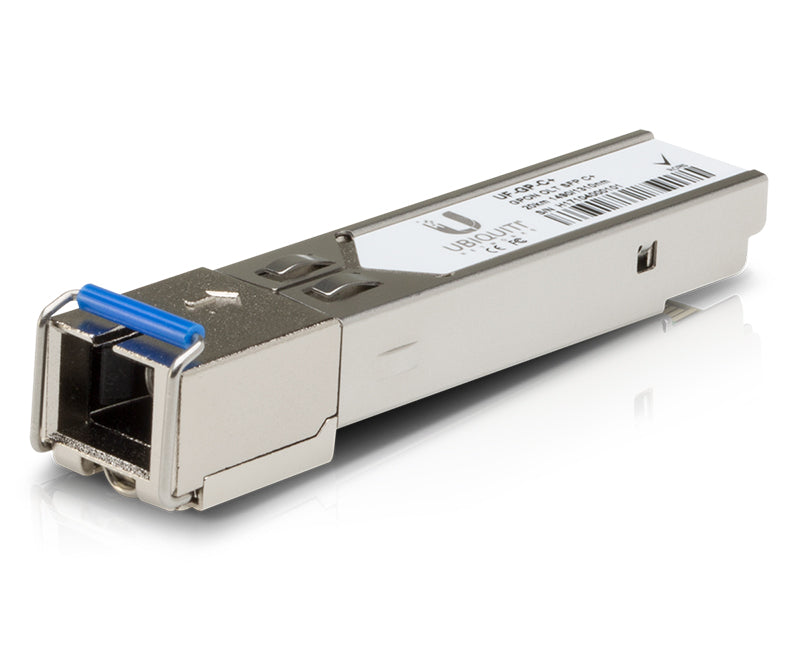

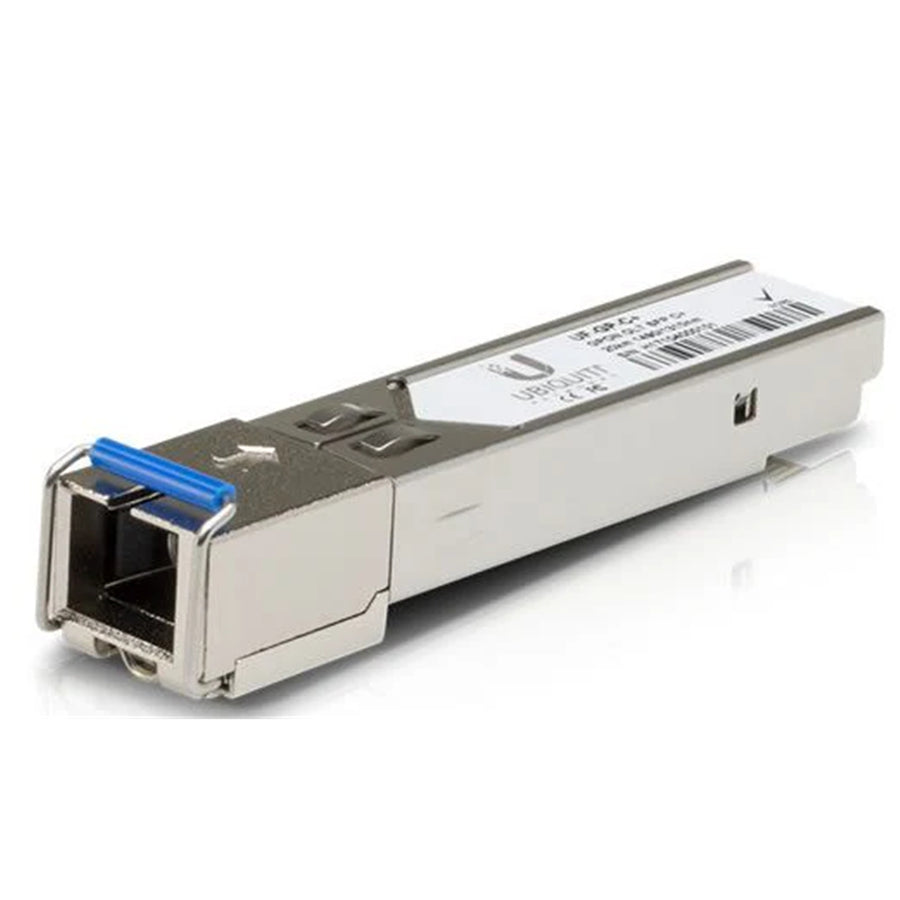

UF-GP-C+ - Ubiquiti UFiber GPON OLT Class C+ SFP Module
UF-GP-C+ - Ubiquiti UFiber GPON OLT Class C+ SFP Module
Ubiquiti

UF-GP-C+ - Ubiquiti UFiber GPON OLT Class C+ SFP Module

SKU: UF-GP-C+ ● In Stock
$180.86
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

Ubiquiti UFiber GP-C+. will increase the capacity of your UFiber OLT.

This product will help connect to new customers quickly. This is a fiber solution that anyone can deploy.

- Support ITU-T G.984.2 GPON OLT C+ application
- SFP package with SC/UPC receptacle optical interface
- Single +3.3V power supply
- Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
- 1490nm continuous-mode transmitter with DFB LD
- 1310nm burst-mode receiver with APD-TIA
- 2-wire interface for integrated digital diagnostic Monitoring
- Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
- RoHS6 compliance
- 20-Pack

Specifications

Technical Specifications

Supported Media Single-Mode Fiber
Connector Type (1) SC/UPC
TX Wavelength 1490 nm
RX Wavelength 1310 nm
TX Power Range 3 to 7 dBm
RX Power Range -30 to -12 dBm
Downstream Data Rate 2.5 Gbps
Upstream Data Rate 1.25 Gbps
Cable Distance 20 km
Operation case temperature -40~85°C for industrial and 0~70°C for commercial

You May Also Like

Ubiquiti

Ubiquiti Twin Pack of 10Gbps Single Mode Fiber Modules 1310nm 10km

Fiber / SFP10G
$181.42
inc GST ▲ +GST
TP-Link

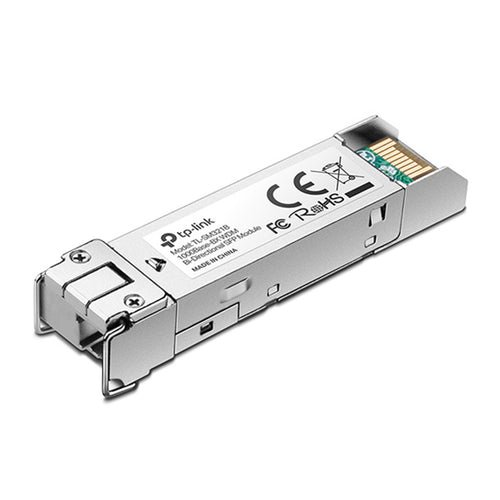

TP-Link TP LINK 1000Base-BX WDM Bi-Dir SFP MOD
