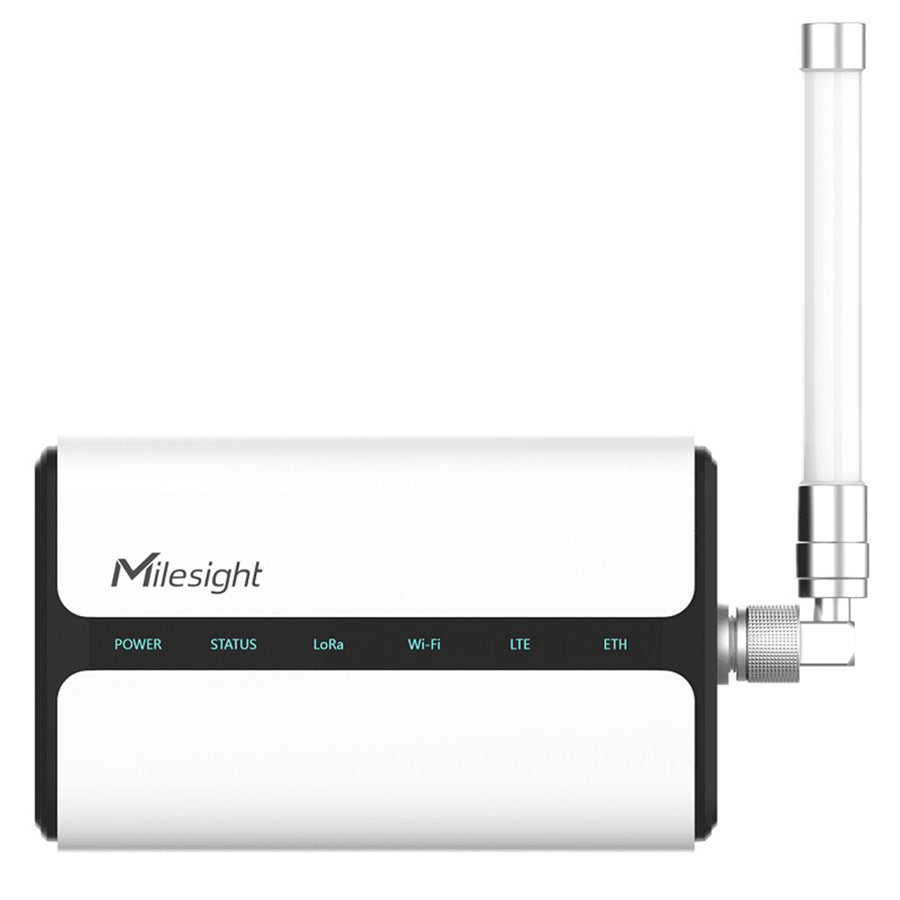

UG65-915M-EA-H32 - Milesight UG65 Helium compatible LoRaWAN IoT Hotspot with WiFi and PoE Support
UG65-915M-EA-H32 - Milesight UG65 Helium compatible LoRaWAN IoT Hotspot with WiFi and PoE Support
Features
The Milesight UG65 is a robust 8-channel indoor AS923 LoRaWAN IoT Gateway, which is compatible with Helium LongFi technology. Adopting the SX1302 LoRa chip, high-performance quad-core CPU and secure crypto chip, the UG65 provides high-efficiency and a reliable connection. The UG65 has line of sight up to 15km and can cover about 2 km in an urban environment, which can cover larger areas and provide connectivity to more than 2000 nodes. Besides the helium mining feature, the UG67 can also work as a normal IoT gateway with mainstream network server support ( TTI, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment
The UG65 supports multiple back-haul backups with Ethernet, Wi-Fi and cellular connections (Optional).
- IP65 Rating
- NXP Quad-Core Processor
- Semtech SX1302 LoRa Chip
- Built-in ECC608 crypto chip
- Proof-of-Coverage rewards miners paid in Helium tokens
- Multiple Backhaul Connectivity options
- Embedded Network Server
- Compatible with Multiple Network Servers
- Milesight Cloud compliant
- Supports 2000+ end devices
- Easily onboard and monitor 100's of LoRaWAN Gateways with the Scopious onboarding tool

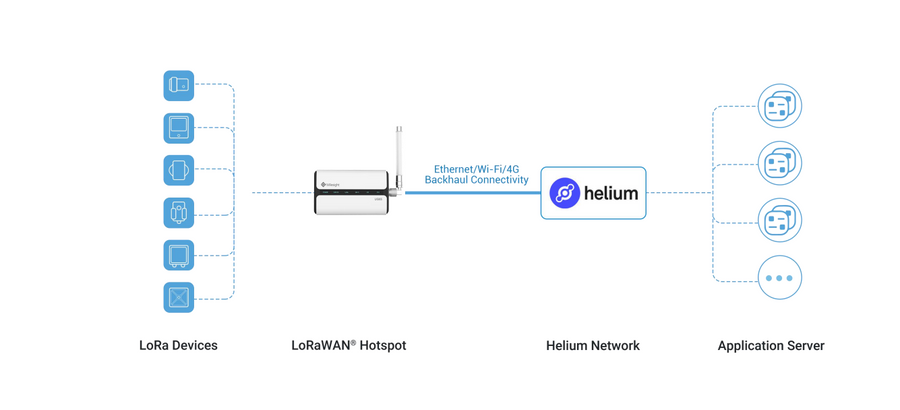

Application Example
Specifications
Technical Specifications
| Manufacturer's Code | UG65-915M-EA-H32 |
|---|---|
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN Antenna | Internal Antenna and 1 × 50 O N-Female External Connector) |
| Channels | 8 |
| Frequency Bands | AU915/AS923 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class C |
| Ethernet | 1 × RJ45 (PoE PD support) |
| Data Rate | 10/100/1000 Mbps (Auto-Sensing) |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Wi-Fi Antenna | Integrated and Internal Antenna |
| Standards | IEEE 802.11 b/g/n |
| Tx Power | 13-18dbm |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter |
| Power Supply | DC Jack Connector for 9-24 VDC power supply or 802.3 af PoE input |
| Consumption | = 4.2W |
| Ingress Protection | IP65 |
| Dimensions | 180 x 110 x 56.5 mm |
| Mounting | Desktop, Wall or Pole Mounting |
| Reset Button | 1 x RST |
| Console Port | Type-C Port |
| Operating Temperature | -40°C to +70°C (-40? to +158?) |
| Storage Temperature | -40°C to +85°C (-40? to +185?) |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77°F |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Milesight |
|---|---|
| Product Type | B2B - IoT & Industrial |
| Weight | 0.5 kg |
