Features

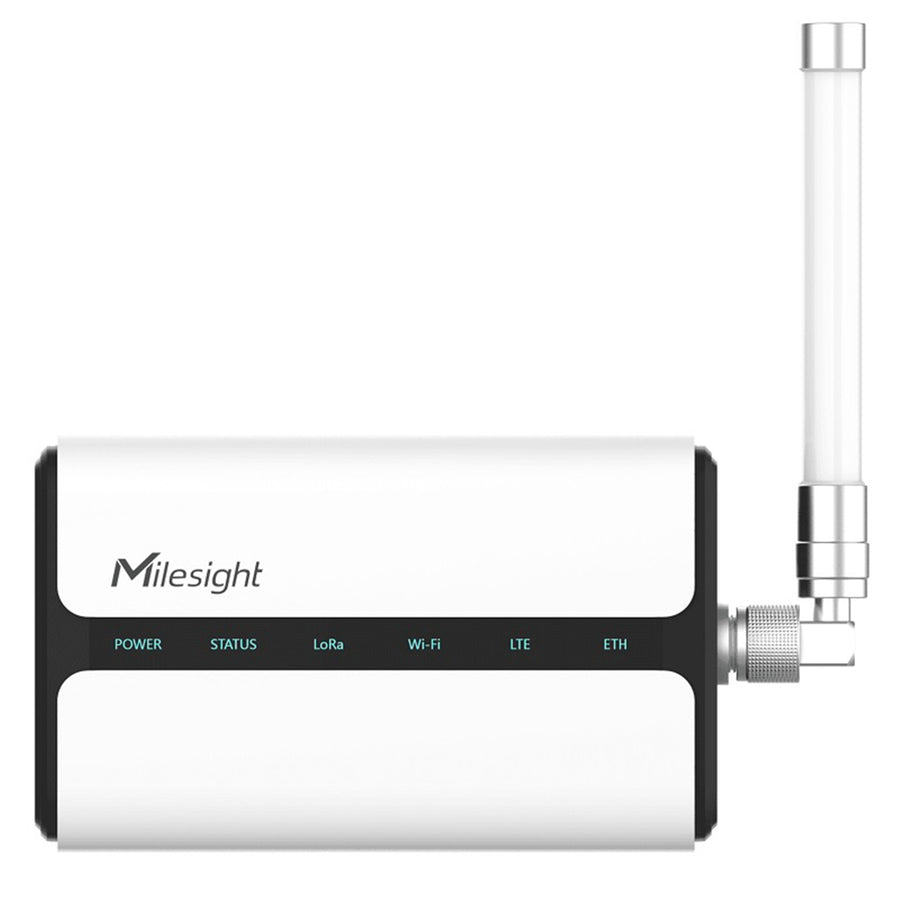

The Ursalink UG65 is an affordable 8-channel indoor LoRaWAN IoT gateway. Adopting the SX1302 LoRa chip and a high-performance quad-core CPU, the UG65 supports connections with more than 2000 nodes. The UG65 has line of sight up to 10km and can cover about 2km in an urbanized environment, which is ideally suited to smart offices, smart buildings and many other indoor applications.
The UG65 supports multiple back-haul backups with Ethernet, Wi-Fi connections and has integrated mainstream LoRa network servers (such as TTN, ChirpStack, etc.). The UG65 also has a built-in network server and Ursalink Cloud for easy deployment.
- IP65 Rating
- NXP Quad-Core Processor
- Semtech SX1302 LoRa Chip
- Multiple Backhaul Connectivity options
- Embedded Network Server
- Compatible with Multiple Network Servers
- Ursalink Cloud compliant
- Supports 2000+ end devices
- Easily onboard and monitor 100's of LoRaWAN Gateways with the Scopious onboarding tool

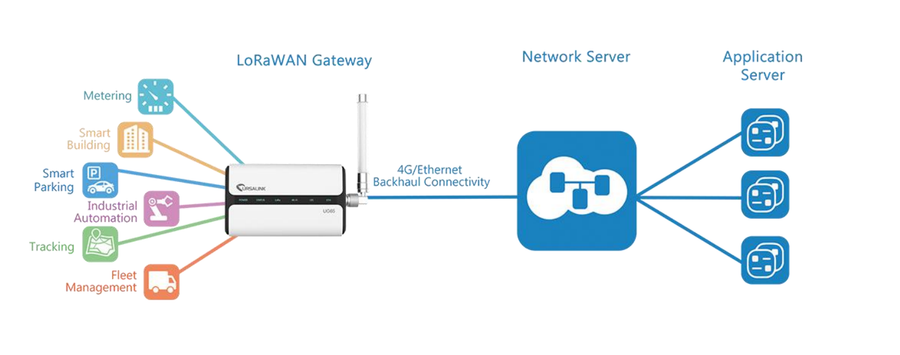

Application
Specifications
Technical Specifications
| Manufacturer's Code | UG65-915M-EA |
|---|---|
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN Antenna | Internal Antenna and 1 × 50 O N-Female External Connector) |
| Channels | 8 |
| Frequency Bands | AU915/AS923 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class C |
| Ethernet | 1 × RJ45 (PoE PD support) |
| Data Rate | 10/100/1000 Mbps (Auto-Sensing) |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Wi-Fi Antenna | Integrated and Internal Antenna |
| Standards | IEEE 802.11 b/g/n |
| Tx Power | 13-18dbm |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter |
| Power Supply | DC Jack Connector for 9-24 VDC power supply or 802.3 af PoE input |
| Consumption | = 4.2W |
| Ingress Protection | IP65 |
| Dimensions | 180 x 110 x 56.5 mm |
| Mounting | Desktop, Wall or Pole Mounting |
| Reset Button | 1 × RST |
| Console Port | Type-C Port |
| Operating Temperature | -40°C to +70°C (-40? to +158?) |
| Storage Temperature | -40°C to +85°C (-40? to +185?) |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77? |
