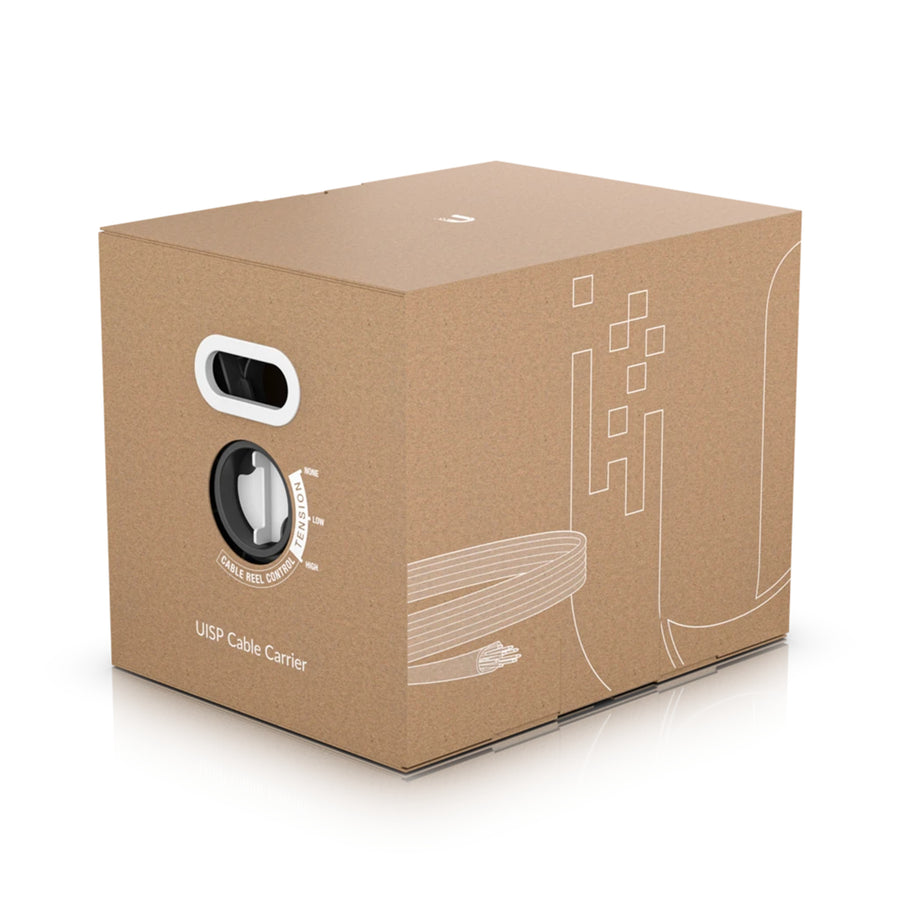

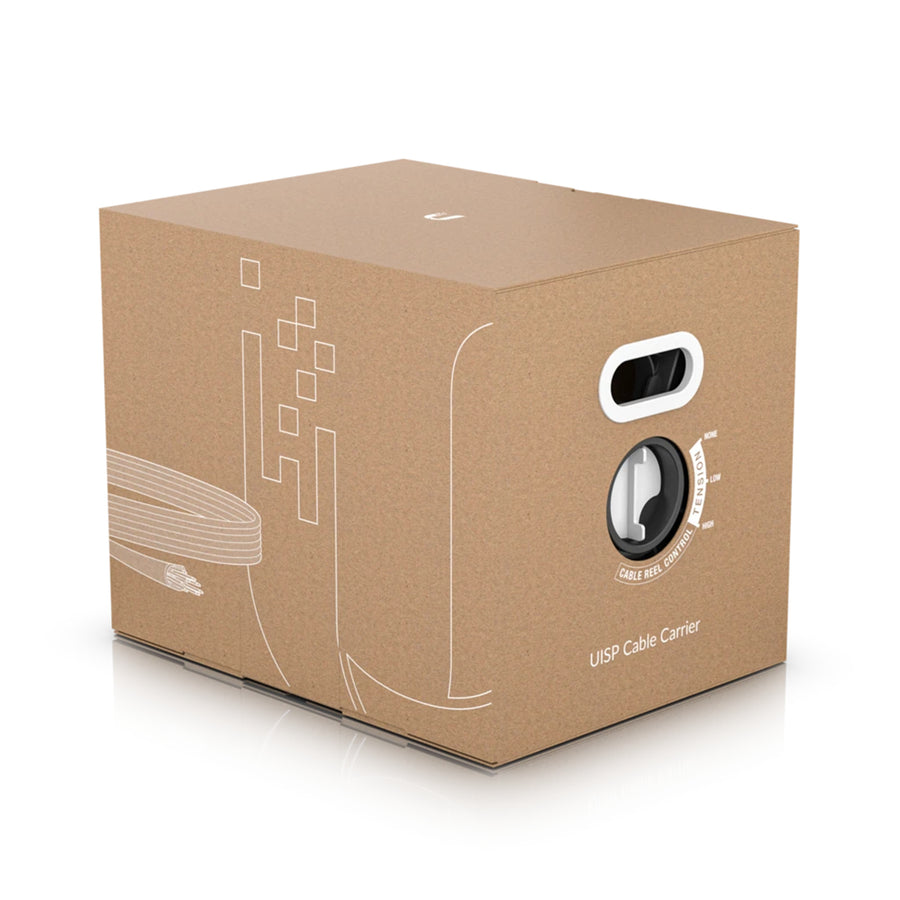

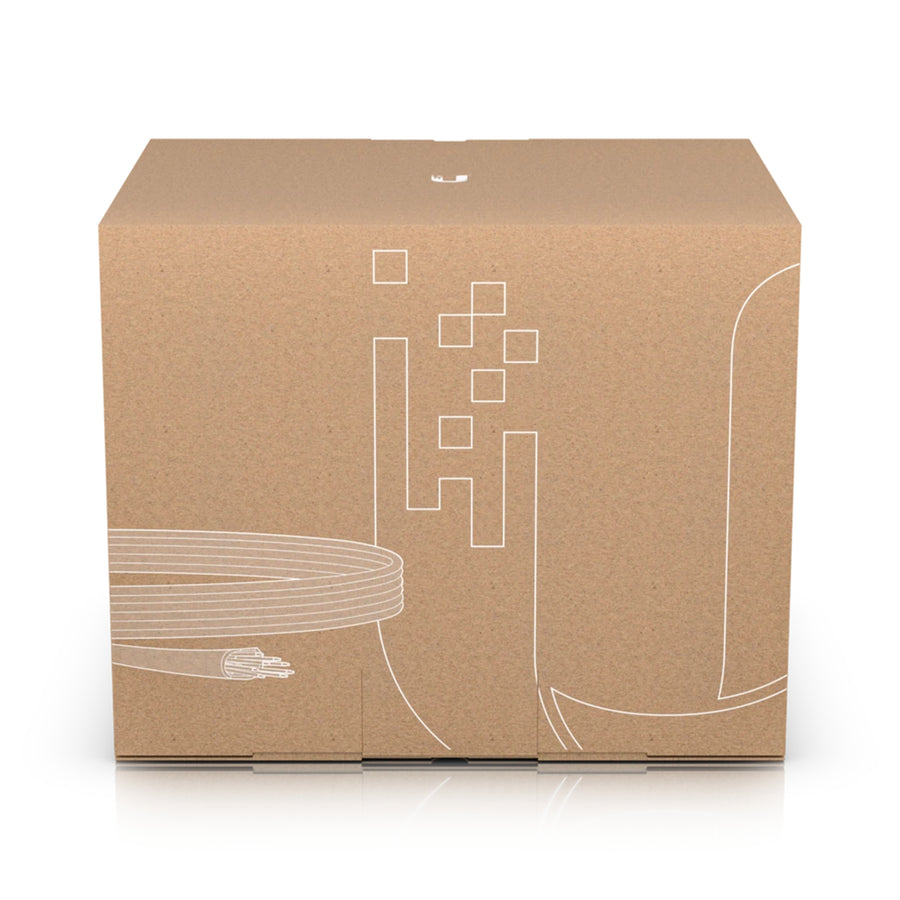

UISP-CABLE-CARRIER - Ubiquiti UISP Cable Carrier 305m Cat5e Outdoor Shielded Ethernet Cable Roll
UISP-CABLE-CARRIER - Ubiquiti UISP Cable Carrier 305m Cat5e Outdoor Shielded Ethernet Cable Roll
Features
UISP Cable Carrier
Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damage
The UISP-Cable-Carrier is a Category 5e cable that delivers multilayered elemental protection with a primary braid shield and a weatherproof jacket that prevents damage from rain, snow, and other harsh climatic conditions. The cable is also equipped with a drain wire and internal foil shielding to protect it from electrostatic discharge (ESD), and its anti-crosstalk divider preserves signal integrity, allowing the cable to maintain Gigabit Ethernet link rates even when electromagnetic interference is present.
- 1,000 ft (305 m) Category 5e cable
- 24 AWG solid copper conductor pairings
- Insulated, weatherproof cable jacket
- Internal braid and foil shielding
- Drain wire that protects against ESD damage
- Anti-crosstalk divider
View datasheet here: https://dl.ubnt.com/ds/uisp-cable_ds
Specifications
Technical Specifications
| Box Dimensions | 330 x 425 x 340 mm (13 x 16.7 x 13.4") |
|---|---|
| Box Weight | 16 kg (35.3 lb) |
| Cable Length | 305m (1000ft) |
| Cable Color | Black |
| Cable Type | CAT5e, Shielded |
| Ethernet Support | Up to 1 Gbps |
| Conductor Wire Gauge | 24 AWG |
| Conductor | Solid Bare Copper |
| Conductor Diameter | 0.500 ± 0.005 mm |
| Insulation Type | Solid Polyethylene |
| Insulation Thickness | Avg. 0.295 mmMin. 0.29 mm |
| Insulation Diameter | 1.16 ± 0.02 mm |
| Separation (Polyester Wrapping) | Thick: 0.025 mm, Extent: 20 mm |
| Anti-Crosstalk Divider | LDPE: 4.2*0.3 mm |
| Cable Shield (Aluminum Foil) | Thick: 0.060 mm, Extent: 20 mm |
| ESD Drain Wire | 0.4 TC |
| Rip Cord | Yes |
| Secondary Cable Shield (Braid) | 16*8*0.16AA Density: 95% |
| Jacket Material | Polyethylene |
| Jacket Thickness | Avg. 0.52 mmMin. 0.46 mm |
| Jacket Outer Diameter | 6.8 ± 0.30 mm |
| Jacket Color | Black |
| Storage Temperature | -30 to 75° C (-22 to 167° F) |
| Installation Temperature | -20 to 60° C (-4 to 140° F) |
| Operation Temperature | -40 to 80° C (-40 to 176° F) |
| Standards | ANSI/TIA-568-C.2 (2009)ISO/IEC 11801 (Edition 2.2) |
