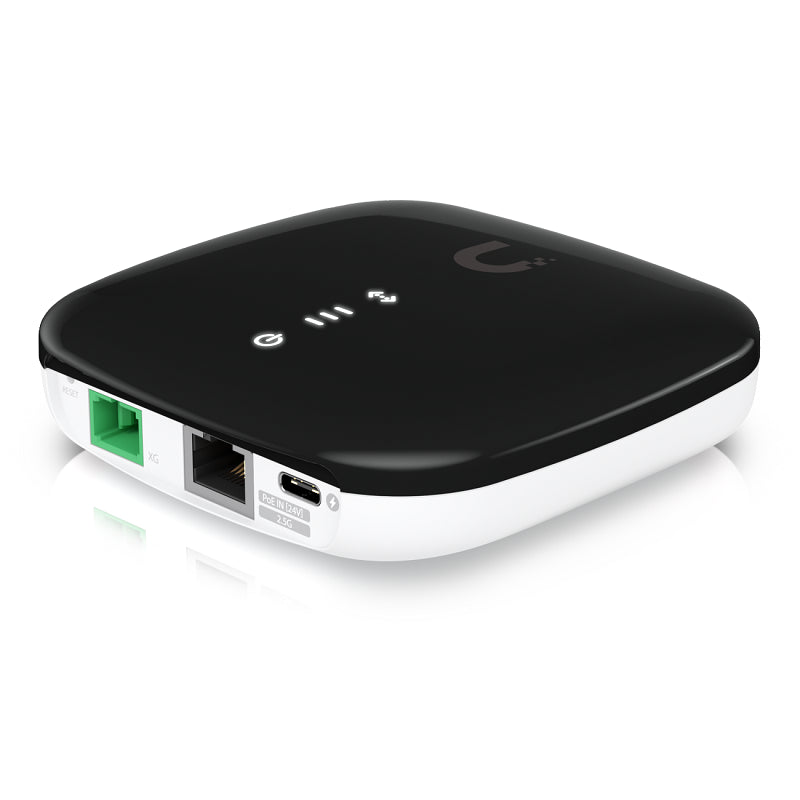

UISP-FIBER-XG - Ubiquiti UISP Fiber XG-PON Optical Network Unit
Ubiquiti

UISP-FIBER-XG - Ubiquiti UISP Fiber XG-PON Optical Network Unit

SKU: UISP-FIBER-XG ● In Stock
$112.81
Free shipping over $299 Genuine product 30-day returns

UISP-FIBER-XG

UISP-FIBER-XG - Ubiquiti UISP Fiber XG-PON Optical Network Unit

Description

Ubiquiti UISP Fiber XG-PON Optical Network Unit. An optical network unit that can deliver 2.5Gbps uplink/10Gbps downlink speeds over distances up to 20 km.
Features
  • (1) XG-PON port
  • (1) 2.5GbE RJ45 LAN port and 24V PoE in

Specifications

Details
Manufacturer's Code UISP-FIBER-XG
Operating wavelength TX: 1,270nm, RX: 1,577nm
Line code Scrambled NRZ
Physical reach 20 km
Networking interface (1) SC/APC, ITU-G.987 XGPON WAN port, (1) 100/1,000/2,500 MbE RJ45 LAN ports
Management interface Ethernet in-band, PON
PoE interface (1) PoE in, 24V DC passive PoE
Memory 256 MB DDR
Onboard flash storage 32 MB NOR
Max. power consumption 6W
Power method USB-C 5V DC, 3A, 24V DC passive PoE
Power supply 5V DC, 3A power adapter
Passive PoE 2-pair (4, 5+; 7, 8-)
Supported voltage range 5V DC adapter, 10–30V DC passive PoE
Total non-blocking line rate Downstream: 9.95 Gbit/s, Upstream: 2.44 Gbit/s
Normal TX range of optical module 2 to 7dBm
Normal RX range of optical module -9 to -27dBm
Button (1) Factory reset
Dimensions 100 x 100 x 27 mm (3.9 x 3.9 x 1.1")
Weight 220 g (0.49 lb)
Enclosure material UV-stabilized polycarbonate
Operating temperature -15 to 45° C (5 to 113° F)
Operating humidity 10 to 95% non-condensing
Certifications CE, FCC, IC
