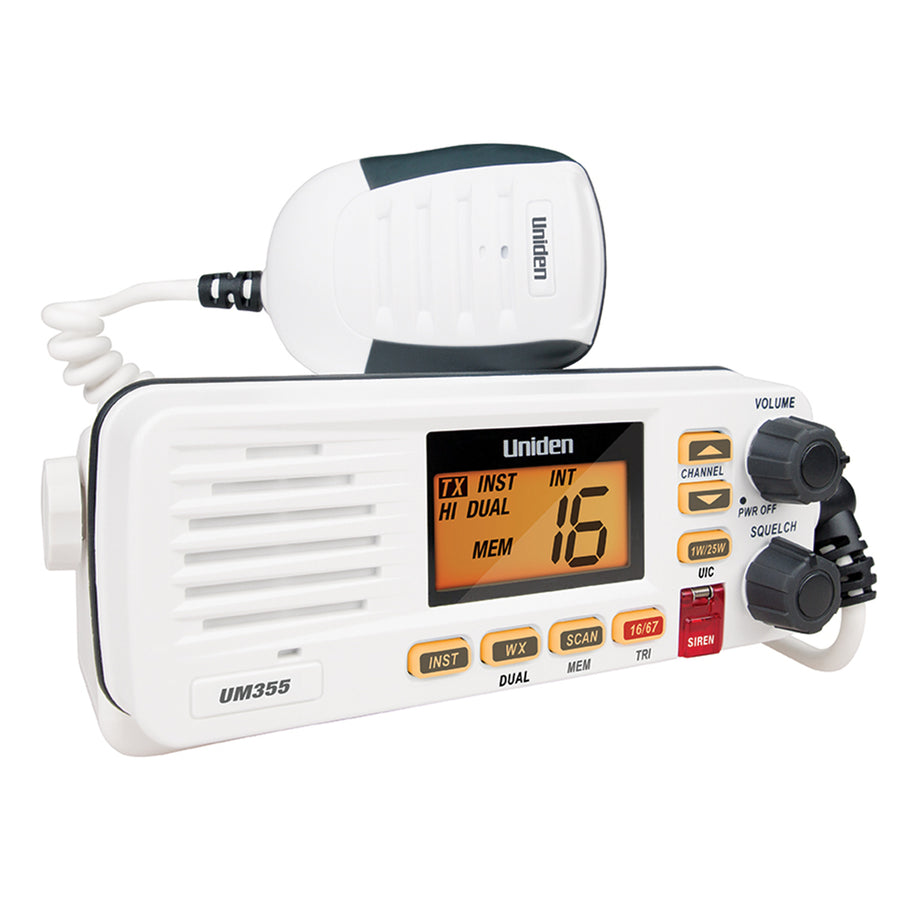

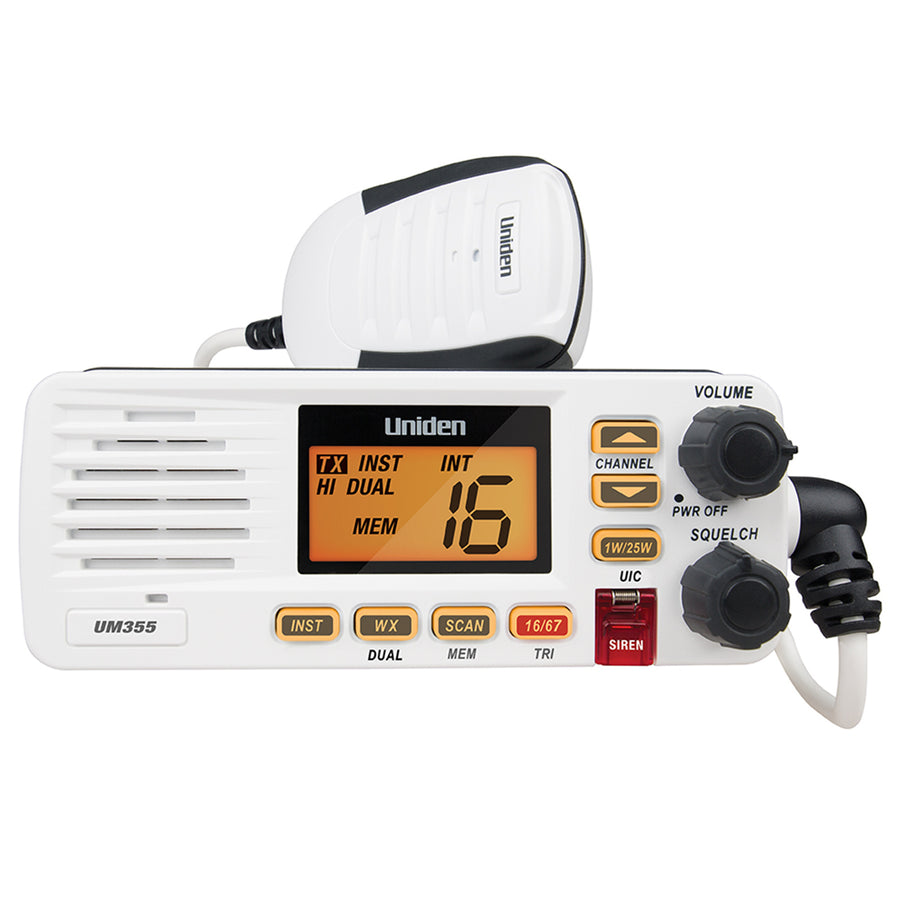

Uniden UM355 25W VHF Marine Radio, White, Water Resistant

SKU: UM355 ● In Stock
$216.52
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Uniden UM355 25W VHF Marine Radio, White, Water Resistant

Specifications

Technical Specifications

Controls Volume-Pwr, Squelch
Status Indicators Transmit power, Scan mode, Triple Watch mode, Dual Watch mode, Battery High, Battery low, USA, CAN, INT, Memory, Message, Weather band and Channel Display
Display LCD
Buttons 1W/25W/UIC, Channel UP, Channel DOWN, INST, WX-DUAL, 16/67-TRI, SIREN, and SCAN/MEM
Connectors and Cables Antenna, accessory, and DC power
Dimensions (H x W x L) 66 x 162 x 128 mm
Weight 1.0 kg
Supply Voltage Nominal 13.8V DC, negative ground (10.8 VDC to 15.6 VDC)
Antenna Impedance 50 O nominal
Microphone Rugged 2 kO condenser mic element with coiled cord
Speaker 4.49 cm, 8 O
Operating Temperature Range -15 °C to + 55 °C
Shock and Vibration Meets or exceeds EIA standards, RS152B and RS204C
AS/NZS Approvals Type accepted under AS/NZS 4415.2:2003 of the Rules.
Power Output 1 watt or 25 watt (user selectable)
Power Requirement 25 watts output: 6A @ 13.8V DC
Modulation ±5 kHz deviation
Hum and Noise Signal-to Noise 45 dB @ 1 kHz with 3 kHz deviation with 1000 Hz modulating frequency (nominal)
Audio Distortion Less than 8% with 3 kHz deviation with 1000 Hz modulating frequency
Spurious Suppression -45 dBm @ Hi, -55 dBm @ Lo
Output Power Stabilization Built-in automatic level control (ALC)
Frequency Range 156 to 158 MHz
Frequency Stability ±1.5kHz @ -15°C to + 55°C
Frequency Range 156 to 163 MHz
Sensitivity 0.25 µV for 12 dB SINAD (nominal)
Circuit Dual Conversion Super Heterodyne PLL
Squelch Sensitivity 0.2 µV Threshold
Spurious Response 75 dB (nominal)
Adjacent Channel Selectivity 78 dB @ ±25 kHz (nominal)
Audio Output Power 2.5 watts (10% Distortion, 8 O load)
Power Requirement 230mA @ 13.8V DC at squelched, 440 mA @ 13.8V DC at maximum audio output
IF Frequencies 1st 41.925 MHz 2nd 455 kHz
Warranty 12 months
