UNVR-Instant-Kit - Ubiquiti UniFi Network Video Recorder Instant Kit
UNVR-Instant-Kit - Ubiquiti UniFi Network Video Recorder Instant Kit
Features
Network Video Recorder Instant Kit
Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
- 4x G5 Turret Ultra cameras
- 1TB 3.5" drive
- Vantage Point support

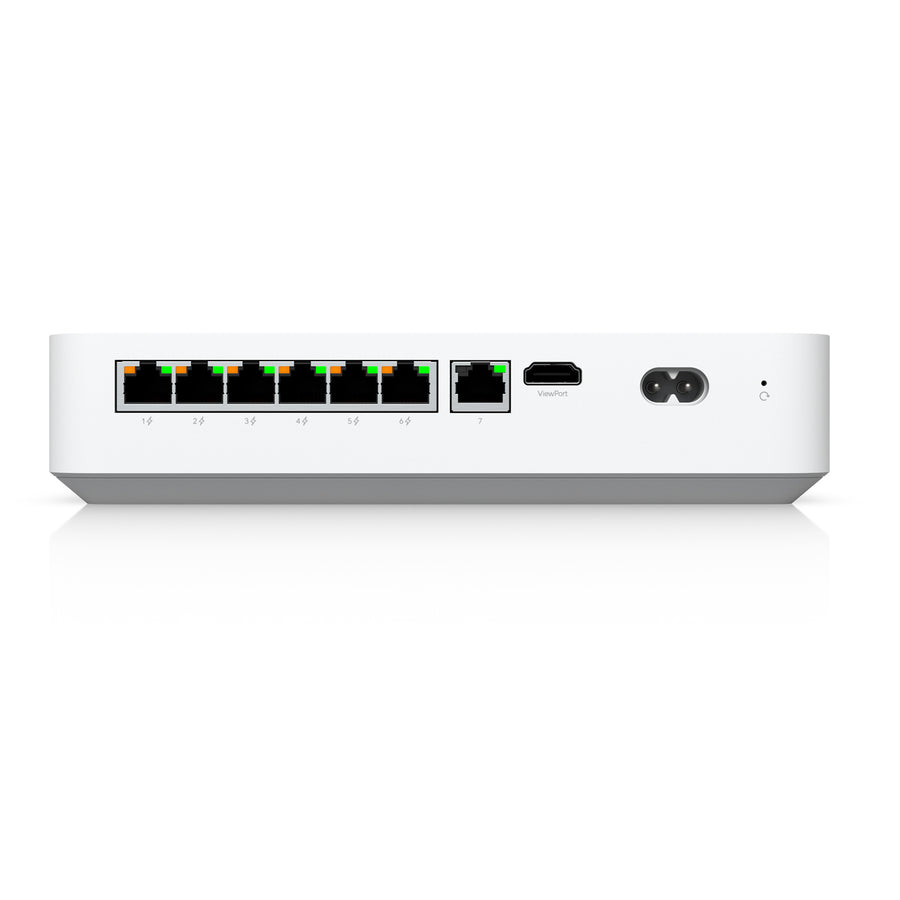

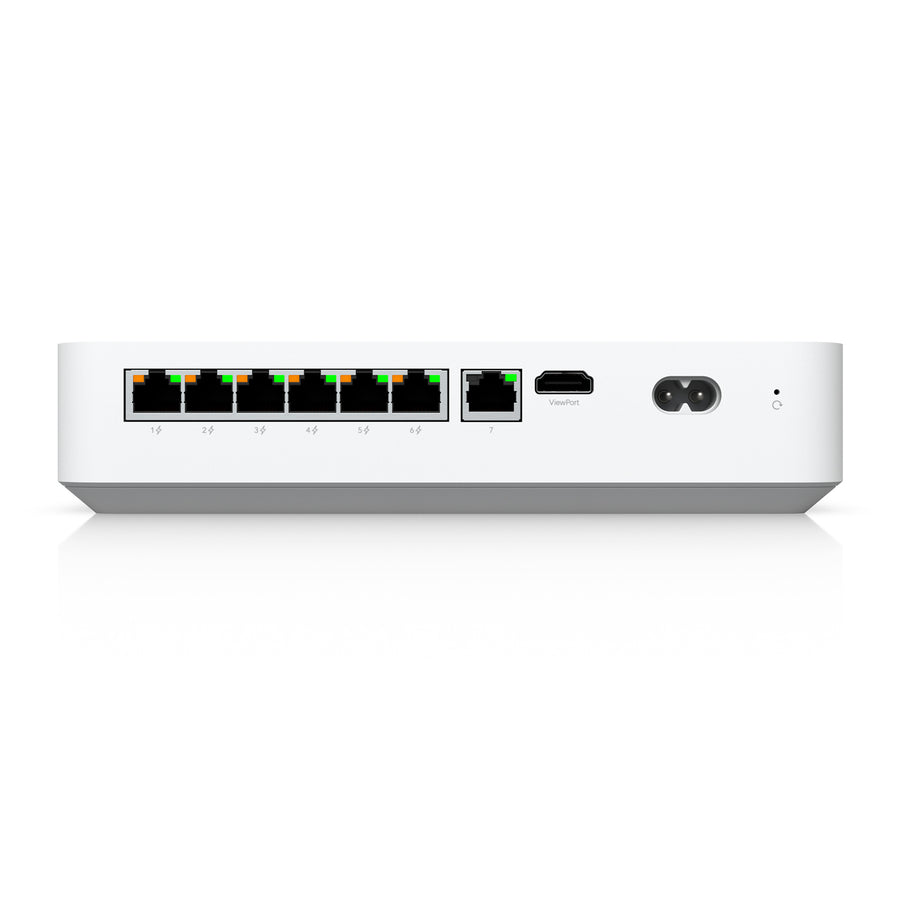

- (1) GbE RJ45, (6) GbE PoE RJ45, (1) HDMI port (Viewport)
- Compact Desktop form factor
- Door Access Support
Note. Requires connection to a Gateway or Layer 3 switch.
A New Era of Security for Everyone

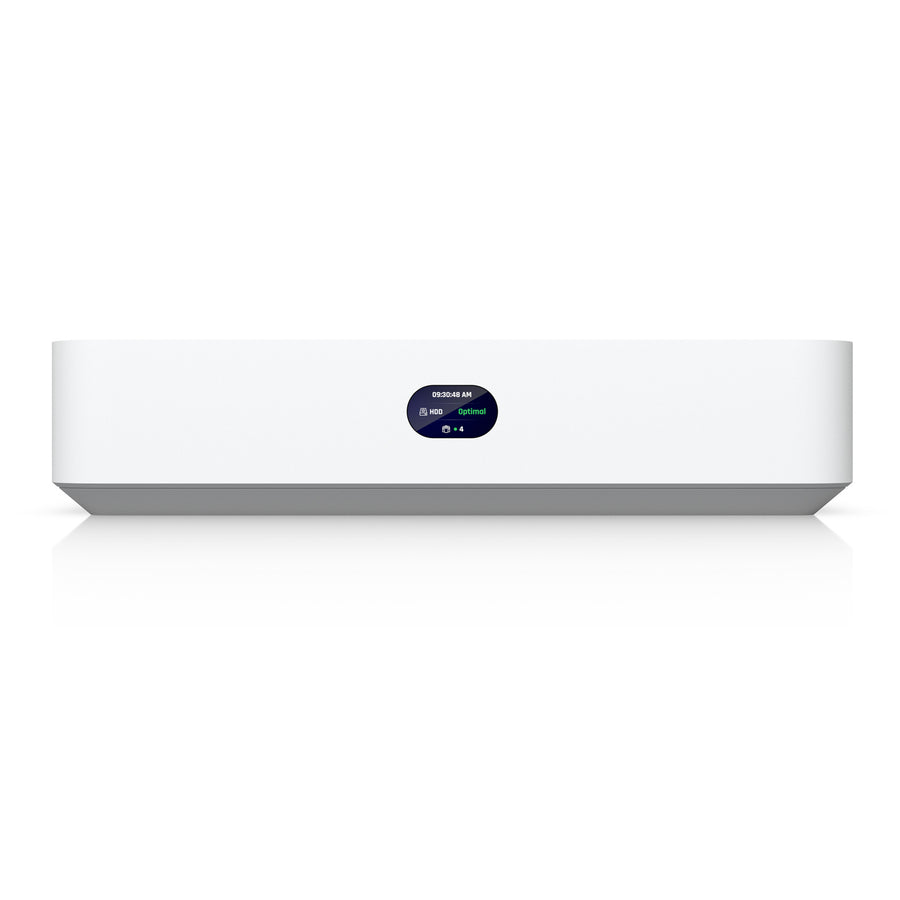

Today marks a big step forward in making professional-grade physical security accessible to everyone. The new UNVR Instant is a compact, all-in-one solution built to deliver enterprise-class performance without complexity or high costs.
Power and Flexibility in One Device

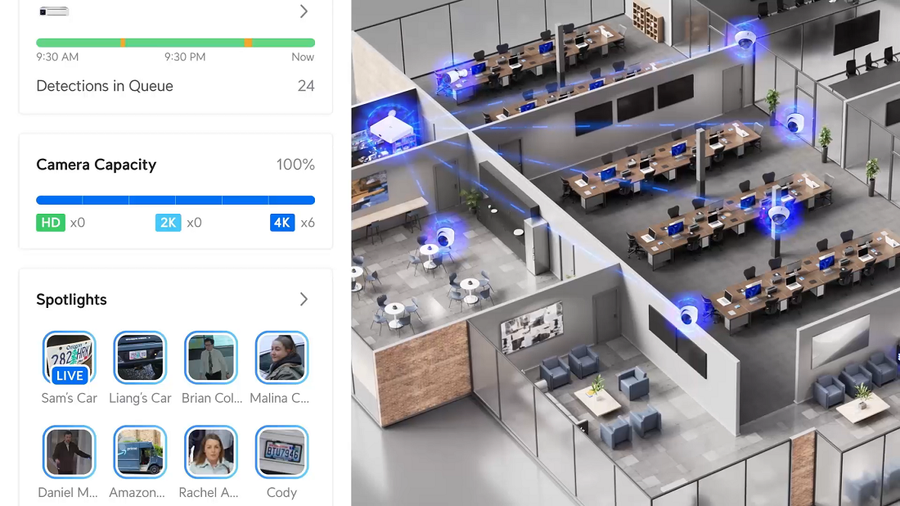

UNVR Instant is equipped with a 3.5" HDD bay, an integrated 6-port PoE switch, and a ViewPort output for real-time monitoring. Supporting up to (8) 2K cameras or (6) 4K cameras, it redefines what's possible at this price point.

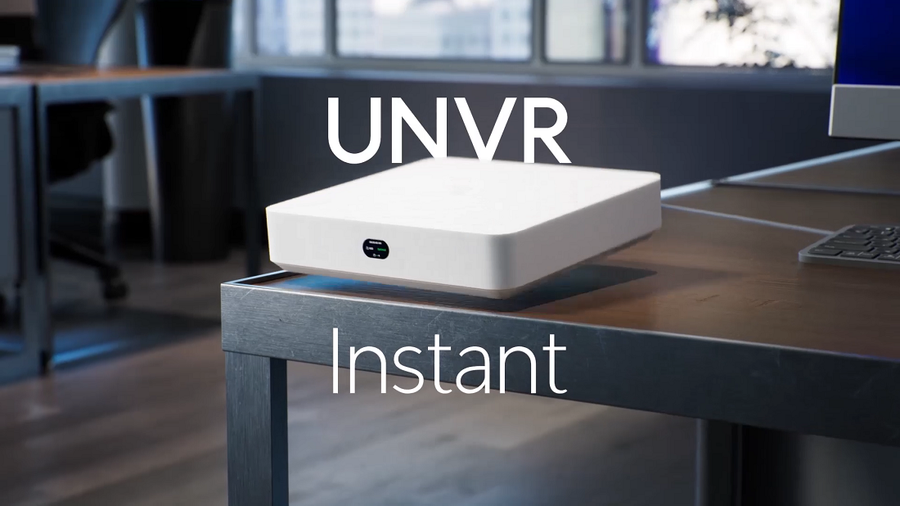

Compact Yet Powerful
UNVR Instant makes enterprise-class security simple and affordable. Compact, powerful, and easy to set up, it's built for anyone who needs reliable protection.
- Designed for homes, small businesses, and enterprises alike
- 3.5" HDD bay for expandable storage
- Built-in 6-port PoE switch for simple connectivity
Breaking the Barrier
UNVR Instant brings professional-grade physical security within reach, making it simpler, faster, and more affordable than ever.
- Live monitoring via ViewPort output
- Quick installation for fast deployment
- Cloud-based management with no hidden costs
Setup That Just Works

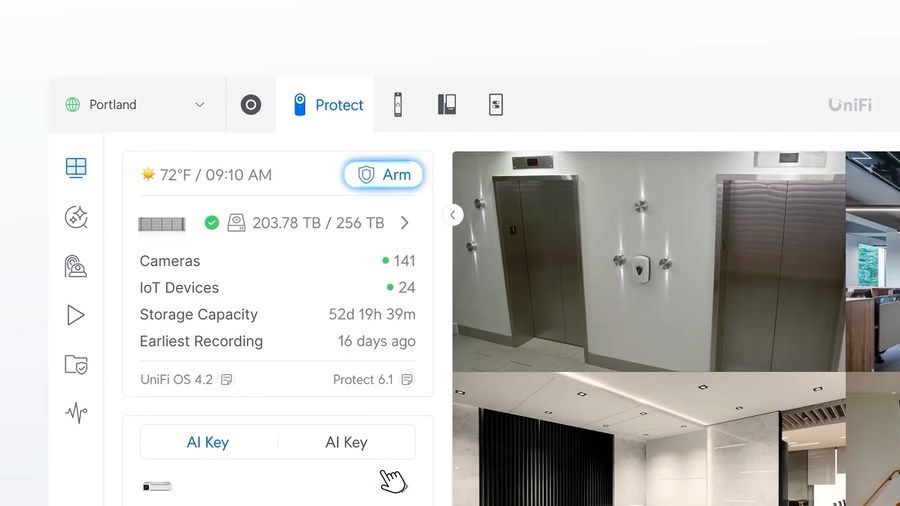

Getting started with UNVR Instant takes only seconds. Powered by the UniFi Protect platform, it combines user-friendly design with advanced functionality. Local storage ensures high-speed access and privacy, while cloud-based management gives you control from anywhere, all with zero licensing fees.

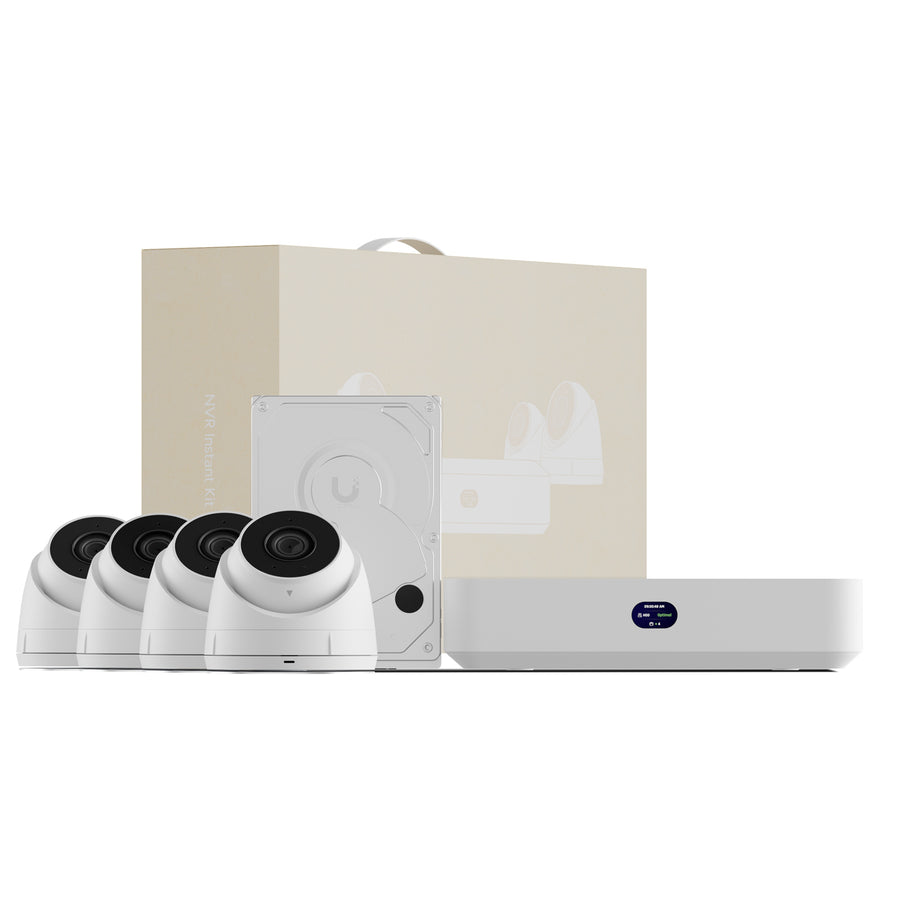

A 4-Camera Bundled Kit

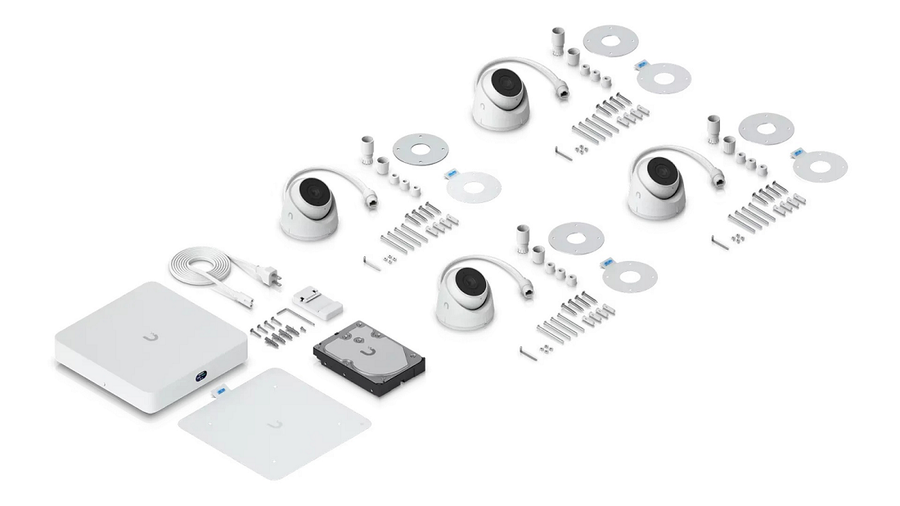

The UNVR Instant kit delivers an all-in-one security solution right out of the box. Bundled with a 1TB HDD and 4x G5 Turret Ultra cameras for a complete setup.
Specifications
Technical Specifications
| Included | (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD |
|---|---|
| Dimensions | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
| UniFi Application Suite | Protect: YesAccess: Yes |
| Managed Cameras | (15) HD(8) 2K(6) 4K |
| Managed Access Hubs | 50 |

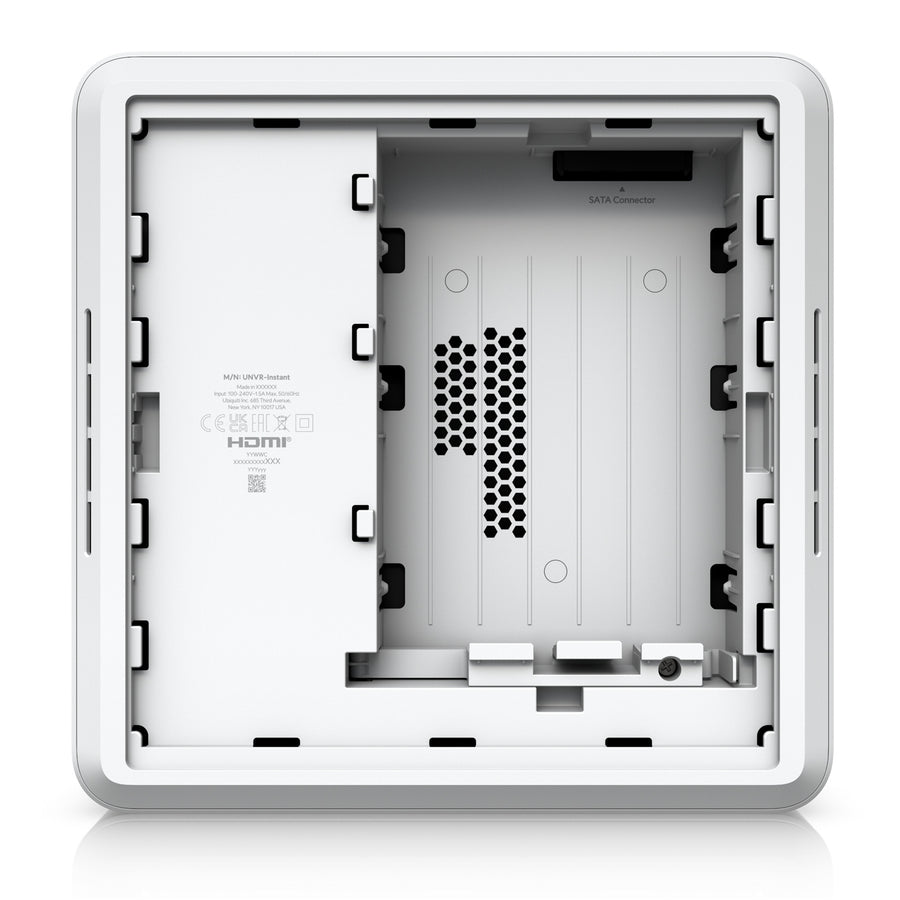

| Storage Capacity | (1) 3.5" drive bay |
| Data Protection | Yes |
| Vantage Point | Yes |
| Networking Interface | (1) GbE RJ45 uplink port(6) GbE PoE RJ45 downlink ports(1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |

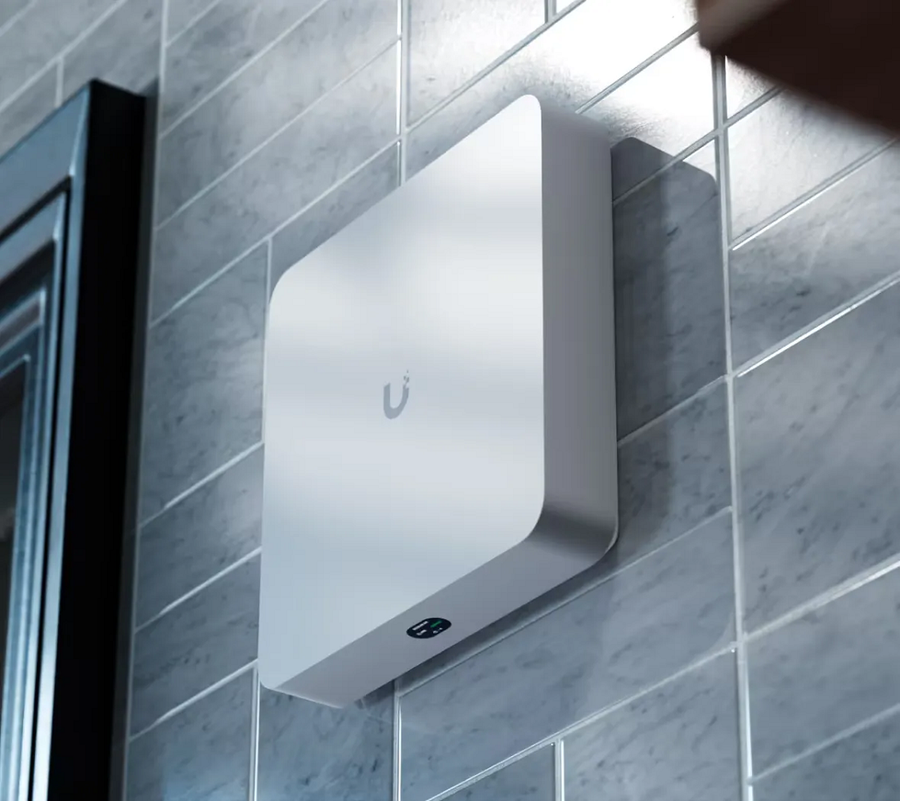

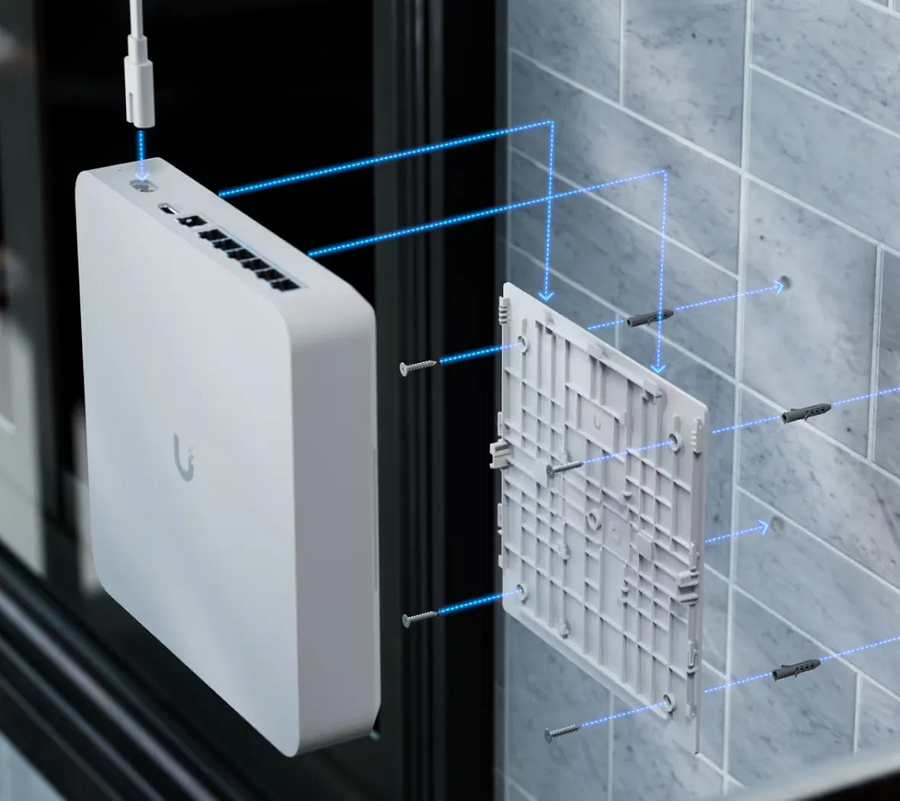

| Mounting | Wall, Din rail mount (Included) |
| Door Access Support | Yes |
| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W |
| Power Method | Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| Max. PoE Wattage per Port by PSE | PoE 15.4W |
| Voltage Range PoE Mode | 44-57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | EthernetBluetooth |
| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Materials | Polycarbonate |
| Mount Material | Polycarbonate |
| LEDs | Ethernet: YesPoE: Yes |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, Electrical Safety |

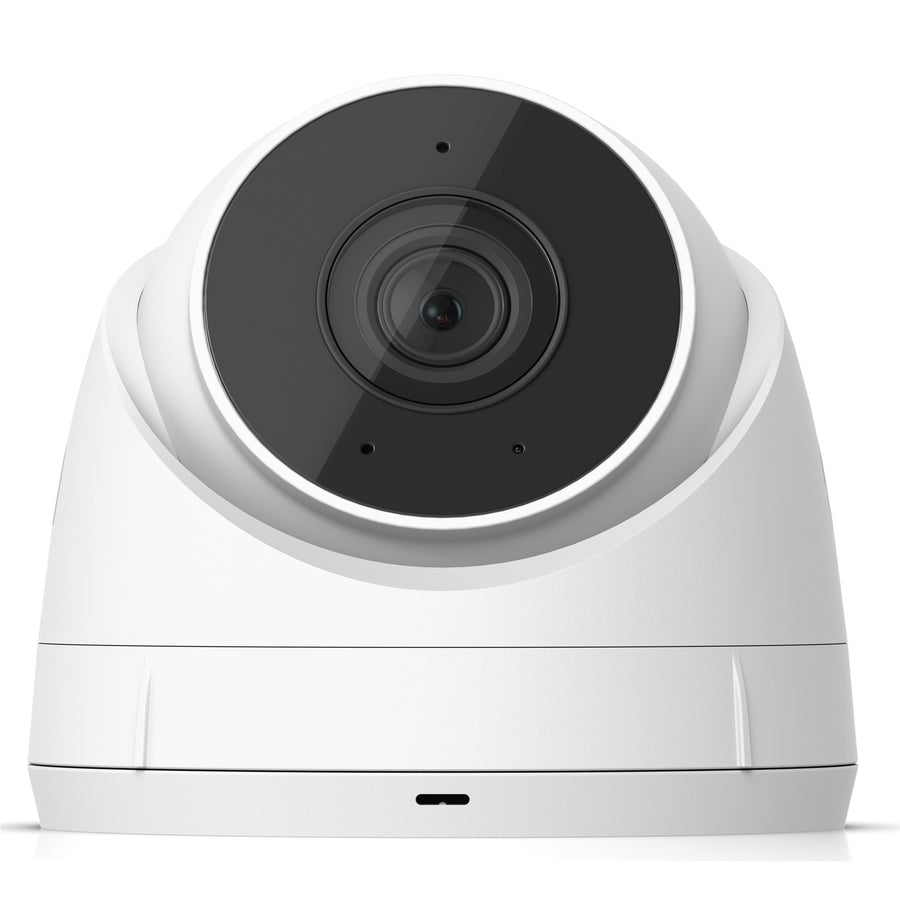

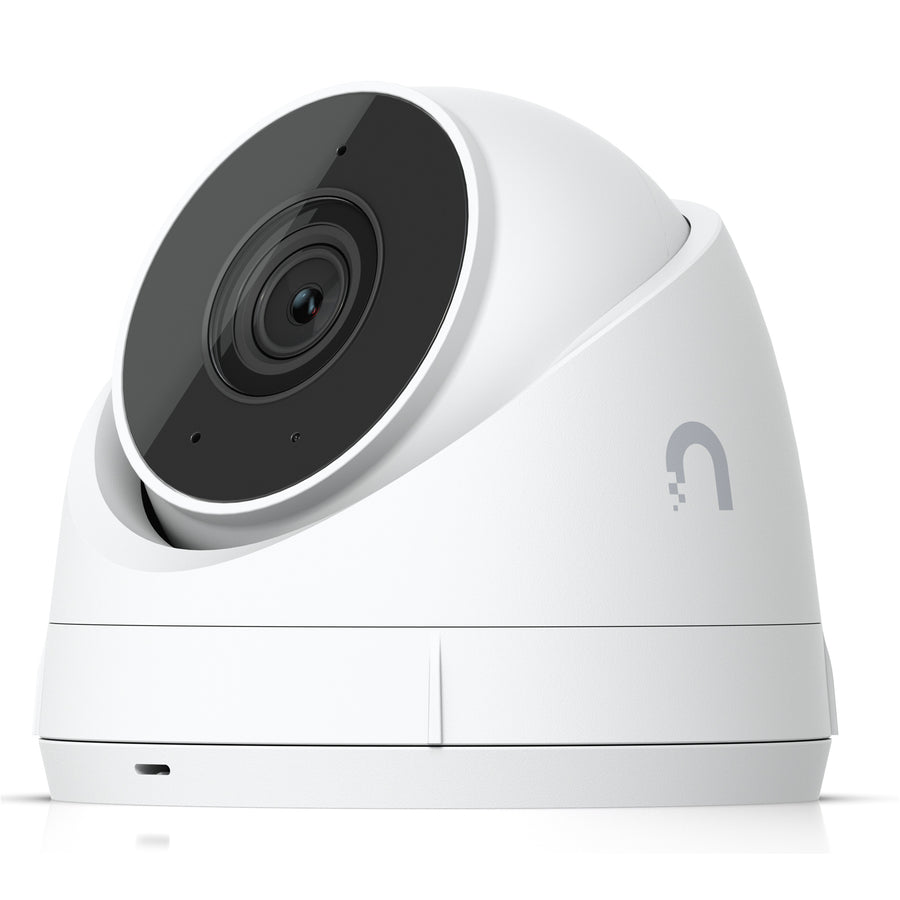

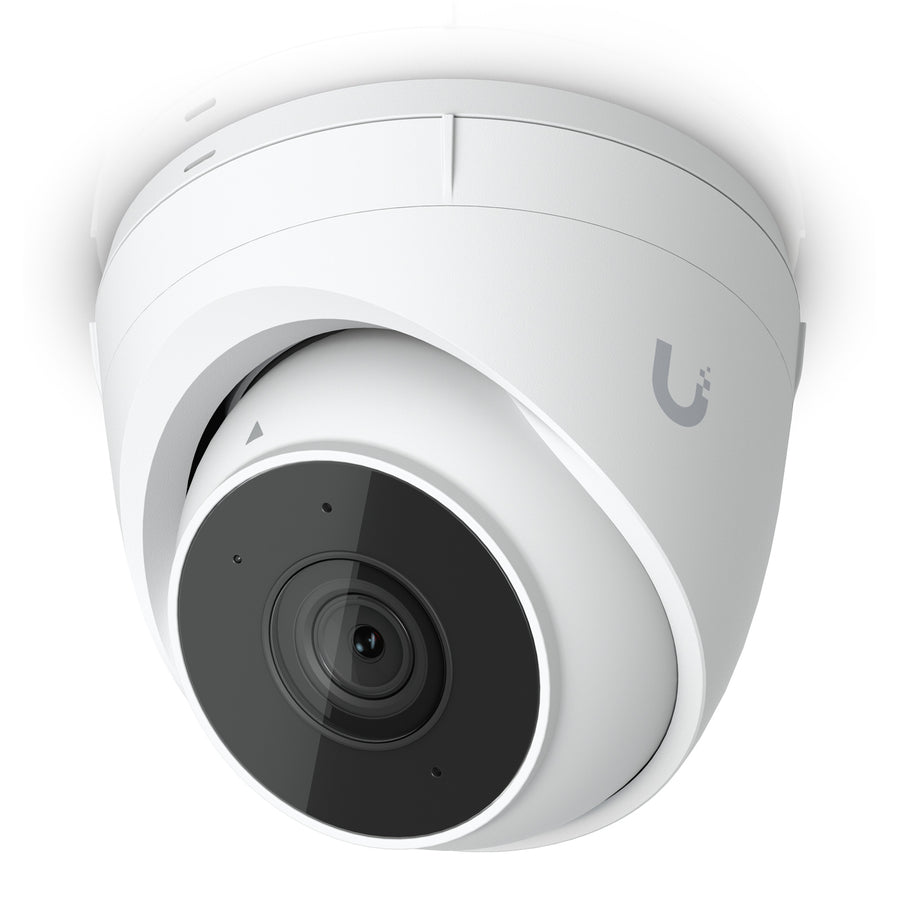

| Dimensions | Ø90 x 71.2 mm (Ø3.5 x 2.8") |
| IR Night Vision | 30 m (98 ft) |
| Smart Detections (People, Vehicles, Animals) | Yes |
| Resolution | 2K |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |

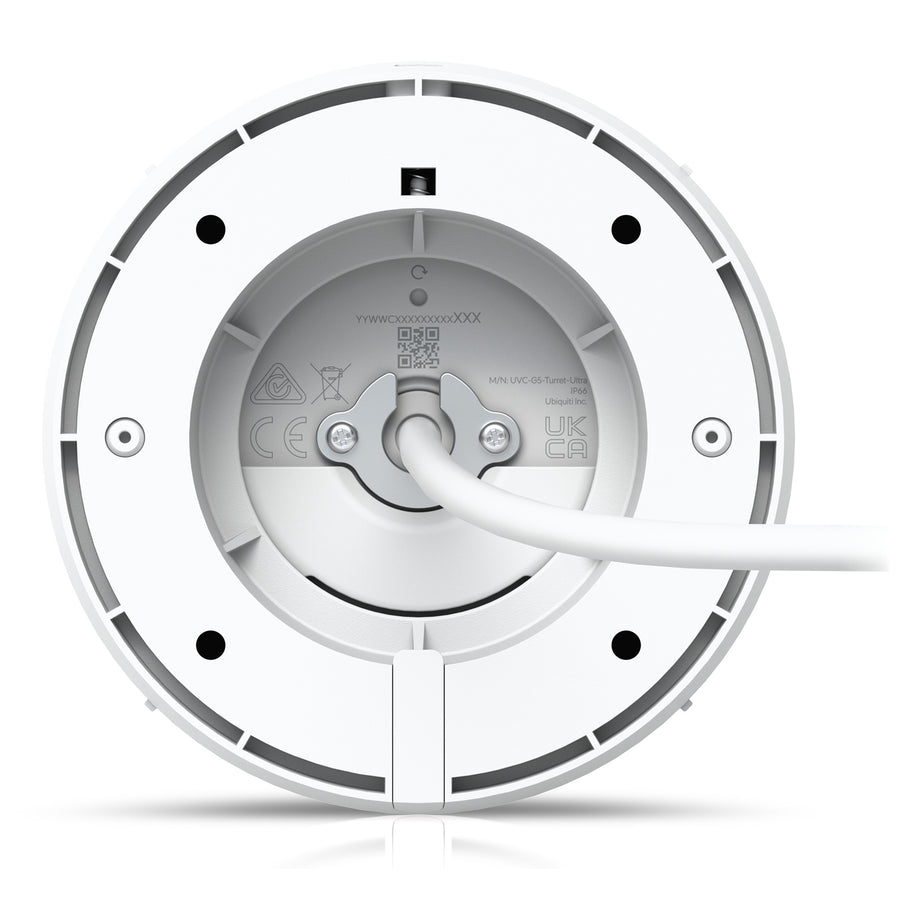

| Mounting | Wall, ceiling mount (Included)Junction box, arm mount (Optional) |
| Networking Interface | 10/100 MbE RJ45 port |
| Video | Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Optics | Sensor: 1/2.4" CMOSLens: Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 4W |
| Supported Voltage Range | 37-57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | 330 g (11.6 oz) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory-reset |
| Cable | Cable Connector Type: RJ45Cable Diameter: 5 mm (0.2")Cable Length: 30 cm (1 ft)Jacket Material: PolycarbonateJacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8")Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |

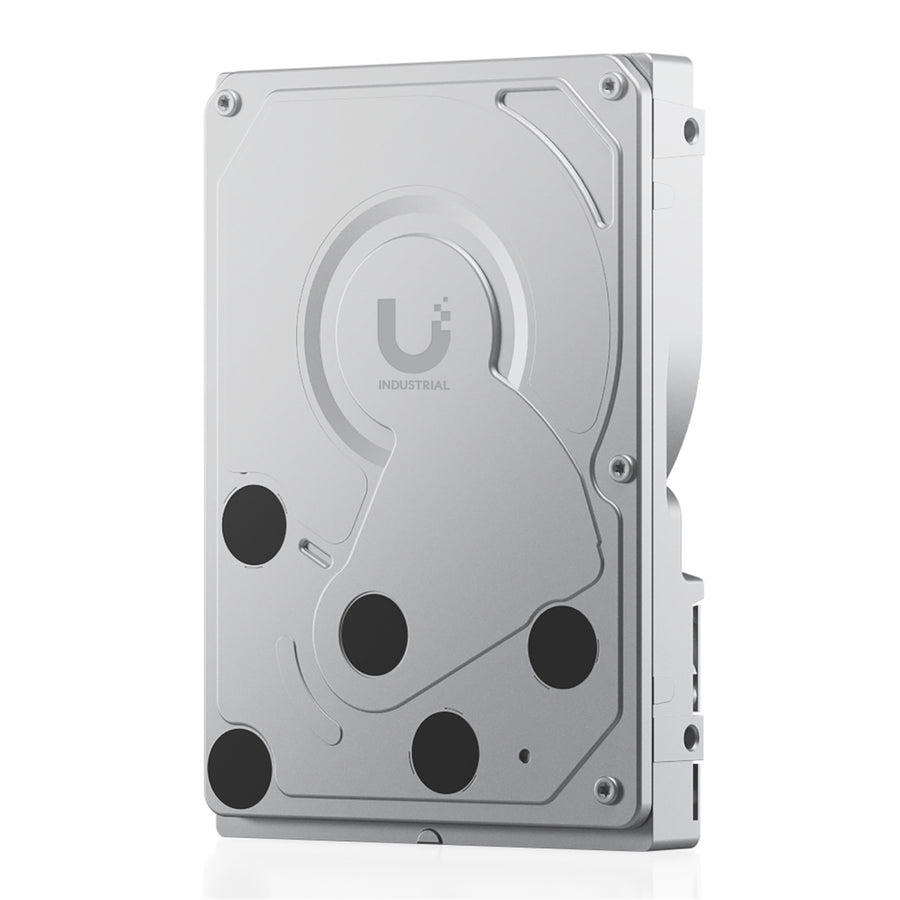

| Dimensions | 147 x 101.6 x 26.1 mm (5.75 x 4 x 1") |
| Hard Disk Form Factor | 3.5-inch |
| Weight | 0.45 kg (0.99 lb) |
| Storage Capacity | 1 TB |
| Power Method | 5V/12V input |
| Management Interface | SATA 6 Gb/s |
| Rotation Speed | 5400 RPM |
| Workload Rating | 180 TB/year |
| Mean Time Between Failure (MTBF) | 1,000,000 h |
| Ambient Operating Temperature | 0 to 65° C (32 to 149° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, CE, TUV, RCM, KC, BSMI |
