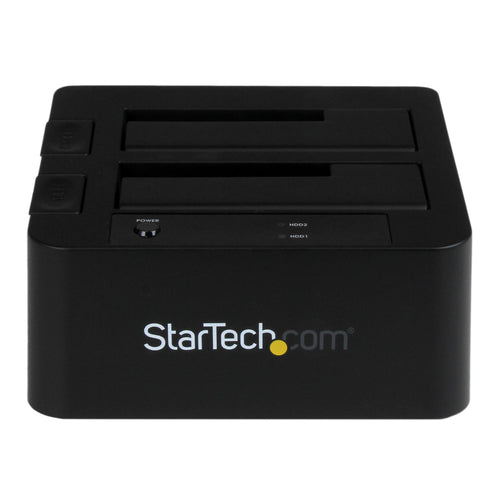

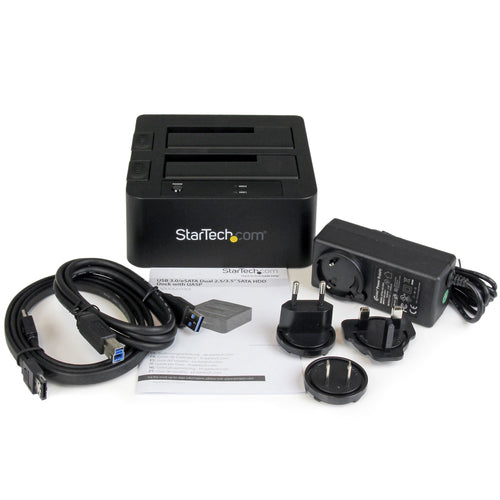

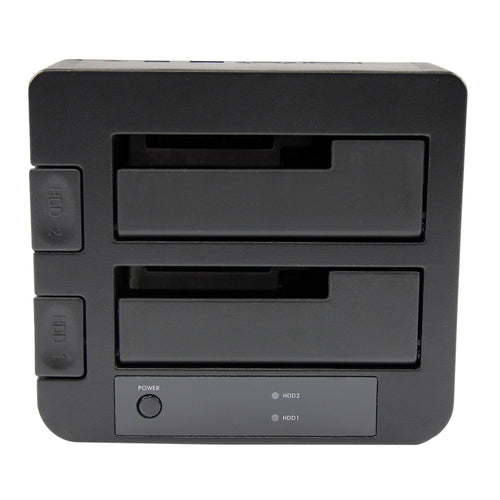

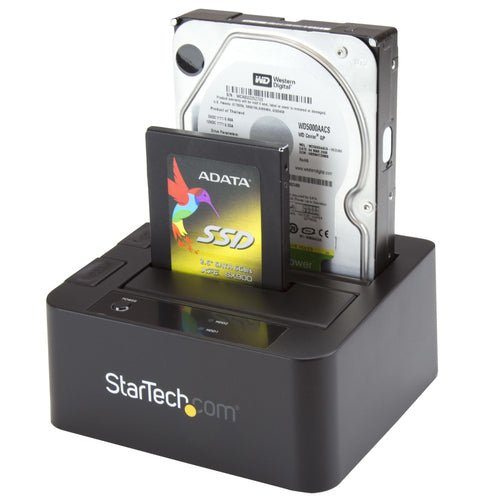

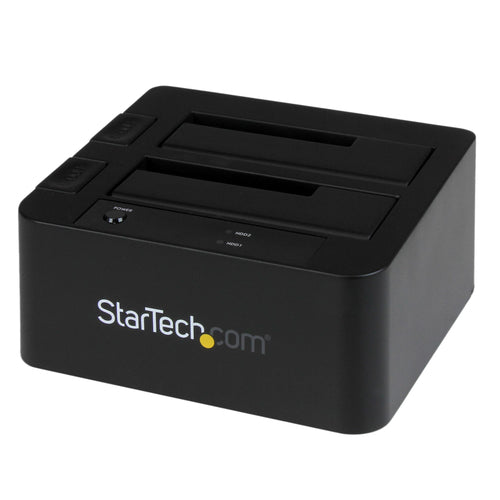

StarTech.com SDOCK2U33EB - USB 3.0/eSATA Dual HDD/SSD Dock w/ UASP
Features
The SDOCK2U33EB Dual 2.5/3.5" SATA hard drive docking station lets you dock and swap hard drives from your desktop or laptop computer simultaneously using a single eSATA or USB port.
For fast performance and efficient data transfers when connected through eSATA, the docking station supports full SATA III transfer speeds -- up to 6 Gbps. For universal compatibility, the dock can be connected through USB 3.0 with transfer speeds up 5 Gbps plus support for UASP, which supports performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.
The hard drive docking station supports the fastest drive technologies including SATA III (6 Gbps), hybrid drives and solid state drives (SSD), ensuring you can save time by getting the most out of your drive performance.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCK2U33EB supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
Specifications
Technical Specifications
| Chipset ID | JMicron - JMS562 |
|---|---|
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in & 3.5in |
| Interface | USB 3.0 & eSATA |
| Number of Drives | 2 |
| Insertion Rating | 15,000 Cycles |
| Max Drive Capacity | Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total) |
| Port Multiplier | Yes |
| Type and Rate | USB 3.0 - 5 Gbit/sSATA III (6 Gbps) |
| UASP Support | Yes |

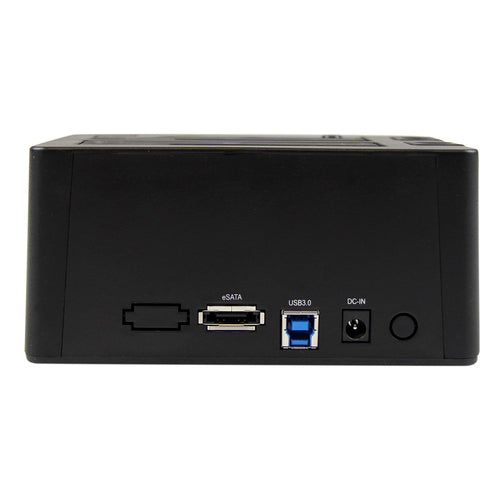

| Connector(s) | Drive Connectors 2 - SATA Data & Power Combo (7+15 pin) ReceptacleHost Connectors 1 - eSATA (7 pin, Data) Female1 - USB Type-B (9 pin) USB 3.0 Female |
| LED Indicators | 1 - Power1 - Drive 1 Activity1 - Drive 2 Activity |
| Input Current | 1.5 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 3.0 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 36 |
| Power Source | AC Adapter Included |
| Humidity | 20%RH~80%RH |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature | -20°C to 50°C (-4°F to 122°F) |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Drive Enclosures & Docks |
| Weight | 0.567 kg |
