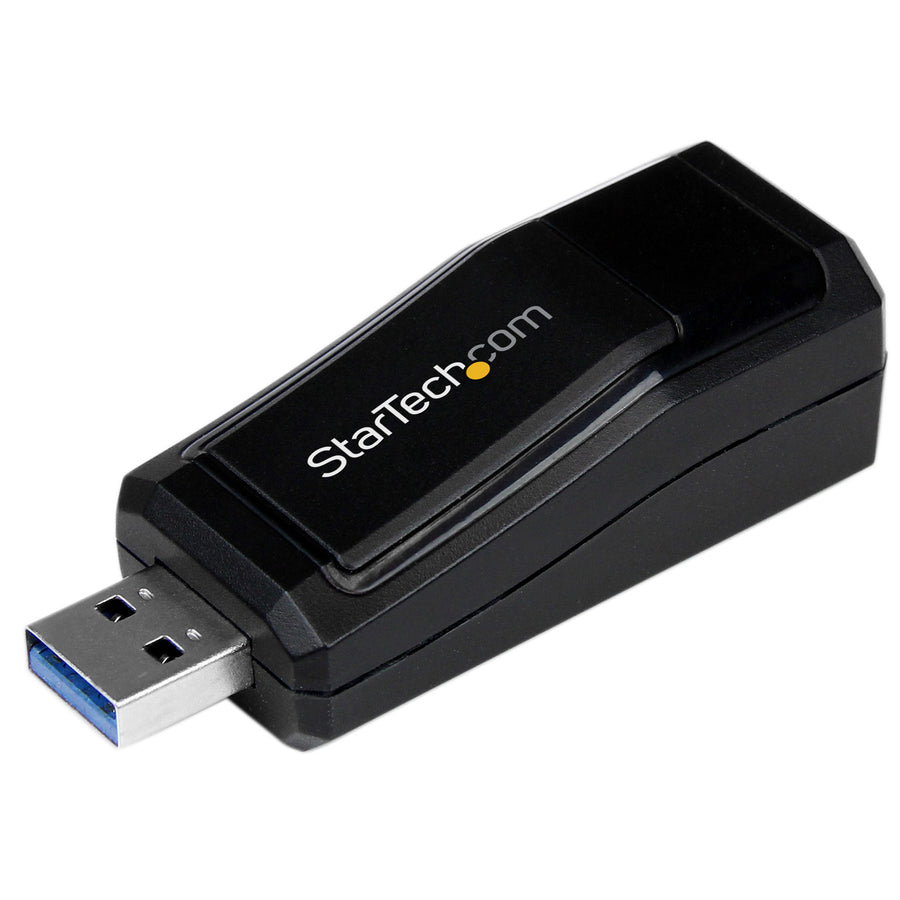

StarTech.com USB31000NDS USB3.0 to Gigabit Ethernet NIC Adapter
Features
Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 port
- Full Gigabit bandwidth support over USB 3.0
- IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible
- USB-Powered
- Crossover Detection & Auto-Correction (Auto MDIX)
- IEEE 802.1Q VLAN Tagging support
- Jumbo Frame support
- Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
- Activity and Link LED indicators
- Compact, lightweight design
The USB31000NDS USB 3.0 to Gigabit Ethernet Network Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.
This compact USB 3.0 NIC works with 10/100/1000 Mbps networks and offers backward compatibility with USB 2.0/1.x computer systems (speed limited by USB bus), making it an ideal portable replacement LAN adapter or laptop accessory. Support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), provides versatile Gigabit network performance for home or business use.
Applications
- Add Gigabit Ethernet capabilities to a desktop or laptop
- Replace a failed integrated network adapter with an external, USB Ethernet solution to avoid opening the computer case
The StarTech.com Advantage
- Full Gigabit bandwidth support through a USB 3.0 host connection
- Highly portable design, with no need for an external power adapter
Specifications
Technical Specifications
| Connector Type(s) | 1 - RJ-451 - USB Type-A (9 pin, 5 Gbps) |
|---|---|
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) |
| Humidity | 10~90% RH |
| Ports | 1 |
| Interface | RJ45 (Gigabit Ethernet) |
| Bus Type | USB 3.2 Gen 1 (5Gbps) |
| Industry Standards | IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az |
| Chipset ID | ASIX - AX88179A |
| LED Indicators | 1 - Activity (Yellow)1 - Link (Green) |
| Package Height | 1.3 in [3.2 cm] |
| Package Length | 6.9 in [17.4 cm] |
| Shipping (Package) Weight | 3.2 oz [92.0 g] |
| Package Width | 5.6 in [14.3 cm] |
| Package Quantity | 1 |
| Wake On Lan | Yes |
| Maximum Data Transfer Rate | 1Gbps (Gigabit Ethernet) |
| Max Distance | 100m [328ft] |
| Type and Rate | USB 3.0 (5Gbps) |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 4K max. |
| Form Factor | Dongle |
| Weight of Product | 0.8 oz [22 g] |
| Color | Black |
| Material | Plastic |

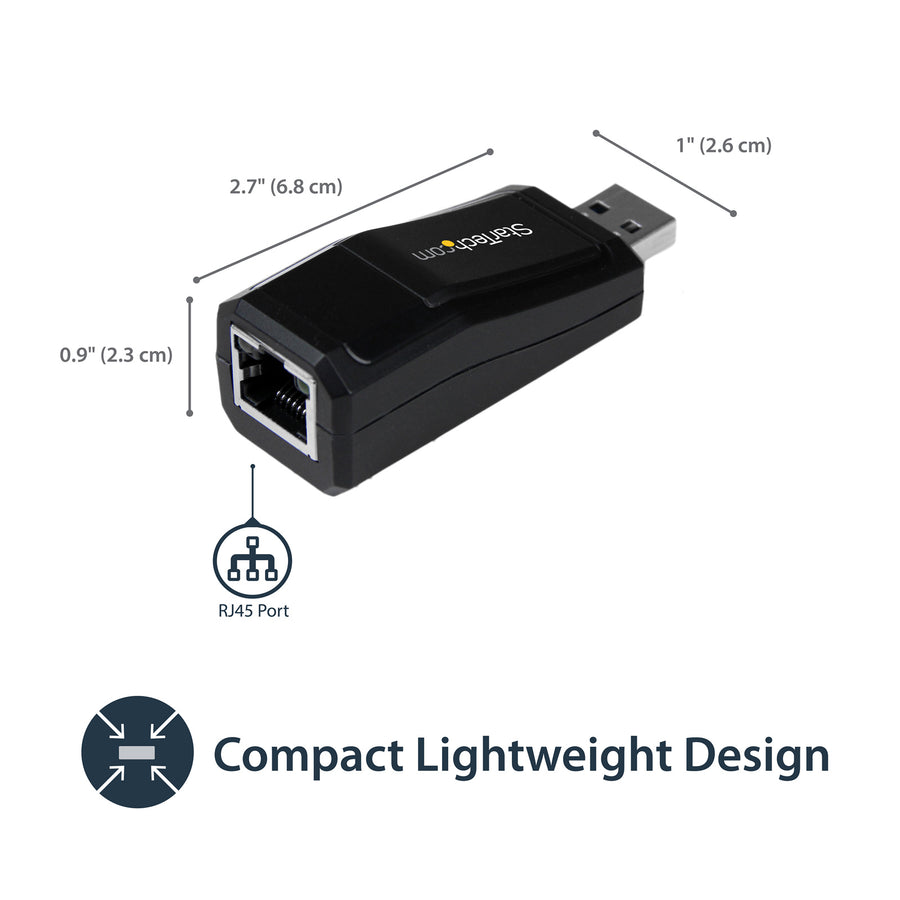

| Product Length | 2.7 in [68 mm] |
| Product Width | 0.9 in [2.3 cm] |
| Product Height | 1.0 in [2.6 cm] |
| Power Source | USB-Powered |
| Input Voltage | 5V DC |
| Output Voltage | 5 DC |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10, 11, 11 ARMWindows® Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022, 2025macOS 10.6 to 10.15, 11.3 to 26.1 VLAN tagging is currently not supported in macOSUbuntu 20.04 Kernel 5.15 and up - LTS Versions only |
| System and Cable Requirements | Host computer system with an available USB 3.0/2.0 port |
| Note | Jumbo Frames are no longer supported in macOS |
| Included in Package | 1 - USB 3.0 to Gigabit Ethernet Adapter1 - Driver CD1 - Instruction Manual |
| Brand | StarTech.com |
|---|---|
| Product Type | Networking > Network Cards |
| Weight | 0.009 kg |
