StarTech.com USB32DVCAPRO - USB 3.0 VIDEO CAPTURE DEVICE - DVI
Features
Record DVI video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution
- Record DVI video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution
- DVI Video Capture Card / Raw Video Capture / USB 3.0 DVI Video Capture / Aluminum / Compact HD Video Recorder / DVI capture card / Game capture card / HD PVR / USB 3.0 video capture card / USB capture card / USB video capture card / Video capture device
- Record video for training and tutorial purposes
- Capture raw video using your preferred DirectShow compatible software; Separate 3.5 mm audio input

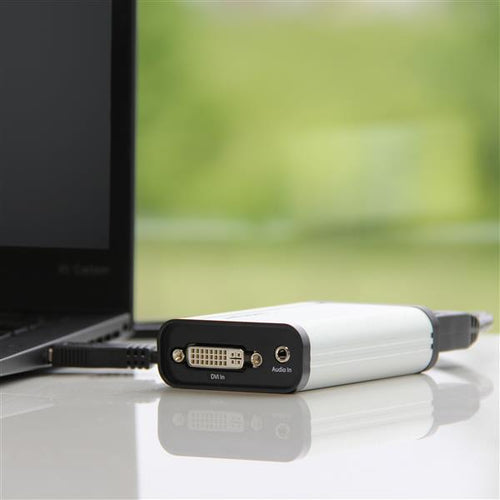

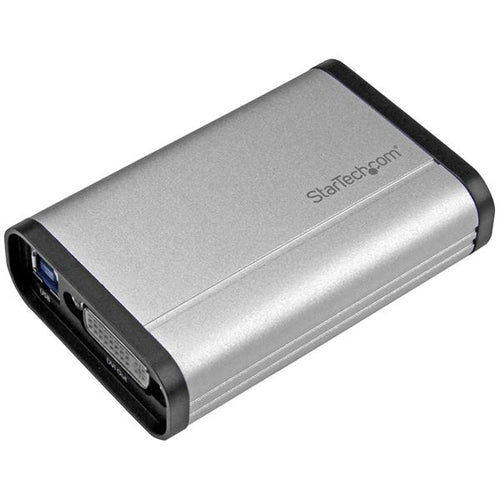

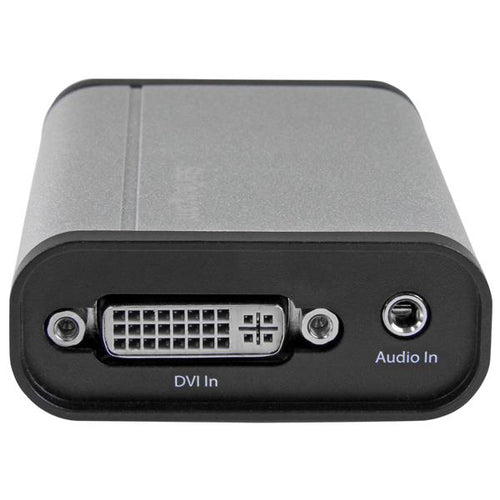

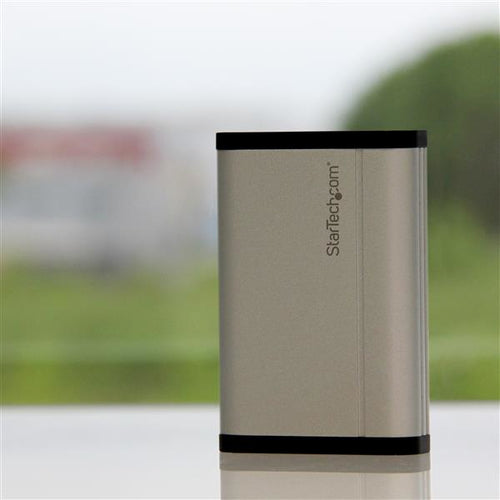

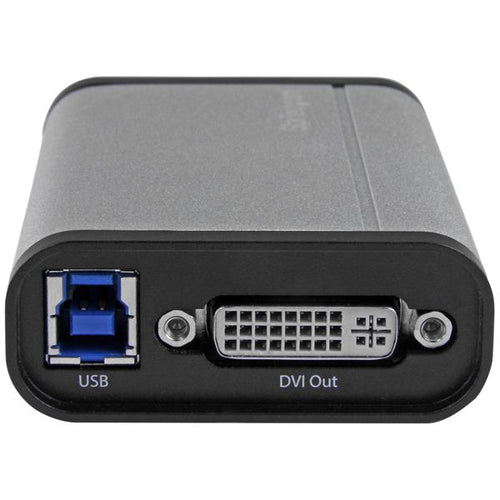

This DVI to USB 3.0 video capture device records high-definition DVI video to your computer. With an aluminum enclosure, this device is built strong for fixed-location or on-the-go capture. It offers a separate 3.5 mm audio input for accompanying audio or voice-overs, and a DVI pass-through port for connecting a monitor to review the video as it's captured.
Capture HD video at 1080p 60fps
Record 1080p video at 60fps (frames per second), to save your content so it can be shared, stored, or edited. Capture from security equipment, control rooms, medical, or other industrial DVI devices, directly to your computer.
Live stream on Windows
On Windows, you can live broadcast your video over the internet, using Twitch™ or other third-party video streaming platforms, with the included software.
DirectShow compatibility on Windows
With this capture device, you're not tied to the included software. You can record raw/lossless video using any third-party DirectShow™ compatible software, such as Open Broadcaster Software (OBS).
Capture video from HDMI®, VGA or DVI devices
This versatile DVI capture device works with HDMI to DVI and VGA to DVI adapters, so you can record video from an HDMI or VGA source.
Applications
- Record video for training and tutorial purposes from technologies that output DVI
- Capture raw, uncompressed video using your preferred DirectShow compatible software
- Great for recording the output from your PC, server, or POS station, when creating software training and tutorial videos
- Add your own independent audio source for voice-over commentary
Specifications
Technical Specifications
| Connector B | 1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps) |
|---|---|
| Connector A | 1 - 3.5 mm Mini-Jack (3 Position)1 - DVI-I (29 pin) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -5°C to 40°C (23°F to 105°F) |
| Humidity | 20% to 80% (non-condensing) |
| AV Input | DVI |
| AV Output | USB |
| Audio | Yes |
| Industry Standards | Video Encoding: MPEG4/H.264NTSC, PAL-M, PAL-60, PADirectShow Compatible |
| Chipset ID | Mstar - MST3363CNK-170 |
| Shipping (Package) Weight | 1.1 lb [0.5 kg] |
| Package Quantity | 1 |
| Package Length | 8.6 in [21.8 cm] |
| Package Width | 6.0 in [15.2 cm] |
| Package Height | 2.2 in [5.6 cm] |
| Maximum Analog Resolutions | 1920 x 1080 60 FPS |
| Maximum Digital Resolutions | 1920 x 1080 60 FPS |
| Supported Resolutions | 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600 |
| Wide Screen Supported | Yes |
| Audio Specifications | Audio Specifications |
| MTBF | 504,825 Hours |
| Color | Black & Silver |
| Product Length | 3.6 in [9.2 cm] |
| Product Width | 2.4 in [6.1 cm] |
| Product Height | 1.0 in [2.4 cm] |
| Weight of Product | 3.6 oz [102.0 g] |
| Power Source | USB-Powered |
| OS Compatibility | Windows® 8, 8.1, 10, 11 |
| Note | This video capture device requires a USB 3.0 port (or higher). The video capture device does not work with USB 2.0 ports (or lower). |

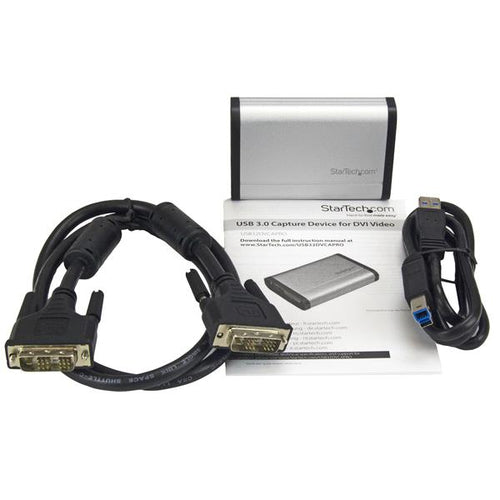

| Included in Package | 1 - USB 3.0 capture device for DVI video1 - USB 3.0 cable1 - quick start guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Adapters |
| Weight | 0.181 kg |
| Warranty |
|---|
