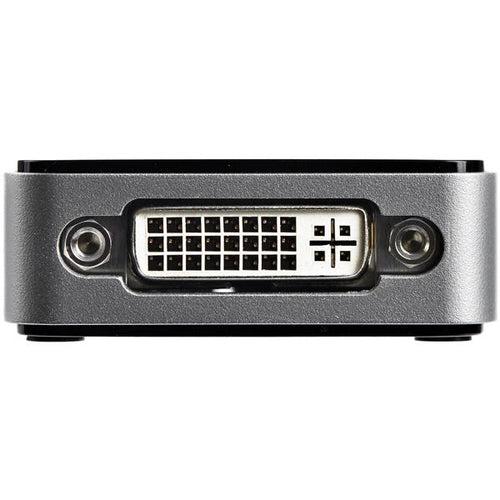

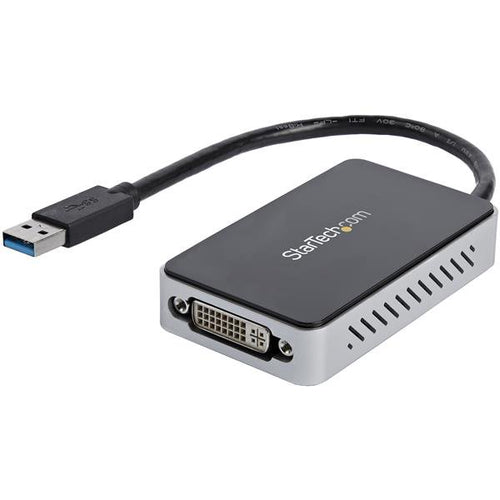

StarTech.com USB32DVIEH - USB 3 to DVI Adapter with 1-Port USB Hub
Features

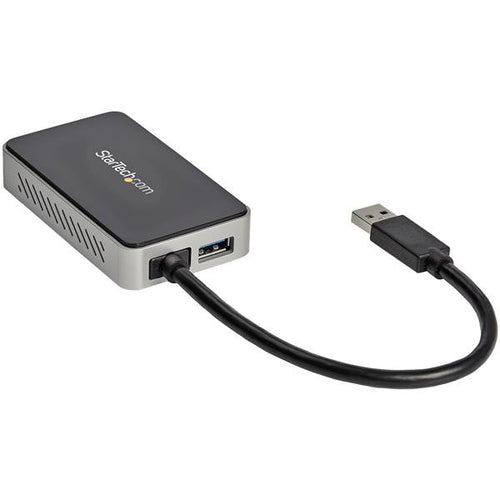

The USB32DVIEH USB 3.0 to DVI Adapter turns an available USB 3.0 port into a DVI output port with high resolution 1920x1200 video support. The adapter features built-in USB 3.0 pass-through, which offers a connection port in place of the USB port used for connecting the DVI adapter - an ideal workaround for Ultrabook™ or laptop users where only a limited number of USB ports are available.
The USB to DVI adapter functions as an external graphics card, providing a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0). The included DVI to VGA adapter also allows you to use this device with a VGA display.
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your DVI display / projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.
Specifications
Technical Specifications
| Audio | No |
|---|---|
| Chipset ID | MCT - T6-688SL |
| Industry Standards | SuperSpeed USB 3.0, USB 2.0 |
| Memory | 16MB DDR II |
| Output Signal | DVI-I (DVI Digital/Analog) |
| USB Pass-Through | Yes |
| General Specifications | This USB video adapter uses a Trigger family chipset. If you're connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. |
| Maximum Analog Resolutions | 1920x1200 |
| Maximum Digital Resolutions | 1920x1200 |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 |
| Wide Screen Supported | Yes |
| Connector A | 1 - USB Type-A (9 pin) USB 3.0 Male |
| Connector B | 1 - DVI-I (29 pin) Female1 - USB Type-A (9 pin) USB 3.0 Female |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows® 10 (32/64)Windows 8 / 8.1 (32/64)Windows 7(32/64)Windows Vista (32/64)Windows XP (32/64) |
| System and Cable Requirements | CPU: i3 Dual core 2.8GHzRAM: 2GB or higherFull HD Video:CPU: Quad Core 2.4GHz or Higher (i5 recommended)RAM: 4GB or higher |
| Power Source | USB-Powered |
| Humidity | < 85% non-condensing |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 75°C (14°F to 167°F) |
| Cable Length | 6.3 in [160 mm] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 0.7 in [17 mm] |
| Product Length | 3.3 in [85 mm] |
| Product Weight | 2.6 oz [75 g] |
| Product Width | 1.9 in [49 mm] |

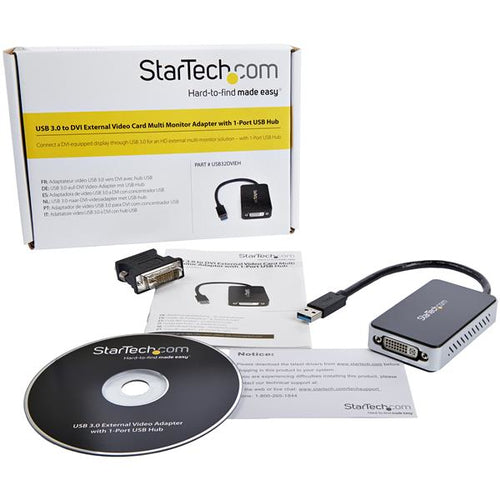

| Included in Package | 1 - USB 3.0 to DVI Adapter1 - DVI to VGA adapter1 - Software CD1 - Manual |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > USB Hubs |
| Weight | 0.023 kg |
| Warranty |
|---|
