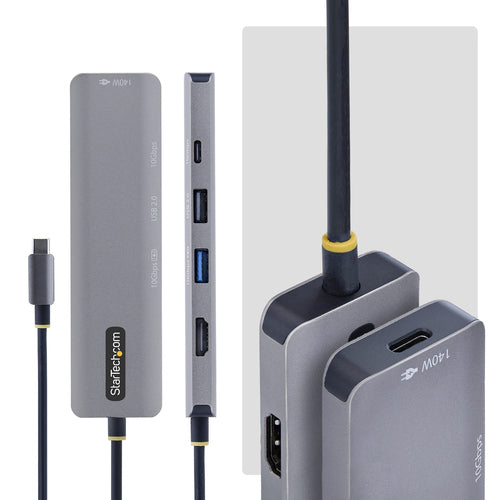

StarTech.com 164B-USBC-MULTIPORT - USB-C HDMI Multiport Hub 4K 60Hz

SKU: 164B-USBC-MULTIPORT ● In Stock
$62.84
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

Turn one USB-C port into a complete mobile workstation with 4K video, 140W power delivery, and high-speed USB connectivity in a single compact adapter.

Create a Mobile Workstation with One Adapter
Transform one USB-C port into 4K 60Hz HDMI, 140W USB-C PD passthrough, and USB-C / USB-A data ports, reducing the amount of dongles and adapters needed for shared workspaces, travel kits, and IT deployments

Expand with High-Speed USB-A and USB-C Connectivity
Features 1x USB-A 10Gbps port with BC 1.2 for fast data transfers and optimized device charging, alongside 1x USBC 10Gbps port for high-speed performance and seamless connection to modern peripherals

Support High-Powered & AI-Ready Laptops with 140W Passthrough
Enable up to 140W USB-C Power Delivery passthrough for AI workloads and power-hungry laptops, while a USB-A 2.0 port supports essential peripherals without sacrificing ports on the host device

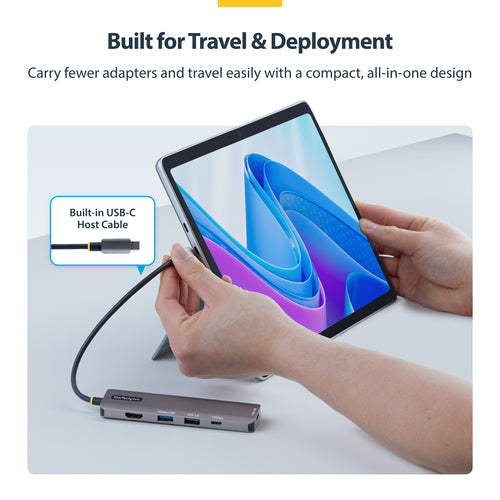

Simplify Rollouts with Driverless, Travel-Ready Design
Enable plug-and-play deployment with no drivers or software, reducing security approvals and support tickets; Compact form factor fits laptop bags, empowering IT to support hybrid teams anywhere

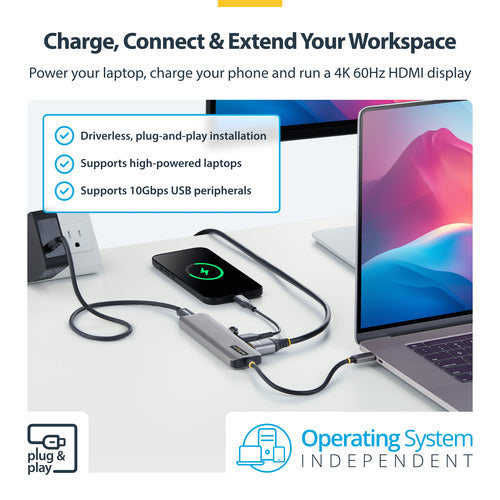

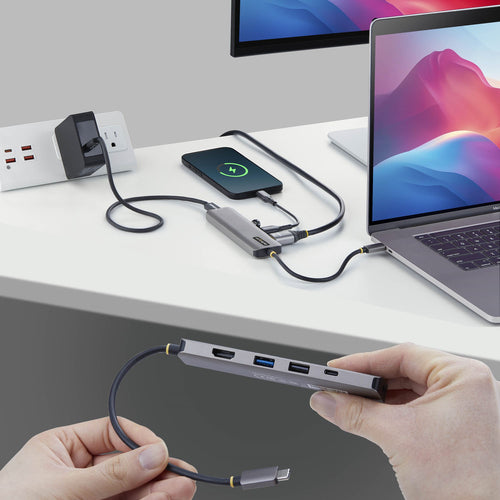

Build a Clean, High-Performance Workspace Anywhere

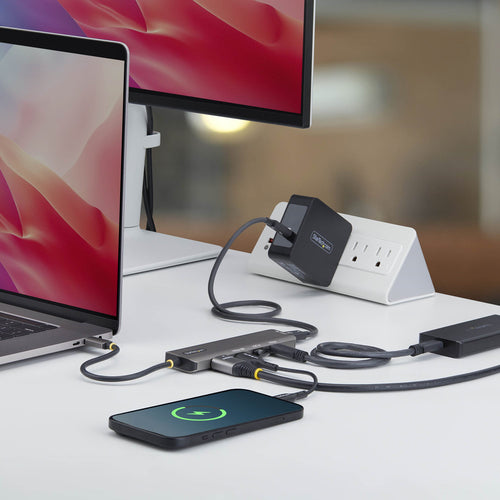

Drive a 4K 60Hz HDMI display while adding USB-C and USB-A data ports through one adapter. Replace multiple dongles in shared desks, hoteling stations, travel kits, and field deployments. Fewer accessories reduce setup time and cable clutter.

Charge High-Powered Laptops Without Compromise

Deliver up to 140W USB-C Power Delivery passthrough to support high-powered and AI-focused laptops under load. A dedicated USB-A 2.0 port connects essential peripherals without consuming critical host ports.

Expand with High-Speed, Driverless Connectivity

Add a 10Gbps USB-A port with BC 1.2 for fast data transfers and optimized device charging, plus a 10Gbps USB-C port for modern peripherals and storage. Deploy instantly with driverless plug-and-play installation. The compact design fits easily into laptop bags, simplifying rollouts for hybrid teams and remote users.

Applications

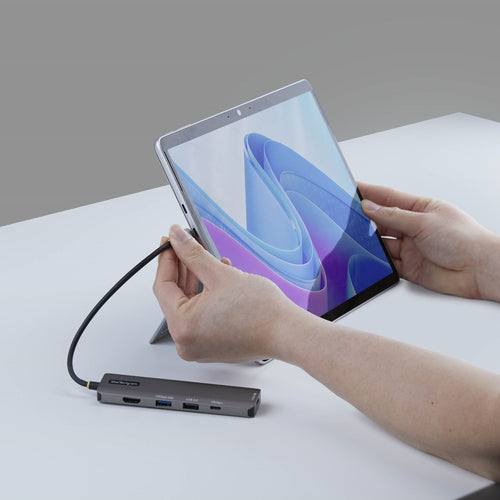

- Quickly connect laptops to HDMI displays and USB peripherals in conference rooms or hot-desk environments without requiring multiple separate dongles
- Create a compact workstation by connecting a USB-C device to a larger display, keyboard, mouse, and other USB peripherals

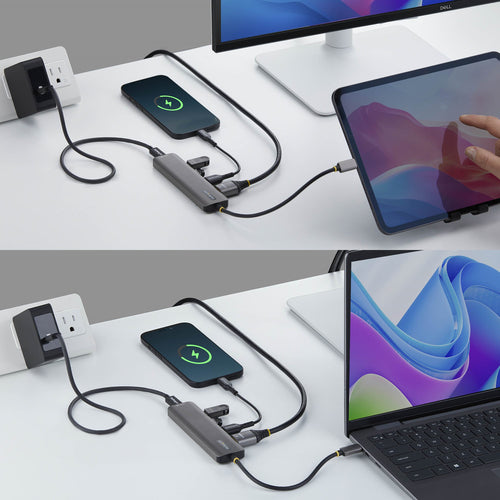

- Power and charge a laptop through USB-C while keeping critical ports available

Built for Sustainability, Designed for Performance

This hub features a housing made from 75% post-consumer recycled (PCR) aluminum, 75% PCR Plastic, and a cable jacket composed of 35% PCR TPE (Thermoplastic Elastomer). The product also ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization's sustainability goals, without compromising on quality or durability.

Specifications

Technical Specifications

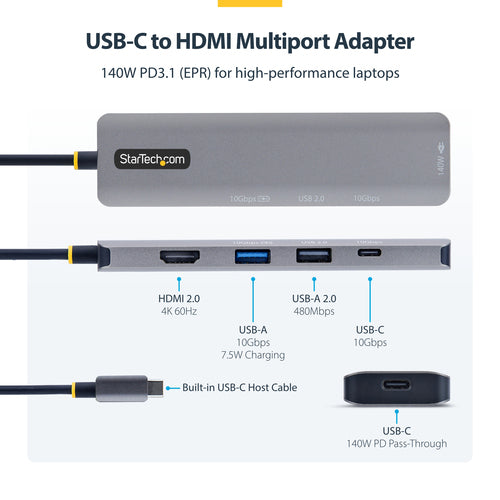

External Ports 1 - HDMI1 - USB 3.2 Type-A (9 Pin, Gen 2, 10Gbps, 7.5W Power)1 - USB 2.0 Type-A (4 pin, 480Mbps)1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)1 - USB Type-C (24 pin) USB Power Delivery Only
Host Connectors 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
4K Support Yes
Fast-Charge Port(s) Yes
Displays Supported 1
Audio Yes
Interface USB 3.2 Gen 2 (10 Gbps)
Bus Type USB-C
Industry Standards HDMI 2.0USB Power Delivery Specification Rev. 3.2USB 3.2 Gen 2 (10Gbps)
Chipset ID Parade - PS188
Maximum Data Transfer Rate 10Gbps
Maximum Digital Resolutions 4K 60Hz
Type and Rate USB 10Gbps
UASP Support Yes
Supported Charging Outputs BC 1.2 (1.5A)
General Specifications Maximum Laptop Charging: 125W
Color Space Gray

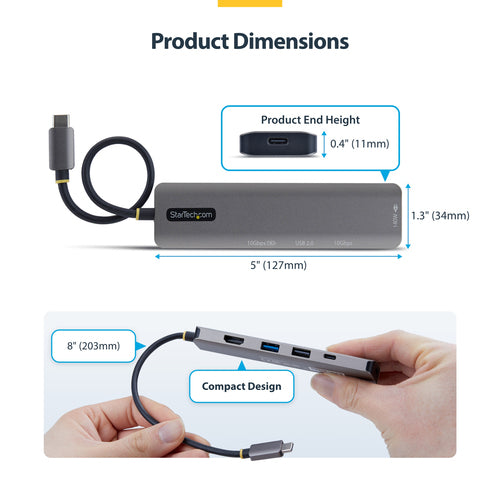

Product Height 0.4 in [11 mm]
Product Length 5.0 in [127 mm]
Weight of Product 2.8 oz [78 g]
Product Width 1.3 in [34 mm]
Material Aluminum and Plastic
Cable Length 8.0 in [20.3 cm]
Power Source Bus Powered and Host USB-C Power Adapter
Power Delivery 140W
Output Voltage 5 DC
Plug Type USB Type-C (24 pin) USB Power Delivery Only
Power Consumption (In Watts) 15W
OS Compatibility No Drivers or Sofware Required
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 10% ~ 85% RH
Included in Package 1 - Multiport Adapter1 - Product Documentation
