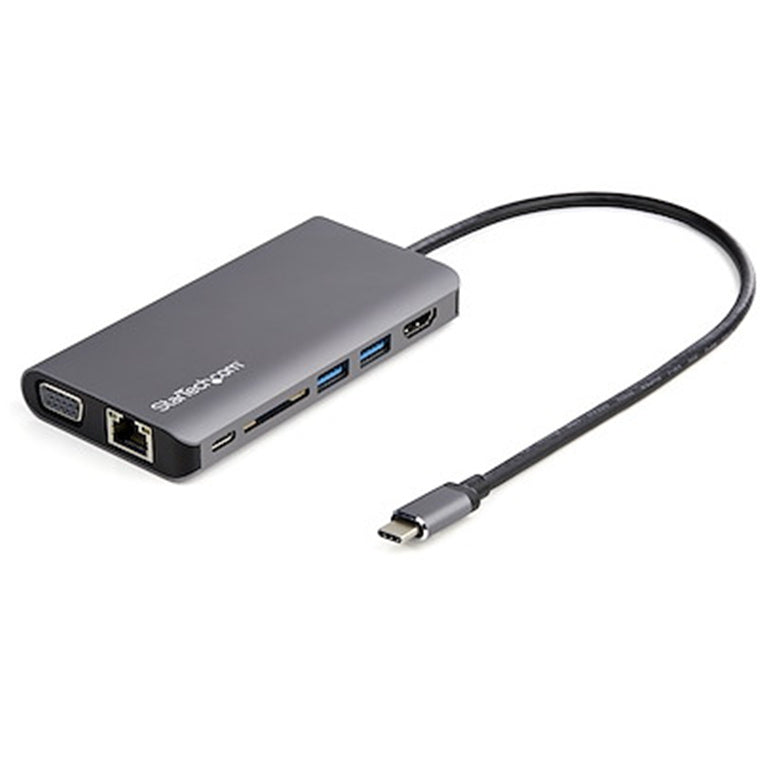

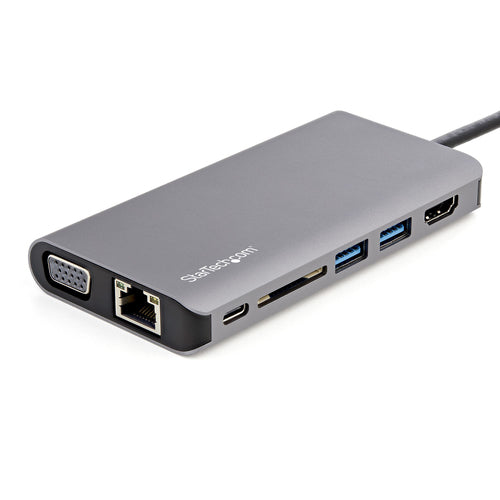

StarTech.com DKT30CHVAUSP - USB-C Multiport Adapter HDMI/VGA 100W PD
Features

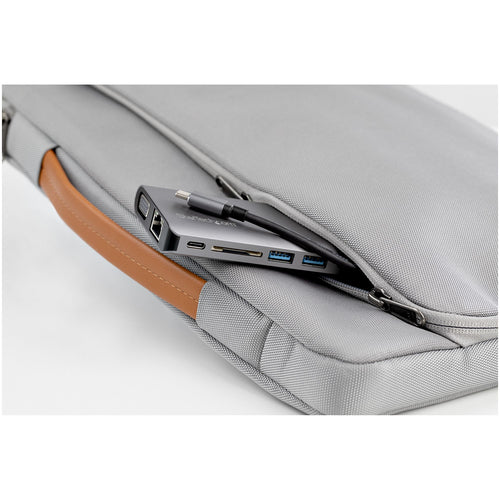

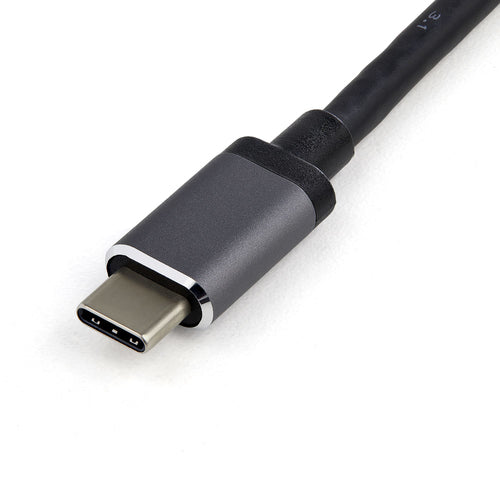

This USB-C multiport adapter turns your MacBook Pro, USB-C™ laptop, Chromebook or Android (Samsung Galaxy S8, Note 9 and above) device into a workstation, anywhere you go. A USB Type-C adapter, ideal for travel, features everything from the essential HDMI or VGA video outputs and USB ports to an SD card reader and 100W PD including PD passthrough. All through a single extended length 30 cm Thunderbolt 3 or USB-C attached host cable, providing more flexibility for harder to reach laptop and tablet connections.
Two Video Output Options with HDMI or VGA

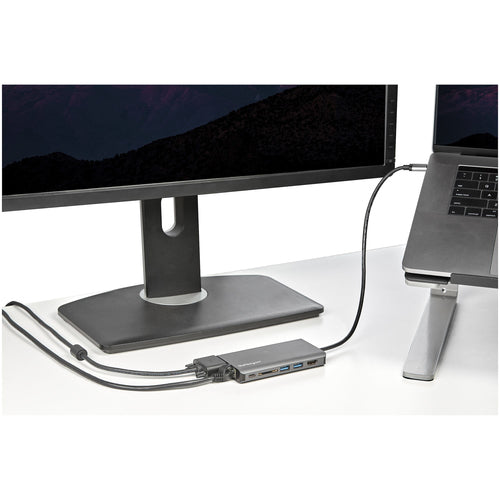

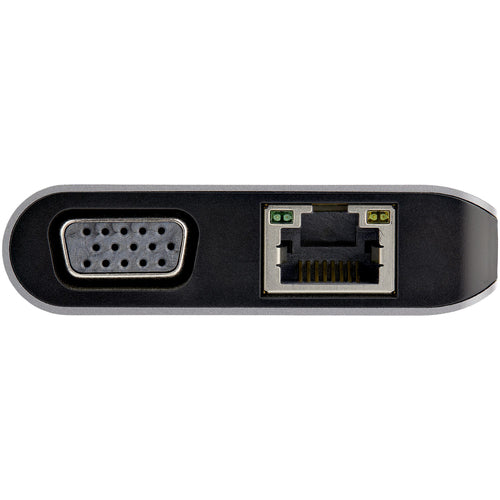

This USB-C multiport adapter features both an HDMI and VGA port providing you with two single video output options for your boardroom presentations or your workstation setup including support for an ultra-wide monitor.
Power & Charge with 100W Power Delivery 3.0
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. The USB-C hub features PD passthrough so you can use your laptop's own charger to power the hub (requires 15W) and power or charge your laptop simultaneously.
All the Essential Ports with USB
The USB-C to USB 3.0 hub gives you one USB-C port (power & data) and two USB-A ports to connect your latest and legacy USB devices.
Includes Ports to Do More with SD, Audio & Gigabit Ethernet
Access your multimedia content, audio, and network with ease. The multiport adapter provides direct access to your:
- SD, SDHC™ and SDXC™ memory cards or microSD cards via the SD card slot

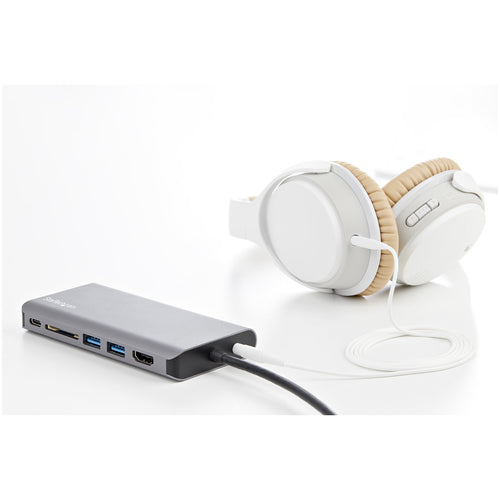

- Audio content via headphones or microphone through the 3.5mm 4- position audio port
- Ethernet network via the GbE port using a hard-wired connection
Specifications
Technical Specifications
| External Ports | 1 - HDMI1 - VGA (15 pin, High Density D-Sub) |
|---|---|
| Host Connectors | 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) |
| External Ports | 1 - RJ-452 - USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps)1 - SD Slot1 - 3.5 mm Audio1 - 3.5 mm Audio1 - USB Type-C (24 pin) USB 3.0 (5Gbps) |
| Operating Temperature | 0~45°C |
| Storage Temperature | -10~82°C |
| Humidity | 5%~90% |
| 4K Support | Yes |
| Fast-Charge Port(s) | No |
| Displays Supported | 1 |
| Ports | 7 |
| Audio | Yes |
| Bus Type | USB 3.1 Gen 1 |
| Chipset ID | VIA Labs - VL102VIA Labs - VL161VIA Labs - VL817Genesys Logic - GL823KITE Tech - IT6564Realtek - RTL8153BCmedia - HS100-B |
| Maximum Analog Resolutions | 1920 x 1200 @ 60Hz (VGA) |
| Maximum Digital Resolutions | 3840 x 2160 @30Hz, 4096 x 2160 @24hz, 3440 x 1440 @60Hz (HDMI) |
| Audio Specifications | 3.5mm Audio |
| Type and Rate | USB 3.1 Gen 1 - 5 Gbit/s |
| Compatible Networks | 10/100/1000 Mbps |
| Color | Black & Space Gray |
| Product Height | 4.6 in [11.6 cm] |
| Product Length | 0.6 in [1.5 cm] |
| Weight of Product | 4.0 oz [114 g] |
| Product Width | 2.4 in [60 mm] |
| Material | Aluminum and Plastic |
| Cable Length | 11.8 in [300 mm] |
| Power Source | Not Included (not required for standard applications) |
| Power Delivery | 100W |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Adapters |
| Weight | 0.082 kg |
| Warranty |
|---|
