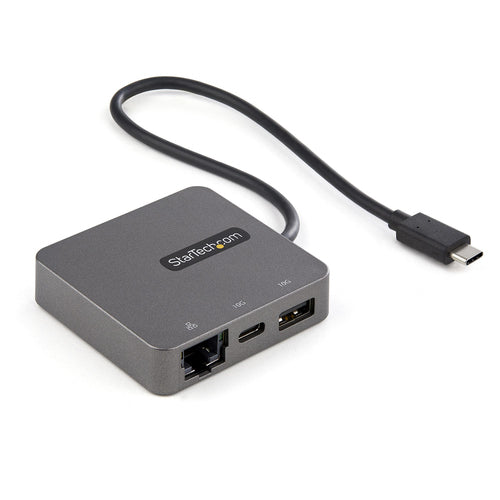

StarTech.com DKT31CHVL - USB-C Multiport Adapter NO PD Lo
Features

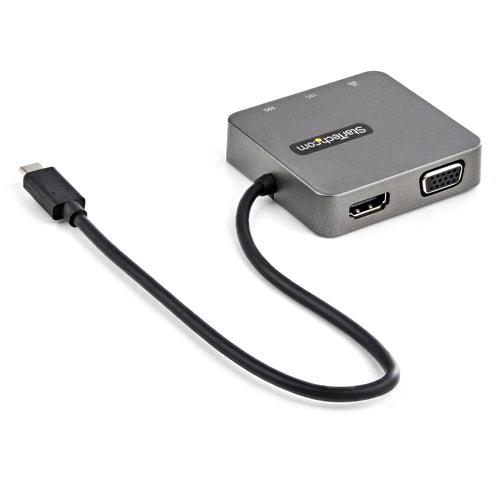

This USB-C multiport adapter turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, Chromebook and Android tablet into a workstation, anywhere you go. A USB 3.1 Gen 2 Type-C hub adapter, ideal for travel, features everything from the essential HDMI or VGA video outputs to faster 10G USB-C & USB-A peripheral ports. All through a single extended length 29cm USB-C® attached host cable, providing more flexibility for harder to reach laptop and tablet connections.

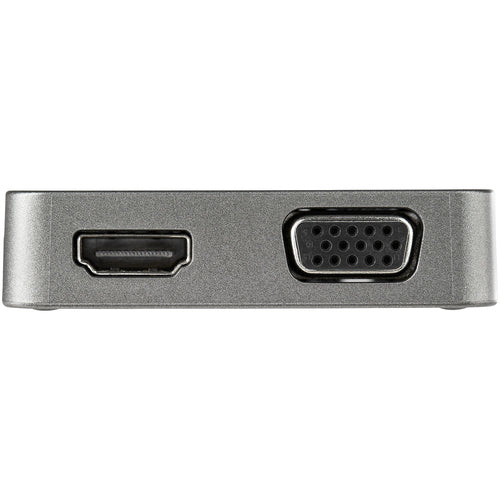

Two Video Output Options with HDMI & VGA
This USB-C multiport adapter?features both an 4K 30Hz HDMI and VGA port providing you with two single video output options for your boardroom presentations or your workstation setup including support for an ultra-wide monitor.
Designed for Portability & Ease of Use

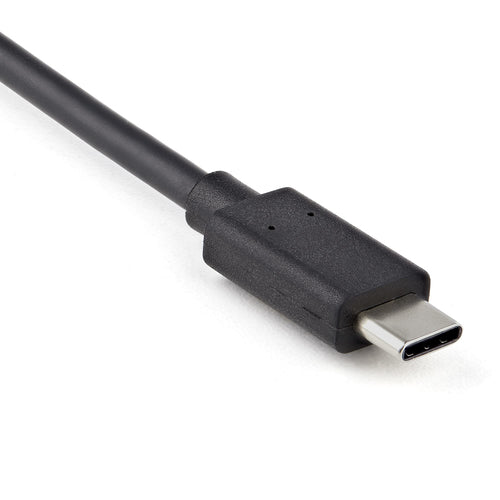

The USB-C travel dock is bus-powered through an attached extended length 29cm host cable, accommodating a wide variety of setups, so there's no need to carry around a separate bulky power adapter. Installation is fast and simple, with native support in most operating systems and at only 1.94 ounces (55 g) and taking up less space than your smartphone, this dock easily fits in your laptop bag or briefcase.
Simplistic Port Configuration

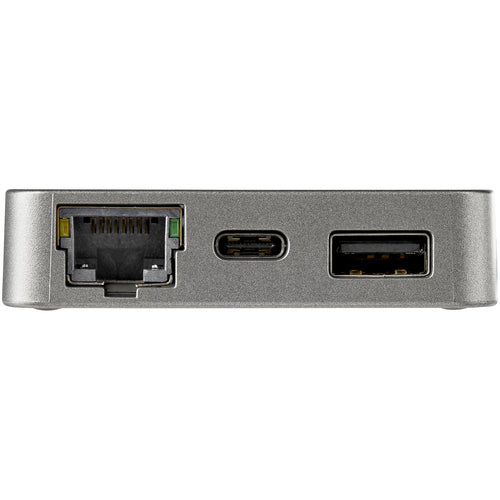

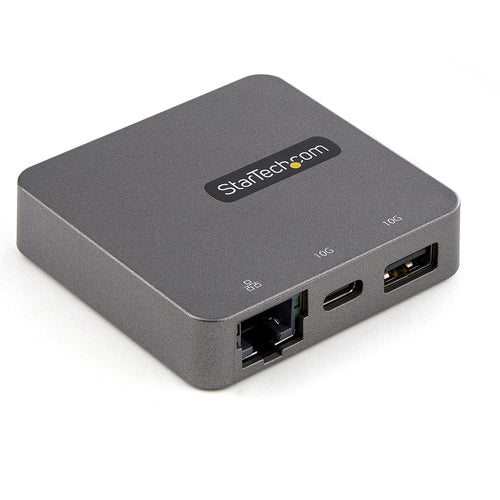

In addition to the video outputs, the portable USB-C dock gives you one 10G USB-C port and USB-A port to connect your latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network.
Applications
- Leverage the USB-C port on your laptop or tablet to expand your connectivity to other interfaces, such as HDMI and Gigabit Ethernet
- Connect your laptop to a projector and enjoy multimedia content at home, or display engaging presentations in boardrooms and classrooms
- Use an HDMI port-equipped television in a hotel room as an external display when traveling
- Connect your laptop to wired Gigabit Internet, in locations where Wi-Fi® isn't available
Specifications
Technical Specifications
| Device Compatibility | Mac OS X Yosemite (10.10)Windows 10Chrome OSiPad OSAndroid |
|---|---|
| Connector Type(s) | 1 - HDMI (19 pin)1 - VGA (15 pin, High Density D-Sub)1 - RJ-451 - USB Type-A (9 pin) USB 3.0 (5 Gbps)1 - USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) |
| Host Connectors | 1 - USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -20°C ~ 60°C |
| Humidity | <90% RH |
| USB-C Device Port(s) | Yes |
| USB-C Host Connection | Yes |
| 4K Support | No |
| Fast-Charge Port(s) | No |
| Displays Supported | 1 |
| Ports | 2 |
| Audio | No |
| Interface | USB 3.1 Gen 2 |
| Bus Type | USB 3.1 Gen 2 |
| Chipset ID | Genesys Logic - GL3590ITE Tech - IT6564FNSilicon Labs - EFM8UB20F32 |
| Package Height | 1.5 in [38 mm] |
| Package Length | 5.6 in [14.2 cm] |
| Shipping (Package) Weight | 0.4 lb [0.2 kg] |
| Package Width | 8.3 in [21 cm] |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0)2 Gbps (Ethernet; Full-Duplex) |
| Maximum Cable Length | 250 |
| Maximum Analog Resolutions | 2048 x 1280p - 30Hz (VGA) |
| Maximum Digital Resolutions | 3840 x 2160p - 30Hz (HDMI)Lower resolutions are also supported. |
| Type and Rate | USB 3.2 Gen 2 - 10 Gbit/s |
| UASP Support | Yes |
| Type and Rate | USB 3.1 Gen 1 - 5 Gbit/s |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| Full Duplex Support | Yes |
| MTBF | 49444 hours |
| Color | Black |
| Product Height | 0.6 in [1.5 cm] |
| Product Length | 14.2 in [36 cm] |
| Form Factor | Attached Cable |
| Weight of Product | 1.9 oz [54 g] |
| Product Width | 2.4 in [61 mm] |
| Material | Aluminum and Plastic |
| Cable Length | 11.4 in [290 mm] |
| Power Source | Bus Powered |
| OS Compatibility | Mac OS X Yosemite (10.10)Windows 10Chrome OSiPad OSAndroid |
| System and Cable Requirements | Host laptop with an available USB-C port (to ensure full functionality, the laptop's USB-C port must support DP alt mode). |
| Items included | 1x - USB-C Multiport Adapter1x - Quick-Start Guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Adapters |
| Weight | 0.079 kg |
