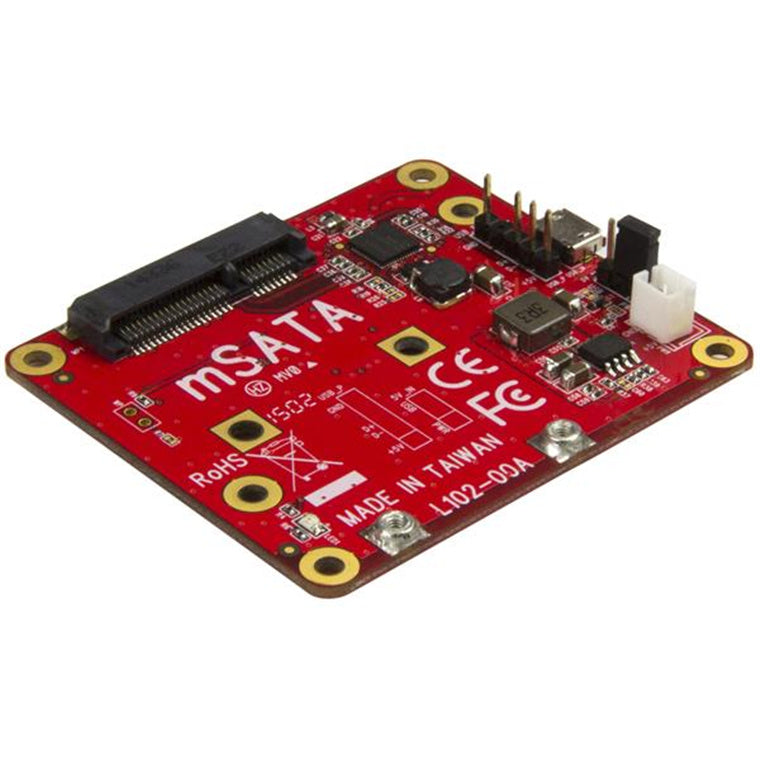

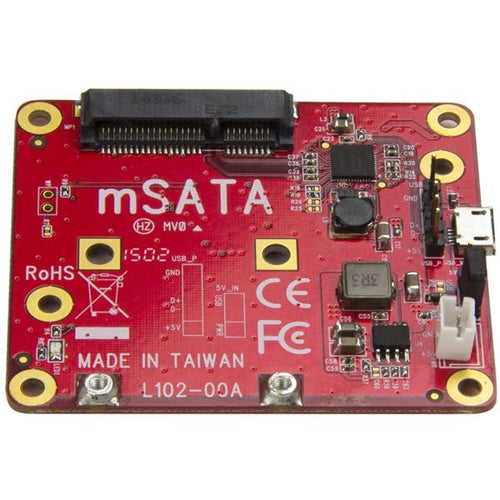

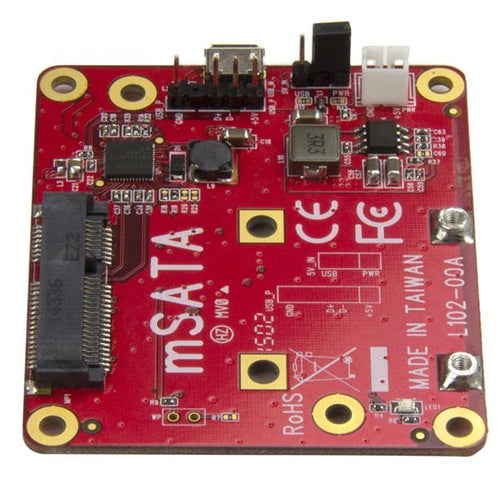

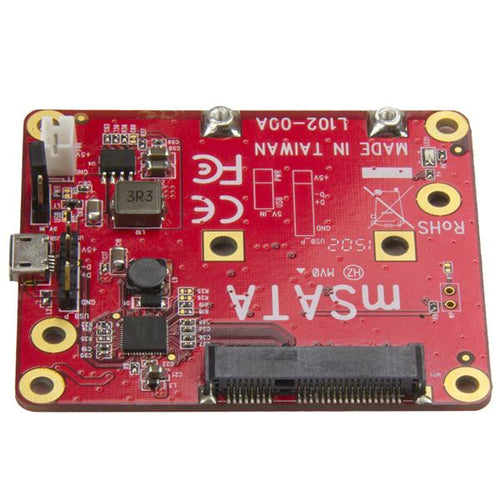

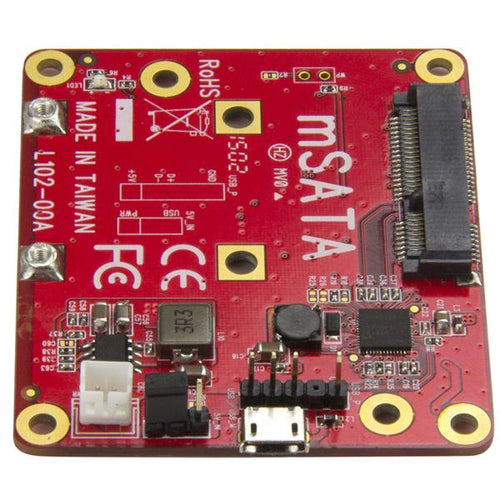

StarTech.com PIB2MS1 - USB to mSATA Converter for Raspberry Pi
Features
Increase the data storage capacity of your Raspberry Pi or other development board, by connecting it directly to an mSATA drive. Perfect for custom projects and applications, this USB to mSATA converter supports all models of Raspberry Pi as well as other development boards.
Add storage capacity to your development board
This convenient USB 2.0 mSATA converter lets you overcome data storage limitations by enabling you to connect an mSATA drive through your board's USB-A port.
A convenient integrated solution
The USB to mSATA converter integrates seamlessly with your existing development board. It's the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions. It allows you to utilize your mSATA drives with your development board, and take advantage of the small form factor of mini-SATA, ideal for applications with space limitations.
Easy to install

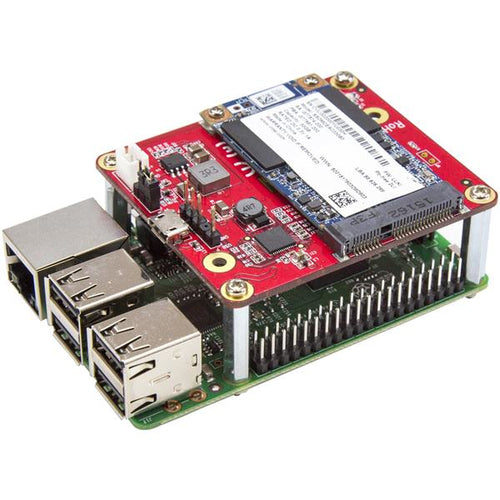

Compatible with SATA I, SATA II and SATA III drives, the converter is easy to install and doesn't require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.
Specifications
Technical Specifications
| Bus Type | USB 2.0 |
|---|---|
| Chipset ID | Renesas/NEC - µPD720231A |
| Compatible Drive Types | mSATA (Mini SATA) |
| Drive Size | mSATA (Full Size) |
| Interface | USB 2.0 |
| Number of Drives | 1 |
| Maximum Data Transfer Rate | 480 Mbps |
| MTBF | 5,077,966 hrs |
| Type and Rate | USB 2.0 - 480 Mbit/sSATA III (6 Gbps) |
| Drive Connectors | 1 - mSATA (52 pin, Mini SATA) Slot |
| Host Connectors | 1 - USB Micro-B (5 pin) |
| Power Source | USB-Powered |
| Humidity | 15% ~ 90% RH |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Color | Red |
| Included in Package | 1 - USB to mSATA converter1 - USB-A to Micro-B cable4 - standoffs4 - nuts4 - screws2 - mSATA mounting screws1 - quick-start guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Adapters |
| Weight | 0.032 kg |
| Warranty |
|---|
