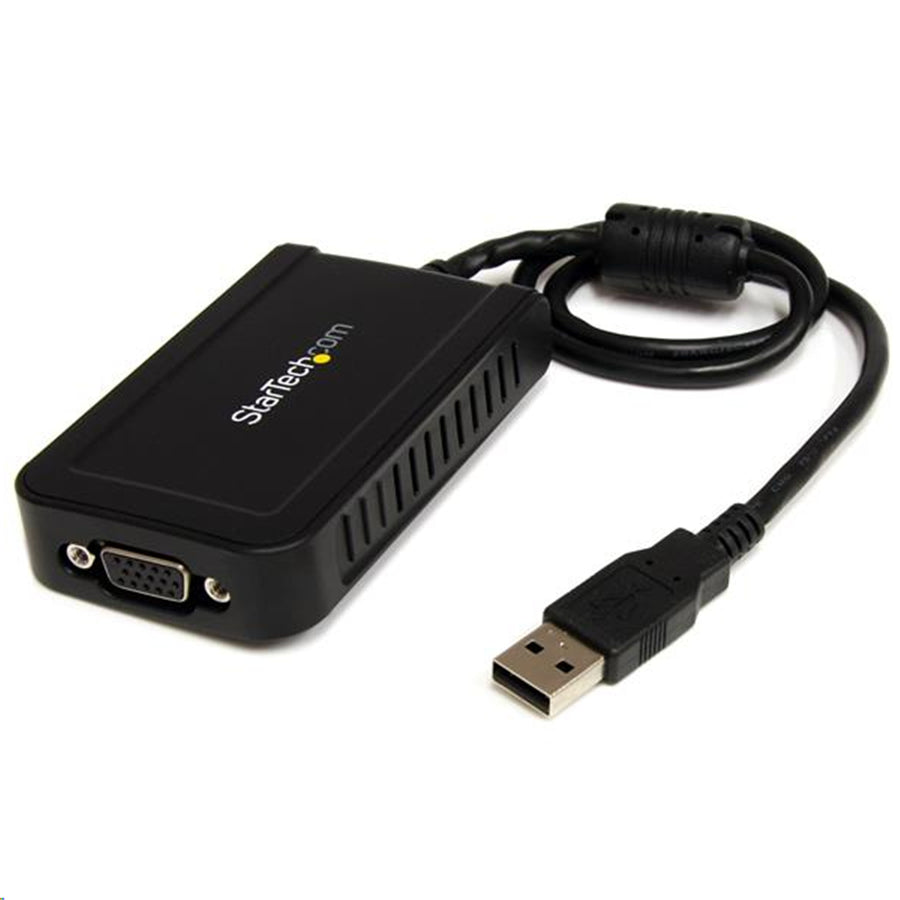

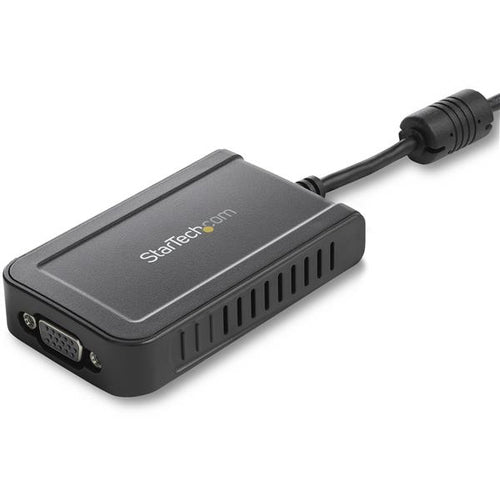

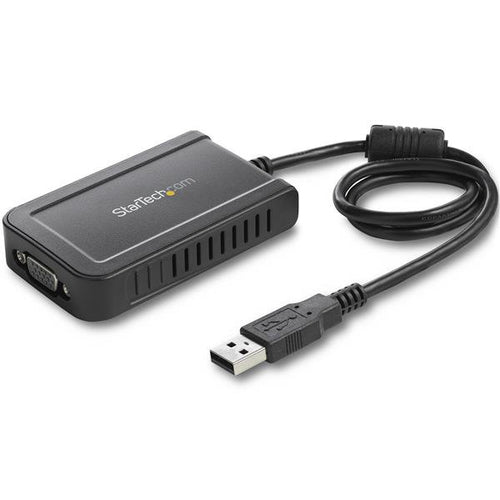

StarTech.com USB2VGAE3 - USB to VGA External Video Card 1920x1200
Features

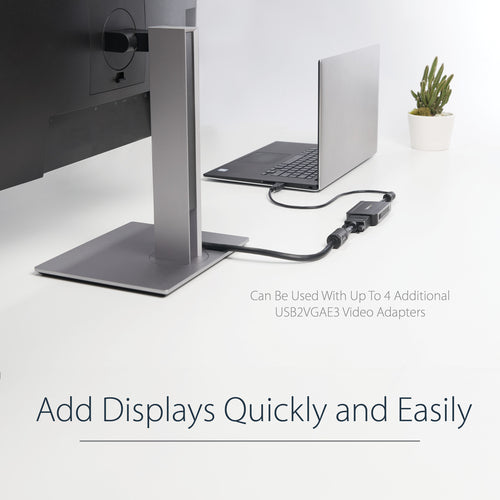

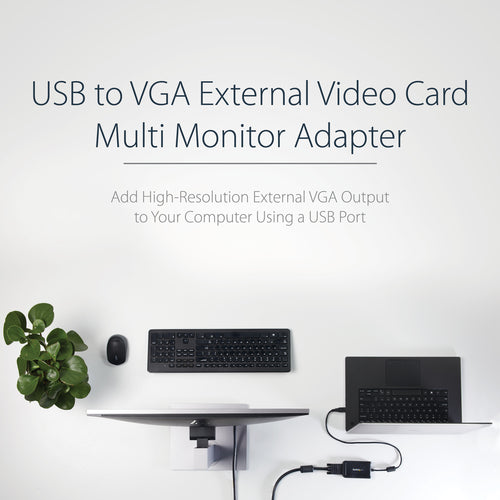

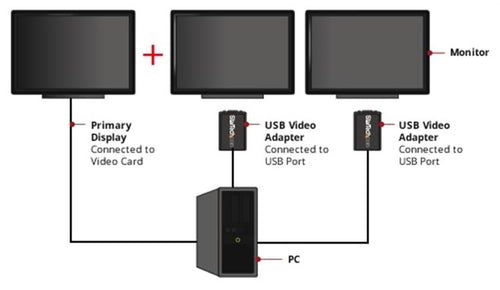

The USB2VGAE3 USB VGA Multi-Monitor External Video Adapter lets you add a high-resolution (1920x1200) external VGA output to your desktop or laptop computer, using an available USB 2.0 port. A cost-effective solution for systems that lack the outputs required for a multi-monitor setup, this high-performance USB to VGA adapter can be used to mirror your primary display and show the same image on both screens, or extend your desktop to double your workspace. This small form factor USB video adapter can be used with up to 4 additional (5 total) USB2VGAE3 USB video adapters, creating multiple VGA connections to add displays quickly and easily - all without having to open the computer case to add extra video cards.
The StarTech.com Advantage
- Compact, USB-powered adapter provides the easiest way add secondary or multiple high-resolution displays to your PC
- Completely external device offers a simple upgrade solution saving the cost and hassle of upgrading the internal video card on your system
- The ability to use multiple adapters (up to five) provides a scalable display configuration for future expansion
Specifications
Technical Specifications
| Chipset ID | MCT T2-285A |
|---|---|
| Industry Standards | USB 2.0 Compliant |
| Memory | 32MB DDR SDRAM |
| USB Pass-Through | No |
| General Specifications | This USB video adapter uses a Trigger family chipset. If you're connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. |
| MTBF | 200,000 Hrs |

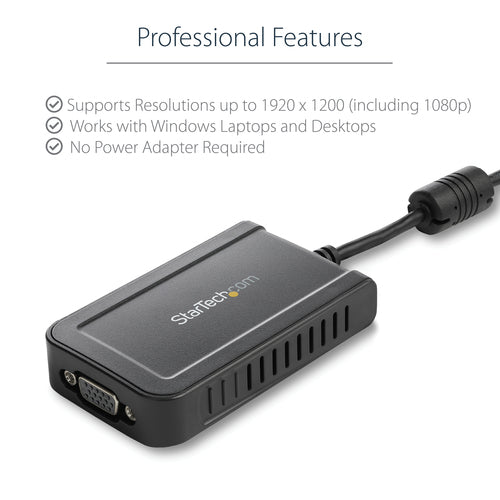

| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 |
| Wide Screen Supported | Yes |

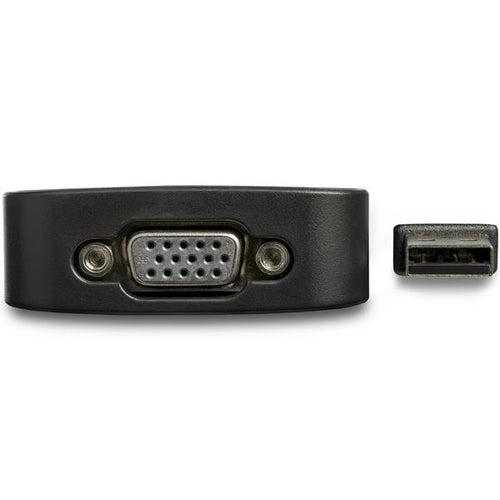

| Connector A | 1 - USB Type-A (4 pin) USB 2.0 Male Input |
| Connector B | 1 - VGA (15 pin, High Density D-Sub) Female Output |
| OS Compatibility | Windows® 10 (32/64)Windows 8 / 8.1 (32/64)Windows 7(32/64)Windows Vista (32/64)Windows XP (32/64) |
| System and Cable Requirements | One available USB 2.0 port |
| Humidity | 0~95% RH Non-condensing |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Storage Temperature | -25°C to 75°C (32°F to 167°F) |
| Cable Length | 19.7 in [500 mm] |
| Color | Gray |

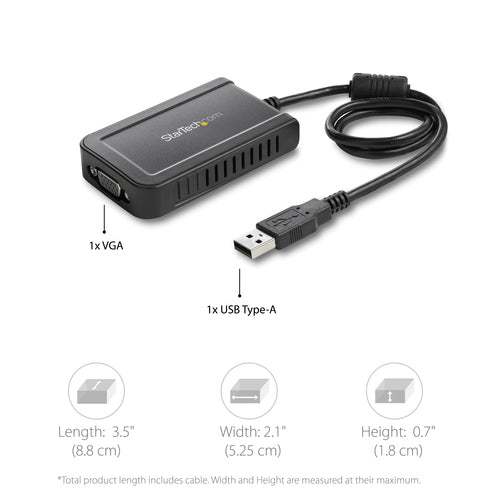

| Product Height | 0.7 in [18 mm] |
| Product Length | 3.5 in [88 mm] |
| Product Weight | 3.4 oz [96 g] |
| Product Width | 2.1 in [52.5 mm] |

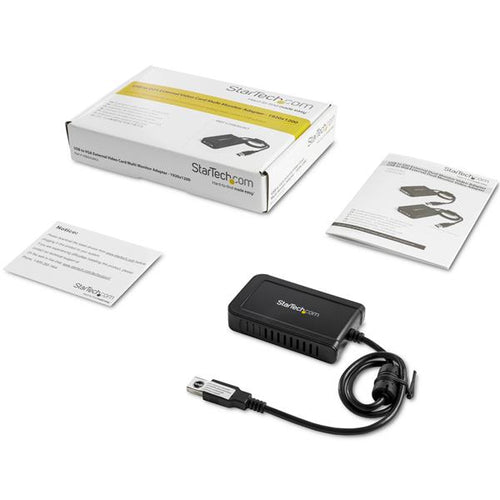

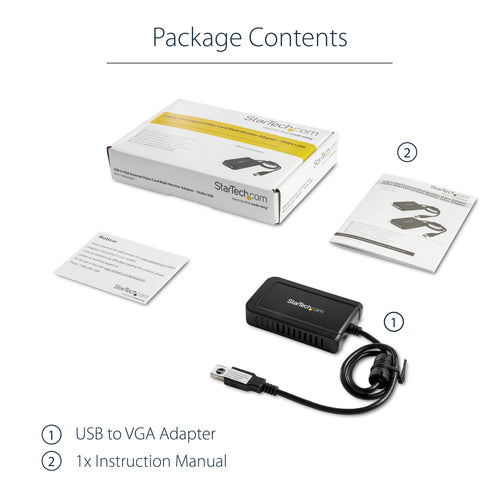

| Included in Package | 1 - USB to VGA Adapter1 - Driver and Software CD1 - Instruction Manual |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Adapters |
| Weight | 0.113 kg |
| Warranty |
|---|
