USB3DOCKH2DP - STARTECH.COM USB 3.0 DOCKING STATION TRIPLE MONITOR DISPLAYPORT/HDMI, 5XUSB 3 YR

SKU: USB3DOCKH2DP ● In Stock
$252.85
Free shipping over $299 Genuine product 7-day returns

USB3DOCKH2DP - STARTECH.COM USB 3.0 DOCKING STATION TRIPLE MONITOR DISPLAYPORT/HDMI, 5XUSB 3 YR

Overview

Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant

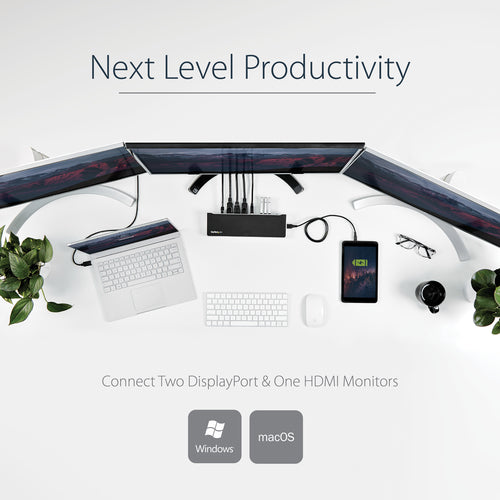

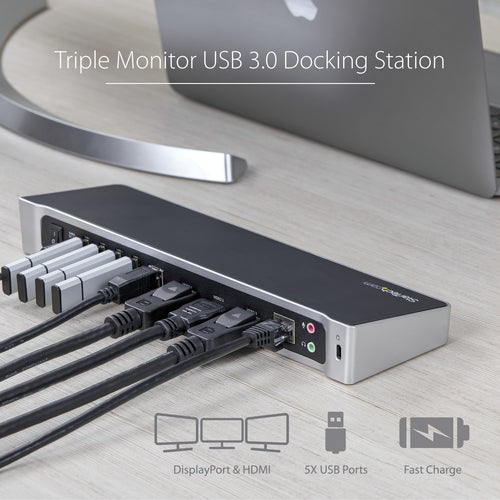

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

Triple Display Flexibility

The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048x1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.

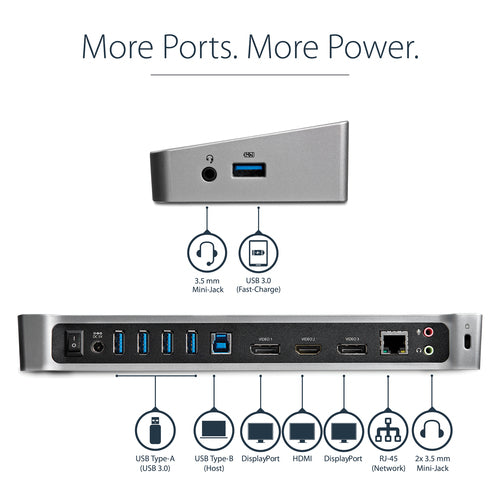

Powerful Connections and Fast Device Charging

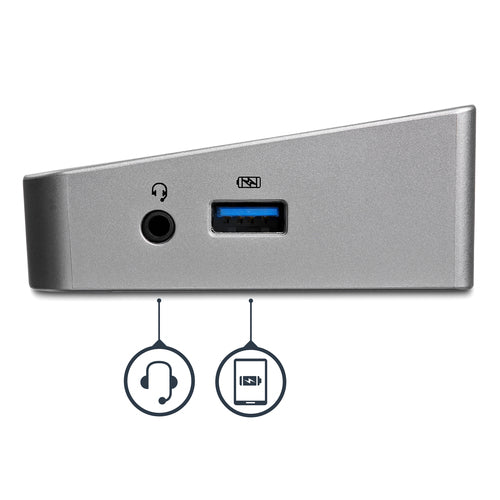

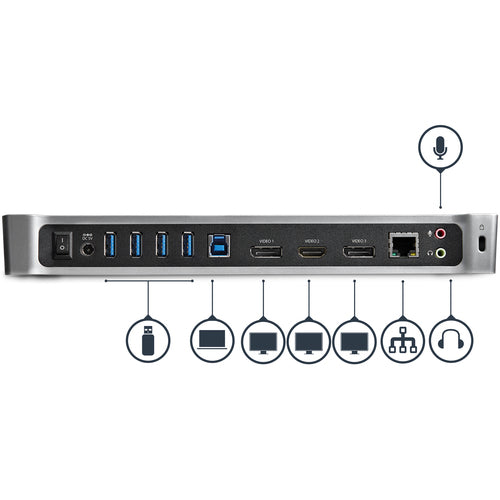

To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.

The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Technical Specifications

Connectivity technology Wired
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 5
HDMI ports quantity 1
DisplayPorts quantity 2
Microphone in Y
Combo headphone/mic port Y
Headphone outputs 2
Headphone connectivity 3.5 mm
USB connector type USB Type-A
DC-in jack Y
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000
Wake-on-LAN ready Y
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-X Y
Full duplex Y
Card reader integrated N
Data transfer rate 5
Maximum digital resolution 3840 x 2160
Cable lock slot Y
Product colour Black,Silver
LED indicators Activity,Link
UASP support Y
Housing material Plastic
Brand compatibility Any brand
Certification CE, FCC, DisplayLink, TAA, REACH
AC input voltage 100-240
Input current 1.5
Output voltage 5
Output current 6.5
Power consumption (typical) 32.5
Power plug type Type N
Compatible power plug types AU,EU,UK,US
Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Mac compatibility Y
Mac operating systems supported Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 13.0 Ventura
Other operating systems supported ChromeOS
Operating temperature (T-T) 0 - 40
Storage temperature (T-T) -10 - 80
Operating relative humidity (H-H) 0 - 90

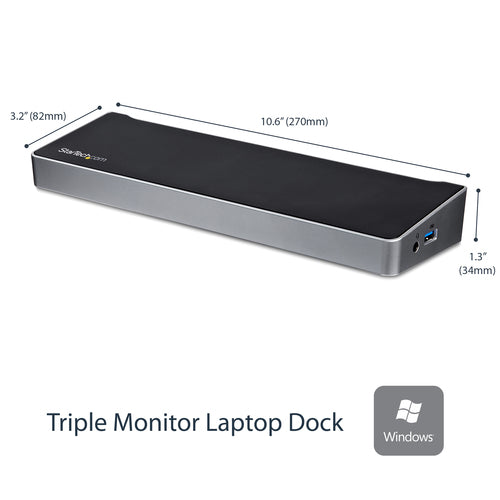

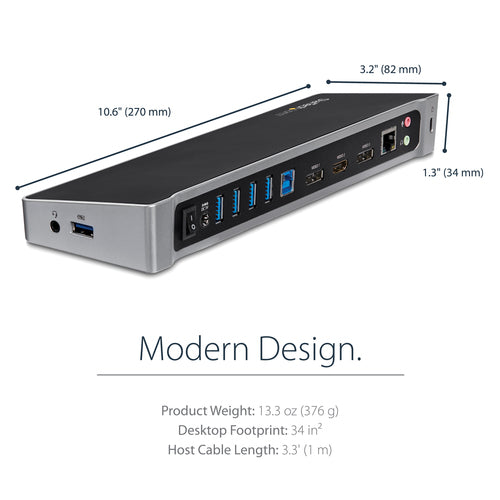

Width 82
Depth 270
Height 34
Weight 376
Package width 296
Package depth 164
Package height 71
Package weight 1034

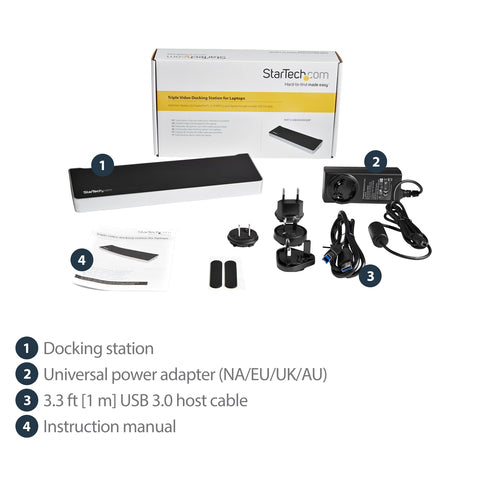

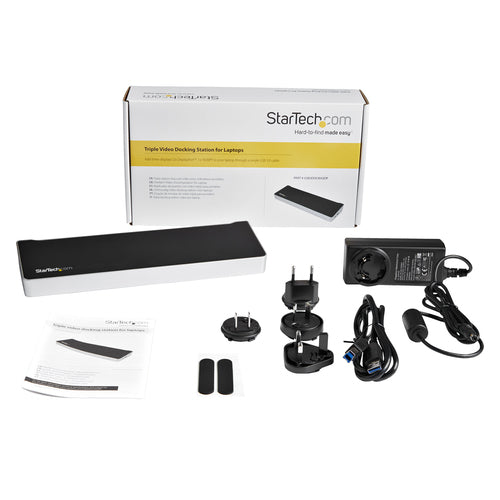

Cables included USB
AC adapter included Y
Manual Y
Compliance certificates RoHS
Products per master (outer) case 10
Master (outer) case width 363
Master (outer) case length 373
Master (outer) case height 395
Harmonized System (HS) code 84733020
Chipset DisplayLink - DL-5910, VLI - VL812
Number of microphone inputs 1
USB data transfer rates 5000
