Overview
Laptop Docking Station | Mac & Windows® | DVI to VGA & HDMI® Adapters | 2x Charge Ports

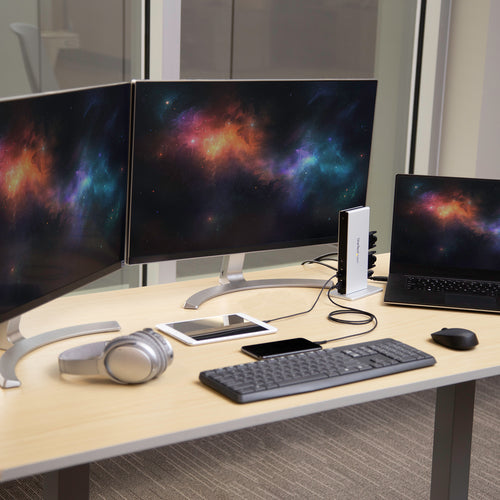

This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.

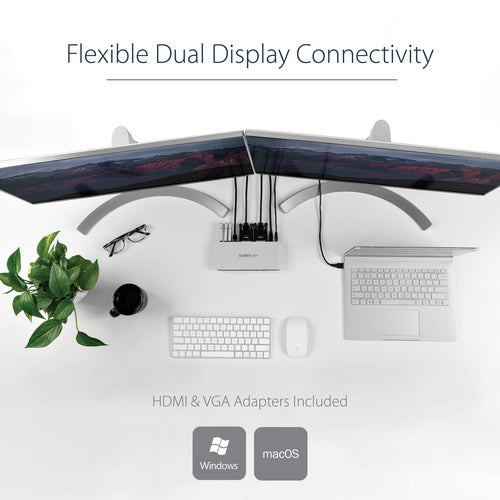

Display Flexibility
The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048x1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.
Powerful Connections and Fast Device Charging

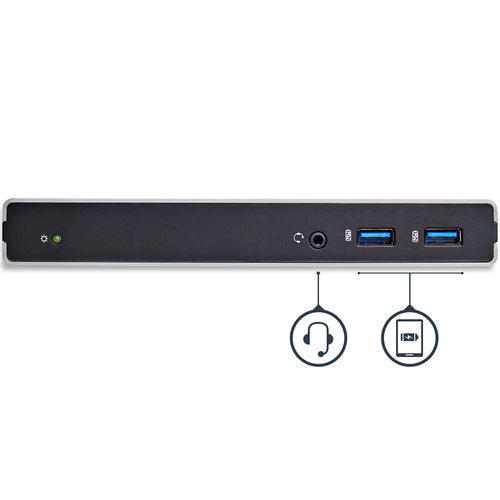

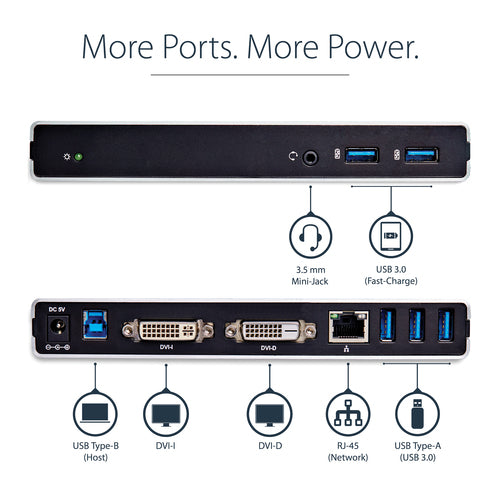

Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.

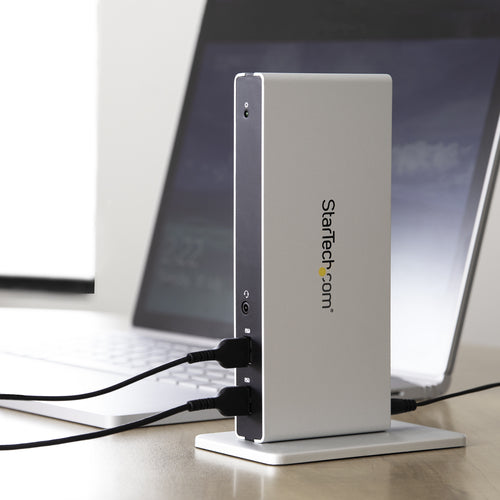

Save Desktop Space

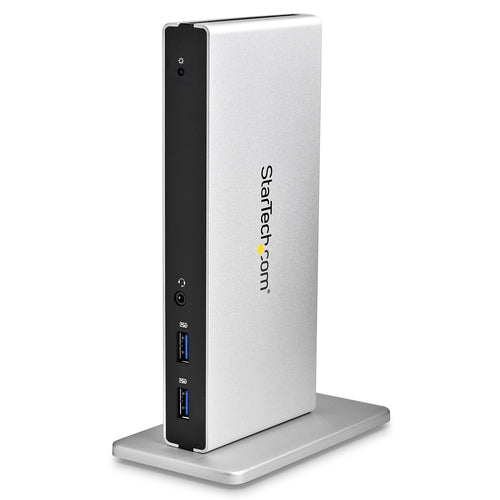

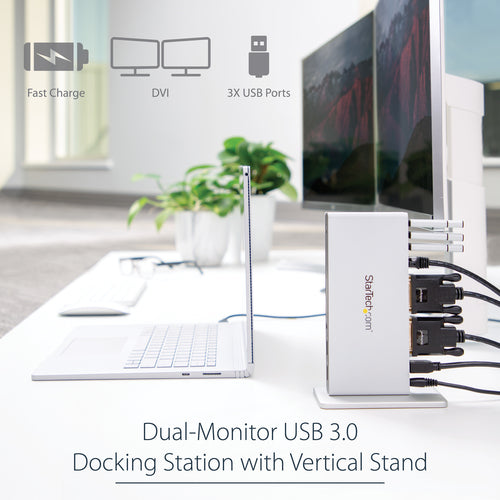

You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.
The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Dock your USB 3.0 equipped Mac or Windows laptop with support for several dual monitor configurations using the included video adapters
- Connect and charge your USB devices with 5x USB 3.0 ports, including two Fast-Charge USB ports
- Save space on your desktop by placing the dock in a vertical orientation with the included dock stand
- Add wired network connectivity and audio devices with the Gigabit Ethernet RJ-45 port and headset jack plus separate 3.5 mm audio and microphone ports
Technical Specifications
| Connectivity technology | Wired |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| DVI-I ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Combo headphone/mic port | Y |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Y |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 |
| Wake-on-LAN ready | Y |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Auto MDI/MDI-X | Y |
| Full duplex | Y |
| Card reader integrated | N |
| Data transfer rate | 5 |
| Maximum analog resolution | 2048 x 1152 |
| Product colour | Black,Silver |
| LED indicators | Power |
| Charging function | Y |
| UASP support | Y |
| Rubber feet | Y |
| Housing material | Aluminium,Plastic |
| Brand compatibility | Any brand |
| Certification | CE, FCC, REACH |
| Power source type | AC |
| AC input voltage | 100 - 240 |
| Input current | 0.8 |
| Output voltage | 5 |
| Output current | 4 |
| Power consumption (typical) | 20 |
| Power plug type | Type M |
| Compatible power plug types | AU,EU,UK,US |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64 |
| Mac compatibility | Y |
| Mac operating systems supported | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 5 - 85 |

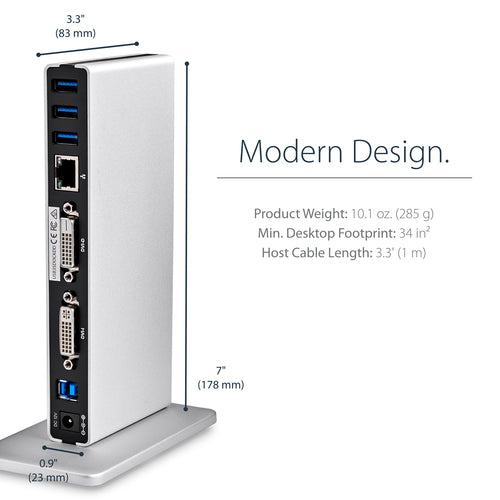

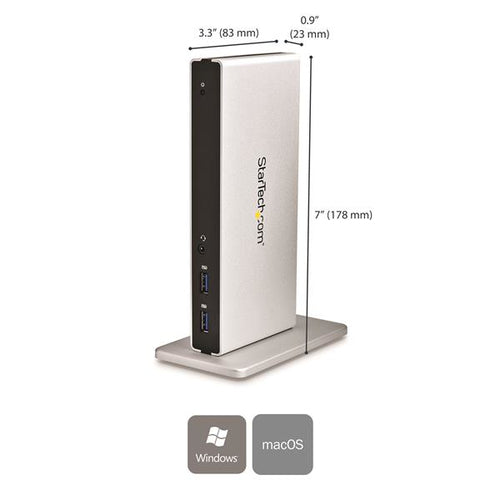

| Width | 23 |
| Depth | 83 |
| Height | 178 |
| Weight | 285 |
| Package width | 255 |
| Package depth | 186 |
| Package height | 95 |
| Package weight | 1018 |

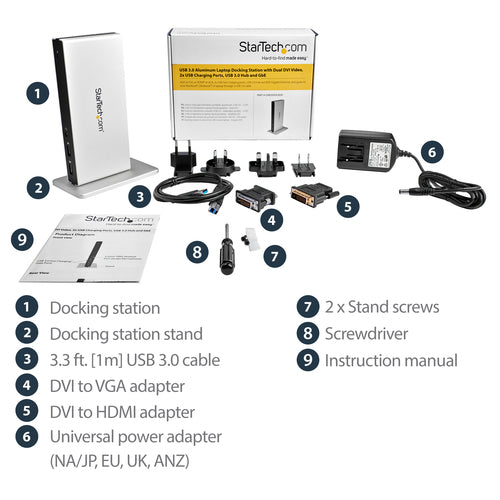

| Cables included | USB |
| AC adapter included | Y |
| Manual | Y |
| Drivers included | Y |

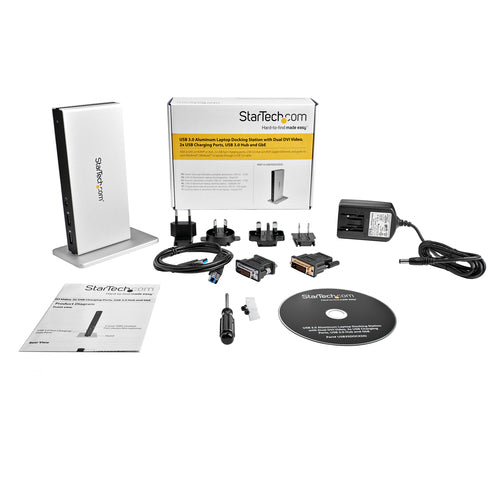

| Interface adapters included | DVI-I male - HDMI female,DVI-I male - VGA female |
| Stand included | Y |
| Compliance certificates | RoHS |
| Products per master (outer) case | 10 |
| Master (outer) case width | 357 |
| Master (outer) case length | 415 |
| Master (outer) case height | 251 |
| Harmonized System (HS) code | 84733020 |
| Cable length | 1 |
| Chipset | DisplayLink - DL-3900, Genesys Logic - GL3520 |
| USB data transfer rates | 12,480,5000 |
