USBCAUDIO2 - STARTECH.COM USB-C AUDIO ADAPTER TO 3.5MM TRRS JACK, HEADPHONE AUX DONGLE, 2 YR

SKU: USBCAUDIO2 ● In Stock
$23.75$28.57
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

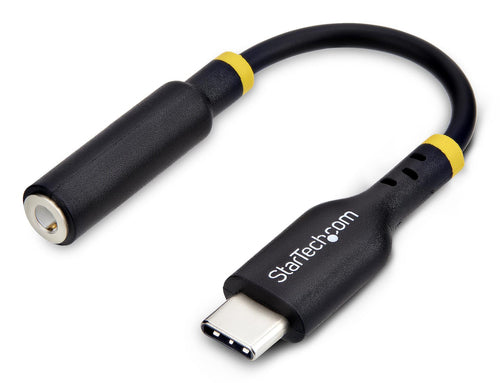

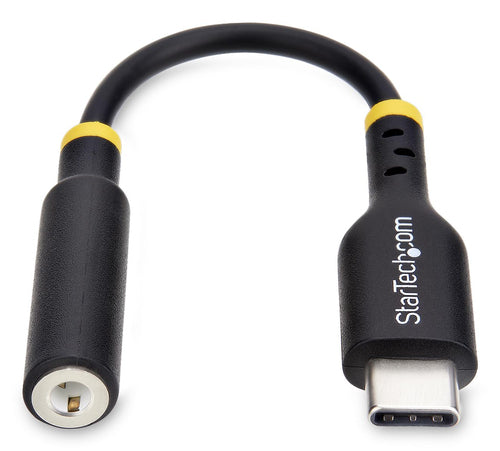

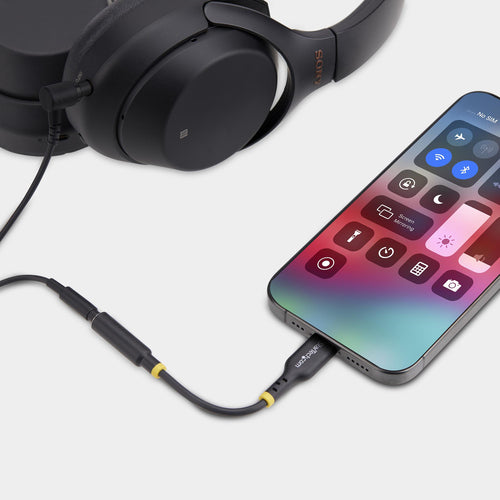

Connect wired headphones or earphones to a USB Type-C-enabled device and enjoy high-fidelity audio output with this USB-C to 3.5mm audio adapter. The built-in 32-bit DAC supports stereo sound and microphone functionality via the TRRS jack for clear and immersive audio.

- USB-C TO 3.5MM AUDIO ADAPTER: Add support for wired headset or speakers to a USB Type-C enabled device with this earphone converter; Hi-Fi audio output with the built-in 32-bit DAC; Supports stereo sound and microphone; TRRS jack

- HIGH-QUALITY AUDIO: Stereo Digital to Analogue Converter (DAC) supports high-quality audio (44.1 to 384kHz, 16, 24, 32-bit sample) with 105dBA SNR for clear output; Stereo ADC with 94dB SNR for MIC input and 48kHz, 16-bit sample; Realtek ALC4030U chipset

- COMPATIBILITY: Universal compatibility with USB-C and Thunderbolt hosts, including laptops, USB-C smartphones and tablets; Driverless design works with any operating system (Windows/MacOS/Linux/iOS/Android); Supports wired headsets with in-line controls

- REDUCE CLUTTER: Compact and sleek 5-inch (127mm) portable design with a flexible, durable TPE jacket and soft-touch finish; Ideal for conference calls, customer support, and audio playback/recording on workstations

Superior Sound Quality

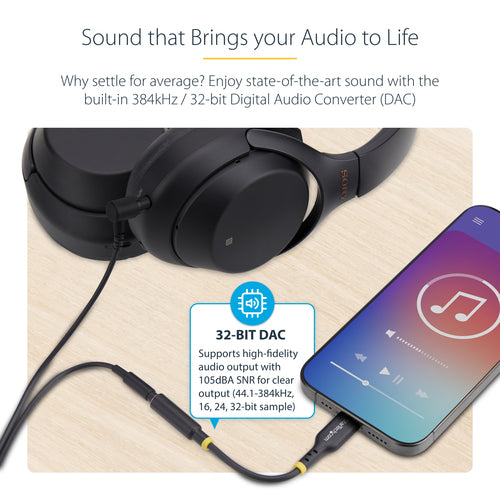

Experience excellent sound quality supporting audio ranges from 44.1 to 384kHz and 16, 24, and 32-bit sample rates, delivering a 105dBA signal-to-noise ratio for crisp and detailed output. The stereo ADC features a 94dB SNR for microphone input, with 48kHz and 16-bit sampling, all powered by the Realtek ALC4030U chipset.

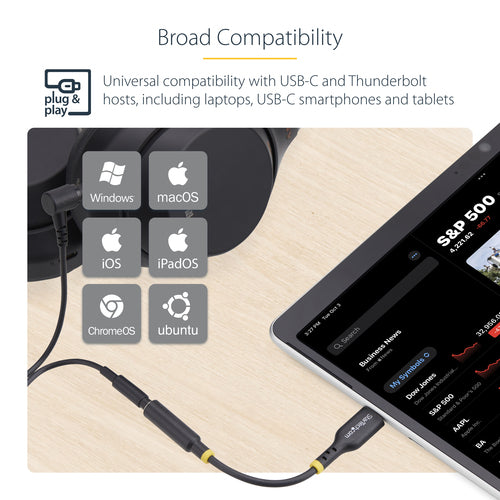

Wide Compatibility

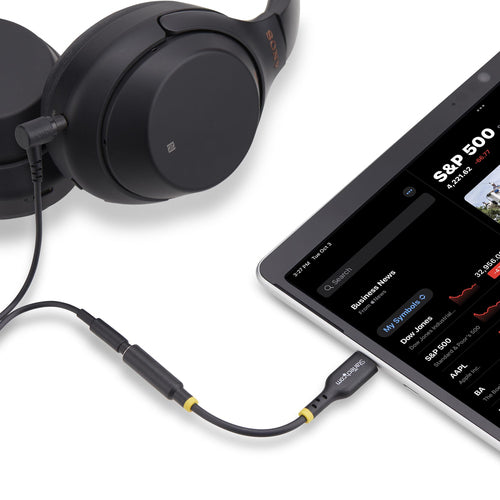

This versatile aux audio adapter is universally compatible with USB-C and Thunderbolt devices, including Windows, macOS, and Linux computers, as well as phones and tablets running iOS or Android. It supports wired headphones and headsets (including models with in-line controls), making it an ideal solution for using existing audio gear and eliminating the need for Bluetooth audio solutions.

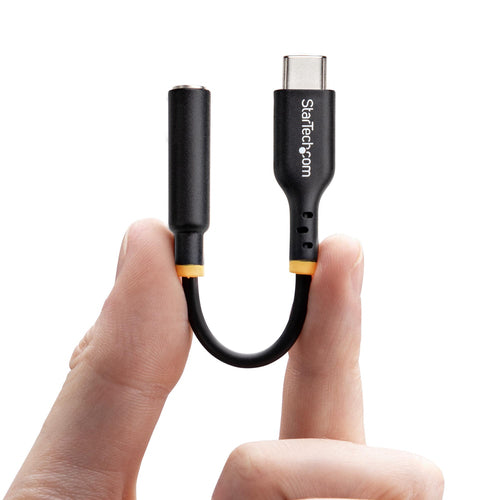

Sleek and Portable Design

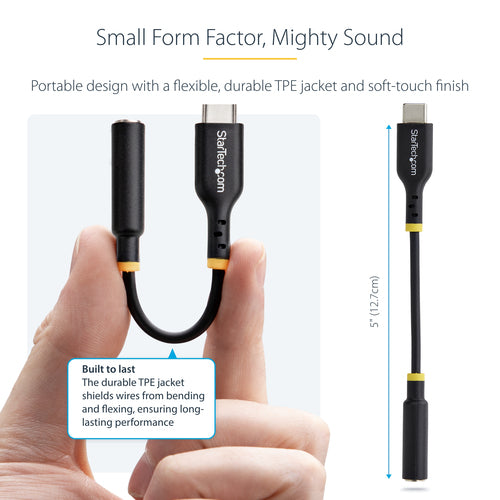

The compact, sleek adapter measures just 5 inches (127mm) and features a flexible and durable TPE jacket with a soft-touch finish. Use this adapter cable on the go or at a workstation for audio playback, recording, or calls.

Applications

- Use the USB-C to 3.5mm adapter for wired headsets

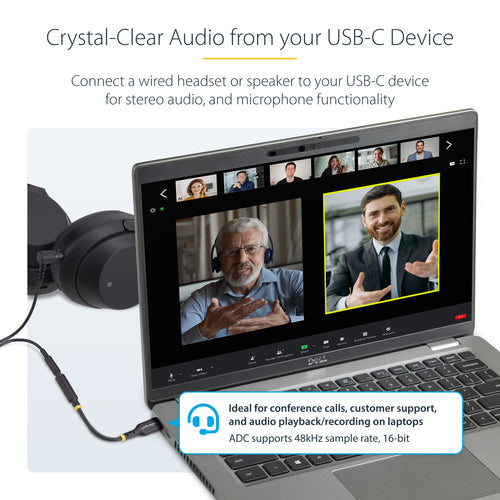

- Built-in DAC for clear audio during phone or video calls
- Use with text-to-speech or speech-to-text software
- Ideal for USB Type-C devices that don't have a 3.5mm jack or with defective sound cards/jacks

Specifications

Technical Specifications

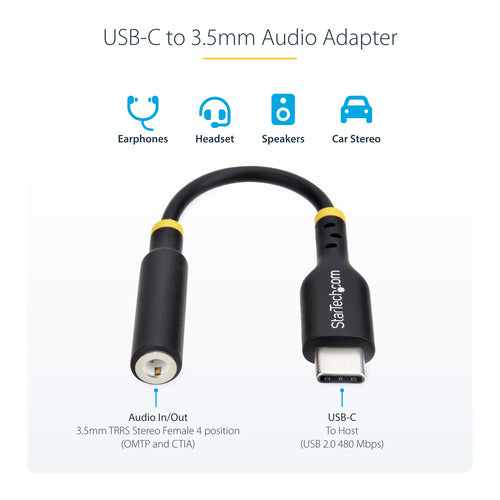

Connector A 1 - USB Type-C (24-pin) USB 2.0 (480Mbps)
Connector B 1 - 3.5mm Stereo Female 4 pos
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 10 to 85% RH (no condensation)
Ports 1
OMTP and CTIA 3.5mm TRRS
Chipset ID Realtek - ALC4030
Audio Specifications 16, 24, 32-bit depth at a sampling rate of 44.1 to 384kHz
Color Black
Product Height 0.3 in [8.6 mm]
Product Length 5.5 in [140 mm]
Weight of Product 0.2 oz [5 g]
Product Width 0.5 in [1.2 cm]
Connector Style Straight
Material Rubber
Included in Package 1 - USB-C to 3.5mm Audio Adapter
