-2%
Ubiquiti

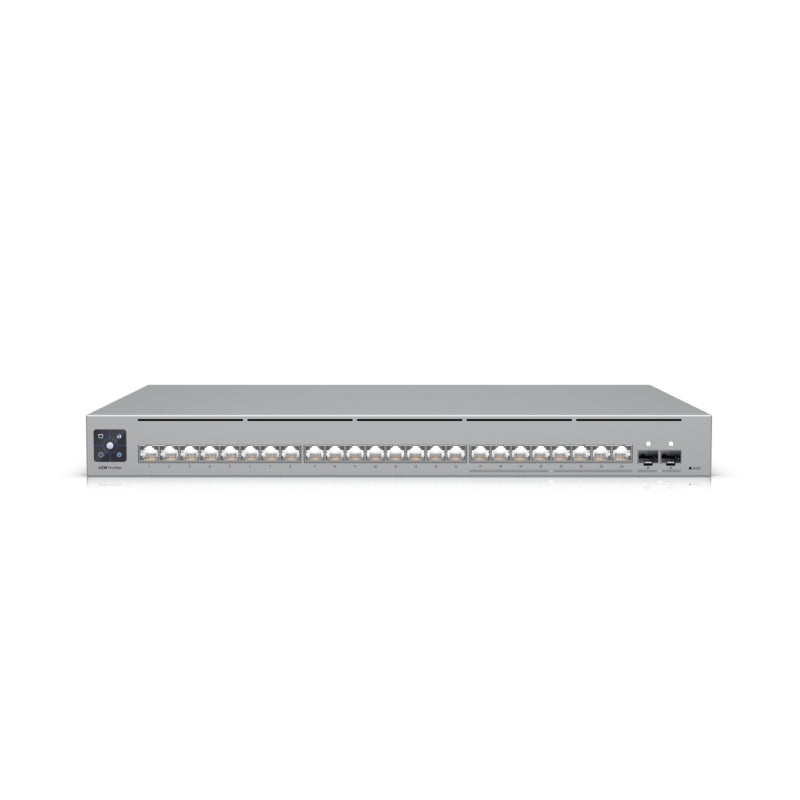

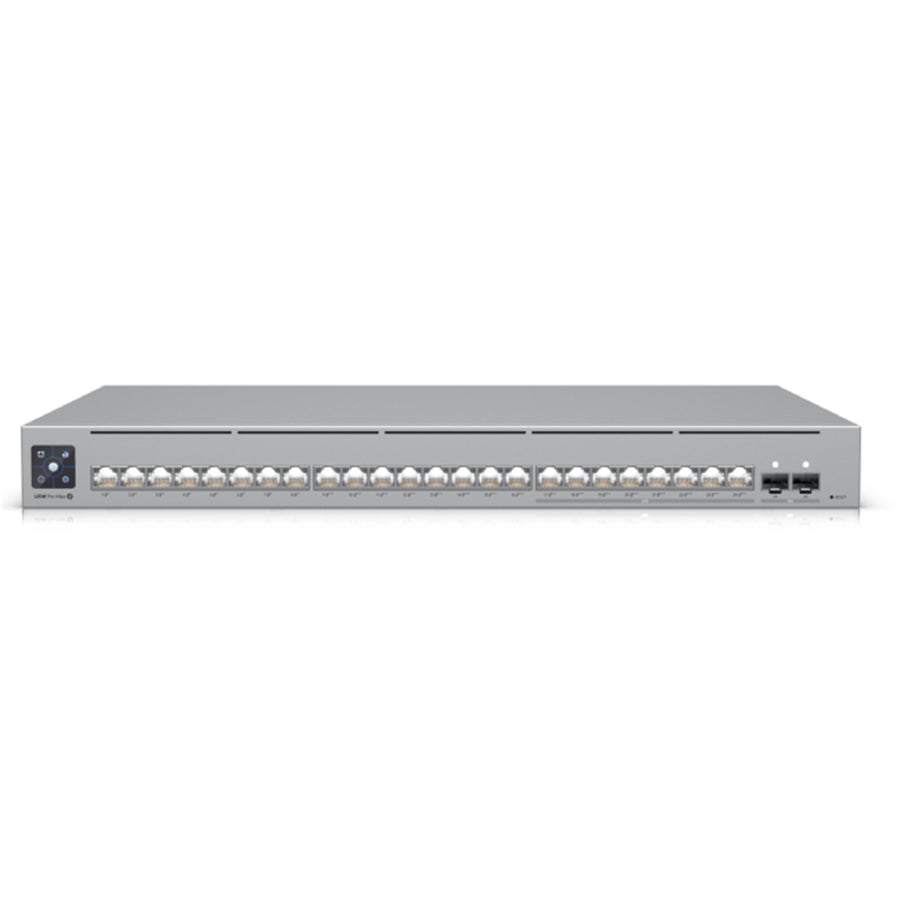

USW-Pro-Max-24 - Ubiquiti UniFi Switch 24-port, Layer 3 Etherlighting switch with 2.5 GbE
$989.56$1,012.50
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Pro Max 24
A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (8) 2.5 GbE RJ45 ports
- (16) GbE RJ45 ports
- (2) 10G SFP+ ports
- DC power backup ready
- Managed with UniFi Network 8.0.24 and later
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Specifications
Technical Specifications
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
|---|---|
| Weight | Without mounting brackets: 4.2 kg (9.3 lb)With mounting brackets: 4.3 kg (9.5 lb) |
| Enclosure material | SGCC steel |
| Management interface | Ethernet In-Band |
| Networking interface | (16) GbE RJ45 ports(8) 1/2.5 GbE RJ45 ports(2) 10G SFP+ ports |
| Total non-blocking throughput | 56 Gbps |
| Switching capacity | 112 Gbps |
| Power method | (1) Universal input, 100-240V AC, 50/60 Hz(1) USP-RPS DC input |
| Power supply | AC/DC, internal, 50W |
| Supported voltage range | 100-240V AC |
| Max. power consumption | 50W |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Layer 2 features | IGMP snoopingSTP / RSTP with priorities and port-level disablePort isolationStorm controlVoice VLANPort mirroringLACP port aggregationMulticast / broadcast rate limitingMAC address blockingFlow control802.1X controlJumbo framesProprietary loop protectionDHCP snooping / guardingEgress rate limitLLDP-MEDPort restricted by MACDevice isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networksDHCP relayInter-VLAN routing between networks on same switchStatic routing between local networksNetwork isolation with ACLs |
| Ethernet | LocatingSpeed/linkNative VLAN/network |
| SFP+ | LocatingSpeed/linkNative VLAN/network |
| System | Status |
| RPS | Status |
| UniFi Network | Version 8.0.24 and later |
| Brand | Ubiquiti |
|---|---|
| Product Type | Networking > Switches |
| Weight | 5.3 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
