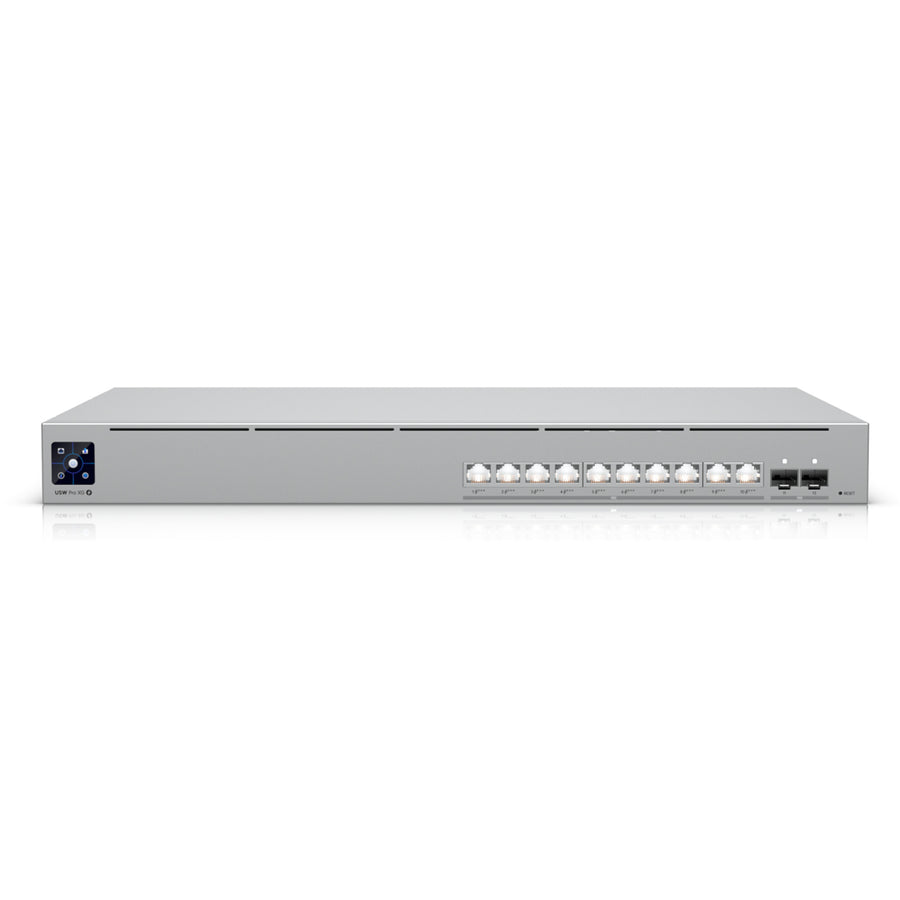

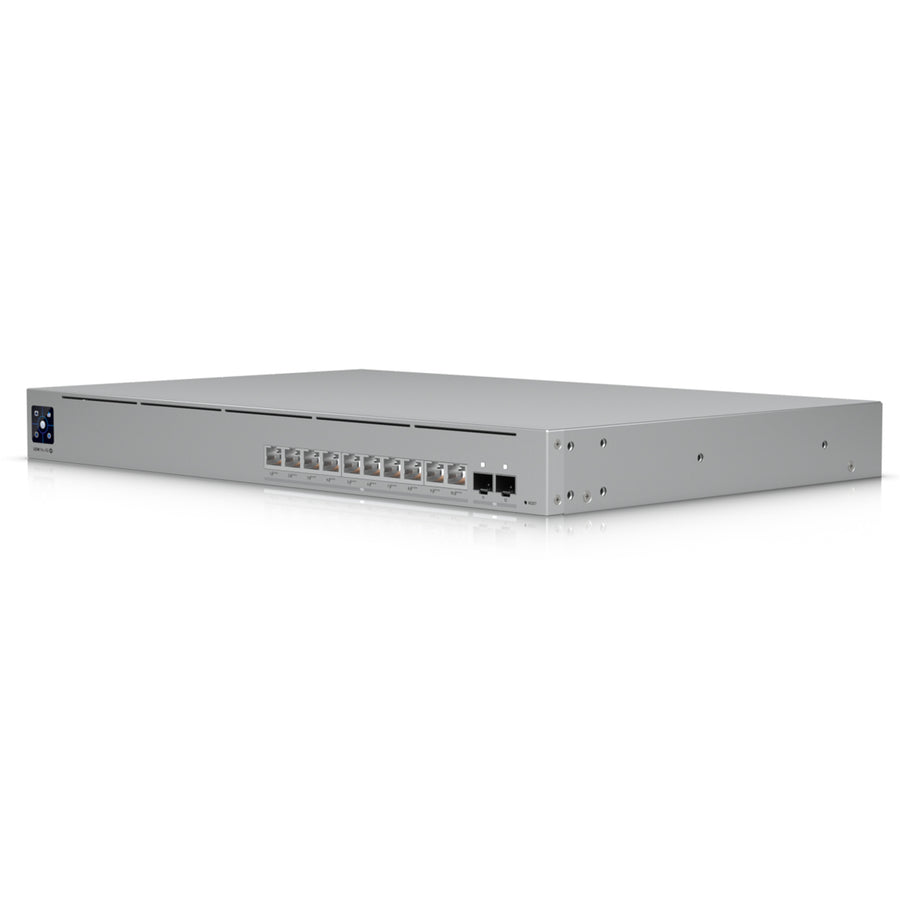

Ubiquiti Unifi USW-Pro-XG-10-PoE 12-Port 10G L3 Managed Etherlighting PoE Switch (400W) - SFP+ x2, 10GbE PoE+++ x10
Ubiquiti Unifi USW-Pro-XG-10-PoE 12-Port 10G L3 Managed Etherlighting PoE Switch (400W) - SFP+ x2, 10GbE PoE+++ x10
Ubiquiti

Ubiquiti Unifi USW-Pro-XG-10-PoE 12-Port 10G L3 Managed Etherlighting PoE Switch (400W) - SFP+ x2, 10GbE PoE+++ x10

SKU: USW-Pro-XG-10-PoE ● In Stock
$1,553.03$1,603.99
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.

Specifications

Technical Specifications

Dimensions 442.4 x 285 x 44 mm(17.4 x 11.2 x 1.7")
Port Layout 10 GbE RJ4510 (All PoE+++)(10G/5G/2.5G/1G/100M)10G SFP+2(10G/1G)
Max. PoE Output Up to PoE+++
Total PoE Availability 400W
Redundancy DC Power Backup
Layer 3 Yes
Form Factor Rack mount (1U)
Etherlighting™ Yes
Switching Capacity 240 Gbps
Total Non-Blocking Throughput 120 Gbps
Forwarding Rate 179 Mpps
Supported VLANs 1,000
MAC Address Table Size 32,000
ARP Entries 12,000
IPv4 Routes 12,000
Packet Buffer Size 2 MB
Access Lists IPv4128MAC128
DHCP Server (Local Networks) Yes
DHCP Relay Yes
Inter-VLAN Routing (Local Networks) Yes
Static Routing (Local Networks) Yes
LACP Port Aggregation Yes
STP & RSTP Yes
QoS (DSCP) Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) Yes
IGMP Snooping Yes
802.1X Control Yes
MAC-Based ACLs & Device Isolation Yes
DHCP Snooping & Guarding Yes
Egress Rate Limit Yes
Flow Control Yes
Storm Control Yes
Multicast & Broadcast Rate Limiting Yes
MAC Address Blocking Yes
IP-Based ACLs & Network Isolation Yes
MAC-Based Port Restriction Yes
Port Isolation Yes
Port Mirroring Yes
Jumbo Frames Yes
LLDP-MED Yes
Voice VLAN Yes
Loop Protection Yes
PoE Ports PoE+++10
Max. PoE Wattage per Port by PSE PoE15.4WPoE+30WPoE++60WPoE+++90W
Max. Power Consumption 65W (Excluding PoE output)520W (Including PoE output)
Power Method (1) Universal input, 100-240V AC, 50/60 Hz(1) USP RPS DC input
Power Input Method AC input
Power Supply AC/DC, internal, 550W
Supported Voltage Range 100-240V AC
Management EthernetAR
Weight Without mounting brackets: 4.6 kg (10.14 lb)With mounting brackets: 4.7 kg (10.36 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 400~1200 mm(15.7-47.2"")
LCM Display 1.3" touchscreen
ESD/EMP Protection Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
Ethernet Yes
SFP+ Yes
NDAA Compliant Yes
Certifications CE, FCC, IC
Application Requirements UniFi NetworkVersion 9.1.120 and later
