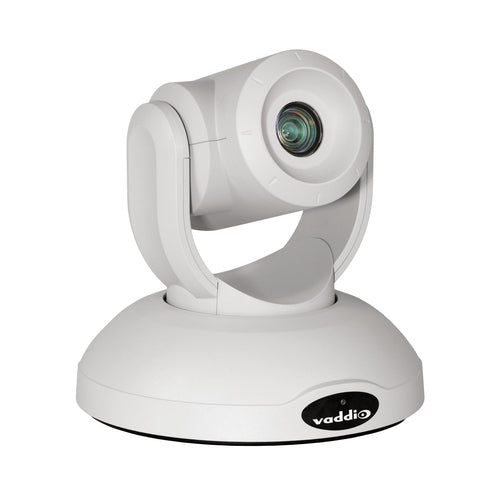

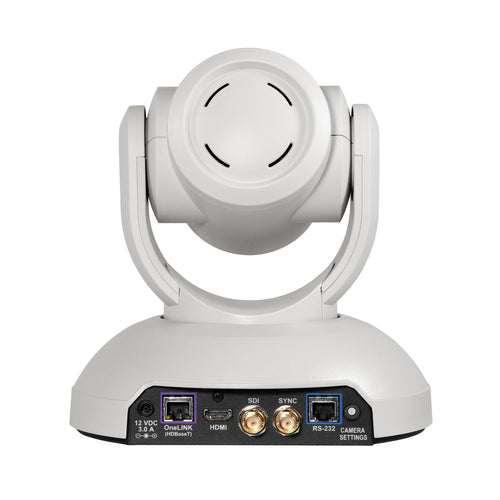

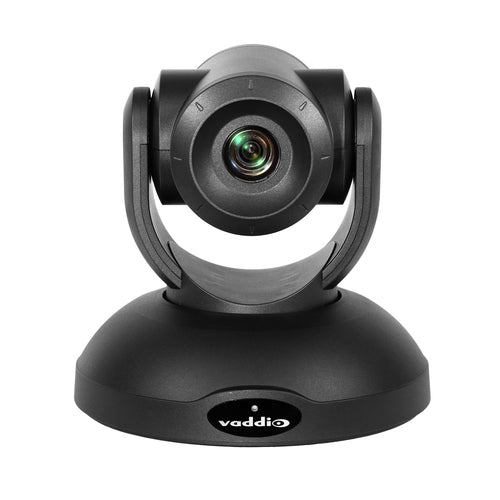

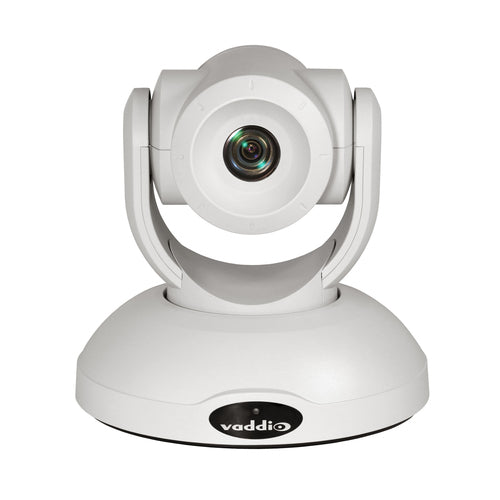

Vaddio RoboSHOT 20 UHD System WHITE
Features
RoboSHOT 40 UHD System AUS, White
Production-quality RoboSHOT 40 UHD provides brilliant 4K video footage for broadcasting or live streaming applications.
- Back-illuminated 8.51 Megapixel, ultra-high definition 1/2.5-type CMOS sensor delivers native 2160p/30 (3840 x 2160) video
- 20x optical zoom with 30x lossless zoom at 3840 x 2160. Achieve 40x zoom at full HD resolution
- Genlock signal for multi-camera synchronization
The RoboSHOT 40 UHD broadcast-quality PTZ camera is ideal for these applications:
- Broadcast TV, corporate broadcast, local TV stations, campus news
- Churches, houses of worship
- Live events
- Sporting events such as high school football or soccer
- Large auditoriums
- Concert halls
This Package Includes:
- RoboSHOT 40 UHD camera (black or white)
- Quick-Start Guide
- 12V power supply with AC cord set(s)

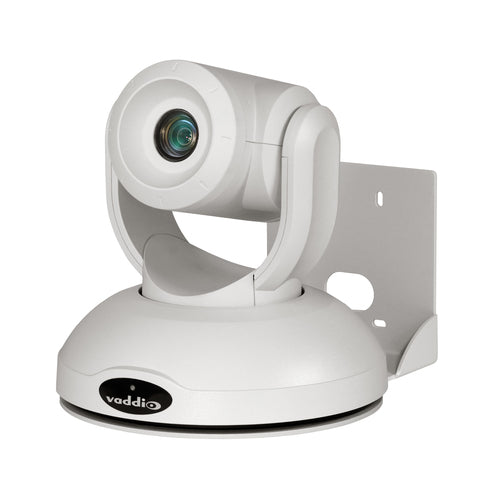

- Thin Profile Wall Mount (black or white) with mounting hardware
- Vaddio IR Remote Commander
- EZCamera RS-232 Control Adapter
Specifications
Technical Specifications
| Colour | White |
|---|---|
| Certifications | CE Approved, FCC Approved |
| Product Width | 8" (20.32 cm) |
| Product Height | 7.9" (20.07 cm) |
| Product Depth | 5.5" (13.97 cm) |
| Product Weight | 6 lbs (2.72 kg) |
| Signal Type | 3G-SDI, HDMI, HDbT, IP-Streaming |
| Power Type | Local Power, PoE++ |
| Output Ports | 3G-SDI, HDMI, HDbT, IP-Streaming |
| Zoom | 40x at 1080p/60; 30x at 4k/30 |
| Max Resolution | 2160p/29.97 |
| Image Sensor | 1/2.5-type Exmor® CMOS sensor, 4K |
| Field of View | 70.2° Wide End to 4.1° Tele End |
| Estimated Room Size | Large Venue, Large Conference Room |
| Minimum Illumination | 1.6 Lux (F2.0), 100+ Lux Recommended |
| Browser-based User Interface for Remote Control | Built-in |
| Control Method | Joystick, Web UI, Touch Screen, Telnet, RS-232 and IR Remote |
| OneLINK Compatibility | Native |
| OneLINK HDMI adds | 328 ft (100 M) Power, Video, Control Extension |
| OneLINK Bridge adds | 328 ft (100 M) Power, Video, Control Extension, Audio Mixer, USB 3.0 |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Tri-Sync Motion | Yes |
| Pan and Tilt Range | Pan: ±160°, Tilt: +90· to -30° |
| Pan and Tilt Speed | 0.35°/sec to 120°/sec |
| Image Sensor Type | 1/2.5-type Exmor® CMOS sensor, 4K |
| Top Resolution | 2160p/29.97 |
| Invertible | Yes |
| Video S/N Ratio | >50 dB |
| Focus System | Auto, Manual |
| Gain | Auto, Manual |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Preset Positions | 16 + Custom Home Position |
| White Balance | ATW, Auto, Indoor, Outdoor, One-Push, Manual |
| Power Supply | PoE++ |
| Quick-Connect Compatibility | No |
| Brand | Vaddio |
|---|---|
| Product Type | UC & Video Conferencing > Business Phones > IP Phones / Gateways |
| Weight | 0.5 kg |
