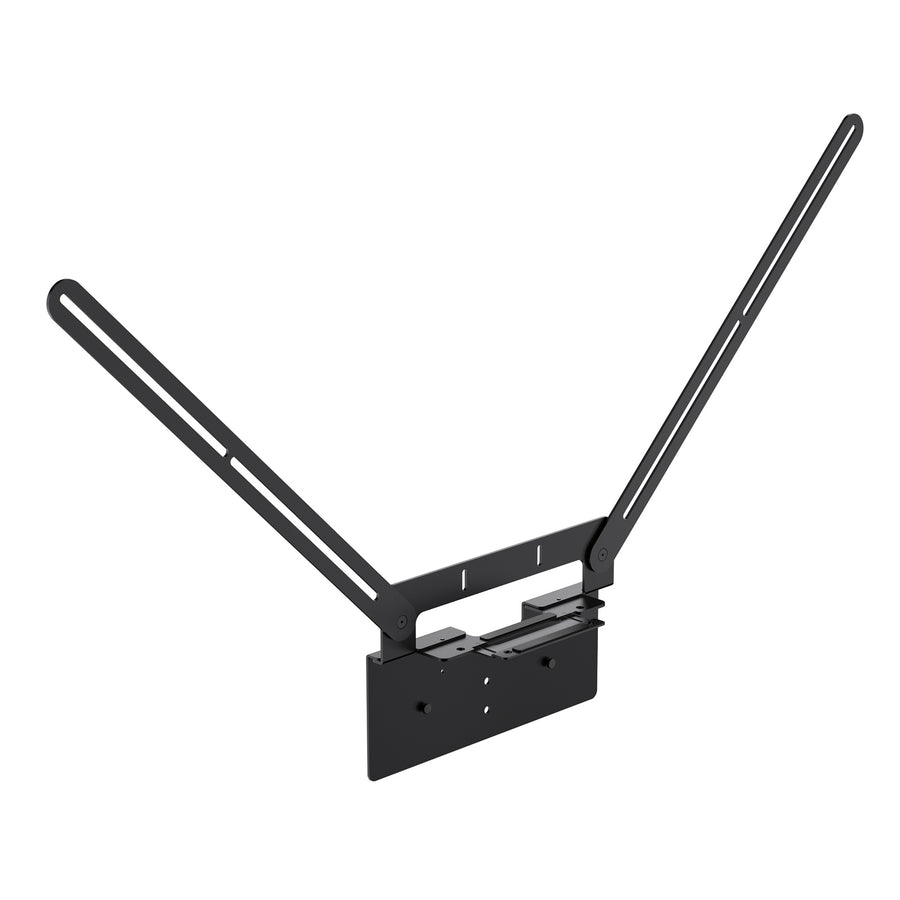

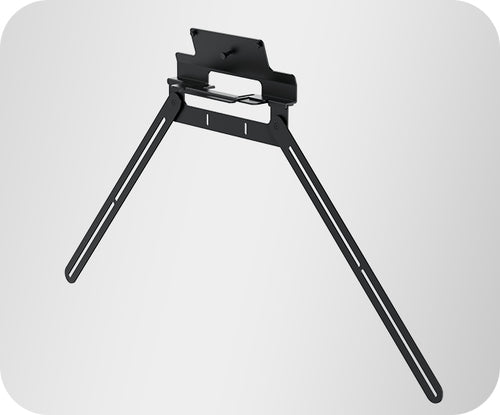

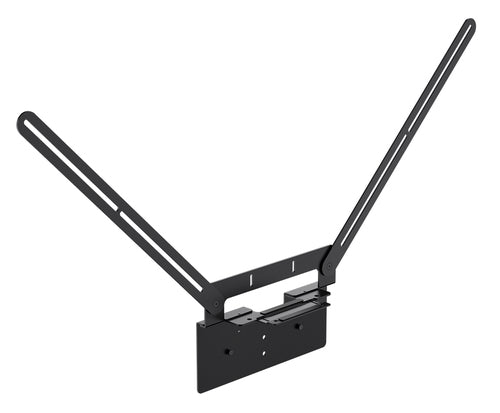

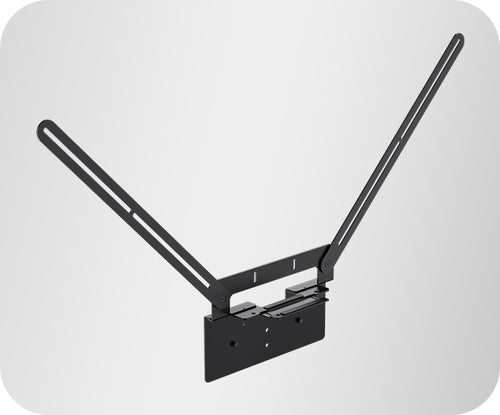

Yealink 3311118 - VB-TVMount-01

Yealink TV mount for A50, A40, and SmartVision 40

VB-TVMount-01 is a modular TV mount designed specifically for meeting environments, supporting flexible deployment of Yealink MeetingBar devices. Through its innovative modular design, this mount can be directly adapted to mainstream TV models, providing a stable hanging solution. With the VB-TVMount-01 MeetingBar A50 can be installed at the bottom of the TV, or, using the included top mounting bracket, quickly reconfigured to switch to a top-mounted position, achieving the best alignment of device placement. The bottom installation mode also supports compatibility with the A40 and SmartVision 40. While ensuring safety, the VB-TVMount-01 provides an optimal spatial solution for video conferencing systems.

- Compatible with most TV
- Support hanging above or below the TV
- Compatible with A50, A40, and SmartVision 40

Bottom Mounting

Step one: Remove the velcro.
Step two: Stick the velcro to the bottom center of the TV.
Step three: Fix the bracket.

Note: Gasket can be used when the gap between the back of the TV and the bracket is relatively large.

Top Mounting

Step one: Remove the Bottom Mounting Bracket.
Step two: Fix the Top Mounting Bracket(Rotate 180°).
Step three: Remove the velcro.
Step four: Stick the velcro to the bottom center of the TV.
Step five: Fix the bracket.

Note: Gasket can be used when the gap between the back of the TV and the bracket is relatively large.

Adjusting the Extension Bracket (Optional)

Step one: Loosen the screw.
Step two: Adjust the extension bracket.
Step three: Fix the extension bracket.
