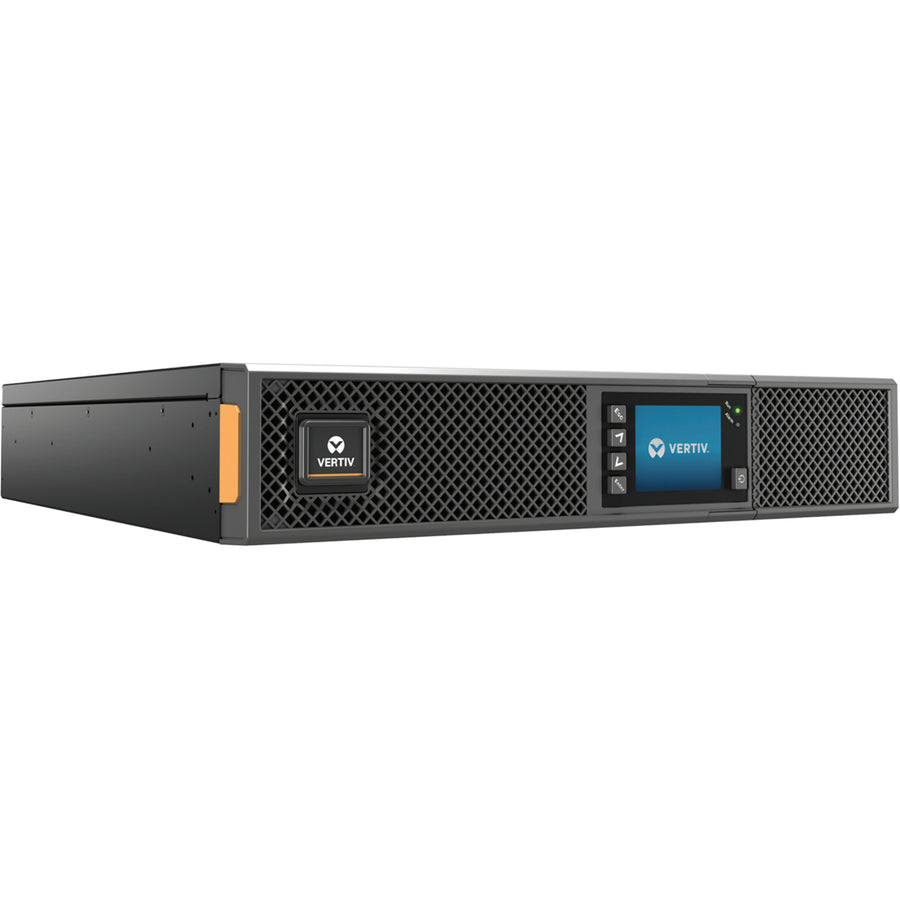

VERTIV 01202005LIEBERT GXT5 ON-LINE 3000VA 230V
VERTIV 01202005LIEBERT GXT5 ON-LINE 3000VA 230V
Overview
The Vertiv Liebert GXT5 UPS 3000VA/3000W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a two-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications.
- Reliable, easy-to-manage power protection and battery backup with 3000VA (3000W) capacity
- Highest power factor available on standard input connections
- Four individual programmable output receptacle for device control and management for optimum battery usage
- Its user-friendly interface includes color graphic display with gravity sensing feature
- 2019 ENERGY STAR 2.0 certified and has higher operating efficiency in standard and eco-mode
Technical Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 3 |
| Output power | 3000 |
| Waveform | Pure sine |
| Input operation voltage (min) | 115 |
| Input operation voltage (max) | 288 |
| Input frequency | 50/60 |
| Output operation voltage (max) | 240 |
| Output frequency | 50/60 |
| Output voltage regulation | 3 |
| Response time | 0 |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 95 |
| Efficiency (On-line mode) | 95 |
| Efficiency (ECO mode) | 98 |
| Input power factor | 0.99 |
| Emergency Power Off (EPO) | Y |
| Noise level | 58 |
| Power protection features | Overload |
| Audible alarm(s) | Y |
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 7 |
| USB port | Y |
| Serial interface type | RS-232,RS-485 |
| Serial ports quantity | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 |
| Battery voltage | 12 |
| Typical backup time at full load | 3 |
| Typical backup time at half load | 9 |
| Battery recharge time | 3 |
| Hot-swap battery | Y |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 40 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Compliance certificates | RoHS |
| Certification | IEC/EN/AS 62040-2 2nd Ed (Cat 2 β 6); FCC 15 A CISPR22 A(RFI) |
| Safety | IEC62040-1:2008, GS; UL1778, c-UL |
| Sustainability certificates | ENERGY STAR |
| Width | 430 |
| Depth | 540 |
| Height | 85 |
| Weight | 28200 |
| Package width | 517 |
| Package depth | 617 |
| Package height | 262 |
| Package weight | 33 |
| Harmonized System (HS) code | 85078000 |
| Battery type | VRLA |
| Output connections | IEC320 C13 & C19 |
| Input connection type | C20 |
| Nominal output voltage | 230 |
| Nominal input voltage | 230 |
| Non-operating relative humidity (non-condensing) | 0 - 95 |
| Overload protection | Y |
| Bypass | Yes |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | VERTIV |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 36.0 kg |
