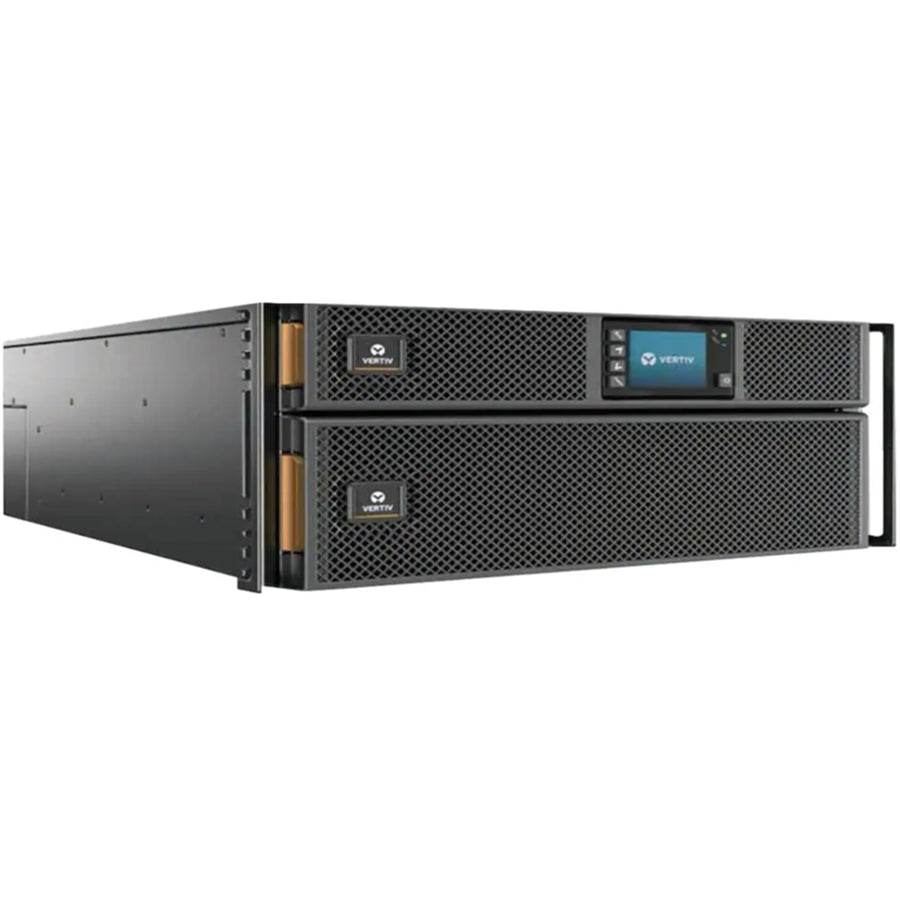

VERTIV VRT_[GXT5-10KIRT5UXLN ]_LIEBERT GXT5 ON-
VERTIV VRT_[GXT5-10KIRT5UXLN ]_LIEBERT GXT5 ON-
Overview
The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 10kVA/10kW online double conversion UPS offers continuous power conditioning in centralized and edge locations. With unity power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 230V in/ 230 out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Dist This offer is not available in conjunction with any other offer/discount.ributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer.
- It offers reliable, easy-to-manage power protection and battery backup with 10kVA (10kW) capacity.
- It has UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
- It includes a built-in Vertiv RDU101 network communications card for remote management.
- It comes with a Vertiv 3-year warranty plus a 2-year extension for a total of 5 years in coverage.
- It is ENERGY STAR® 2.0 certified with higher efficiency, for energy savings and improved reliability.
Technical Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 10 |
| Output power | 10000 |
| Waveform | Pure sine |
| Input operation voltage (min) | 176 |
| Input operation voltage (max) | 288 |
| Input frequency | 40 - 70 |
| Output operation voltage (min) | 230 |
| Output operation voltage (max) | 240 |
| Output frequency | 50/60 |
| Output voltage regulation | 3 |
| Response time | 0 |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 95 |
| Efficiency (On-line mode) | 95 |
| Power factor | 1 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Emergency Power Off (EPO) | Y |
| Noise level | 55 |
| Power protection features | Overload |
| Audible alarm(s) | Y |
| AC outlet types | C13 coupler,C19 coupler,IEC 320,Terminal |
| Power plug | Terminal |
| AC outlets quantity | 8 |
| USB port | Y |
| Serial interface | Y |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 |
| Battery voltage | 12 |
| Number of batteries included | 16 |
| Typical backup time at full load | 2 |
| Typical backup time at half load | 7 |
| Charging current | 8 |
| Hot-swap battery | Y |
| Form factor | Rackmount/Tower |
| Rack capacity | 5U |
| Cooling type | Active |
| Product colour | Black |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Compliance certificates | RoHS |
| Certification | CE, EMI/EMC/C-Tick EMC, ESD |
| Batteries included | Y |
| Cables included | USB cable |
| Manual | Y |
| Quick installation guide | Y |
| Safety | IEC62040-1:2008 |
| Width | 430 |
| Depth | 630 |
| Height | 217 |
| Weight | 74500 |
| Package width | 646 |
| Package depth | 816 |
| Package height | 520 |
| Package weight | 93000 |
| Country of origin | China |
