Features

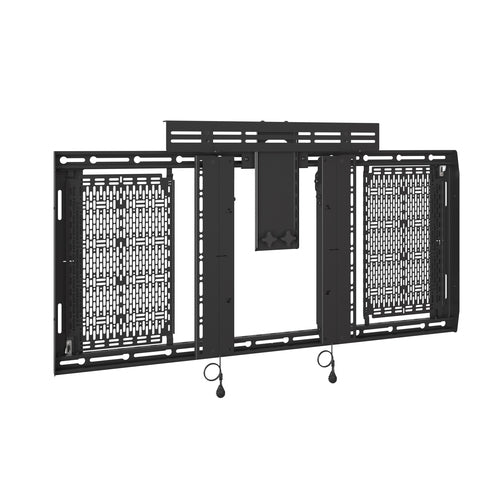

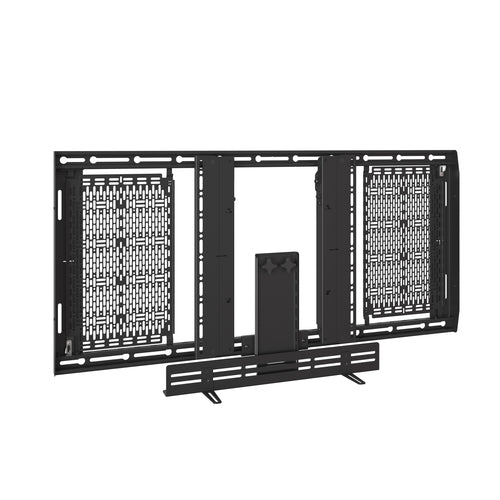

Video-Sound Bar Mount for Tempo™ Flat Panel Wall Mount System Series
Complete your AV system installations with this Installer Inspired video-sound bar mount for use with Tempo™ Flat Panel Wall Mount System.
Complete AV Installations with Precision Fit
Finish your AV installations professionally with this video-sound bar mount designed specifically for the Tempo™ Flat Panel Wall Mount System Series. The interface bracket measures 22.25" (565 mm) wide by 2.88" (73 mm) tall, avoiding visual overlap with most video-sound bars. Its 21.41" (544 mm) wide slot offers compatibility for mounting bars with rear holes.
Quick, Adjustable, and Flexible Mounting
Installation is quick and easy: the mount glides and locks onto the top or bottom rail using strut channel nuts and captive screws for stable support. Lateral shift enables flexible placement anywhere along the wall plate rail. Toolless knobs provide 6.27" (159 mm) of vertical travel, allowing perfect height adjustment for camera shelves above or below any display.
Versatile Placement and Cable Management
The mount can be placed between 9.75" (248 mm) and 28.15" (715 mm) from the Tempo FP Wall Mount center line to suit different setups.* Integrated window openings and vertical slots on both sides of the bracket streamline cable management. This helps keep installations tidy and organized behind the display.
Strong Weight Capacity for Most Sound Bars
Designed for durability, the bracket holds up to 20 lbs (9 kg) when sound bars are mounted to the interface plate. For sound bars mounted with included "L" brackets, the capacity is 15 lbs (6.8 kg). These ratings accommodate the majority of video-sound bars with rear or bottom mounting holes.
Broad Compatibility and Installation Notes
This mount fits most video-sound bars with rear or bottom mounting holes for versatile applications. Sound bars are sold separately, and for specific display clearance requirements, refer to the technical drawing. Final dimensions and exact installation may vary based on your unique AV needs.
Note
*For display size clearance details please refer to the Technical Drawing. Dimensions and specifications dependent on application use case.
**Sound bars sold separately.
Specifications
Technical Specifications
| Product Type | Sound bar mounting accessory |
|---|---|
| Brand | Chief |
| Model | AS3A101 |
| Height | 12.53" (318 mm) - 22.96" (583 mm) |
| Color | Black |
| Material | Heavy-gauge steel construction (durable, stable) |
| Manual Height Adjustment | 6.27" (159 mm) |
| Weight Capacity | 20 lbs (9 kg) with interface bracket15 lbs (6.8 kg) with "L" brackets |
| Compatible System | Tempo Flat Panel Wall Mount System |
| Mount Type | Adjustable video/sound bar mount |
| Suitable for | Most flat panel TVs with a compatible Tempo mount and a sound bar within the weight limits |
| Brand | Chief |
|---|---|
| Product Type | TV & Home Theatre > TV Mounts & Accessories |
| Weight | 5.0 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
