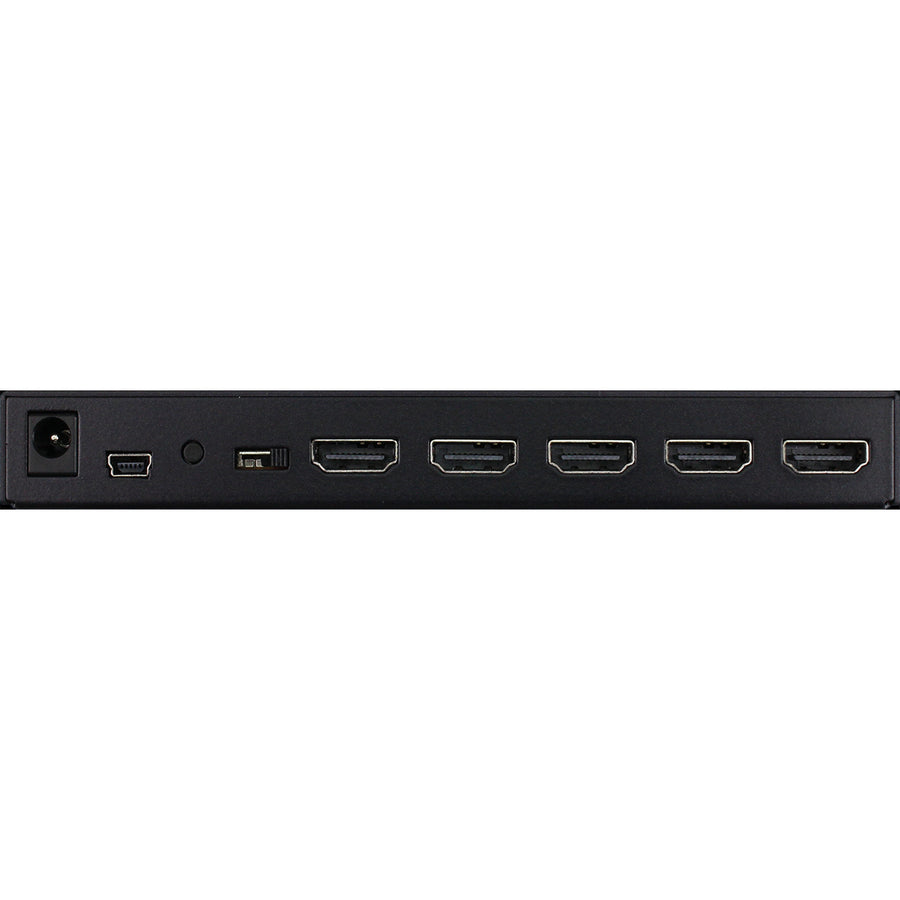

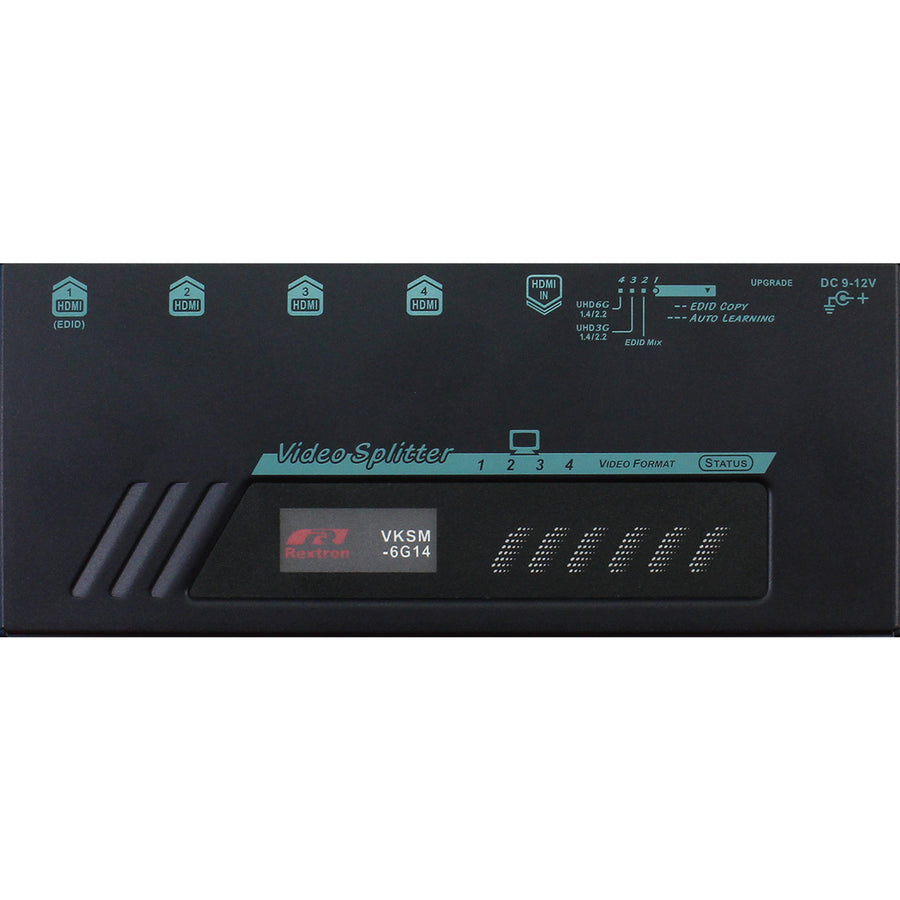

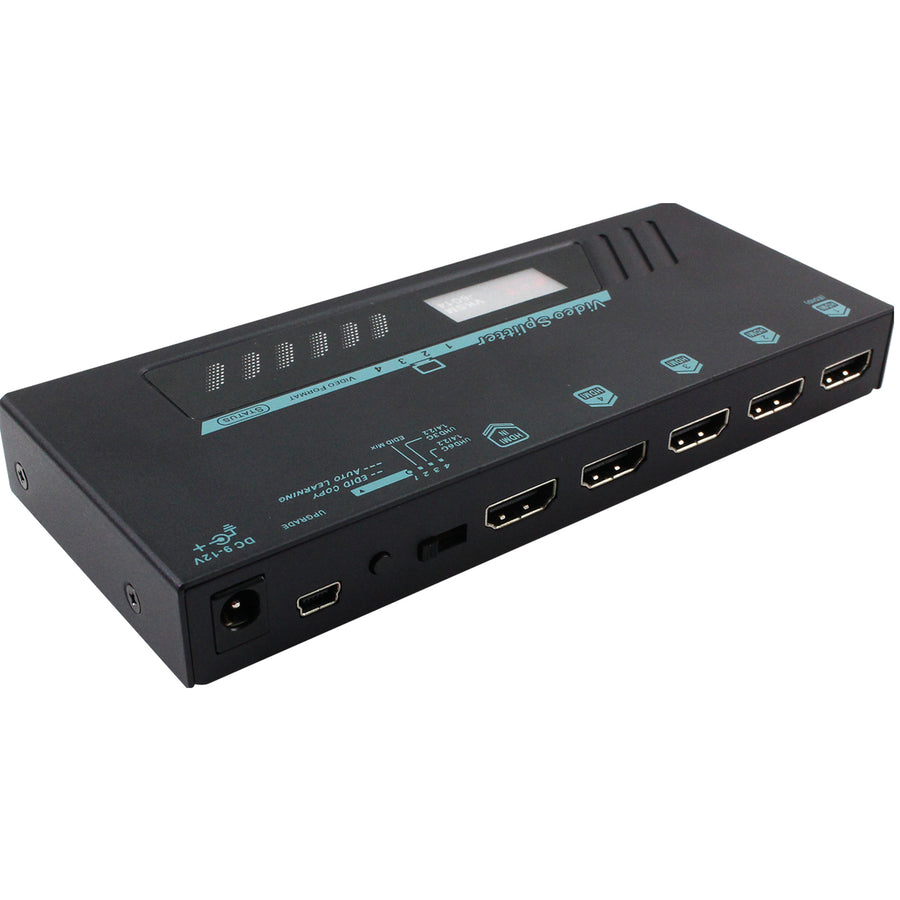

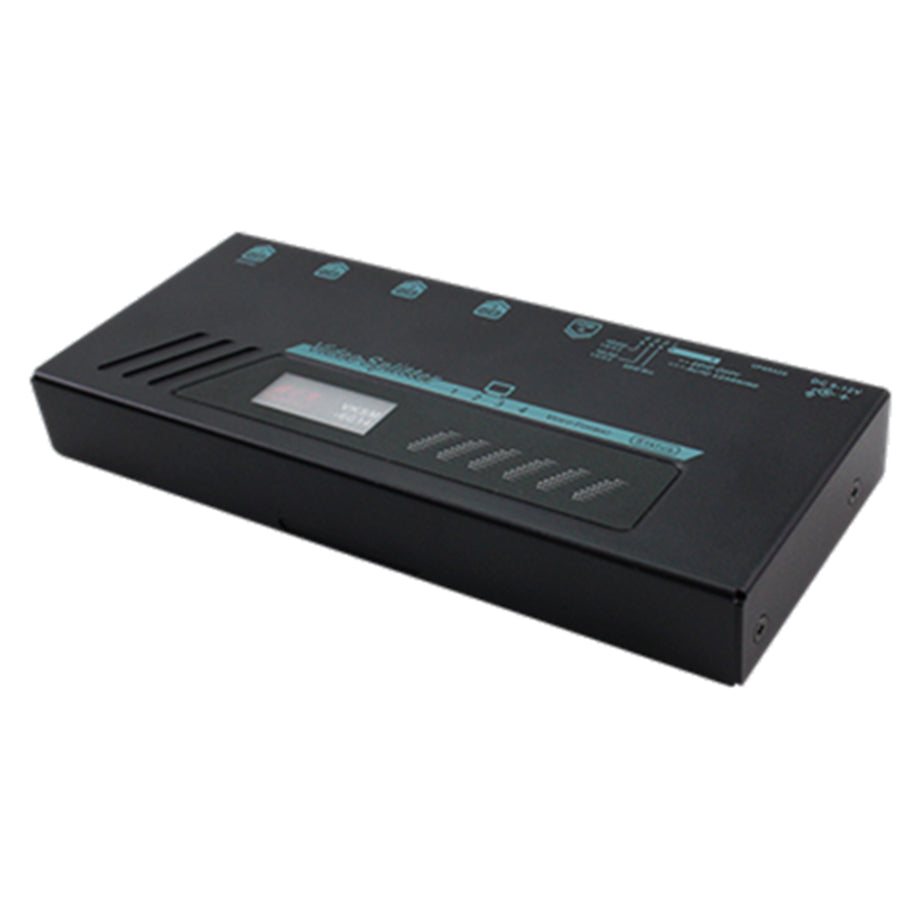

REXTRON VKSM-6G14 - 1-In-4-out 18G HDMI 2.0 Splitter. Supports Ultra-HD Resolution up to 4K@60Hz
Features
REXTRON 1 in 4 Out 18G HDMI 2.0 Splitter. Supports Ultra-HD Resolution up to 4K@60Hz Max Res: (3840x2160). LED Indicators, Supports EDID, Automatic Power Save, Easy Install.
- An easy and affordable way to duplicate one video input to multiple HDMI outputs
- Automatic power-save when signal input is lost
- The cascaded operation for increased signal outputs
- Crisp clear video images
- Support HDMI display resolutions of up to WUXGA (1920 x 1200), Full HD 1080p (1920 x 1080), 4K UHD (3840 x 2160@60Hz)
- LED indicators for signal activity monitoring
- Accurate and reliable reproduction of digital video signals without attenuation and distortion
- Install in seconds
- HDMI 2.0, HDCP 2.2 compliant and Blu-ray ready for high definition display
- EDID Copy & EDID auto-learning support
- Unique 4K 3G/6G, HDCP 1.4/2.2 Video Format setting for all application
- 8/10/12 bit deep colour support
Specifications
Technical Specifications
| Number of Video Input | 1 |
|---|---|
| Number of Video Output | 4 |
| Max. Resolution | 4K UHD (3840 x2160@60Hz) /4K UHD (3840 x2160@30Hz) /Full HD 1080p (1920 x 1080) /WUXGA (1920 x 1200) |
| Status | Multi-colour x 1 |
| Video output | x 4 |
| Video Format | x 1(Non-HDCP, HDCP 1.4, HDCP 2.2 |
| Max. Frequency Range | 600MHz |
| EDID Copy Button | x 1 |
| Function Slide Switch | x 1 |
| mini-USB Port | x 1 (For Firmware Update) |
| Enclosure | Metal |
| Power Supply | DC 9V~12V |
| Dimensions H x W x D | 20 x 156 x 25mm |
| Weight (g) | 300g |
| Brand | REXTRON |
|---|---|
| Product Type | PC Peripherals > KVM Switch/Extenders |
| Weight | 1.497 kg |
| Warranty |
|---|
