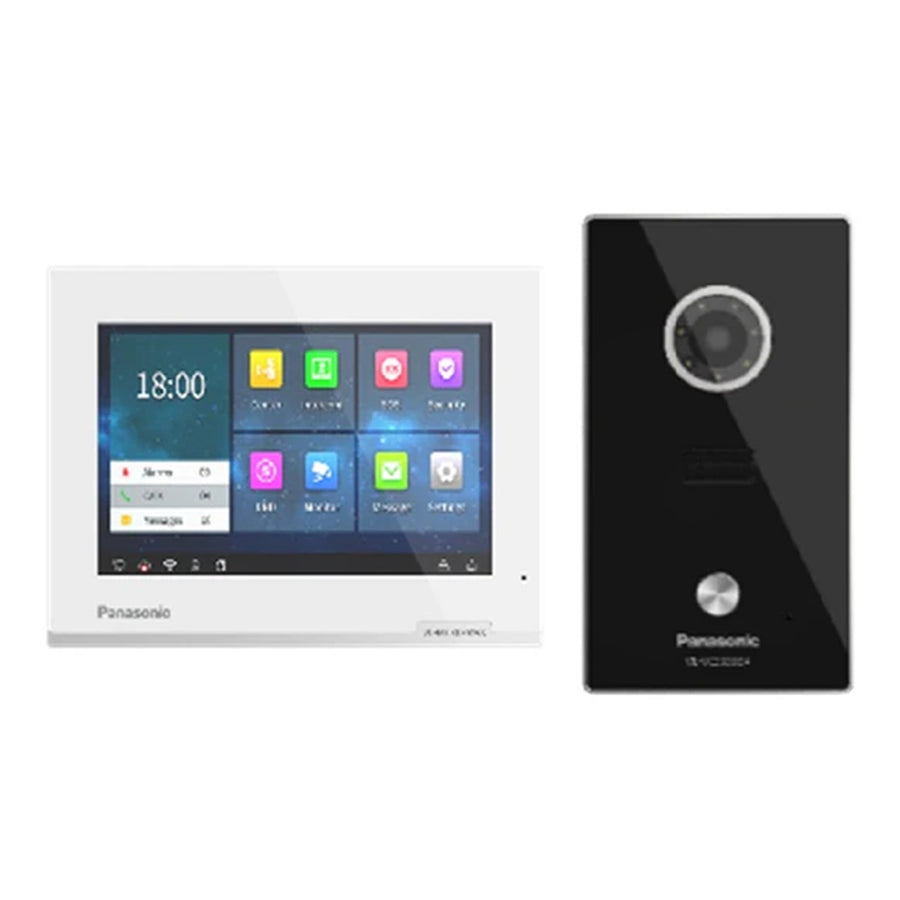

VL-SC3235WX - IP VIDEO INTERCOM HOME KIT WITH APP

- Smartphone connectivity: The system supports a smartphone app that lets you answer calls from visitors, monitor the door station, and record video from anywhere. The app can be connected by scanning a QR code from the room monitor.
- Video and audio recording: The door station automatically records video and audio of visitors when a MicroSD card is inserted into the monitor. This provides a log of all calls and activity at your door.
- High-resolution camera: The doorbell camera features a 2.0MP CMOS sensor for Full HD (1920x1080) video quality. It also includes built-in IR night vision for clear visibility in low-light conditions.
- Durable door station: The door station is built to be vandal-resistant (IK08) and has an IP55 rating for dust and water resistance, making it suitable for outdoor installation.
- Remote unlocking: If you have an electronic lock connected to the door station, you can remotely unlock the door using the room monitor or the smartphone app.
- Expandable system: The system can support multiple monitors and door stations, allowing for comprehensive security coverage.
- Flexible power supply: The monitor and door station can be powered by PoE (Power over Ethernet) or DC power.
- Visitor messaging: If a visitor calls when you are not home, they can leave a voice message and a photo.

Components:

- Room Monitor (VL-MC3035WX) - 7-inch color touchscreen monitor
- Door Station (VL-VC3535BX) - Video doorbell camera unit

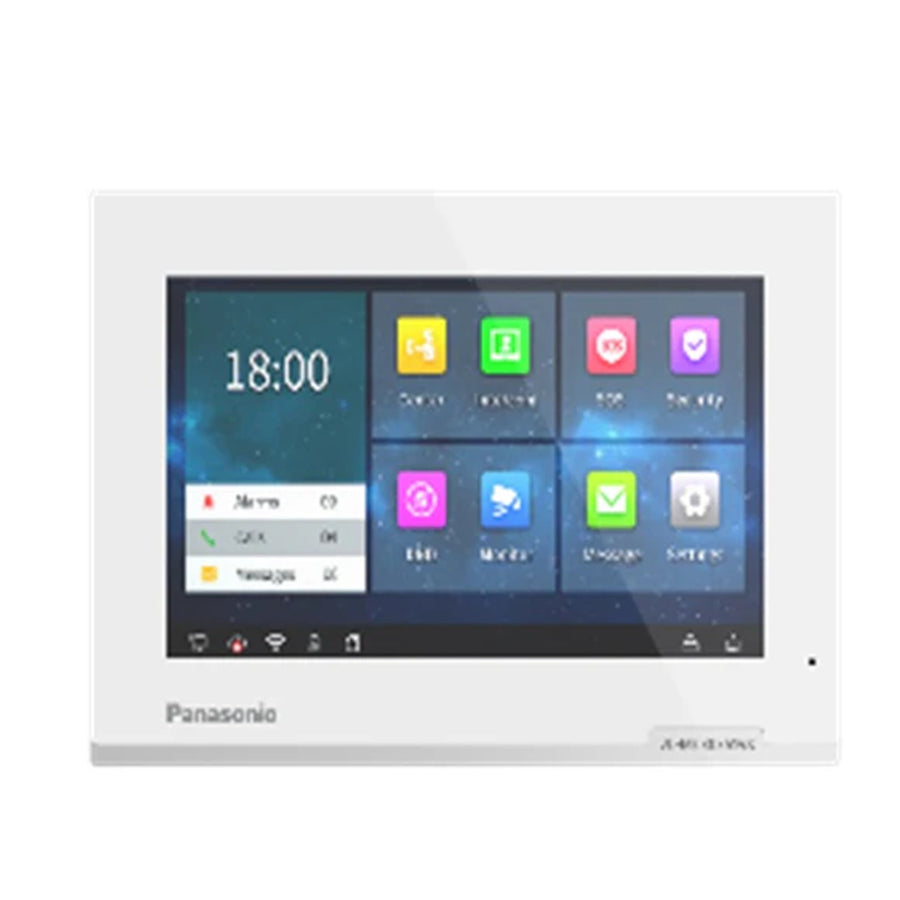

Room Monitor (VL-MC3035WX)

- Display: 7-inch capacitive touch screen
- Resolution: 1024 × 600 pixels
- System: Linux-based OS
- Memory: 128MB Flash / 64MB RAM
- Storage: 32GB MicroSD card (included)
- Power Supply:
- PoE (Power over Ethernet) IEEE 802.3af, Class 0
- DC 12V, 630mA
- DC 27V, 280mA
- Connectivity:
- Ethernet (TCP/IP, IPv4)
- Wi-Fi (2.4GHz)

Features:

- Remote unlocking of electronic locks
- Smartphone app integration
- Automatic video/audio recording
- SOS/Duress function for emergencies
- Supports second doorbell input

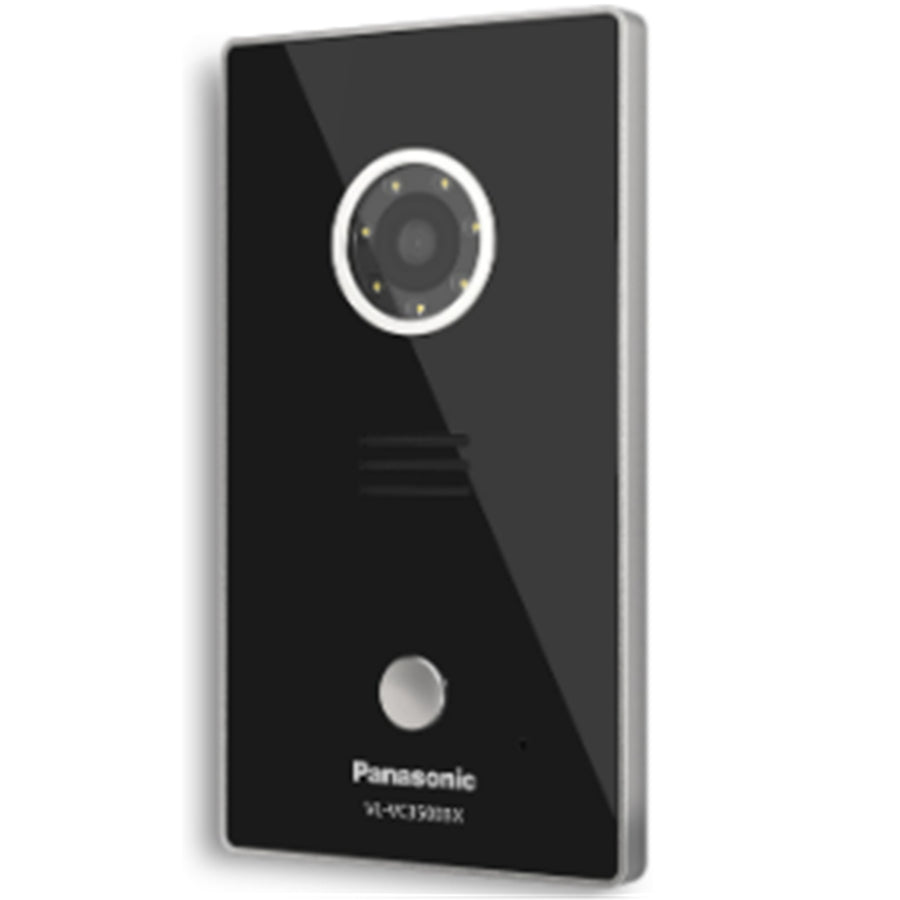

Door Station (VL-VC3535BX)

- Camera: 2.0MP CMOS sensor (1/2.7")
- Video Quality: 1920 × 1080 pixels (Full HD)
- Illumination: Built-in IR night vision
- Audio: Noise reduction & echo cancellation
- Power Supply: PoE (IEEE 802.3af) or DC 12V
- Weather Resistance: IP55 (dust and water resistance)
- Impact Protection: IK08 (vandal-resistant)
- Installation: Wall-mount or flush-mount options

Features:

- Live monitoring & two-way communication
- Motion detection and auto-recording
- QR code-based easy setup with mobile app

System Features

- Intercom Calls: Audio & video calls between monitor and door station
- Mobile Access: Control via a smartphone app
- Multi-User Support: Connects multiple monitors & door stations
- Event Logging: Stores video/audio clips on MicroSD card
- Security Integration: Connects with electronic door locks and surveillance cameras
- Remote Viewing: Live video access from anywhere via the app

This system provides high-quality video intercom communication with remote access and advanced security features, making it ideal for homes and small businesses.
