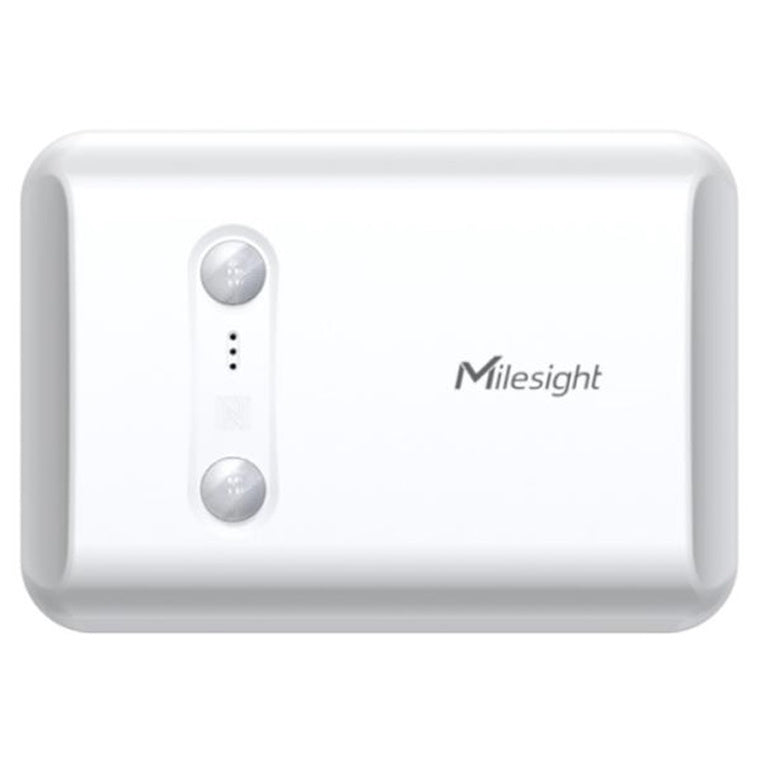

VS350-915M - Milesight VS350 LoRaWAN AS923 Dual PIR Passage People Counter

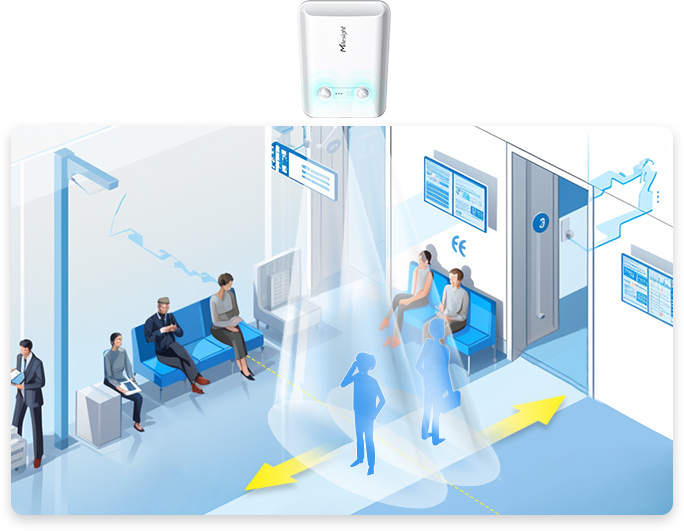

The VS350 is an exceptional indoor passage people counter that detects and analyzes the flow of people, allowing for optimum space management and usage. Equipped with dual PIR sensors, it offers a high accuracy rate for bi-directional people counting. When combined with the additional temperature sensor, the VS350 can achieve even more potential triggers, increasing its detection capabilities. As a Milesight D2D controller, the VS350 seamlessly communicates with other Milesight D2D devices, establishing more possible connections and paving the way for smoother operations.

With easy configuration and wireless detection, the VS350 facilitates simple deployment and connectivity. Compliant with the Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can know the number of passage people and trigger other sensors or appliances easily via a webpage or mobile App remotely.

- LoRaWAN® Wireless Deployment
- Flexible Bi-Directional People Counting
- Cost-Effective Accuracy Performance
- 100% Anonymous Detection
- Large Detection Area
- 4 Years Long Battery Life with High Report Frequency
- Unique Milesight D2D Communication
- Device Management & Application Development

Bi-Directional People Counting

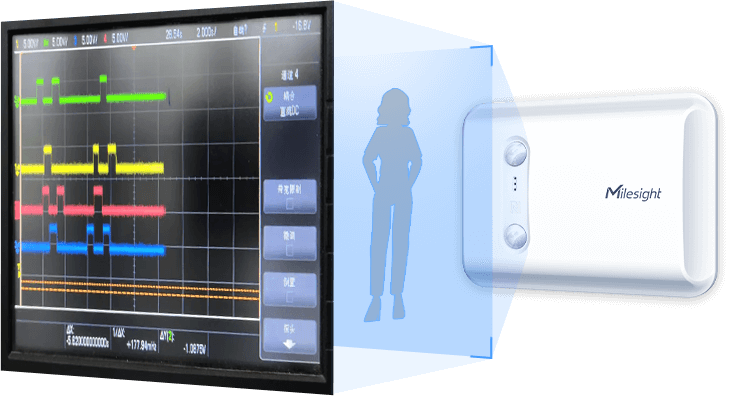

The Passage People Counter applies dual PIR sensors. It identifies the presence of people by detecting infrared radiation changes. To differentiate bidirectional movements and realize clear two-way people counting, two PIR sensors work in tandem to detect moving directions determined by the signal waveform.

100% Anonymous Detection

The LoRaWAN® narrow bandwidth transmits data with no personally identifiable information involved, which 100% guarantees privacy protection at the source. Nothing to worry about, It is compliant with GDPR.

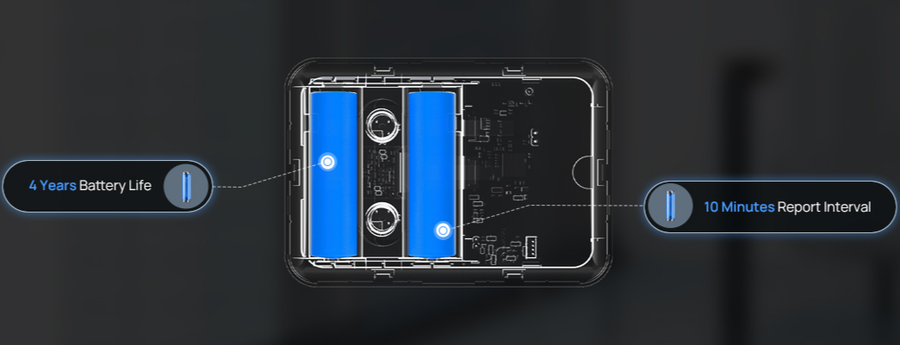

4 Years Long Service Life

Based on the low power consumption LoRaWAN® protocol, the sensor can maintain a long battery life of 4 years with a high reporting frequency of 10 minutes. It is ideal for covering most user demands in different scenarios.

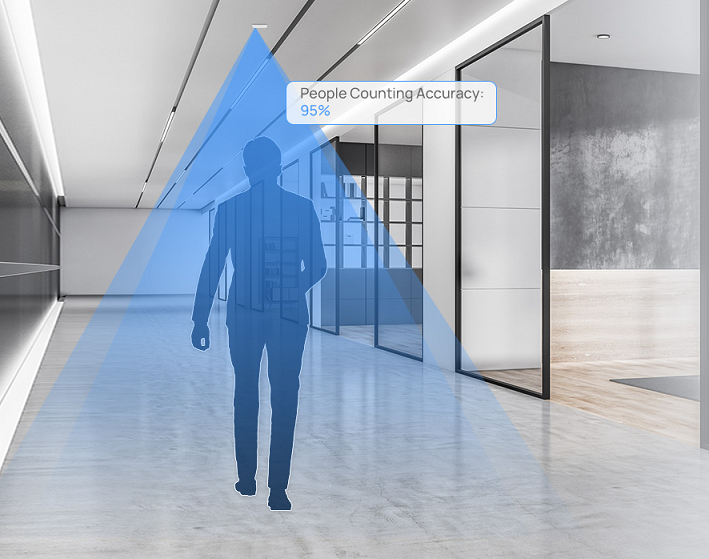

Cost-Effective Accuracy Performance

The Passage People Counter with high-cost performance elevates your business intelligence. It brings an accuracy of up to 95% when detecting a single person while reaching an accuracy of 80% to cover people's flow tendency for most spaces. The people counter combines precision and cost performance to get dependable data for informed decision-making in various applications.

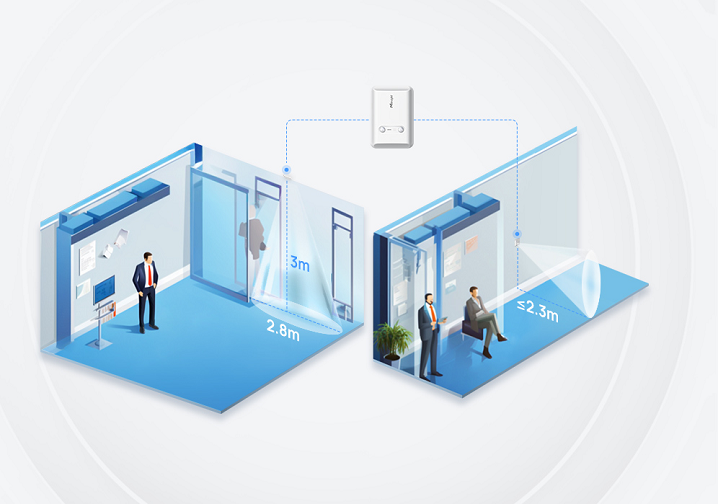

Large Detection Area

Engineering for passages with a wide coverage of 3 meters in height and 2.8 meters in width, the people counter ensures that no movement goes unnoticed. It is a good helper to provide comprehensive insights into foot traffic within the target area.

*The detection ranges are measured under a temperature of 20?. And they may decrease as the temperature increases.
