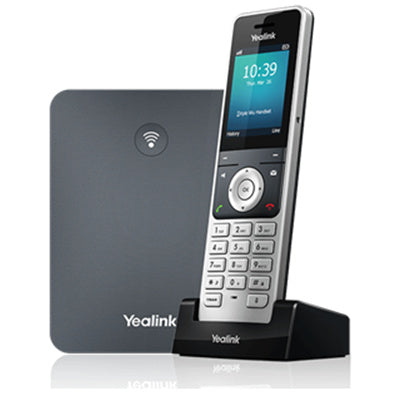

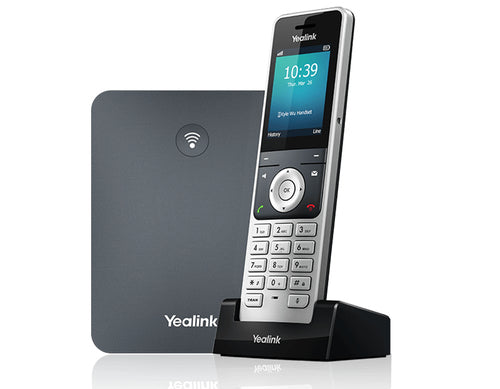

Yealink 1302024 - W76P DECT SIP Cordless W70B+W56H
Features
Yealink W76P DECT Phone System
Ideal for small- and medium-sized business
Scalable solution with superior performance
Optimized wireless communication experience for mobile working
Easy deployment and efficient management
Seamlessly compatible with Yealink full-range DECT endpoints
A High-performance Solution with Efficient Communication Network
Supporting registration with up to 10 Yealink W56H DECT handsets, the W76P system is launched with robust processing capacity for up to 10 SIP accounts and 20 silmultaneous calls. More flexibility and mobility could be enabled through up to 6 optional repeaters for extended network coverage.
Deliver Bright and Clear Voice to Fullfill Effectiveness Across Spaces
Combining the professional handset W56H with Yealink new DECT base staion W70B, the W76P delivers superb and stable audio quality in whether high-bandwith or poor network conditions by supporting Opus and a series of audio codecs. The Noise Reduction System also ensures the effectiveness of the conversations in complicated environments.
Streamline the Provision and Management, Saving Your Labor and Time Costs
The W76P supports efficient provisioning and effortless mass deployment with Yealink's Redirection and Provisioning Service (RPS) and Boot mechanism to help realize remote deployment, maintenance and upgrade.
Moreover, the new web portal for device management brings clear and intuitive interface to upgrade user experience.
Specifications
Technical Specifications
| Phone Features | Up to 20 simultaneous callsUp to 10 handsetsUp to 10 VoIP accountsUp to 2 simultaneous calls per handsetUp to 6 repeaters per base station (RT30)Handset selection for receiving callHandset and number selection for placing callPaging, intercom, auto answer, dial planCall hold, call transfer, 3-way conferenceSwitching between callsCall waiting, mute, silence, DNDCaller ID with name and numberAnonymous call/Anonymous call rejectionCall forward: Always/Busy/No AnswerSpeed dial/Voicemail/RedialMessage Waiting Indication (MWI)Music on hold (server-based)Local phonebook for up to 1000 entries (store in the base)Remote phonebook/LDAP/XML phonebookPhonebook search/import/export100 call history per handset: All/Placed/Missed/Received/ForwardDirect IP call without SIP proxyReset to factory, rebootKeypad lock, emergency callBroadsoft directory, BroadSoft call logBroadworks feature key synchronizationShared Call Appearance (SCA)XML browserAction URI |
|---|---|
| Personalization | 9 ringer melodiesScreen saverMultilingual user interface |
| Management | Auto-provision via TFTP/FTP/HTTP/HTTPS/RPSAuto-provision with PnPHandset upgrade: OTA (Over-The-Air)Configuration: browser/phone/auto-provisionTrace package and system log export |
| Audio Features | Full-duplex speakerphoneHearing Aid Compatibility (HAC) compliantReceiver volume control: 5 stepsRinger volume control: 5 steps+offMultiple advisory tonesAcoustic warning for low battery statusDTMFWideband codec: Opus, AMR-WB (optional), G.722Narrowband codec: AMR-NB (optional), PCMU,PCMA, G.726, G.729, G.729A, iLBCVAD, CNG, AGC, PLC, AJBAEC (supported by W56H)Support VQ-RTCPXR (RFC6035), RTCP-XR |
| Network Features | SIP v1 (RFC2543), v2 (RFC3261)SNTP/NTPVLAN (802.1Q and 802.1P)802.1x, LLDPSTUN Client (NAT Traversal)UDP/TCP/TLSIP assignment: Static/DHCPSupport outbound proxy server backup |
| Security | Open VPNTransport Layer Security (TLS)HTTPS (server/client), SRTP (RFC3711)Digest authenticationSecure configuration file via AES encryptionSupport SHA256/SHA512/SHA384Three-level configuration mode: Admin/Var/User |
| DECT | Frequency bands:1880 - 1900 MHz (Europe), 1920 - 1930 MHz (US)DECT Standards: CAT-iq2.0 |
| Interface | 1 x RJ45 10/100M Ethernet portPower over Ethernet (IEEE 802.3af), Class 1Headset jack (3.5 mm) |
| Physical Features | Indoor Range: 50m (in ideal conditions)Outdoor Range: 300m (in ideal conditions)Standby Time: 400 hours (in ideal conditions)Talk Time: 30 hours2.4'' 240x320 pixels color displayDesktop or wall mountableLCD backlit, key backlitEnergy-saving ECO mode/ECO Mode+12 key numerical keypad, 5 navigation keys, 2 softkeys, 6 function keys, 6 shortcut keysThree LED indicators on W70B:- 1 x Registration LED- 1 x Network Status LED- 1 x Power Indicator LEDExternal Yealink AC adapter:AC 100-240V Input and DC 5V/600mA OutputColor: Handset: Alabaster Silver ; Base: Classic GreyHandset size: 175mm x 53mm x 20.3mmBase station size: 130mm x 100mm x 25.1mmOperating humidity: 10 ~ 95%Operating temperature: 0~+40°C (+32~104°F) |
| Package Features | Package contents:- W56H Handset- W70B Base Station- Base Stand- USB Charger Cradle- Two Power Adapters- Ethernet Cable- Belt Clip- Rechargeable Battery- Quick Start GuideQty/CNT: 10 PCSGiftbox size: 205mm × 196mm × 95mmCarton meas: 495mm × 406mm × 223mmN.W: 7.5 kgG.W: 8.3 kg |
| Brand | Yealink |
|---|---|
| Product Type | UC & Video Conferencing > Business Phones > IP Phones / Gateways |
| Weight | 0.34 kg |
