Ubiquiti

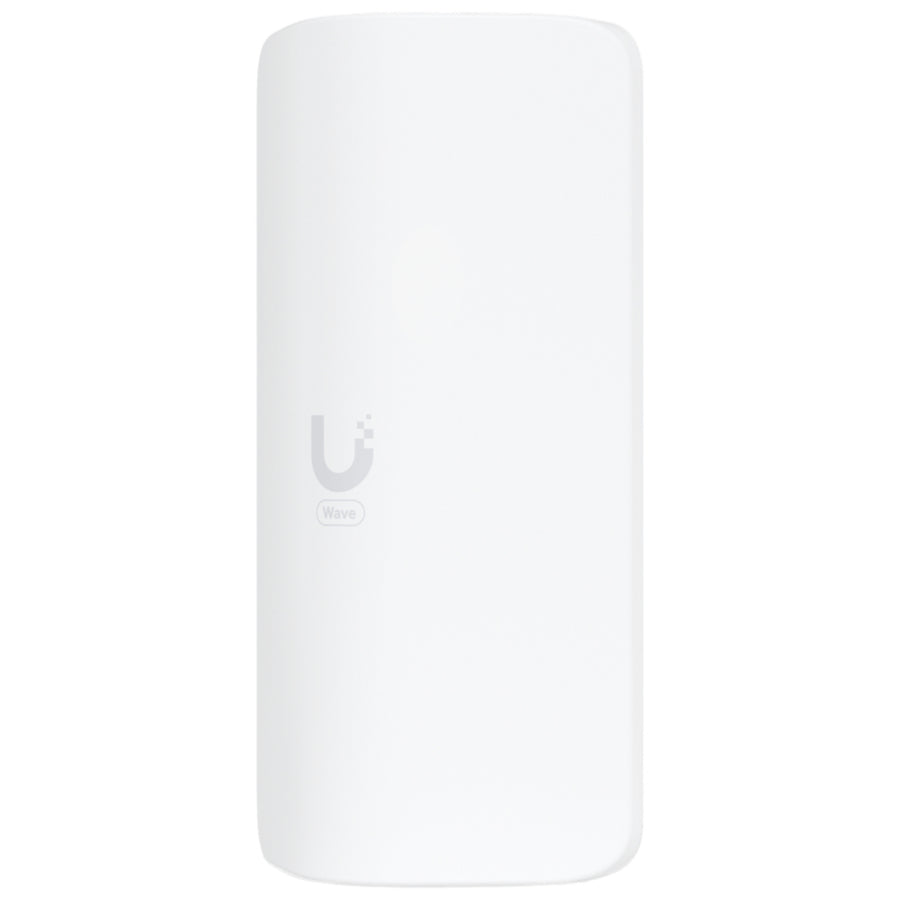

Wave-AP-Micro - Ubiquiti UISP Wave 60GHz Access Point Micro
$1,208.09
Free shipping over $299
Genuine product
7-day returns
Wave-AP-Micro - Ubiquiti UISP Wave 60GHz Access Point Micro
Features
Ubiquiti UISP Wave 60GHz Access Point Micro. Wide-coverage 60 GHz PtMP access point powered by Wave Technology.
- 60 GHz 5 Gbps max. throughput (2.5 Gbps duplex) main radio

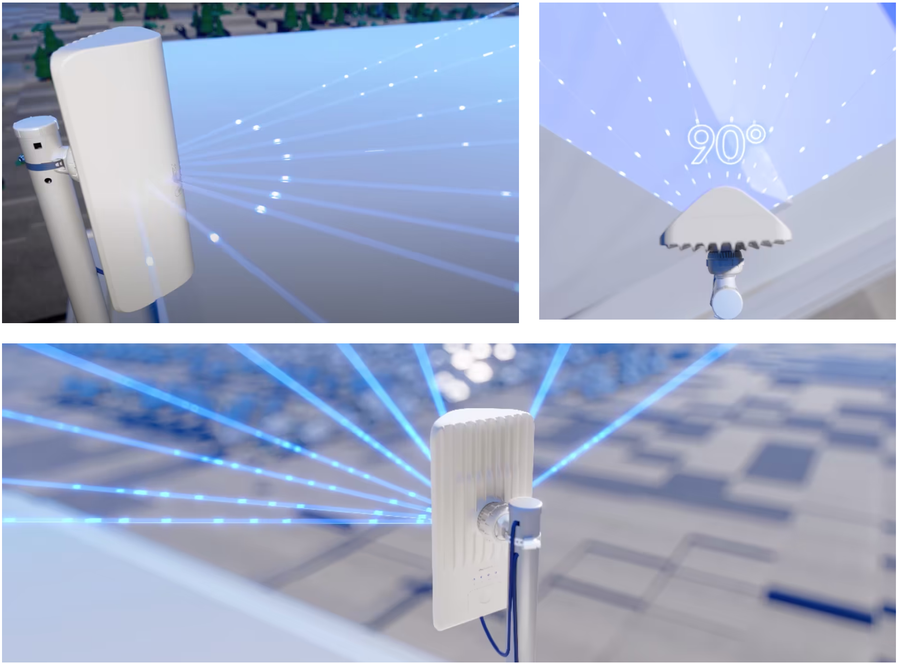

- 90° sector coverage
- 5 GHz 800+ Mbps weather-resilient backup radio
- (1) 2.5 GbE WAN port
- 15 client capacity: Wave-Long-Range (6 km link range), Wave-Nano (4 km link range)
- Integrated GPS & Bluetooth
Building Features
Specifications
Technical Specifications
| Brand | Ubiquiti |
|---|---|
| MPN | WAVE-AP-Micro |

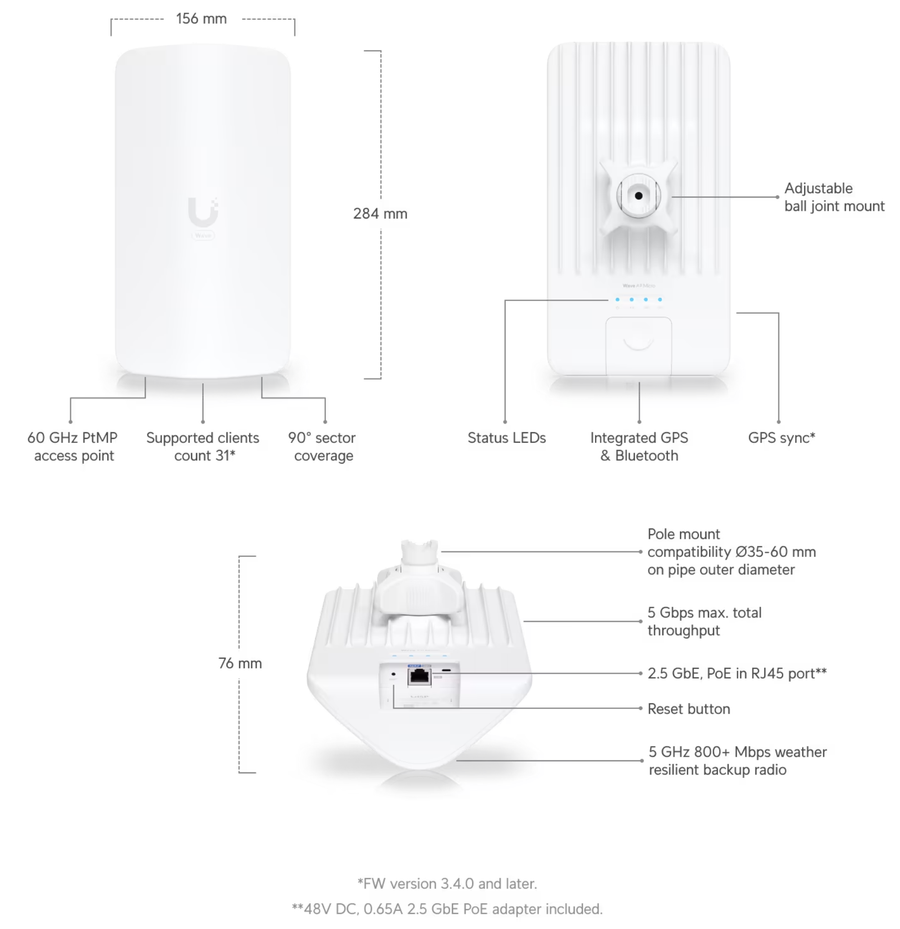

| Dimensions | 284 x 156 x 76 mm (11.2 x 6.1 x 3") |
| Weight | 1.3 kg (2.9 lb) |
| Enclosure material | Aluminum alloy, UV stabilized polycarbonate |
| Mount material | Stainless steel, UV stabilized polycarbonate |
| Pole mount diameter | 35 to 60 mm (1.4 to 2.4") on pipe outer diameter |
| Wind loading | 87 N at 200 km/h (20 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Max. power consumption | 24W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only |
| Power supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (Included) |
| Supported voltage range | 44-54V DC22-27V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, Link |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Operating mode | PtMP access point |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey**FW version 3.3.0 and later. |
| Network | Bridge mode |
| Application requirements | UISP web: Version 2.2.11 and laterUISP mobile iOS™: Version 2.25.1 and laterUISP mobile Android™: Version 2.27.5 and later |
| Total throughput | 5 Gbps |
| Supported clients count | 31**FW version 3.4.0 and later. |
| Max. range | Connecting to a Wave Pro: up to 6 kmConnecting to a Wave Long-Range: up to 6 kmConnecting to a Wave Nano: up to 4 kmConnecting to a Wave Pico: up to 0.9 km |
| Encryption | WPA2-PSK (AES) |
| Operating frequency* | 57-71 GHz*Depends on regulatory region. |
| Channel bandwidth | 2160, 1080, 540* MHz*FW version 3.3.0 and later. |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz*Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 20 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 90°Elevation: 3 dB 7° |
| Electrical downtilt | 0° |
