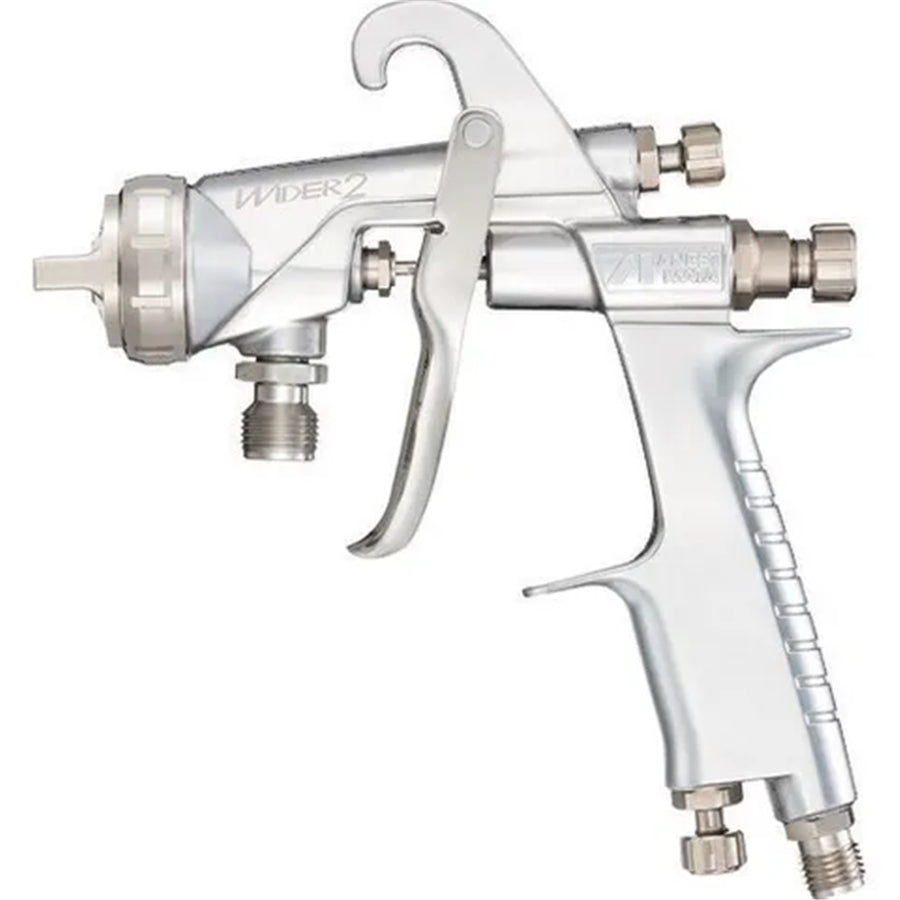

WIDER2152S - IWATA SUCTION SPRAYGUN WIDER2 1.5MM K2 CAP GUN ONLY
WIDER2152S - IWATA SUCTION SPRAYGUN WIDER2 1.5MM K2 CAP GUN ONLY
Features
Dependable Quality and Repeatability
We have always created the ideal spray guns, adapted to diverse applications and evolving paints. Newly developed the WIDER1 and WIDER2 models. We have distilled this experience and expertise into this new WIDER model.
FEEL
Linear Response Pattern Adjustment set - Our newly-developed pattern adjustment set now provides around 35% with 1 turn, around 50% with 1.5 turns, and around 70% with 2 turns.
REPEATABILITY
Revised Air Valve Seat Sets for a more consistent installation installing it into place could produce differences in air volume due to its' position. This difference could potentially influence paint output and pattern width. We revised the design for the new WIDER, making the orifices much larger and more uniform so that installing the air valve seat set in produces more repeatable results.

Specifications
Technical Specifications
| Previous Model | W-200-152S |
|---|---|
| New Model | WIDER2-15K2S |
| Type of Feed | Suction |
| Fluid Nozzle Diameter (Fmm) | 1.5 |
| Atomizing Air Pressure (MPa) | 0.29 |
| Air Consumption (L/min) | 330 |
| Fluid Output (mL/min) | 240 |
| Pattern Width (mm) | 290 |
| Atomization | High atomization |
| Air Cap | K2 |
| Weight (g) | 375 |
| Application | Automotive refinishing, Wood and furniture, plastics |
