WLN-M - Shuttle WLN-M WLAN-ac / Bluetooth Combo Kit M.2

SKU: WLN-M ● In Stock

$38.00

Free shipping over $299 Genuine product 7-day returns

WLN-M - Shuttle WLN-M WLAN-ac / Bluetooth Combo Kit M.2

Overview

Universal WLAN-ac / Bluetooth Combo Kit with M.2 card

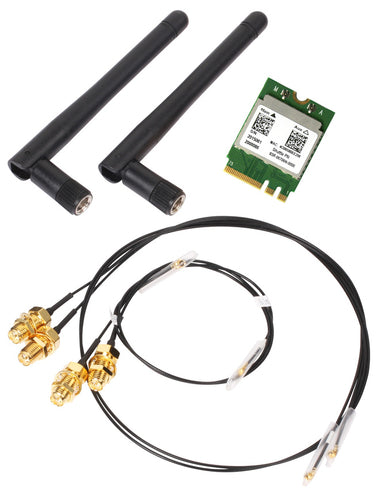

The Shuttle XPC Accessory WLN-M is a wireless LAN kit consisting of a M.2-2230 card, two antennas and appropriate cables. The WLN-M is intended for certain Shuttle barebones of the XPC cube and XPC slim series to equip them with the wireless LAN standard according to IEEE 802.11n/ac at 2.4 / 5 GHz. At the same time, his combo device also supports Bluetooth 4.0.

Technical Specifications

Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN / Bluetooth
PCI version	1.1
PCI Card form factor	Full-height
Maximum data transfer rate	433.3
Networking standards	IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11i,IEEE 802.11n
Wi-Fi	Y
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
WLAN data transfer rates supported	433
Security algorithms	AES,WAPI,WPA,WPA2
Bandwidth (first)	2.4
Bandwidth (second)	5
Bluetooth version	4.0
Component for	PC
Product colour	Green
Internal	Y
Antenna	Y
Chipset	RTL8821AE
Country of origin	China
Compatible products	NC02U, NC03U, NC10U, DH110(SE), DH270, DH310(S), DH310V2, DH370, DH410(S), DH470, DH610(S), DH670, XH110(V), XH110G, XH270, XH310(V), XH310R(V), XH410G, XH510G(2), XH610(V), XC60J, DX30, DL10J, DL20N(6), DH02Ux, SH110R4, SZ170R8V2, SZ270R8, SZ270R9, SH310R4(V2), SH370R6(V2)(Plus), SH370R8, SH510R4, SH570R6 (Plus), SH570R8, SW580R8, EN01J3, EN01J4, EN01E, EN01B
Windows operating systems supported	Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Linux operating systems supported	Y
Operating temperature (T-T)	0 - 70
Storage temperature (T-T)	-20 - 70
Operating relative humidity (H-H)	10 - 80
Width	26.65
Depth	29.85
Height	2.35
Antenna length	108
Antenna diameter	10
Drivers included	Y
Quantity per pack	1
Harmonized System (HS) code	85176990
Detachable antenna(s)	Y
Antennas quantity	2
Quick start guide	Y
Bandwidth note	80
