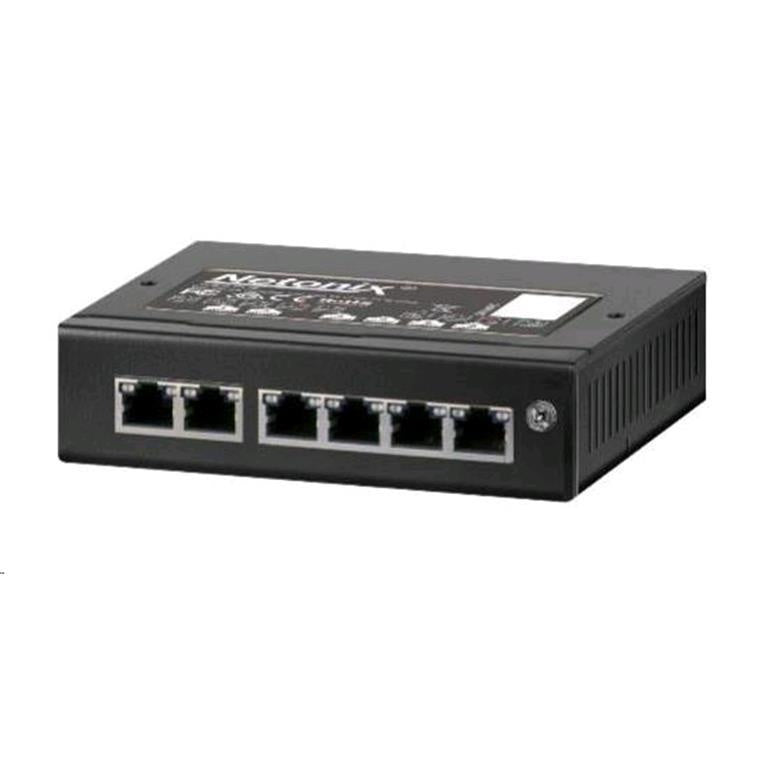

WS-6-MINI - Netonix WS-6-MINI Passive Ethernet PoE Switch

The Netonix WISP Switch model WS-6-MINI is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.
Important: Check device POE type and pinout before enabling 24VH or 48VH Settings! i.e. 24VH Ports should only be used for devices like AF-5X, 48VH Ports should only be used by airFiber (AF24, AF5) and Mimosa (B5, B5c).

- Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes
- The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH)
- The only switch line on the market that has current sensors on all passive POE ports
- Port 1 will accept passive 48VH (48-53V) using all 4 pairs like a POE injector used to power an airFIBER 24 GHz
- DO NOT power the WS-6-MINI with a standard passive POE adapter that only supplies 48V power on 2 pairs
- If powering the WS-6-MINI with a 48-53V barrel connector power supply port 1 has no POE options, it is just a standard Ethernet port
- If powering the WS-6-MINI with a barrel connector power supply be sure to connect the ground screw to Earth Ground for ESD protection.
