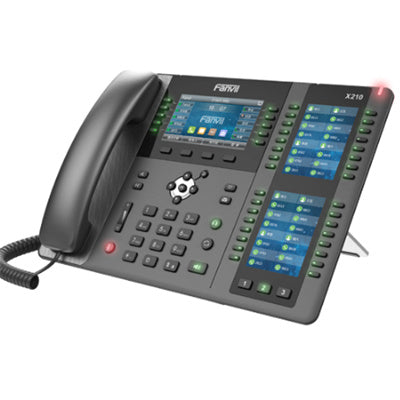

Fanvil Technology Fan-X210 - X210 Enterprise IP Phone 20 SIP Line PoE# Hardware
Features
Fanvil X210 High-end Enterprise IP Phone
- 20 SIP lines, 3-way conference, hotspot
- HD audio on speakerphone and handset
- 4.3' main color display
- Built-in Bluetooth
- 2×3.5' side color displays for DSS keys
- Up to 106 DSS keys (42 tri-colored physical keys)
- Dual Gigabit ports, integrated PoE
- Wi-Fi connectivity (via Wi-Fi dongle)
- Support EHS headset
- Video Codec H.264 support for receiving video calls
- Stand with 2 adjustable angles of 40 and 50 degrees
- Compatible with major platforms: 3CX, Asterisk, Broadsoft,Metaswitch, Avaya etc.
Call Features
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forwarding (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (On server)
- 3-way Conference
- Hot Line
- Hot desking
Phone Features
- Local Phonebook (2000 entries)
- Remote Phonebook (XML/LDAP, 2000 entries)
- Call logs (In/out/missed, 1000 entries)
- Black/White List Call Filtering
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Built-in Bluetooth 2.1: Support Bluetooth headset
- Support Wi-Fi Dongle
- Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Support Recording (Through Flash Drive or Server Recording )
- Action URL / Active URI
- uaCSTA
Specifications
Technical Specifications
| Main LCD x1 | 4.3 inch (480×272) color-screen LCD |
|---|---|
| DSS Key-mapping LCD x2 | 3.5 inch (320×480) color-screen LCD |
| Keypad | 77 keys, including, 4 Soft-keys , 6 Function keys (Hold, Call forward, Phonebook, MWI, Headset, Redial), 4 Navigation keys,1 OK key, 1 Return key, 2 Standard Phone Digits keys , 3 Volume Control keys, Up/Down/Mute(Microphone), 1 Hands-free key, 42 DSS Keys with tri-color LED, 3 Page-Switch (PS) key |
| HD Handset (RJ9) x1 | Standard RJ9 Handset Wire x11.5M CAT5 Ethernet Cable x1Back Rack x1 |
| RJ9 Port x2 | Handset x1, Headset x1 |
| RJ45 Port x2 | Network x1, PC x1 (Bridged to Network) |
| USB2.0 Port x1 | Standard A, Connect with Wi-Fi USB dongle or Flash Driver |
| DC Power Input | 5V/2A |
| Power Consumption (PoE) | 2.6~ 9W |
| Power Consumption (Adapter) | 2.4~8W |
| Working Temperature | 0~45? |
| Working Humidity | 10~95% |
| Installation | Desktop Stand |
| Color | Dark gray |
| Device Dimensions | Desktop Stand (Angles 1): 309 x 214 x 187mm,Desktop Stand (Angles 2): 309 x 226 x 167mm |
| Outer CTN Dimensions | 624 x 383 x 348mm (10 PCS) |
| Video codec | H.264 |
| Video call resolution | QCIF / CIF / VGA |
| HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response) | HAC handsetWideband ADC/DAC 16KHz Sampling |
| Narrowband Codec | G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC |
| Wideband Codec | G.722, AMR-WB, Opus ? Full-duplex Acoustic Echo Canceller (AEC) |
| Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) | Packet Loss Concealment (PLC)Dynamic Adaptive Jitter Buffer up to 300ms |
| DTMF | In-band, Out-of-Band - DTMF-Relay(RFC2833) / SIP INFO |
| Physical | 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass |
| IP Mode | IPv4/IPv6/IPv4&IPv6 |
| IP Configuration | Static / DHCP / PPPoE |
| Network Access Control | 802.1x |
| VPN | L2TP / OpenVPN |
| VLAN | LLDPQoSRTCP-XR(RFC3611),VQ-RTCPXR(RFC6035) |
| SIP2.0 over UDP/TCP/TLS | RTP/RTCP/SRTPSTUNDHCPIPv6LLDPPPPoE802.1xL2TPOpenVPNSNTPFTP/TFTPHTTP/HTTPSTR-069 |
| Brand | Fanvil Technology |
|---|---|
| Product Type | UC & Video Conferencing > Business Phones > IP Phones / Gateways |
| Weight | 0.5 kg |
| Warranty |
|---|
