XAP-1510 - Luxul HighPower Dual-Band Wireless AP
XAP-1510 - Luxul HighPower Dual-Band Wireless AP
Features
Combining high output power and leading-edge 802.11ac 3x3 Dual-Band technology with Beamforming, the XAP-1510 delivers data rates up to 1900Mbps along with outstanding wireless coverage for a world-class Wi-Fi experience. The sleek design allows for unobtrusive mounting on a ceiling, wall or other flat surface-making it a great choice for maximizing coverage in both Residential and Commercial environments. It is compatible with the XWC-1000 Wireless Controller and can be used standalone or as part of a multi-AP deployment. Installation is simple, requiring only a single Ethernet cable that delivers both power and data through the integrated PoE+ port.
802.11AC
With leading-edge 802.11ac 3x3 Dual-Band technology, the XAP-1510 delivers data rates up to 1900Mbps. The XAP-1510 isn't just about faster speeds, though. Beamforming, which directs signals from the AP toward each client, focuses the data transmission so that more data reaches each targeted device instead of radiating in all directions equally.
The XAP-1510 with 802.11 AC, Beamforming, and outstanding wireless coverage delivers a world-class Wi-Fi experience.
Convenient Mounting

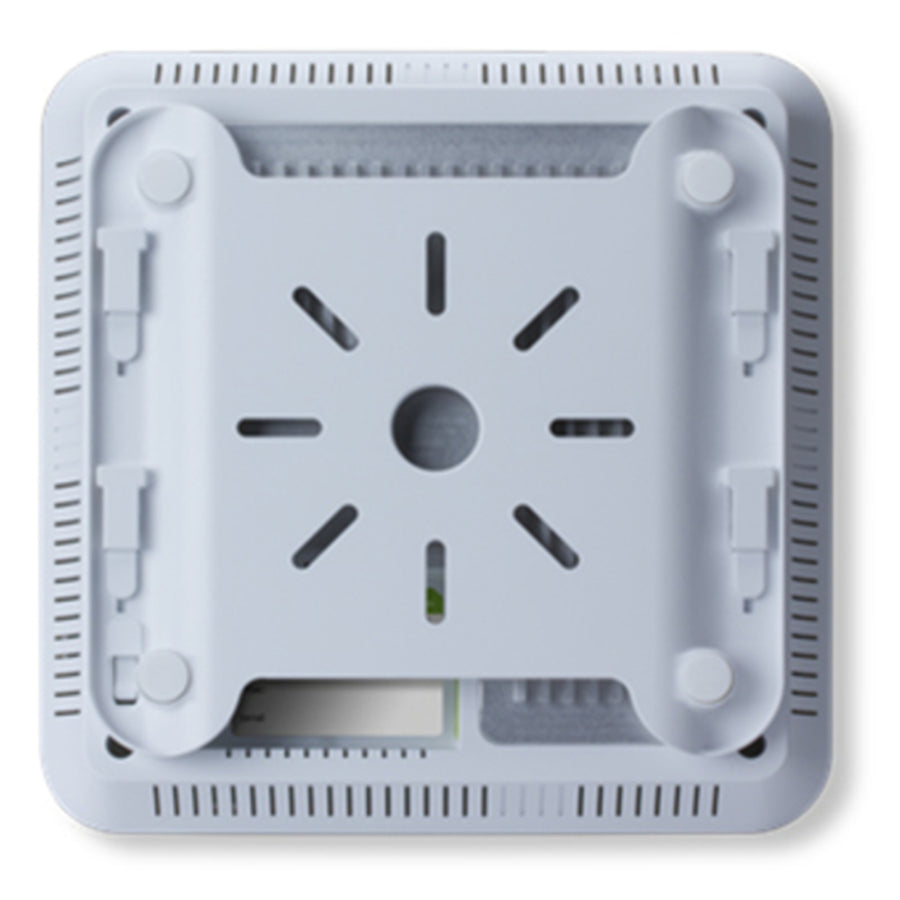

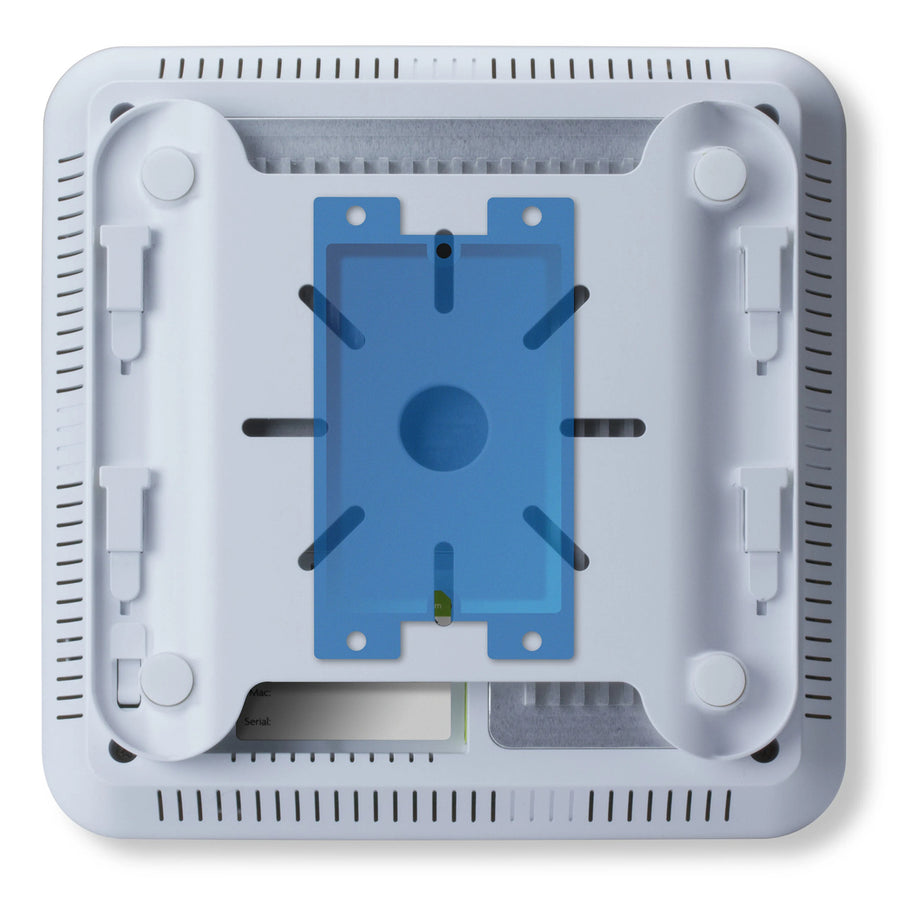

With the XAP-1510, installation is a snap! The sleek design allows for unobtrusive mounting on a ceiling, wall or other flat surface. A mounting bracket is included that mounts easily to most regions' standard electrical boxes.

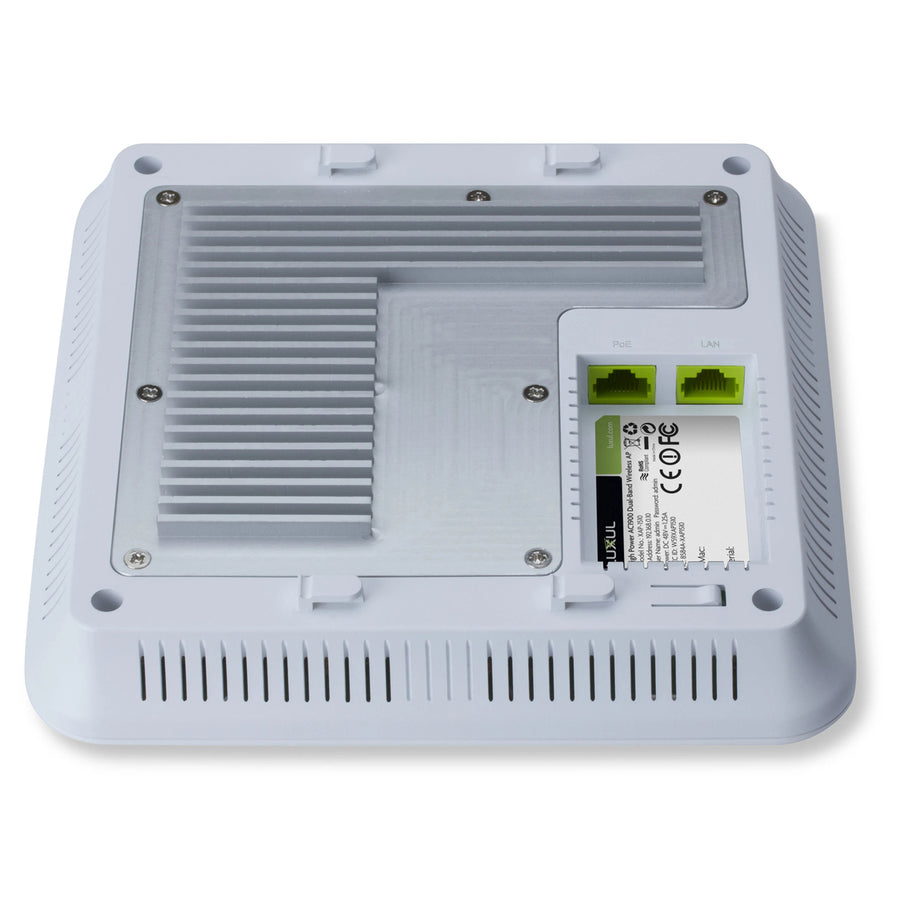

The XAP-1510 also requires only a single Ethernet cable that delivers both power and data through the integrated PoE+ port. Use one of Luxul's PoE switches, or the included PoE injector.
- High Performance 802.11ac Wi-Fi (data transfers up to 1900Mbps)
- Concurrent Dual-Band Wireless AC
- 2.4 and 5GHz Beamforming
- High Output Power for Maximum Coverage
- Great for Streaming Media and Other Demanding Applications
- VLAN Support for Creating a Secure Guest Network
- Simple and Discreet Installation
- Up to 4 SSIDs per Band for a total of 8 SSIDs
- Single Cable Installation with PoE (Injector included)
- Installs on Ceiling or Wall; Or Use as a Desktop AP

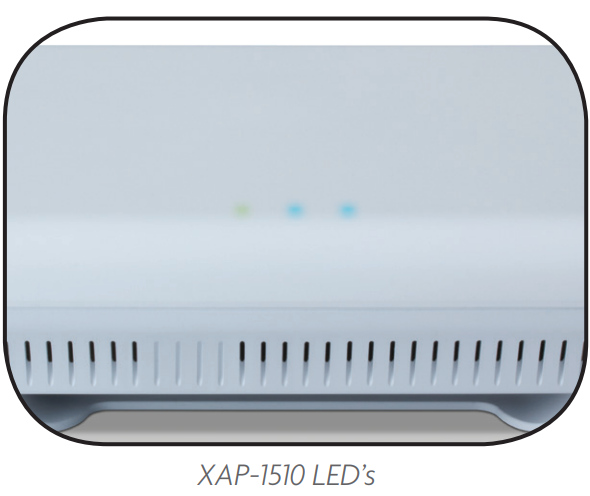

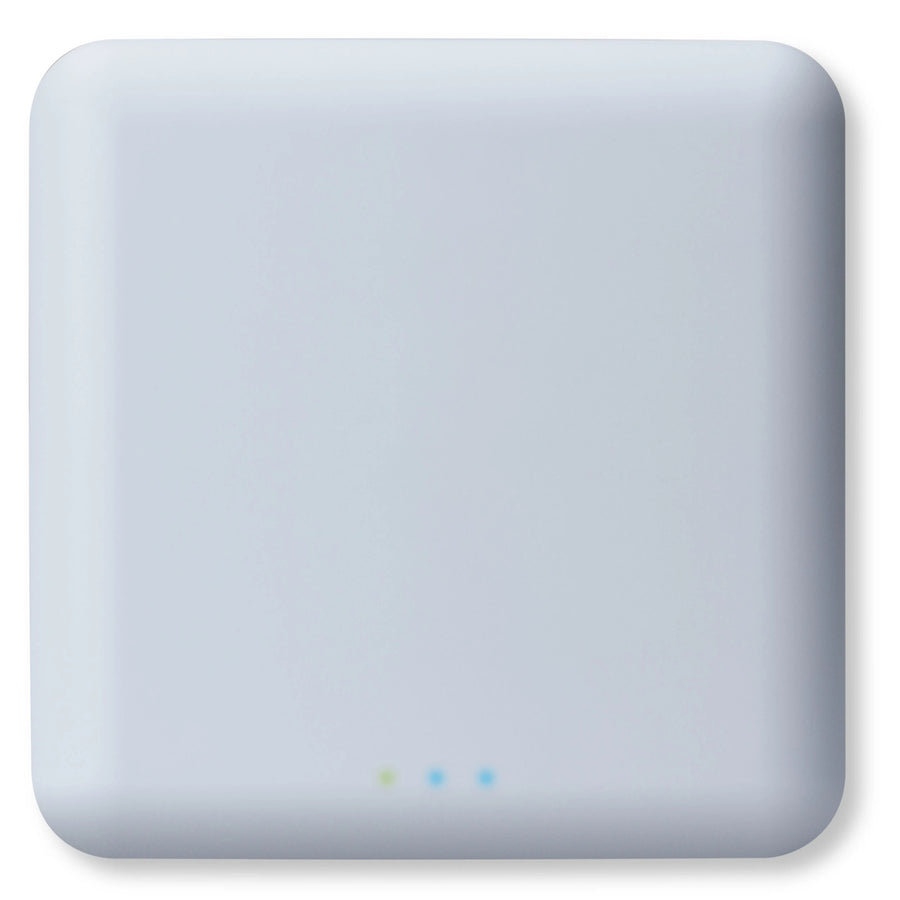

LED Indicators
Specifications
Technical Specifications
| Standards | Compliance IEEE, 802.11b/g/n, 802.11a/n/ac, 802.3at |
|---|---|
| Interface | Two 10/100/1000M Ports |
| Antenna | Three Dual-Band Antennas |
| Button | Reset button |
| Power | PoE (Injector Included) |
| Power Consumption | 10W Idle 25.3W Peak |
| Environment Tempatures | 0-50C° |
| Dimensions WxHxD in. (mm) | 7.25"x7.25"x2" (184.15 x184.15 x50.8) |
| Weight | lbs (kg) 1.5 (.68) |
| LEDs | Power, 2.4GHz, 5GHz (Can be turned Off/On Via User Interface) |
| Frequency | Concurrent 2.4GHz and 5GHz with Beamforming |
| Wireless Speed | - 2.4GHz: 600Mbps;- 5GHz: 1.3Gbps |
| Wireless Security | WPA-PSK, WPA2-PSK, WPA/WPA2 |
| Operating Modes | Wireless AP |
| Other Functions and Features | - Remote Web Management- System Logging- Backup & Restore Configurations- VLAN/Guest Network Support- Up to 4 SSIDs per Band for a total of 8 SSIDs- Firmware Upgradeable via UI- XWC-1000 Wireless Controller Compatible |
| Certifications | CE, FCC, RoHS |
